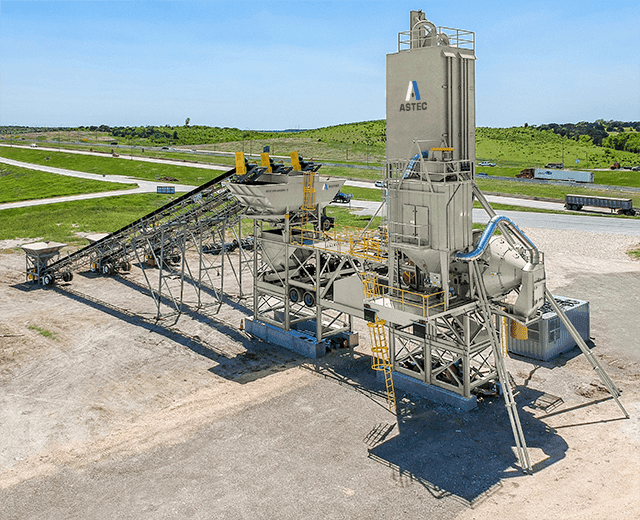

RexCon Model S portable paving concrete batch plant in the field

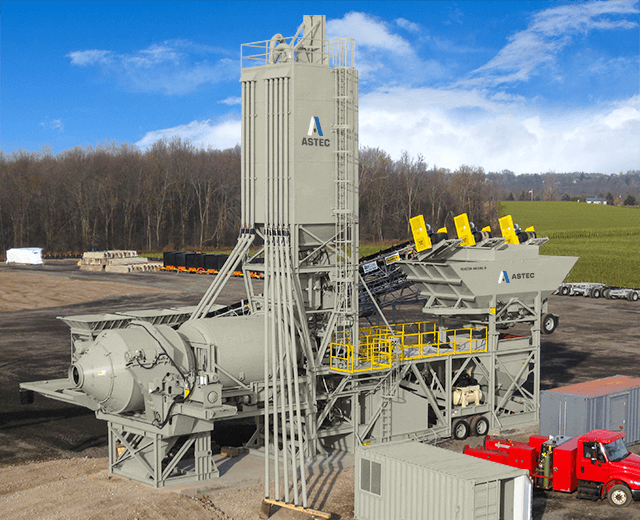

RexCon Model S high-resolution 3D rendering against sky

RexCon Model S components layout aerial rendering

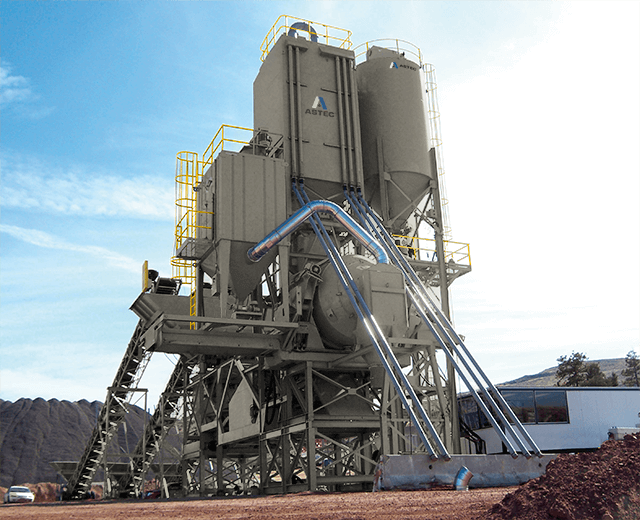

RexCon Model S dual tilt mixer setup layout rendering

RexCon Concrete Batch Plant

RexCon Model S

Highly portable central-mix paving plant with modular, pin-connected sections. Produces up to 35 loads/hr with a RexCon tilt mixer and up to 55 loads/hr with the optional horizontal mixer.

Request a Quote View Searchable Specs

Capacity

201-300, 301+ yd/hr

Mix Type

Central mix

Mobility

Mobile

Best For

High-Volume Portable Paving and Infrastructure

RexCon Model S Overview

The RexCon Model S is the heavy portable paving plant in the lineup. Astec describes it as a portable paving batch plant built for portability, volume production, and quality mixing, with modular sections that are pin-connected for fast installation on the job site.

For Texas DOT paving, airport paving, industrial slab work, and large infrastructure packages, the Model S is the page buyers should land on when they search for a high-production portable concrete batch plant rather than a compact mobile yard plant.

RexCon Model S Photo Gallery

Real installations and equipment views of the RexCon Model S. Click any image to view full size.

Key Features

Modular sections are pin-connected for fast job-site installation.

Produces up to 35 loads per hour with a RexCon tilt mixer.

Produces up to 55 loads per hour when paired with the RexCon Horizontal Mixer.

Mobile central-mix configuration for high-volume portable production.

Designed around concrete paving and infrastructure work where output and mix quality both matter.

Technical Specifications

RexCon Model S Highly-Portable Plant Specs

Select a configuration or module below to review searchable specifications transcribed from the Astec RexCon Model S brochure. The plant features four highly-portable trailerized modules that pin-connect for rapid field installation.

RexCon Model SHighly-Portable Central-Mix Plant

Highly-Portable Central-Mix Plant

RexCon Model S

The industry-standard high-volume portable paving plant. Features a modular, pin-connected, trailerized configuration with a 12 yd3 single-pivot tilt mixer, 135-ton aggregate storage, and a 600 BBL split cement silo.

Quick Specs

Production capacity: Produces up to 35 loads/hr with tilt mixer, and up to 55 loads/hr when also paired with the optional RexCon Horizontal Mixer.
Mixer setup: 12 cu. yd. (9.2 cu. m.) single-pivot tilt mixer with poly-lined drum and 30 HP hydraulic pack.
Cement storage: 600 BBL split compartment silo with double wall, mixer charging hood, and batched water holding reservoir.
Aggregate storage: 135 Ton (90 cu. yd.) 3-compartment reversible bin, or optional 205 Ton bin with turnhead.
Mobility & Setup: Pin-connected trailerized modules, pre-wired and pre-plumbed for fast installation without crane heavy overhead.

Mixing and Batching Systems

Tilt mixer: 12 cu. yd. / 9.2 cu. m CPMB tilt mixer with polyurethane drum liner, 30 HP hydraulic power unit, emergency gravity mixer tilting, and structural mixer stand.
Aggregate batcher: 12 cu. yd. / 9.2 cu. m CPMB batcher equipped with high-accuracy 50,000 lb. (22,679 kg) direct-weigh load cells.
Batch belt conveyor: 48 in. (122 cm) wide heavy-duty conveyor operating at 500 FPM (152.4 MPM) powered by a 20 HP motor.
Water system: 3 in. (7.6 cm) Badger water meter standard, combined with a 5,000 gal. (18,927 L) main water storage tank and a batched water holding reservoir.

Material Storage and Feeders

Cement silo: 600 BBL (2,400 cu. ft., 112.7 Ton / 102 MT) split-compartment silo with double-wall construction, high and low bin level signals, mixer charging hood, and five 5 in. (12.7 cm) cement fill pipes.
Aggregate bin: 135 Ton (90 cu. yd. / 122 MT) reversible aggregate bin with three compartments, and three high-level bin level signals.
Cement aeration: 3 HP dedicated aeration blower with aeration piping.

Controls, Electrical and Plant Options

Power & Electrical: 460 Volt power panel with starters, pre-wired to plant segments in robust conduit.
Batch automation: RexCon RC3 computer batch automation controls for precise material blending and automatic cycle scheduling.
High-pressure air compressor: 20 HP high-pressure air compressor mounted on plant frame with a 120 gal. (454.2 L) ASME reservoir tank.
Paving application options: Horizontal Mixer trailer (enabling up to 55 loads/hr); high-performance spiral blades (up to 45 loads/hr); additional cement fill pipes; 14 yd3 (12L) longer drum option; 100 HP mixer motors.
Ready-mix options: 205-ton aggregate bin & automated turnhead; mixer maintenance platform and dump cone; 750 BBL cement silo; telescopic boot; central dust collector & shroud.

Trailer Modules and Erection Dimensions

Tilt mixer trailer: Towing dimensions: 47 ft 10 in length, 11 ft 6 in width, 13 ft 8 in height. Weight: 22,600 lbs (10,251 kg).
Cement silo trailer: Towing dimensions: 54 ft 4 in length, 11 ft 6 in width, 13 ft 6 in height. Weight: 41,500 lbs (18,824 kg).
Aggregate bin trailer: Towing dimensions: 30 ft 6 in length, 11 ft 0 in width, 13 ft 6 in height. Weight: 22,600 lbs (10,251 kg).
Plant base trailer: Towing dimensions (base/conveyor): 39 ft 0 in length, 12 ft 0 in width, 13 ft 8 in height. Weight: 63,000 lbs (28,576 kg).
Auxiliary gravity bin section: Towing dimensions: 24 ft 6 in length, 11 ft 0 in width, 8 ft 3 in height. Weight: 9,200 lbs (4,173 kg).

Specifications are based on the Astec RexCon Model S sales brochure provided by Closner. Exact layout, ratings, capacities, and shipping dimensions can be tailored by configuration, so confirm final submittals and engineering drawings with Closner before ordering or permitting.

When This Plant Is the Right Fit

You need a portable plant for volume paving, not just occasional ready-mix backup.

You want central-mix concrete quality close to the project site.

You need fast setup compared with a fully custom stationary plant.

You are bidding DOT, airport, roadway, or heavy civil work where sustained production wins the job.

Texas Application

The Model S is a strong fit for Texas contractors working long highway pours, major metro infrastructure, airport work, and large industrial paving packages where trucking from a distant permanent plant hurts cycle time.

RexCon Model S FAQ

How much can the RexCon Model S produce?

Astec lists the Model S at up to 35 loads per hour with a RexCon tilt mixer and up to 55 loads per hour when also using the RexCon Horizontal Mixer.

Is the RexCon Model S portable?

Yes. The Model S is a mobile central-mix plant with modular, pin-connected sections designed for fast installation on a job site.

Who should consider the RexCon Model S?

Ready-mix and paving contractors who need high-volume portable central-mix production should compare the Model S against the Mobile 12 SE CM and larger stationary RexBatch options.
