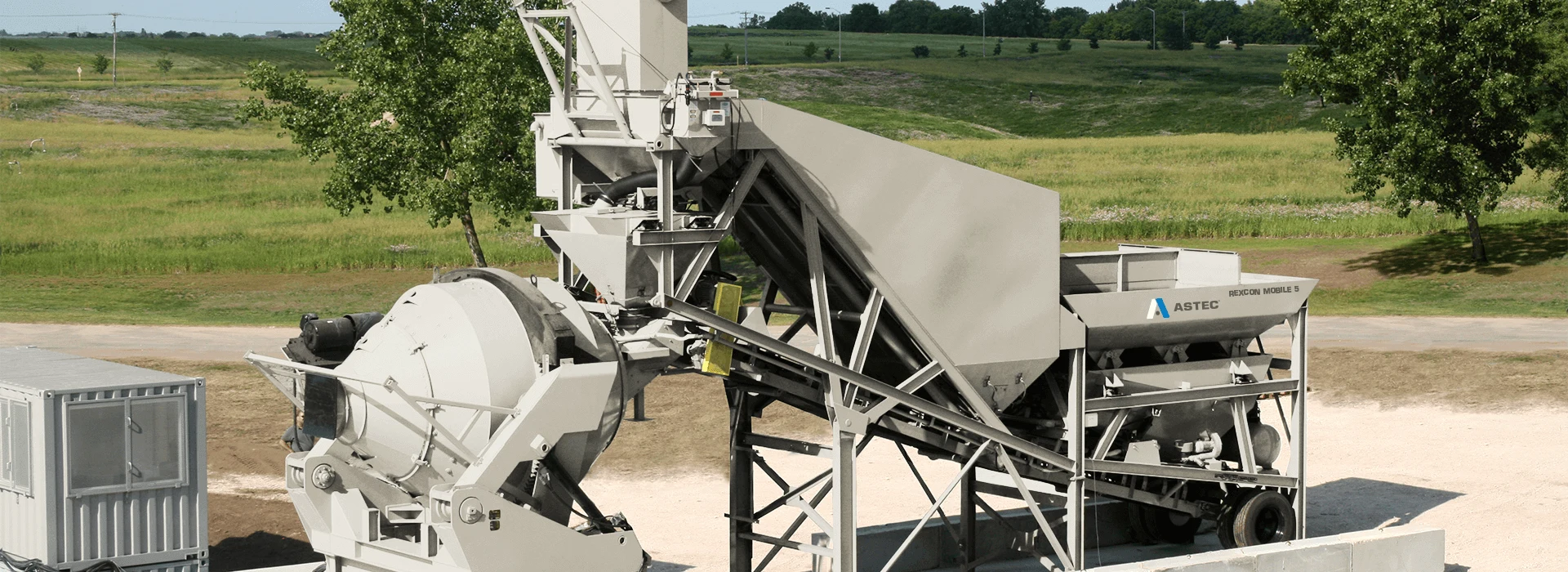

RexCon Mobile 5 portable concrete batch plant with central mixer and aggregate bins

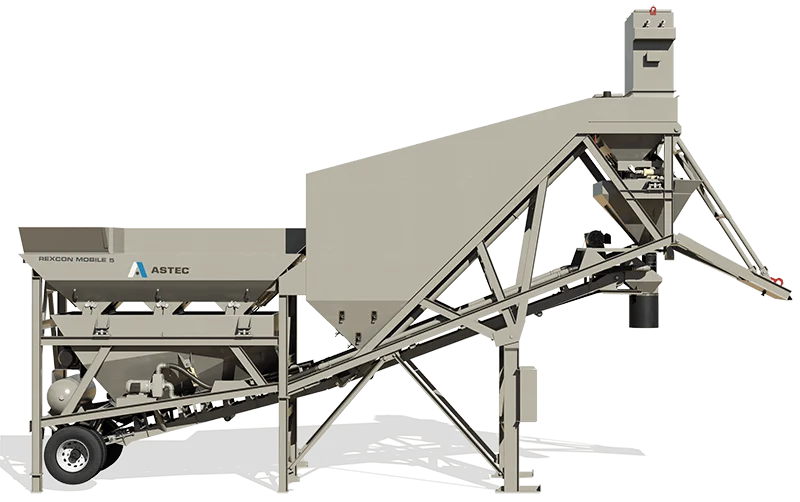

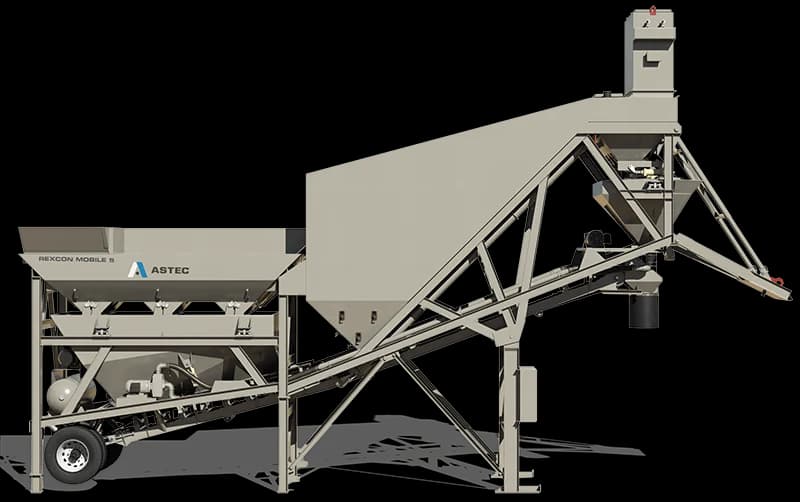

RexCon Mobile 5 side operating view showing conveyor and aggregate bin layout

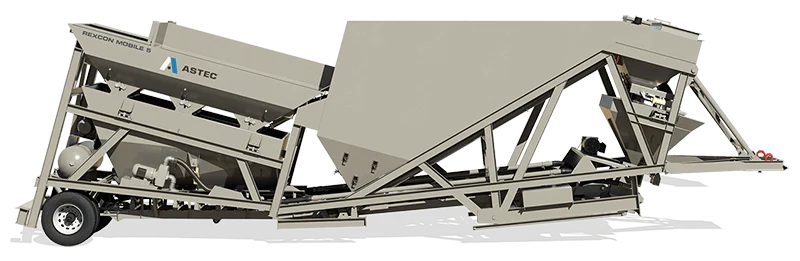

RexCon Mobile 5 side transport configuration rendering

RexCon Mobile 5 gravity feed surge hopper detail

RexCon Concrete Batch Plant

RexCon Mobile 5 Concrete Batch Plant

Q: What is the RexCon Mobile 5 CM best used for?

The Mobile 5 CM is best for portable concrete production, remote work, and frequent plant moves where a single-load mobile plant is more practical than a fixed plant.

Q: How is the RexCon Mobile 5 CM erected?

Astec describes the Mobile 5 with a telescoping fifth wheel and hinged columns that allow the plant to be erected with only a front-end loader.

Q: Is the Mobile 5 CM right for high-volume paving?

It is generally a compact portable option. For sustained high-volume paving, Closner would normally compare it against the RexCon Model S or RexCon Mobile 12 SE CM.

Q: What cement storage does the RexCon Mobile 5 use?

The Astec brochure lists 900 ft3, 225 BBL, 42.3 ton cement storage with a gravity-feed surge hopper that holds approximately two batches of cement.

Q: Can the Mobile 5 be upgraded to central mix?

Yes. Astec lists central mix as an available option for higher output and more consistent concrete. Closner can help compare the central-mix package against your target production rate and truck flow.

Q: Does Closner support RexCon Mobile 5 plants in Texas?

Yes. Closner Equipment sells and supports RexCon and Astec concrete plant equipment across Texas, including parts, service coordination, installation planning, and plant-option guidance.

Single-load mobile batch plant for remote sites, portable ready-mix, and frequent moves. Erects with a front-end loader and uses a 225 BBL gravity-feed cement surge hopper, low-profile aggregate bins, and factory pre-wired/pre-plumbed systems.

Request a Quote View Searchable Specs

Capacity

<100, 100-200 yd/hr

Mix Type

Central mix

Mobility

Mobile

Best For

Frequent Moves and Remote Locations

RexCon Mobile 5 Concrete Batch Plant Overview

The RexCon Mobile 5 is the compact portable concrete batch plant Closner recommends when mobility is the main constraint. Astec positions the Mobile 5 as a single-load mobile plant for portable projects requiring less than 100 cubic yards per hour, with future central-mix capability when the job calls for higher productivity.

The plant's transport package is the story: a telescoping fifth wheel, hinged columns, folding legs, and factory pre-wiring/pre-plumbing help crews move, erect, and return to production without the civil-work burden of a permanent plant. The 225 BBL cement storage section feeds a gravity surge hopper that is continuously replenished by two recirculating screw conveyors.

For Texas contractors working county roads, rural paving, utility projects, wind-farm pads, remote subdivisions, oilfield support work, and temporary ready-mix sites, the Mobile 5 gives you a practical way to put concrete production closer to the pour.

Plant Features

RexCon Mobile 5 CM Features That Matter on a Job Site

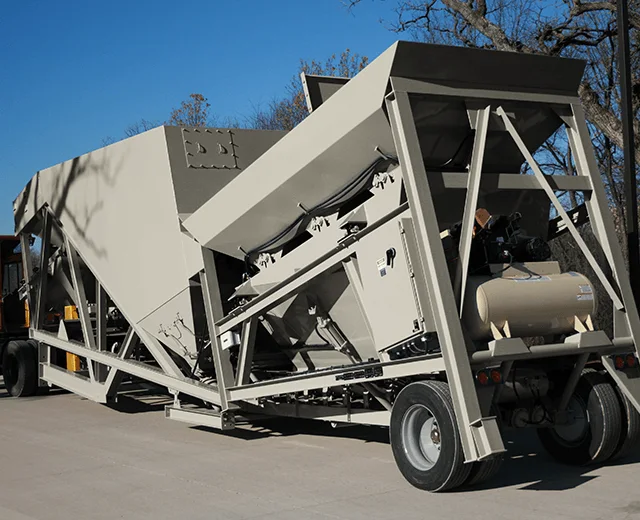

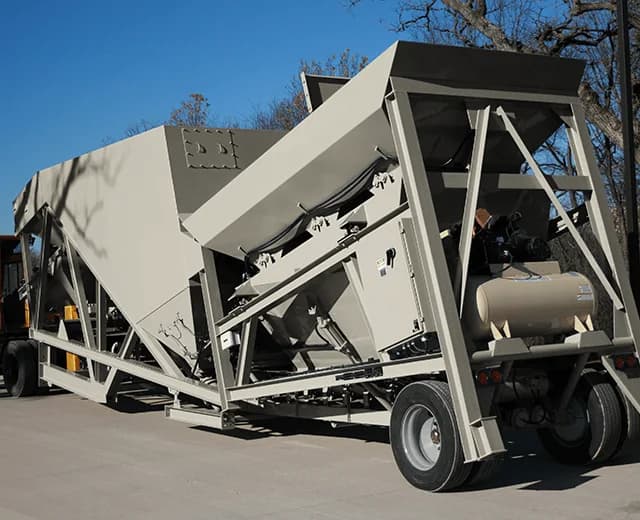

Gravity Feed Surge Hopper

The 225 BBL cement storage section feeds a gravity surge hopper that holds approximately two batches of cement. Two recirculating screw conveyors continuously replenish the surge section so batching stays consistent.

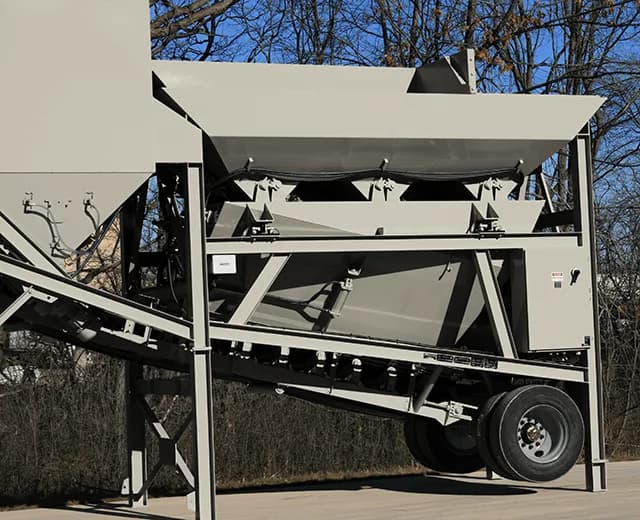

Low-Profile Aggregate Bins

T-style low-profile aggregate bins make the plant practical for ramp loading with a loader or in-line conveyor loading. The brochure lists a 16.5 yd3, 25 ton, three-compartment aggregate bin with linked clamshell gates.

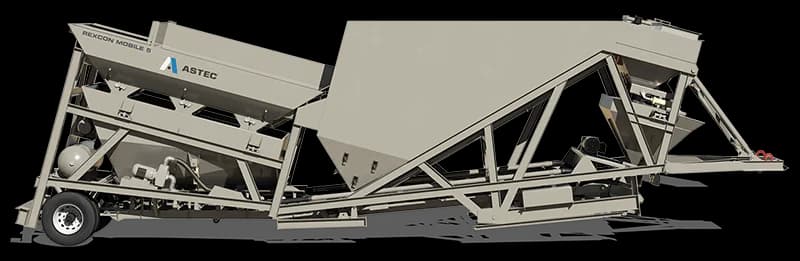

Single-Trailer Transport

The Mobile 5 moves as one trailer with a telescoping fifth wheel hitch, air-brake axles, hinged columns, and folding legs. Crews can erect the plant with a front-end loader instead of bringing in heavy crane support.

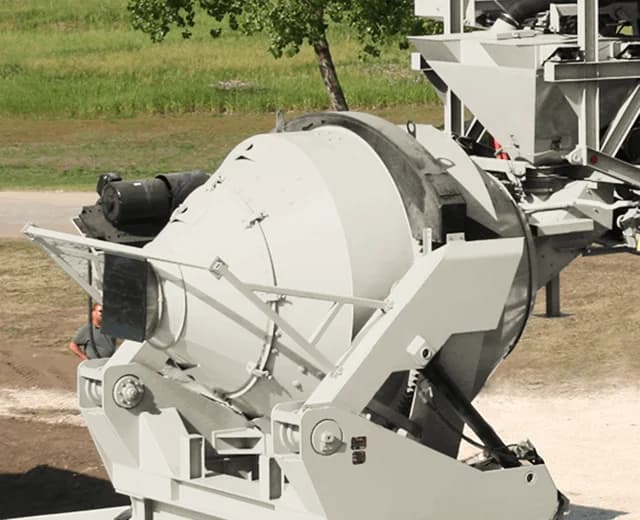

RexCon Mobile 5 tilt mixer central mix configuration detail

Central Mix Ready

Add central mix for higher output and more consistent concrete when the job demands it. The same portable foundation lets a contractor start compact and scale production without changing plant families.

RexCon Mobile 5 CM Photo Gallery

Real installations and equipment views of the RexCon Mobile 5 CM. Click any image to view full size.

Key Features

Single-trailer transport with telescoping fifth-wheel hitch and axles with air brakes.

Hinged columns and telescoping transport arrangement allow erection with a front-end loader.

225 BBL silo with gravity-fed cement surge storage hopper that holds approximately two cement batches.

Two 6 in, 7.5 hp recirculating screw conveyors replenish the surge section.

Low-profile T-style aggregate bins support ramp loading or in-line conveyor loading.

5 yd3 aggregate and cement batchers use load cells and isolators for accurate material measurement.

Factory pre-wired and pre-plumbed cement section shortens field installation.

Central-mix option supports higher output and more consistent concrete as production needs grow.

Technical Specifications

RexCon Mobile 5 Searchable Technical Specs

Searchable specifications transcribed from the Astec RexCon Mobile 5 brochure. The Mobile 5 is built around single-trailer transport, front-end-loader erection, low-profile aggregate storage, and a gravity-fed cement surge hopper for portable production.

RexCon Mobile 5Portable central-mix ready concrete batch plant

Portable central-mix ready concrete batch plant

RexCon Mobile 5

A compact single-load mobile batch plant for remote sites and frequent moves, with future central-mix capability, 225 BBL cement storage, 5 yd3 aggregate and cement batchers, and setup with only a front-end loader.

Quick Specs

Capacity range: Astec lists the Mobile 5 in the <100 and 100-200 yd/hr capacity bands, depending on configuration.
Aggregate bins: 16.5 yd3, 25 ton, three-compartment aggregate bin with linked clamshell gates.
Cement storage: 900 ft3, 225 BBL, 42.3 ton cement storage with gravity-feed surge hopper.
Transport: Single trailer with telescoping fifth wheel hitch, axles with air brakes, 43 ft 10 9/16 in transport length, and 13 ft 6 in transport height.

Batching and Material Handling

Aggregate batcher: 5 yd3 aggregate batcher with four 5,000 lb load cells and isolators.
Cement batcher: 5 yd3 gravity-fed cement batcher with 5,000 lb compression load cells and isolators.
Cement surge hopper: Surge hopper holds approximately two batches of cement and is re-supplied by two 6 in diameter, 7.5 hp direct-drive screws.
Batch belt: 30 in wide batch belt, 300 FPM, 15 hp, belt driven with shaft-mounted reducer.
Water system: 3 in mag meter rated at 350 GPM.

Plant Systems

Air system: 10 hp two-stage compressor, 120 gal tank, after-cooler, and corrosion-resistant rebuildable cylinders.
Solenoids: Sub-base mounted solenoids.
Electrical: 460V power panel with circuit breakers and 110V transformer. Brochure lists 60 kW total plant power requirement.
Factory preparation: Self-contained cement section, folding legs, factory pre-wiring, and factory pre-plumbing for faster field installation.

Dimensions and Options

Operating dimensions: Operating length: 34 ft 1/4 in. Grade to dust collector height: 22 ft 11 7/16 in. Grade to charge chute height: 11 ft 0 in. Aggregate bin height: 15 ft 0 in.
Transport dimensions: Transport length: 43 ft 10 9/16 in. Transport height: 13 ft 6 in.
Options: Water pump with motor starter, aggregate bin extension with radial stacker, central/rooftop/batcher dust collectors, batch automation controls, control office container, and central-mix package for higher output.

Specifications are based on the Astec RexCon Mobile 5 concrete batch plant brochure Rev. 5/21. Final dimensions, options, controls, dust collection, and production rates vary by configuration; confirm the current submittal package with Closner before ordering or permitting.

When This Plant Is the Right Fit

You move from job to job and need a plant that can follow the work.

You need central-mix quality without committing to a large stationary build.

Your typical production requirement is under 100 yd/hr, with the ability to scale into the 100-200 yd/hr band depending on configuration.

Your site has limited setup equipment and favors loader erection over crane-heavy installation.

You want a compact plant that can be loaded by ramp, fed by conveyor, and configured with dust collection, controls, a control office, or central mix as the project demands.

Why Source This Plant from Closner?

Closner can help compare Mobile 5, Mobile 12 SE, Model S, and CON-E-CO LO-PRO options against your site access, haul distance, production target, and permitting path.

Our Texas branches support concrete producers with parts, service coordination, install planning, controls conversations, and trade-in or used-equipment options.

Closner can quote plant ancillaries such as dust collection, water systems, control office containers, aggregate handling, loaders, and truck-flow planning.

Sales and service support is local to Texas, with teams in Schertz, Elgin, Rhome, and Waller.

Texas Application

In Texas, the Mobile 5 fits contractors who chase work across long distances: county road packages, remote subdivision work, wind-energy foundations, oilfield pads, and DOT support work where a fixed plant is too far from the pour.

RexCon Mobile 5 CM FAQ

What is the RexCon Mobile 5 CM best used for?

The Mobile 5 CM is best for portable concrete production, remote work, and frequent plant moves where a single-load mobile plant is more practical than a fixed plant.

How is the RexCon Mobile 5 CM erected?

Astec describes the Mobile 5 with a telescoping fifth wheel and hinged columns that allow the plant to be erected with only a front-end loader.

Is the Mobile 5 CM right for high-volume paving?

It is generally a compact portable option. For sustained high-volume paving, Closner would normally compare it against the RexCon Model S or RexCon Mobile 12 SE CM.

What cement storage does the RexCon Mobile 5 use?

The Astec brochure lists 900 ft3, 225 BBL, 42.3 ton cement storage with a gravity-feed surge hopper that holds approximately two batches of cement.

Can the Mobile 5 be upgraded to central mix?

Yes. Astec lists central mix as an available option for higher output and more consistent concrete. Closner can help compare the central-mix package against your target production rate and truck flow.

Does Closner support RexCon Mobile 5 plants in Texas?

Yes. Closner Equipment sells and supports RexCon and Astec concrete plant equipment across Texas, including parts, service coordination, installation planning, and plant-option guidance.
