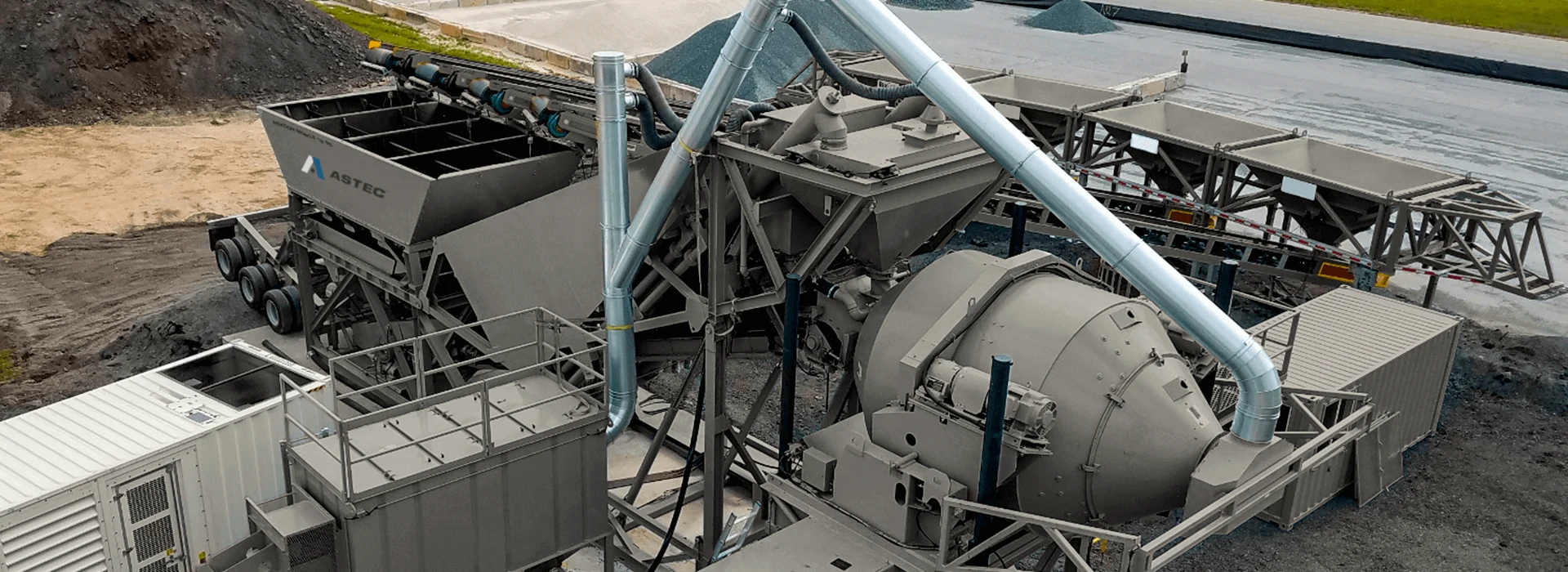

RexCon Mobile 12 SE portable central mix concrete batch plant overview

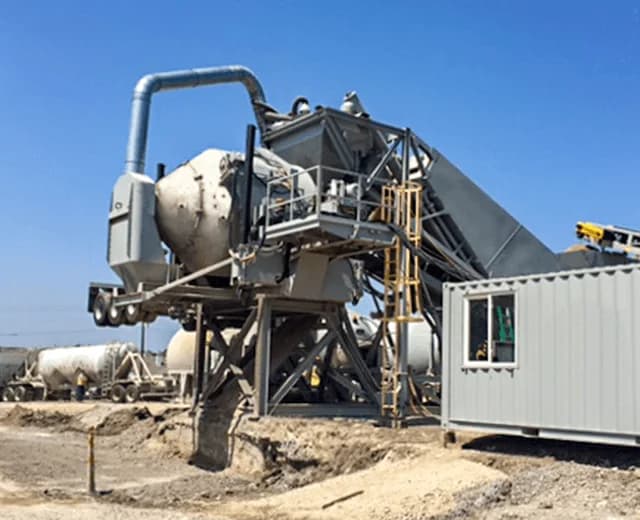

RexCon Mobile 12 SE-CM central mix concrete batch plant on site

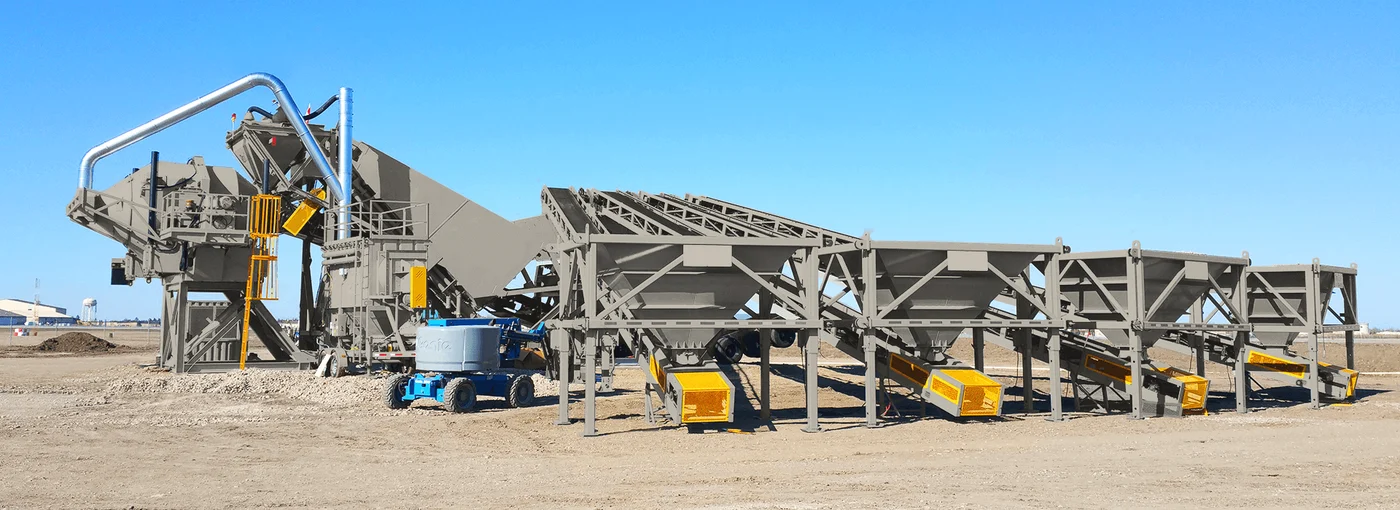

RexCon Mobile 12 SE aggregate section and conveyor on a job site

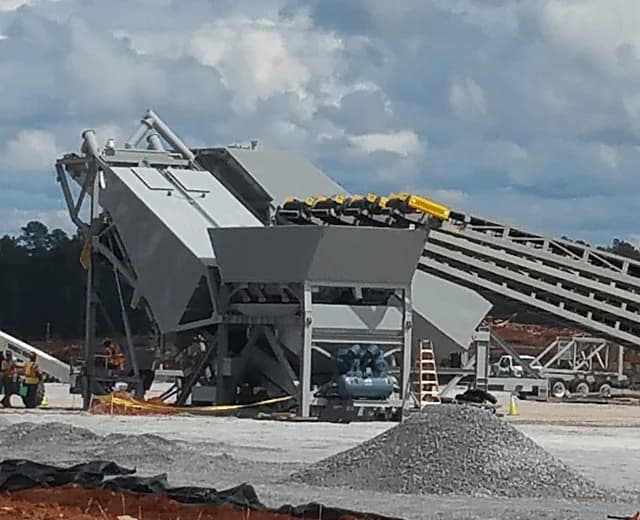

RexCon Mobile 12 SE-TM self-erect plant in operation

RexCon Mobile 12 SE hydraulic self-erect central mix setup

RexCon Concrete Batch Plant

RexCon Mobile 12 SE Portable Concrete Plant

Name: RexCon Mobile 12 SE Portable Concrete Plant Video
Duration: 3 min 55 s
Description: Watch Astec's official Mobile 12 SE video to see the self-erecting plant layout, aggregate section, central-mix package, conveyors, and portable production footprint in context.

Self-erecting portable batch plant available in central-mix and transit-mix configurations. Built for high-production portable paving, infrastructure work, and ready-mix sites that need fast setup without costly permanent foundations.

Request a Quote View Searchable Specs

Product Video

RexCon Mobile 12 SE Portable Concrete Plant Video

Watch Astec's official Mobile 12 SE video to see the self-erecting plant layout, aggregate section, central-mix package, conveyors, and portable production footprint in context.

Capacity

100-200, 201-300 yd/hr

Mix Type

Central mix, transit mix

Mobility

Mobile, mobile and self-erect

Best For

High-Volume Portable Paving and Infrastructure

RexCon Mobile 12 SE Portable Concrete Plant Overview

The RexCon Mobile 12 SE is the portable plant Closner recommends when the job has outgrown compact mobile production but still needs a plant that can relocate. Astec describes the Mobile 12 SE as a self-erecting portable concrete plant available in both Mobile 12 SE-CM central-mix and Mobile 12 SE-TM transit-mix configurations.

The hydraulic self-erect package is the practical advantage. The base plant uses a 13 hp hydraulic power pack, 80 gal reservoir, landing-leg cylinders, bin or silo cylinders, and mainframe support cylinders so crews can raise the plant into operating position quickly. On the CM version, the mixer charge chute and 12 yd portable tilt mixer are also part of the self-erect package.

For Texas contractors, that combination matters. Highway reconstruction, toll-road packages, airport paving, bridge work, and fast-growing subdivision corridors often need more production than a compact plant can provide, but the job may still be temporary enough that a permanent foundation is the wrong investment.

Plant Features

RexCon Mobile 12 SE CM Features That Matter on a Job Site

Mobile 12 SE-CM

The central-mix configuration is built for high production and mixing efficiency on portable paving, major infrastructure, and portable ready-mix projects. Astec pairs the self-erect plant with a 12 yd portable tilt mixer and hydraulic mixer erection package.

Mobile 12 SE-TM

The transit-mix configuration keeps the self-supporting sub-frame and hydraulic setup while giving contractors lower mobilization cost, 14 ft truck-loading clearance, and future central-mix expansion capability.

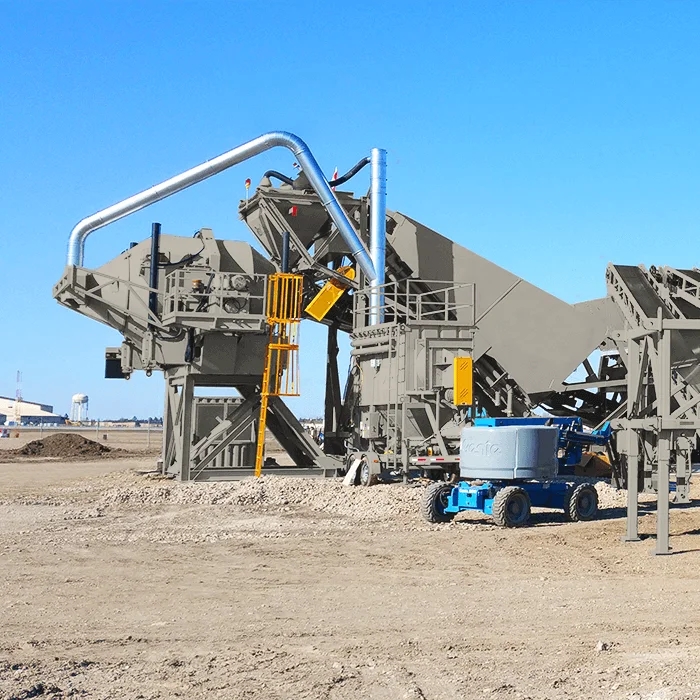

RexCon Mobile 12 SE hydraulic self-erect setup on site

Self-Erect Hydraulic Setup

The Mobile 12 SE uses a 13 hp hydraulic power pack, 80 gal reservoir, landing-leg cylinders, and mainframe support cylinders to raise the base plant into operating position quickly without designing around a permanent foundation.

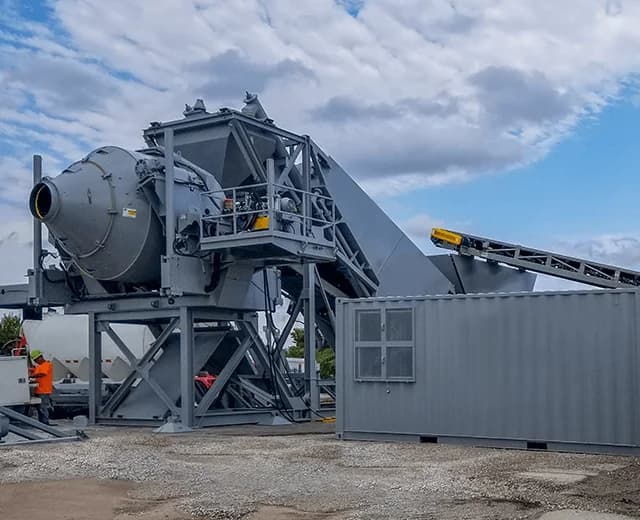

RexCon Mobile 12 SE aggregate section and high-speed batch belt

High-Speed Batching

A 48 in, 3-ply batch belt with a 50 hp drive runs at 680 FPM, while high-speed cement screws and an integrated two-compartment cement bin help keep production moving on demanding portable jobs.

RexCon Mobile 12 SE CM Photo Gallery

Real installations and equipment views of the RexCon Mobile 12 SE CM. Click any image to view full size.

Key Features

Available in Mobile 12 SE-TM transit-mix and Mobile 12 SE-CM central-mix configurations.

Self-supporting sub-frame and hydraulic system help the plant move in and set up quickly.

Designed to reduce mobilization cost without costly foundations.

Central-mix version is aimed at portable paving and portable ready-mix production.

12 yd3 aggregate batcher with 66 ton, four-compartment fold-up aggregate bin.

48 in batch belt with 50 hp drive runs at 680 FPM to support higher production rates.

Two 150 BBL cement compartments with 12 in screws and 50 hp direct drives.

Custom engineering options allow the plant to be matched to site and production requirements.

Technical Specifications

RexCon Mobile 12 SE Searchable Technical Specs

Searchable specifications transcribed from the Astec RexCon Mobile 12 SE brochure. Review the central-mix and transit-mix configurations, including hydraulic self-erect systems, aggregate storage, batch belts, cement sections, dimensions, and available options.

RexCon Mobile 12 SE-CMSelf-erecting central-mix concrete batch plant RexCon Mobile 12 SE-TMSelf-erecting transit-mix concrete batch plant

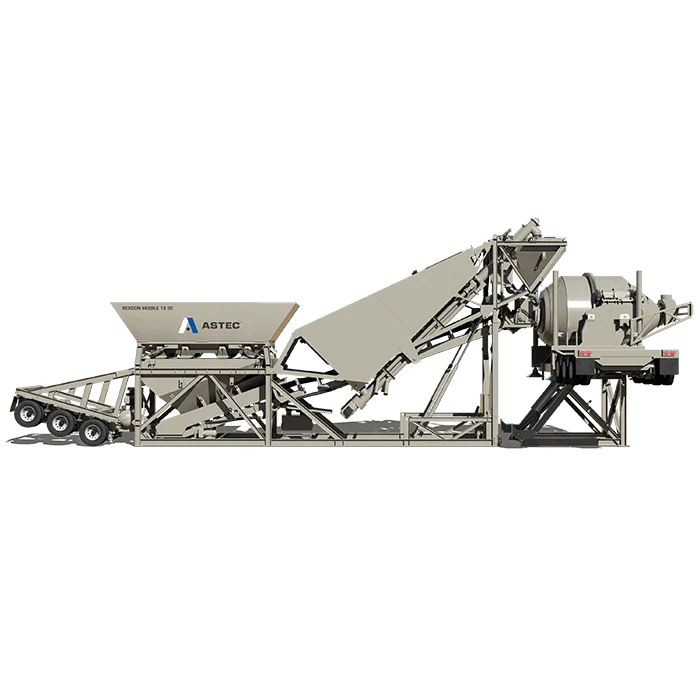

Self-erecting central-mix concrete batch plant

RexCon Mobile 12 SE-CM

A portable central-mix plant for high-production paving, infrastructure, and ready-mix projects, with a 12 yd3 aggregate batcher, 66 ton fold-up aggregate bin, integrated two-compartment cement section, 12 yd portable tilt mixer, and hydraulic self-erect system.

Quick Specs

Configuration: Self-erecting central-mix portable concrete batch plant.
Aggregate section: 12 yd3 batcher with 66 ton, four-compartment fold-up aggregate bin.
Mixer: 12 yd portable tilt mixer with self-erect hydraulic system.
Operating dimensions: 80 ft 6 1/8 in length with mixer; 27 ft 9 5/8 in total height; 17 ft 3 9/16 in aggregate bin height.

Batching and Mixing

Aggregate section: 12 yd3 aggregate batcher with 66 ton, four-compartment fold-up aggregate bin, quick-pin exterior connections, and slide-in/bolted divider walls.
Batch belt conveyor: 48 in wide, 3-ply belt with vulcanized splice and 50 hp drive. Belt operates at 680 FPM.
Cement section: Two 150 BBL, 28 ton compartments with 5 in fill pipes and low-wear elbows. Two 12 in diameter screws powered by 50 hp direct drives.
Accumulative batchers: Compression load cells and telescoping calibration arms.
Mixer package: 12 yd portable tilt mixer with self-erect hydraulic system. Brochure notes compatibility with tilt, pan, planetary, or twin-shaft mixer requirements.

Hydraulic, Air, Water and Electrical

Hydraulic self-erect system: 13 hp power pack with 80 gal reservoir, four transport-friendly landing-leg corner cylinders, two main bin cylinders, two mixer charge-chute cylinders, and two mainframe support-section cylinders.
High-pressure air: 20 hp air compressor with 120 gal tank. Batcher gates are controlled by double-acting sub-base mounted solenoids.
Low-pressure air: 4.6 hp regenerative blower with individually adjustable bin flow pads.
Water system: 3 in mag meter, 3 in temper mag meter, and 15 hp water pump case.
Power panel: NEMA dust-tight steel enclosure with single lockable main disconnect. Across-the-line starters are provided for factory-installed motors; wiring is plug and cord.

Transport, Dimensions and Options

Transportation gear: King pin, spring suspension, triple axles, radial tires, brakes, and signal lights.

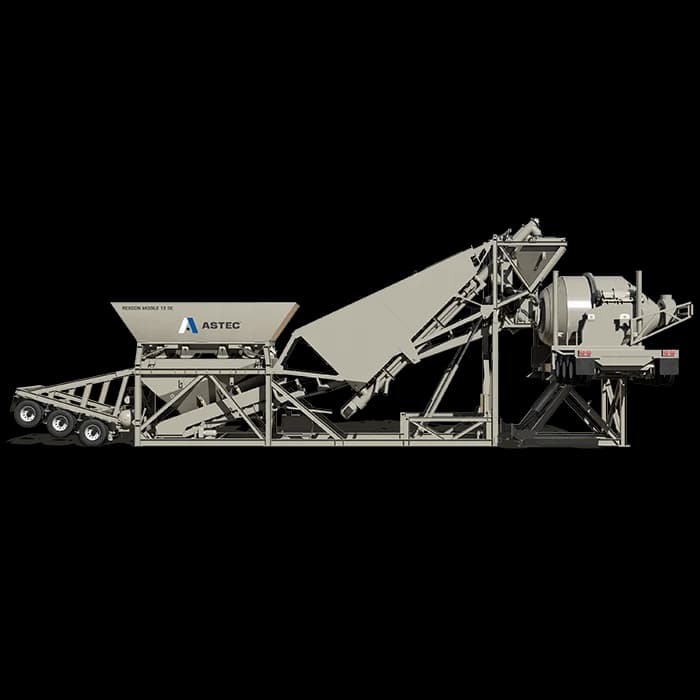

Operating dimensions: Length with mixer: 80 ft 6 1/8 in. Length without mixer: 73 ft 3/8 in. Total height: 27 ft 9 5/8 in. Aggregate bin height: 17 ft 3 9/16 in.

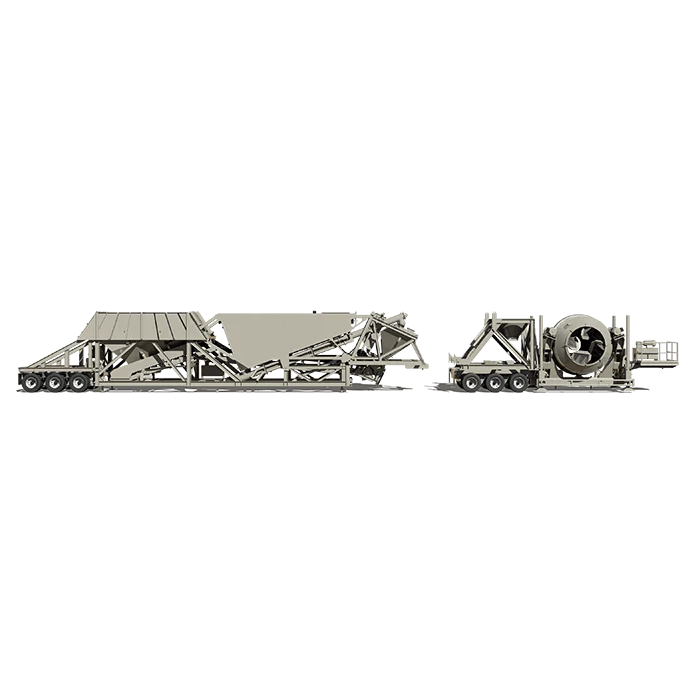

Travel dimensions: Plant load length: 71 ft 4 1/4 in. Plant load height: 14 ft 2 1/16 in. Mixer load length: 39 ft 4 1/16 in. Mixer load height: 13 ft 10 in.
Options: 600 BBL self-erect auxiliary cement bin, portable material handling system, 135 ton portable aggregate bin or up to 200 ton bin extensions, two or three decumulative batchers, RexCon batch automation with 20 ft office container, dust collectors, and central grease system.

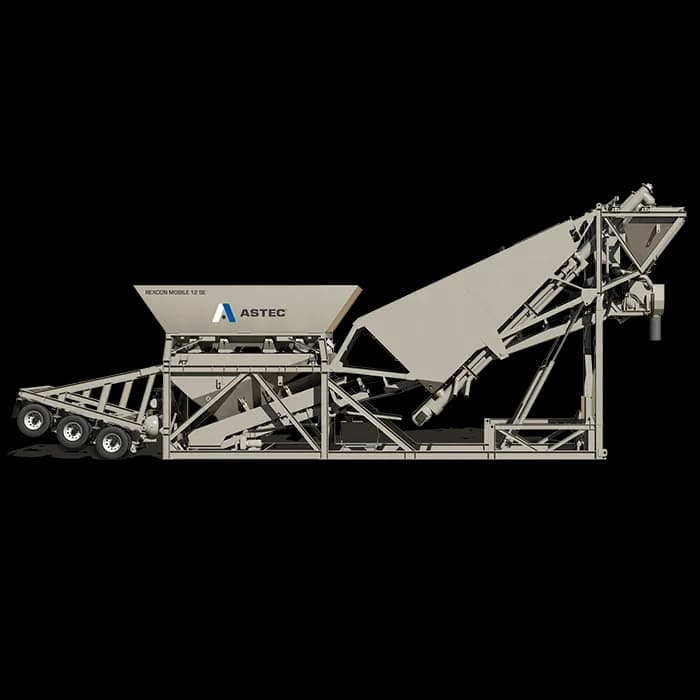

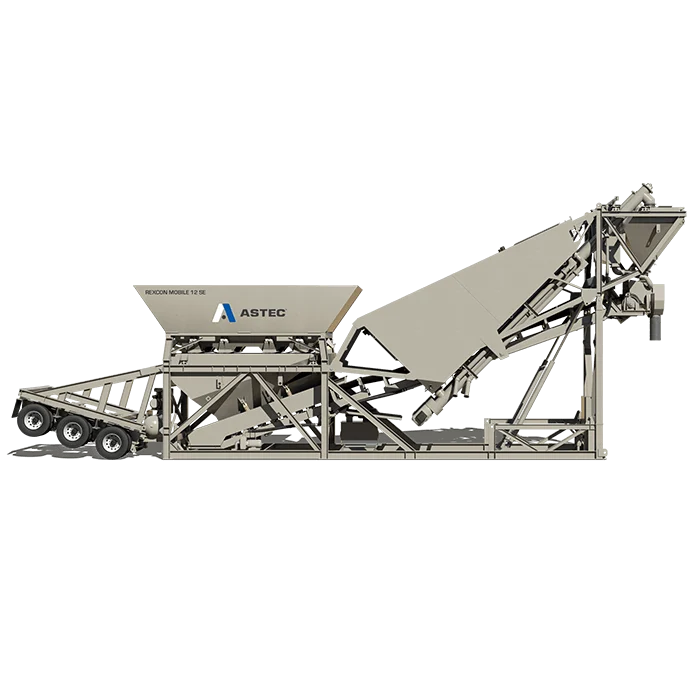

Self-erecting transit-mix concrete batch plant

RexCon Mobile 12 SE-TM

A portable transit-mix plant with the same 12 yd3 / 66 ton aggregate section foundation, high-speed 48 in batch belt, two-compartment cement section, hydraulic plant erection, and future central-mix expansion capability.

Quick Specs

Configuration: Self-erecting transit-mix portable concrete batch plant with future central-mix capability.
Aggregate section: 12 yd3 batcher with 66 ton, four-compartment fold-up aggregate bin.
Truck loading clearance: 14 ft clearance to steel for loading front- and rear-discharge trucks.
Operating dimensions: 60 ft 3 5/16 in operating length; 29 ft 3 in total height; 17 ft 3 9/16 in aggregate bin height.

Batching and Material Handling

Aggregate section: 12 yd3 aggregate batcher with 66 ton, four-compartment fold-up aggregate bin, quick-pin exterior connections, and slide-in/bolted divider walls.
Batch belt conveyor: 48 in wide, 3-ply belt with vulcanized splice and 50 hp drive. Belt operates at 680 FPM.
Cement section: Two 150 BBL, 28 ton compartments with 5 in fill pipes and low-wear elbows. Two 12 in diameter screws powered by 50 hp direct drives.
Accumulative batchers: Compression load cells and telescoping calibration arms.
Loading height: 14 ft clearance to steel for loading front- and rear-discharge trucks.

Hydraulic, Air, Water and Electrical

Hydraulic self-erect system: 13 hp power pack with 80 gal reservoir, four transport-friendly landing-leg corner cylinders, two main silo cylinders, and two mainframe support-section cylinders. System is sized for adding a future self-erect tilt mixer.
High-pressure air: 20 hp air compressor with 120 gal tank. Batcher gates are controlled by double-acting sub-base mounted solenoids.
Low-pressure air: 4.6 hp regenerative blower with individually adjustable bin flow pads.
Water system: 3 in mag meter.
Power panel: NEMA dust-tight steel enclosure with single lockable main disconnect. Across-the-line starters are provided for factory-installed motors; wiring is plug and cord.

Transport, Dimensions and Options

Transportation gear: King pin, spring suspension, triple axles, radial tires, brakes, and signal lights.
Operating dimensions: Length: 60 ft 3 5/16 in. Total height: 29 ft 3 in. Aggregate bin height: 17 ft 3 9/16 in. Grade to steel charge chute height: 14 ft 0 in.
Travel dimensions: Plant load length: 71 ft 4 1/4 in. Plant load height: 14 ft 2 1/16 in.
Options: 600 BBL self-erect auxiliary cement bin, portable material handling system, 135 ton portable aggregate bin or up to 200 ton bin extensions, decumulative batchers, RexCon batch automation with 20 ft office container, dust collectors, central grease, VFD for transit mix with 48 in or 36 in batch belt, and central-mix conversion package.

Specifications are based on the Astec RexCon Mobile 12 SE portable concrete plant brochure Rev. 5/21. Final dimensions, weights, options, controls, dust collection, and site requirements can change by configuration; confirm the current submittal package with Closner before ordering or permitting.

When This Plant Is the Right Fit

You need a self-erect portable plant with serious production capacity.

You want to choose between transit-mix and central-mix configurations.

You need a plant for major infrastructure work but cannot justify a permanent fixed installation.

You want future central-mix expansion capability in a portable platform.

You need higher portable output than a compact single-load plant but still want relocation flexibility.

Why Source This Plant from Closner?

Closner can compare the Mobile 12 SE-CM and Mobile 12 SE-TM against Mobile 5, Model S, and CON-E-CO LO-PRO options for your production target and site constraints.

Our team can help plan aggregate handling, cement storage, dust collection, controls, office container needs, and truck flow before the plant is quoted.

Closner supports concrete producers across Texas with sales, parts, service coordination, plant options, and install planning.

We can help source supporting equipment such as loaders, conveyors, mobile mixers, batch controls, and ancillary plant systems.

Texas Application

For Texas infrastructure contractors, the Mobile 12 SE CM fits projects where mobilization speed, high production, and the ability to relocate matter: highway reconstruction, toll-road work, bridge packages, and fast-growing subdivision corridors.

RexCon Mobile 12 SE CM FAQ

Is the RexCon Mobile 12 SE available as central mix and transit mix?

Yes. Astec lists both transit-mix and central-mix configurations for the RexCon Mobile 12 SE.

Why choose the Mobile 12 SE CM over the Mobile 5 CM?

The Mobile 12 SE CM is a larger, more versatile portable plant with higher capacity bands and self-erect hydraulic setup. The Mobile 5 CM is better when compact single-load portability is the priority.

Does the Mobile 12 SE need a costly foundation?

Astec highlights the self-supporting sub-frame and hydraulic system as a way to lower mobilization cost without costly foundations.

What is the difference between Mobile 12 SE-CM and Mobile 12 SE-TM?

The Mobile 12 SE-CM is the central-mix version and includes a portable mixer package for high-production paving and ready-mix work. The Mobile 12 SE-TM is the transit-mix version and is built around truck mixer loading with future central-mix expansion capability.

What aggregate capacity does the Mobile 12 SE use?

The Astec brochure lists a 12 yd3 aggregate batcher with a 66 ton, four-compartment fold-up aggregate bin for both the central-mix and transit-mix configurations.

Can Closner help configure the Mobile 12 SE for a Texas project?

Yes. Closner can help compare central-mix versus transit-mix, aggregate handling, cement storage, dust collection, controls, office container needs, and supporting equipment for Texas portable concrete production.
