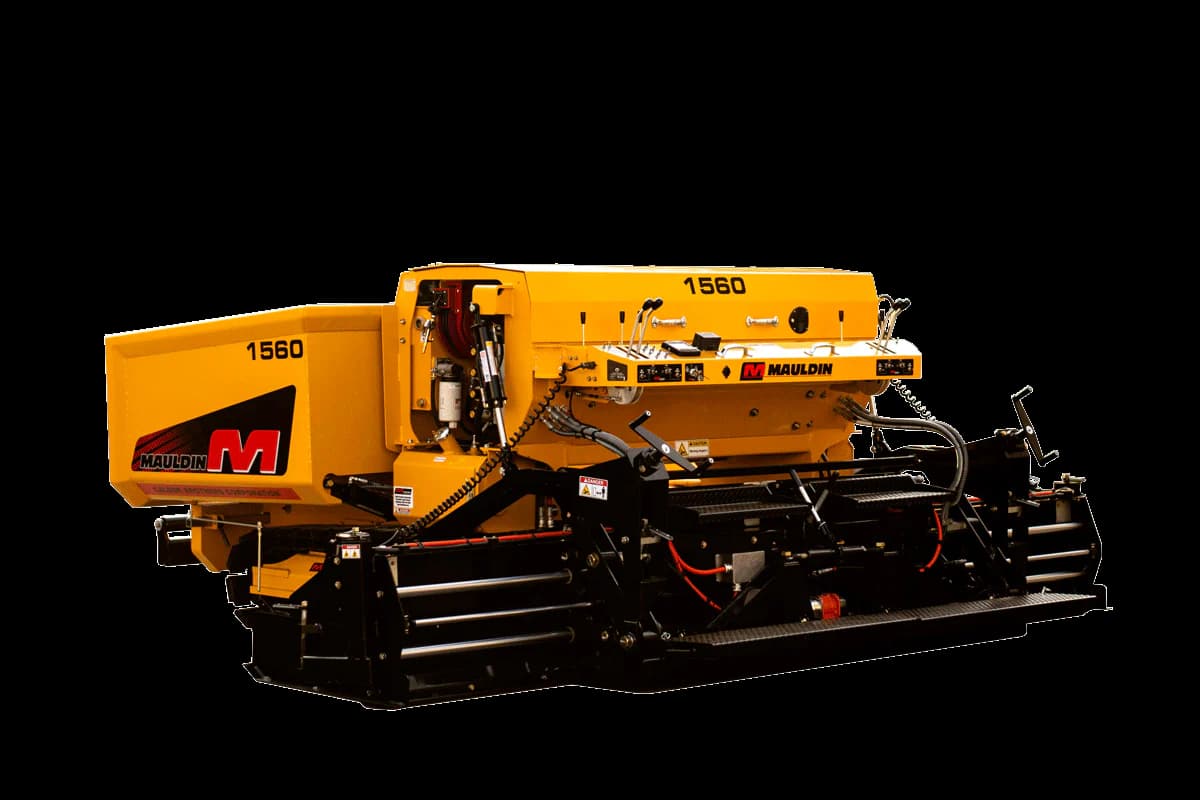

Mauldin Track Asphalt Paver
1560
Commercial track paver with FREEDOM-FOUR screed, four-auger feed system, 74 HP Cummins Tier 4 Final power, and 8 ft to 14 ft paving width.
Overview
Built for the way Texas crews work
The Mauldin 1560 steps up to the FREEDOM-FOUR screed platform for commercial crews that need 8 ft to 14 ft paving, electric heat, and stronger material feed.
Its four-auger material feed system, extending extension augers, 14 kW direct-driven generator, 6.5 ton hopper, and 74 HP Tier 4 Final Cummins engine make it a compact but serious production paver.
FREEDOM-FOUR screed with patented extension matching.
Four-auger material feed system with extending extension augers.
Thermostatically controlled electric heated screed.
14 kW direct driven generator.
74 HP Tier 4 Final Cummins turbocharged diesel engine.
Night operating light kit.
Key Specs
- Paving width
- 8 ft to 14 ft
- Hopper capacity
- 6.5 tons
- Operating weight
- 12,500 lb
- Engine
- Cummins 2.8L Tier 4 Final
- Power
- 74 HP
- Heating source
- 14 kW direct driven generator
Field Details

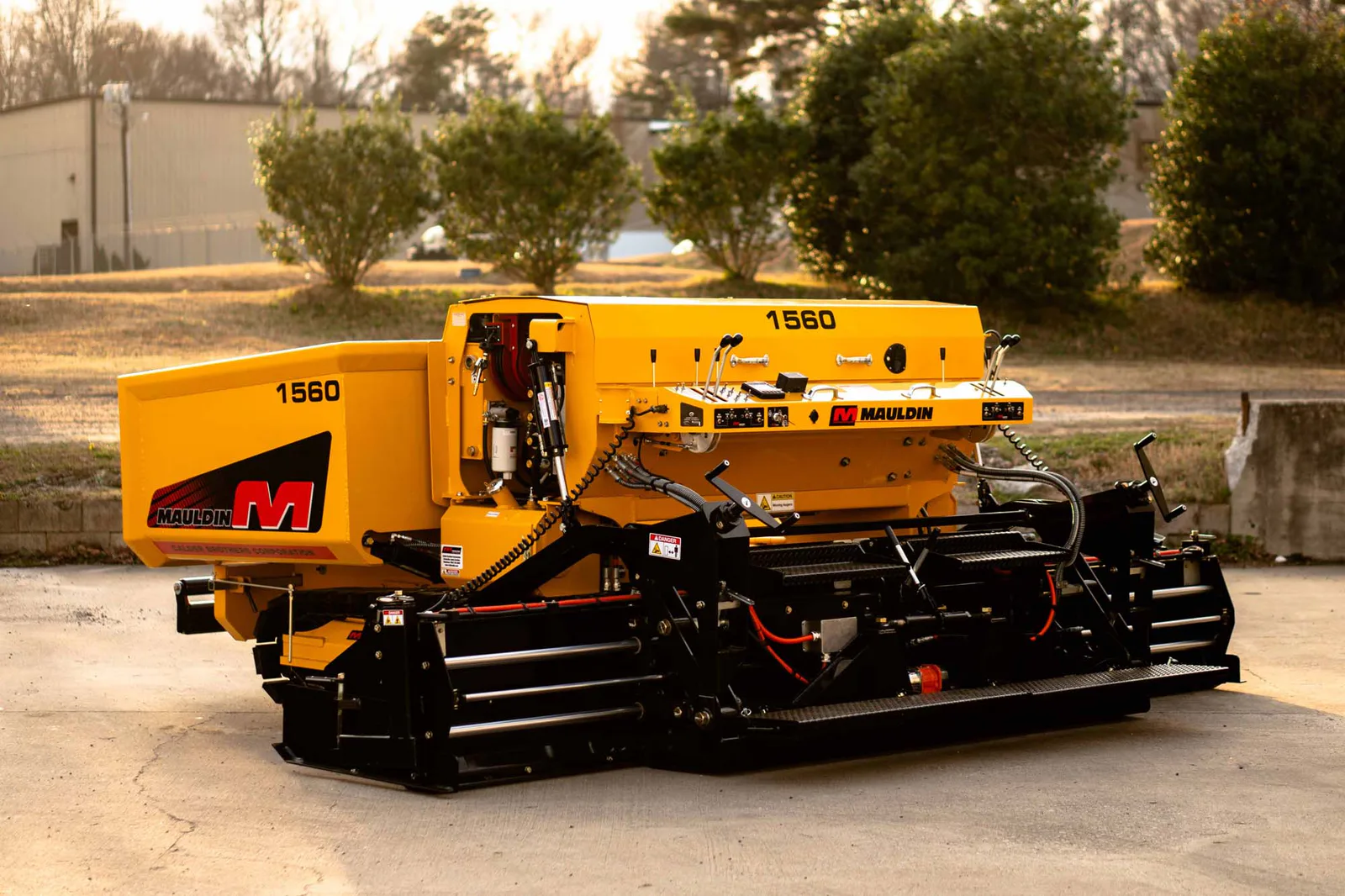

See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Four-auger feed
Main and extension augers feed material to 14 ft with less handwork at wider commercial widths.

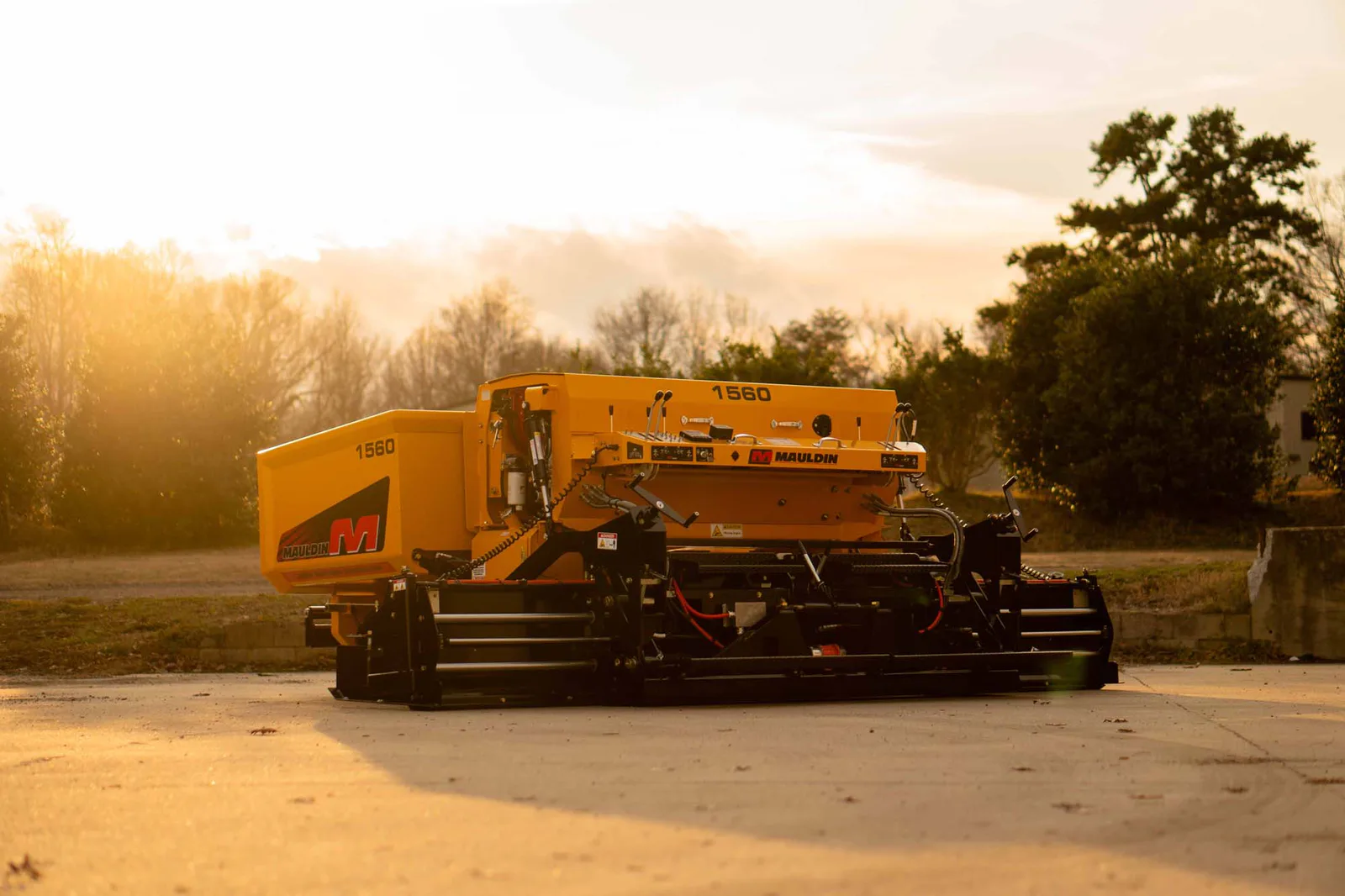

Electric screed heat
The 14 kW direct-driven generator supports thermostatically controlled electric screed heating.

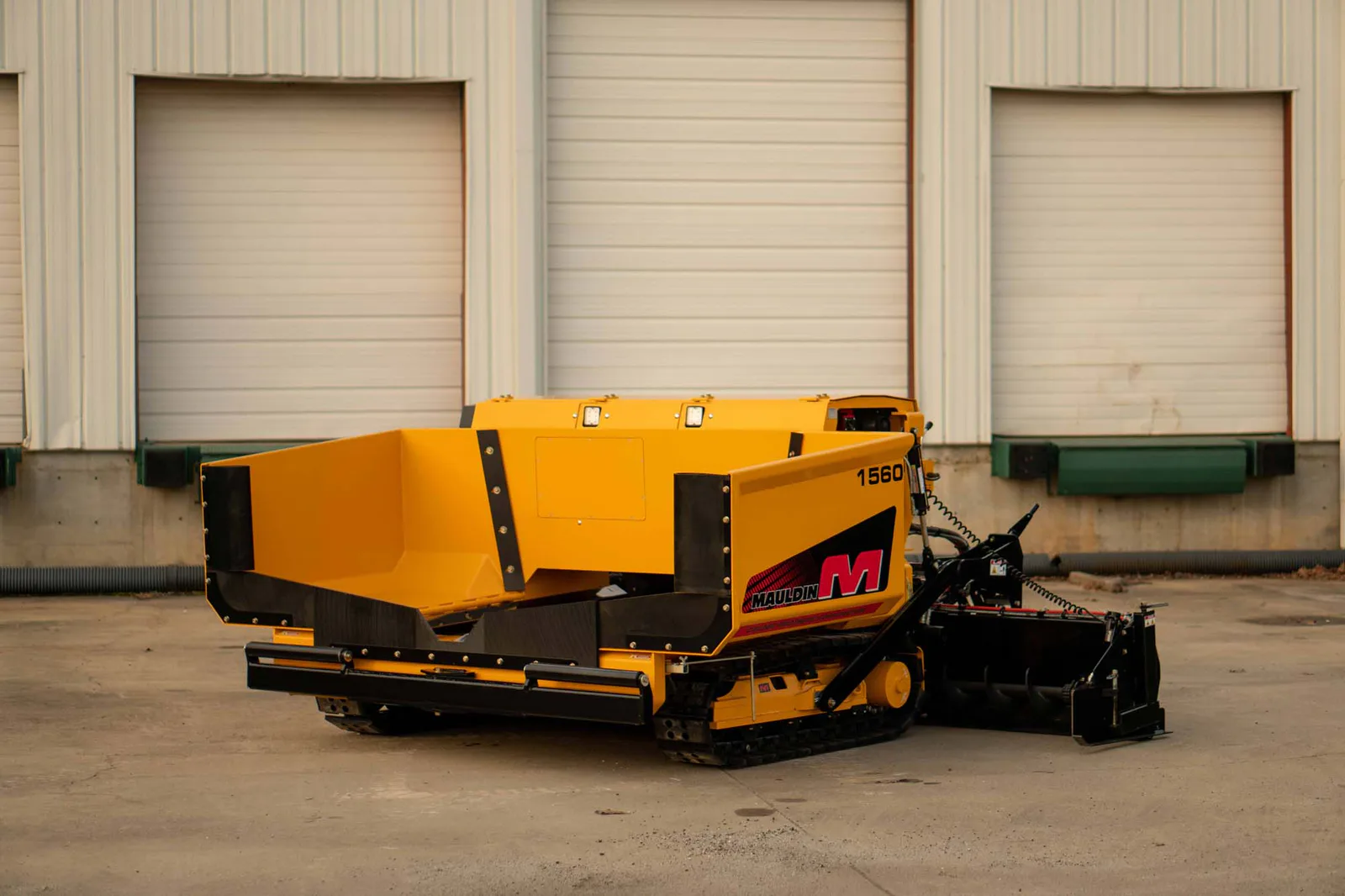

Commercial track system
Polyurethane crawler tracks and a 12,500 lb machine weight support production paving on commercial sites.
Technical Specifications
1560 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions and capacities
- Length
- 11 ft 4 in
- Width
- 8 ft 6 in
- Height
- 5 ft 4 in
- Weight
- 12,500 lb
- Screed weight
- 3,200 lb
- Hopper capacity
- 6.5 tons
- Fuel tank
- 13 gal
- Hydraulic tank
- 15.5 gal
Paving and engine
- Paving widths
- 8 ft to 14 ft
- Paving depth
- 0 to 6 in
- Augers
- 2 fixed main screed, 2 extendable
- Paving speed
- 0 to 140 fpm
- Travel speed
- 0 to 290 fpm
- Engine
- Cummins 2.8L Tier 4 Final
- Horsepower
- 74 HP
Features
1560 advantages
8 ft to 14 ft paving
The 1560 gives commercial crews a wider paving envelope than the 650/760 compact platform.
74 HP Cummins engine
Tier 4 Final Cummins power supports the machine, material feed, and electric screed heat system.
FREEDOM-FOUR screed
Patented extension matching and four-auger material feed are designed to support smooth mat quality.
Gallery

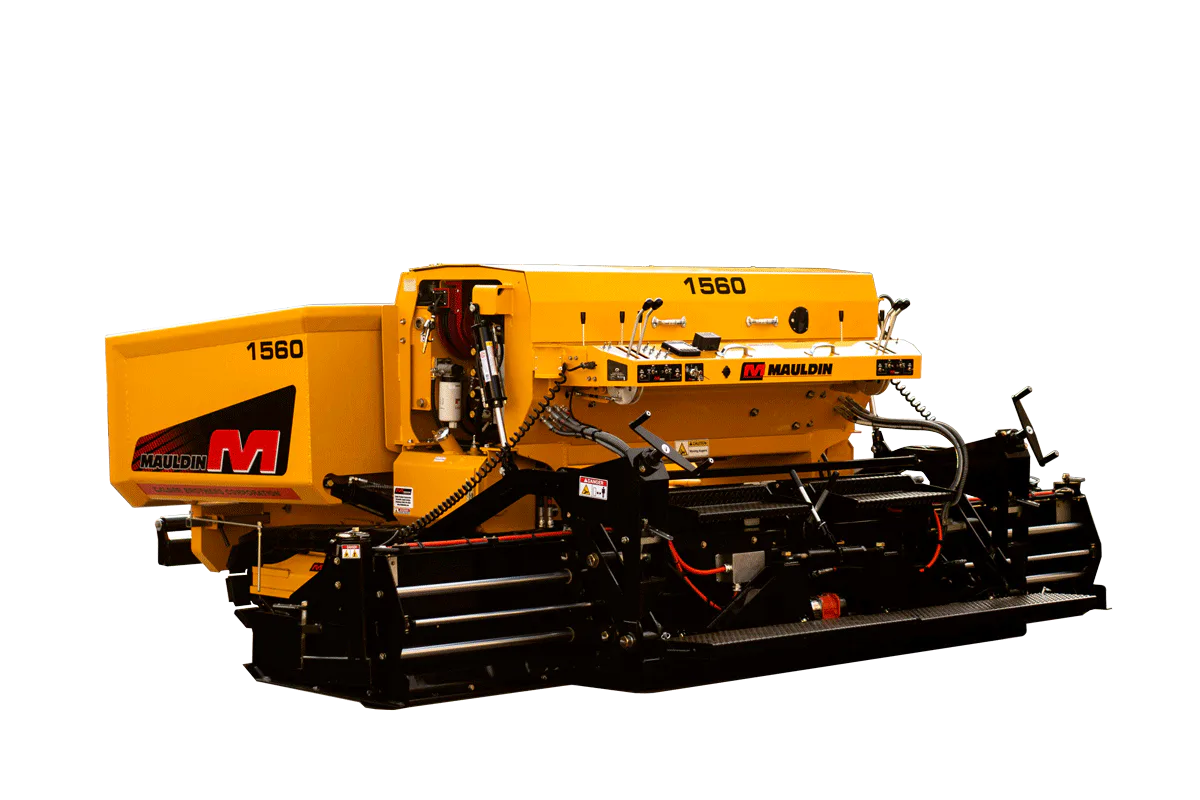

1560 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 1560 Questions
How wide can the Mauldin 1560 pave?
Mauldin lists the 1560 for 8 ft to 14 ft paving widths.
What engine powers the 1560?
The 1560 is listed with a Cummins 2.8L Tier 4 Final engine rated at 74 HP.
Does the 1560 use electric heat?
Yes. It uses a thermostatically controlled electric heated screed powered by a 14 kW direct-driven generator.
