Mauldin Track Asphalt Paver
760
Track asphalt paver with electric screed heat, 49 HP Tier 4 Final Kubota power, 6 ton hopper capacity, and 8 ft to 13 ft paving width.
Overview
Built for the way Texas crews work
The Mauldin 760 is a compact tracked commercial paver built around electric screed heat, a 49 HP turbocharged Kubota diesel, and Mauldin's FREEDOM screed with patented extension matching.
For crews that pave tight commercial work but still need 8 ft to 13 ft capability, the 760 combines crawler-style poly tracks, automatic tensioning, extending augers, and a two-speed drive system for torque while paving and speed while traveling.
FREEDOM screed with patented extension matching system.
Thermostatic controlled electrically heated screed.
Crawler-style poly track system with automatic tensioning.
Extending augers and extending walkboard.
12 kW direct driven generator.
49 HP Tier 4 Final turbocharged Kubota diesel engine.
Key Specs
- Paving width
- 8 ft to 13 ft
- Hopper capacity
- 6 tons
- Operating weight
- 9,700 lb
- Engine
- Kubota Tier 4 Final
- Power
- 49 HP
- Heating source
- 6 electric heating elements
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Electric screed heat
The 760 uses thermostatic electric screed heat for crews that want consistent heating without propane screed operation.
Compact tracked footprint
Crawler-style poly tracks and automatic tensioning help the machine work in commercial spaces and subdivision streets.
Technical Specifications
760 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions and capacities
- Length
- 118 in
- Width
- 115 in
- Height
- 68 in
- Weight
- 9,700 lb
- Hopper capacity
- 6 tons
- Fuel tank
- 20 gal
- Hydraulic tank
- 17.5 gal
- Washdown tank
- 4.5 gal
Paving and engine
- Paving widths
- 8 ft to 13 ft
- Paving depth
- 0 to 6 in
- Augers
- 2 extension mounted
- Paving speed
- 0 to 115 fpm
- Travel speed
- 0 to 280 fpm
- Engine
- Kubota Tier 4 Final
- Horsepower
- 49 HP
Features
760 advantages
8 ft to 13 ft paving
The patented extension matching system lets the 760 cover common commercial paving widths cleanly.
Two-speed drive
Electronic two-speed drive supports high torque while paving and faster travel around the job.
49 HP Kubota engine
A Tier 4 Final turbocharged diesel powers the paver and electric heat package.

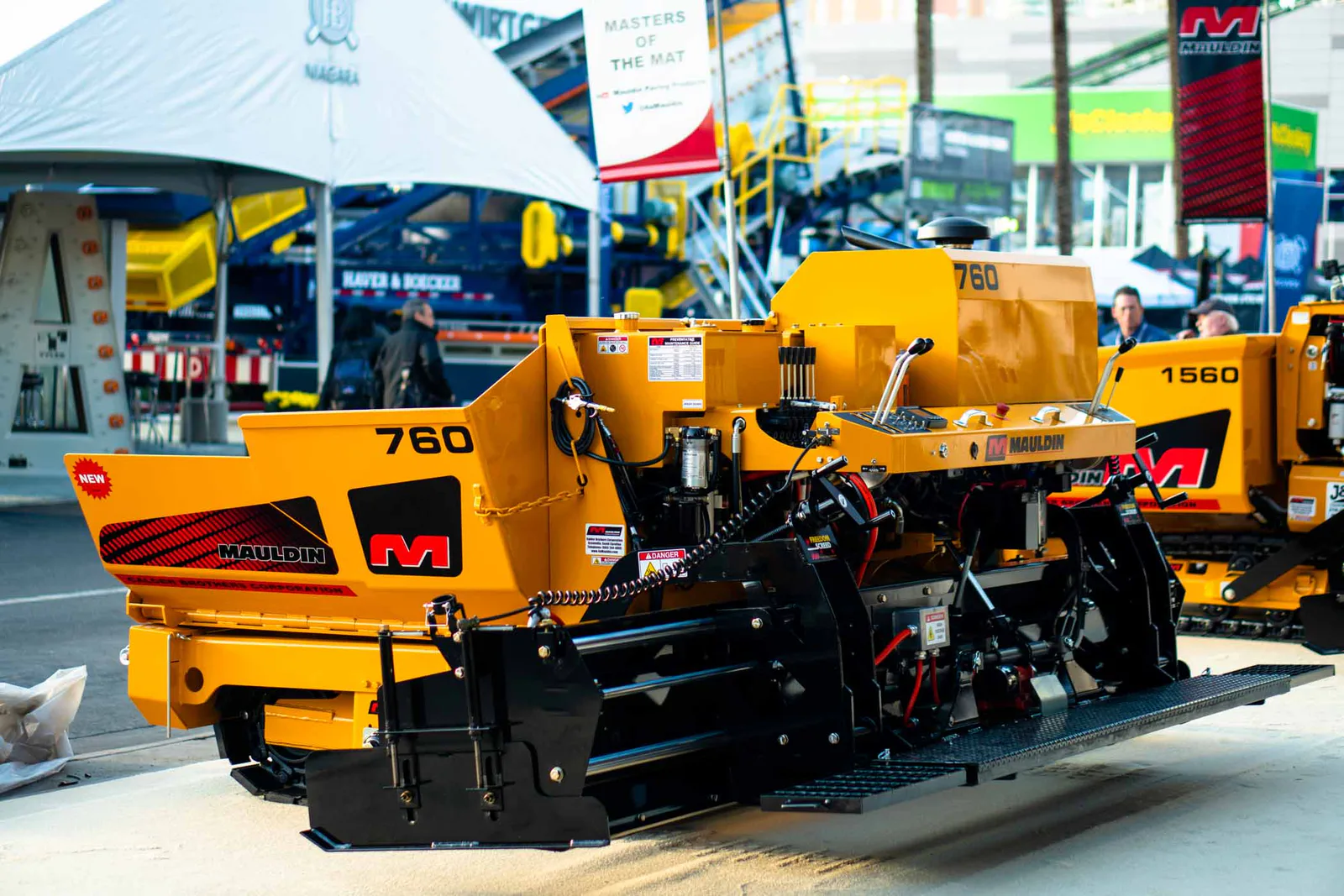

Gallery
760 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 760 Questions
What is the Mauldin 760 paving width?
The Mauldin 760 is listed for 8 ft to 13 ft paving widths.
Does the 760 use electric screed heat?
Yes. Mauldin lists thermostatic controlled electrically heated screed operation with six electric heating elements.
How much does the 760 weigh?
Mauldin lists the 760 at 9,700 lb operating weight.
