Mauldin Commercial Asphalt Paver
1860C
Commercial-class tracked asphalt paver with Maestro controls, 110 HP Cummins power, 9.5 ton hopper capacity, and seamless paving up to 16 ft.
Overview
Built for the way Texas crews work
The Mauldin 1860C is the flagship commercial paver for contractors who need production capacity, a heavy screed, and modern controls without jumping into a highway-class machine.
Mauldin pairs its in-house Maestro Control Platform with dual operator stations, a 110 HP Tier 4 Final Cummins engine, a 9.5 ton hopper, and a four-auger material feed system for consistent head-of-material control across parking lots, streets, subdivisions, and county road work.
Maestro Control Platform designed and programmed in-house by Mauldin.
Dual operator stations with full controls and dual digital gauge displays.
9.5 ton hopper capacity for sustained commercial paving production.
Seamless paving up to 16 ft with a heavy 4,500 lb screed.
Standard sonic controlled variable-speed four-auger material feed system.
Pre-wired for screed automation.
Key Specs
- Paving width
- 8 ft to 16 ft
- Hopper capacity
- 9.5 tons
- Operating weight
- 19,500 lb
- Engine
- Cummins 3.8L Tier 4 Final
- Power
- 110 HP
- Screed weight
- 4,500 lb
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.

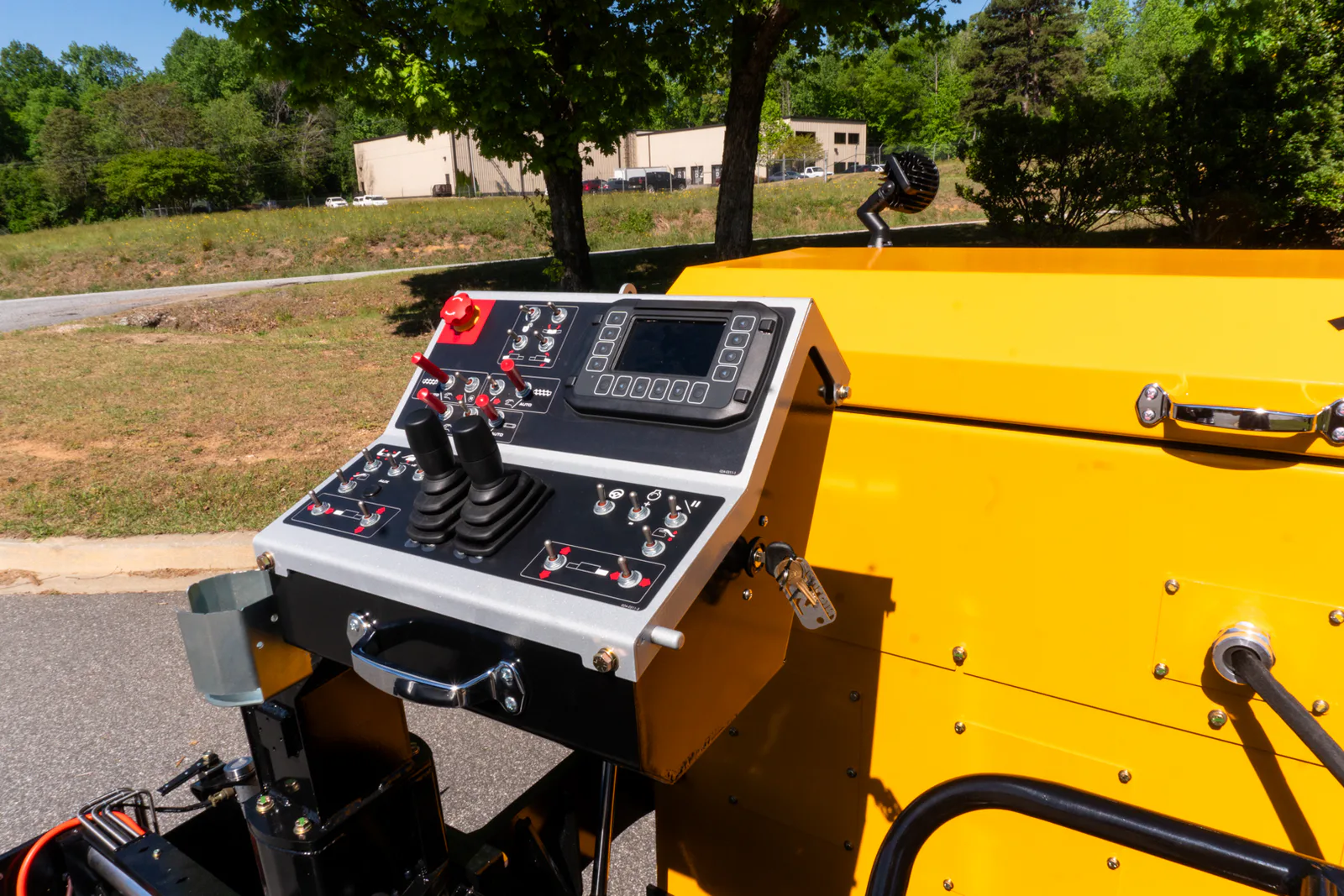

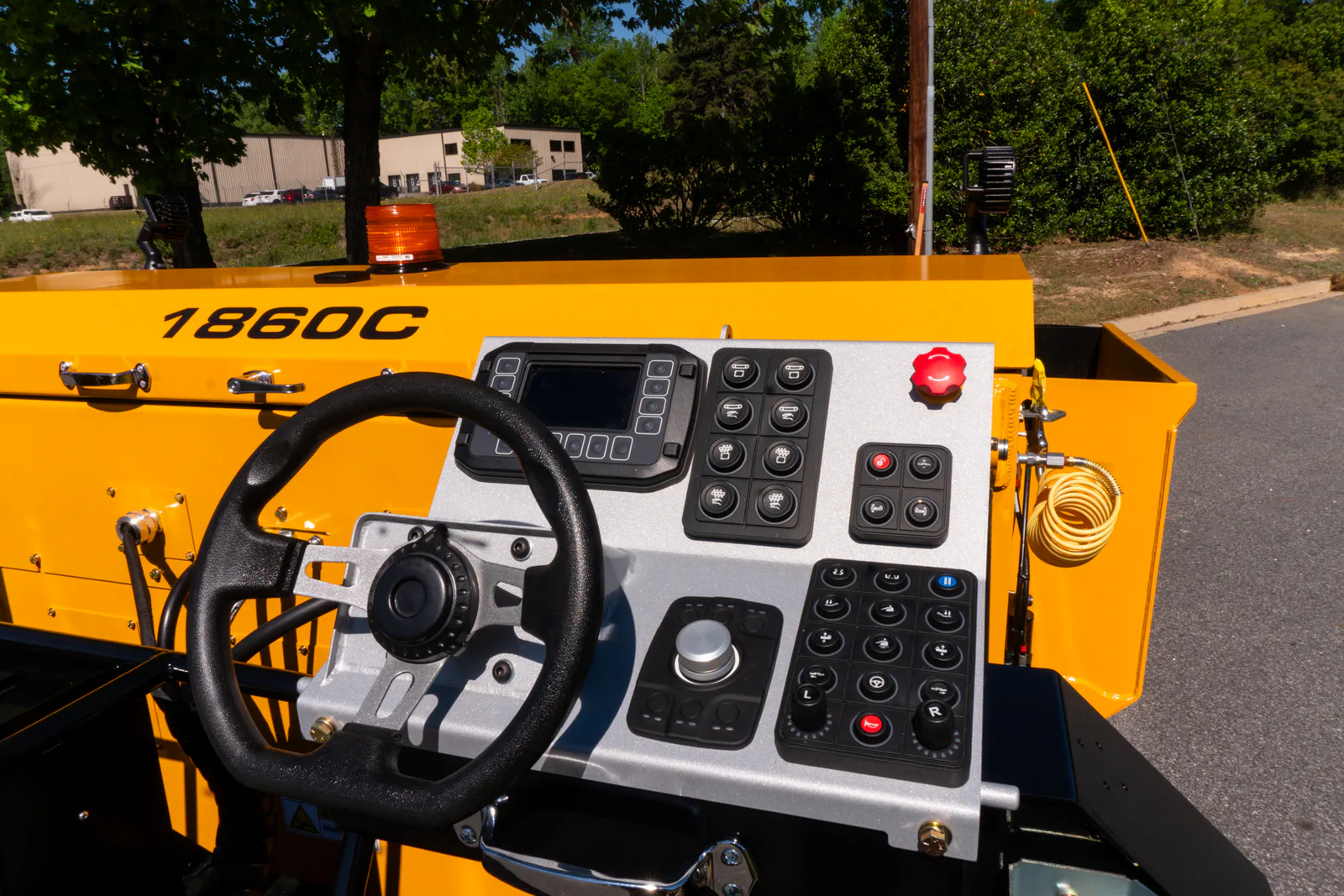

Commercial paver controls
Dual operator stations and the Maestro platform help operators control material flow, screed functions, and machine feedback from either side.

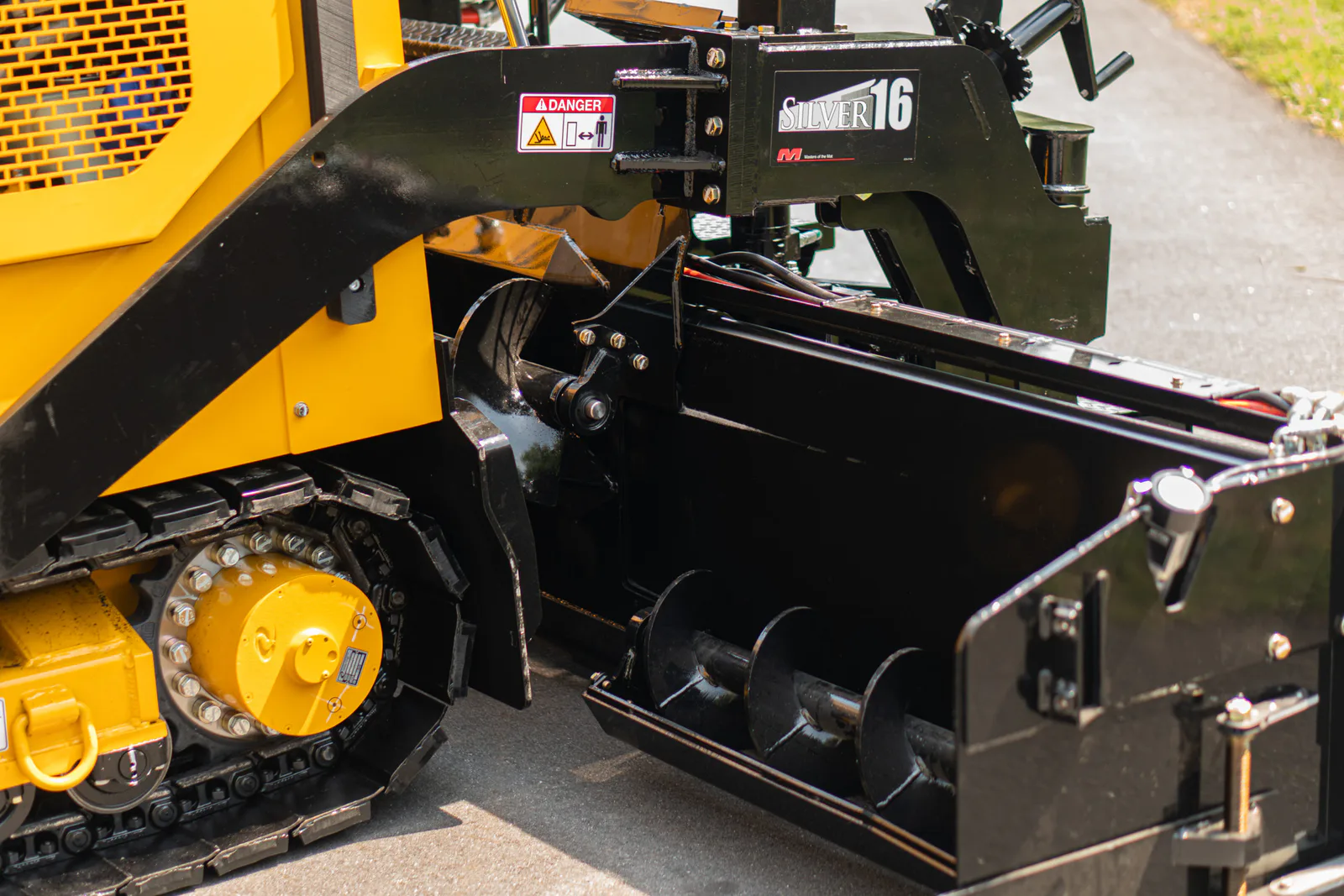

Heavy screed package
The 4,500 lb screed and automation-ready wiring support mat quality on wider commercial paving jobs.
High-capacity material feed
A 9.5 ton hopper and four-auger feed system keep material moving for consistent paving.
Technical Specifications
1860C Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions and capacities
- Length
- 14 ft
- Width
- 8 ft 6 in
- Height
- 6 ft 4 in
- Weight
- 19,500 lb
- Truck clearance
- 20 in
- Fuel tank
- 22 gal
- Hydraulic tank
- 30 gal
- Washdown tank
- 7.5 gal
Paving system
- Paving widths
- 8 ft to 16 ft
- Paving depth
- 0 to 6 in
- Augers
- 2 main, 1 right extension, 1 left extension
- Paving speed
- 0 to 140 fpm
- Travel speed
- 0 to 250 fpm
- Track pad width
- 14 in
- Track length
- 86 in
Features
1860C advantages
Maestro control platform
Mauldin's in-house commercial paving controls provide dual-station machine operation with digital feedback.
110 HP Cummins power
The Tier 4 Final Cummins engine gives the 1860C the horsepower needed for high-production commercial paving.
Paves up to 16 ft
The 1860C is built for 8 ft to 16 ft paving widths with a heavy screed and sonic-controlled auger feed.
Gallery
1860C Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 1860C Questions
What paving width does the Mauldin 1860C cover?
The 1860C is listed for 8 ft to 16 ft paving widths with a 0 to 6 in paving depth.
How large is the 1860C hopper?
Mauldin lists the 1860C with a 9.5 ton hopper capacity.
Who is the 1860C best for?
It fits commercial paving contractors and municipalities that need a high-capacity tracked paver for parking lots, roads, subdivisions, and utility work.
