Dynapac Tandem Rollers
Dynapac CC5200VI
The Dynapac CC5200VI is a 77 in double-drum vibratory roller for highway overlays, DOT work, and large asphalt paving trains.
Plan your Dynapac CC5200VI quote
- Project city, start date, and expected work period.
- Asphalt mix, lift thickness, and required rolling width.
- Gate clearances, loading access, and transport requirements.
- Engine and emissions package to confirm on the quoted machine.
- Open station or cab, seat rotation, drum offset, and fitted water tanks.
Overview
CC5200VI Cummins engine and sprinkler selection
The Dynapac CC5200VI tandem roller has a 77 in working width for larger asphalt compaction work. Applications include highway overlays, DOT work, airport paving, and large municipal or commercial projects. Discuss the asphalt mix, lift thickness, rolling pattern, and site access with Closner before you select a configuration.
Dynapac's U.S. page lists Cummins F3.8 and QSF3.8 engines with different power and emissions specifications. The sprinkler system and rotating operator station also need configuration checks. Confirm the engine plate, fitted water tanks, station arrangement, and drum-offset option for the machine quoted.
Dynapac lists a 77 in working width and 26,000 lb operating mass with ROPS.
The U.S. page lists a 32,800 lb maximum operating mass.
Published Cummins F3.8/QSF3.8 configurations range from 130 to 140 hp on the U.S. page.
Dynapac's Compaction CE figures list 23,820 lb centrifugal force at high amplitude and 15,280 lb at low amplitude.
Dynapac lists a slidable 180 degree or full-rotation operator station with a seat-linked touchscreen.
The U.S. feature list describes a 4-3-2 backup sprinkler system and optional 13 in drum offset.
Key Specs
- Operating mass
- 26,000 lb with ROPS
- Max operating mass
- 32,800 lb
- Working width
- 77 in
- Engine
- Cummins F3.8 / QSF3.8 options
- Rated power
- 130 to 140 hp; U.S.-page configuration references
- Centrifugal force
- 23,820 lb high amplitude / 15,280 lb low amplitude; U.S. Compaction CE reference
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.

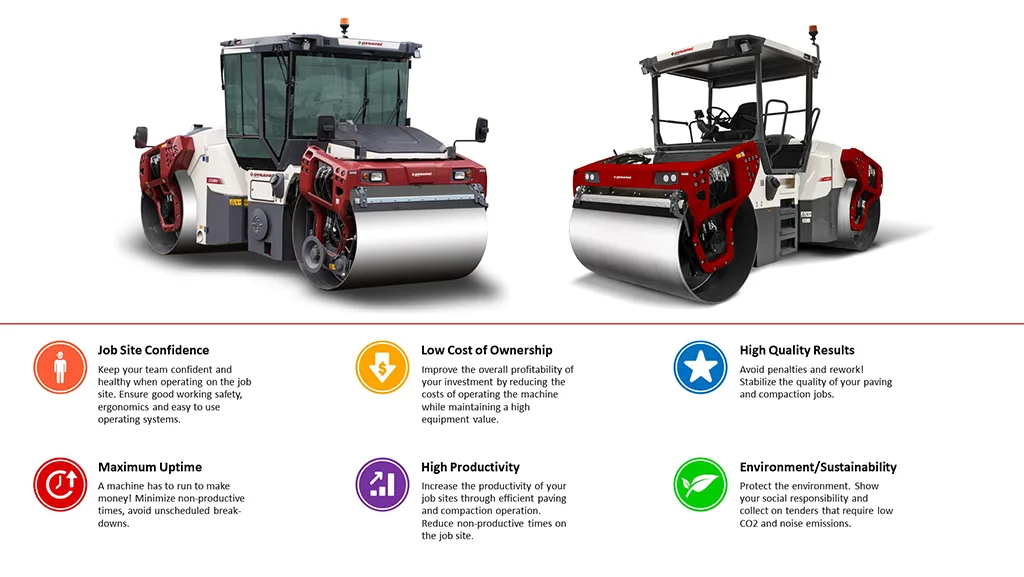

Production asphalt compaction
The CC5200VI is sized for larger overlays and DOT work where a 77 inch tandem roller fits the rolling pattern.

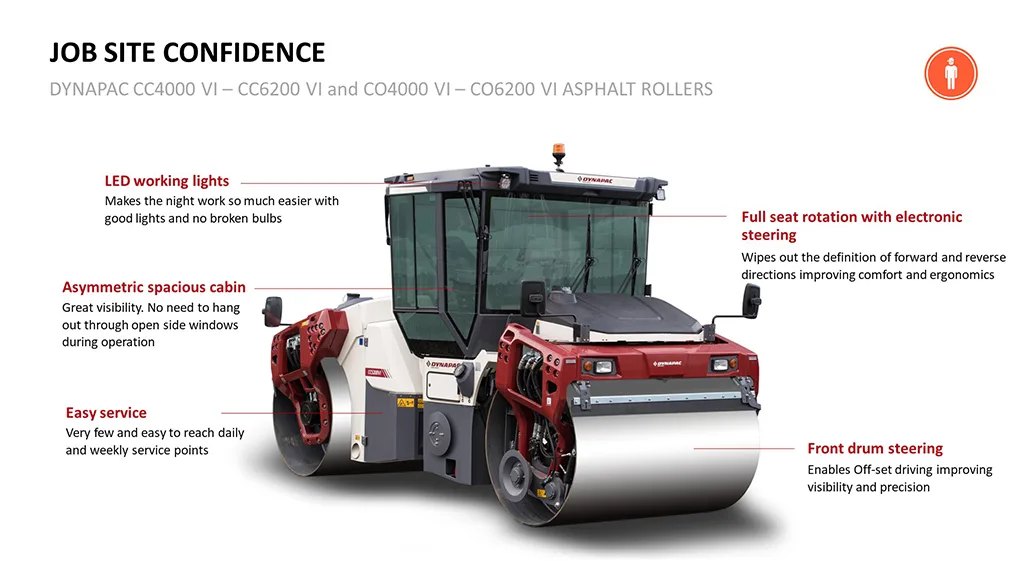

Rotating operator station
Dynapac lists a slidable 180 degree station or a full-rotation arrangement. Confirm the station and cab fitted to the quoted machine.

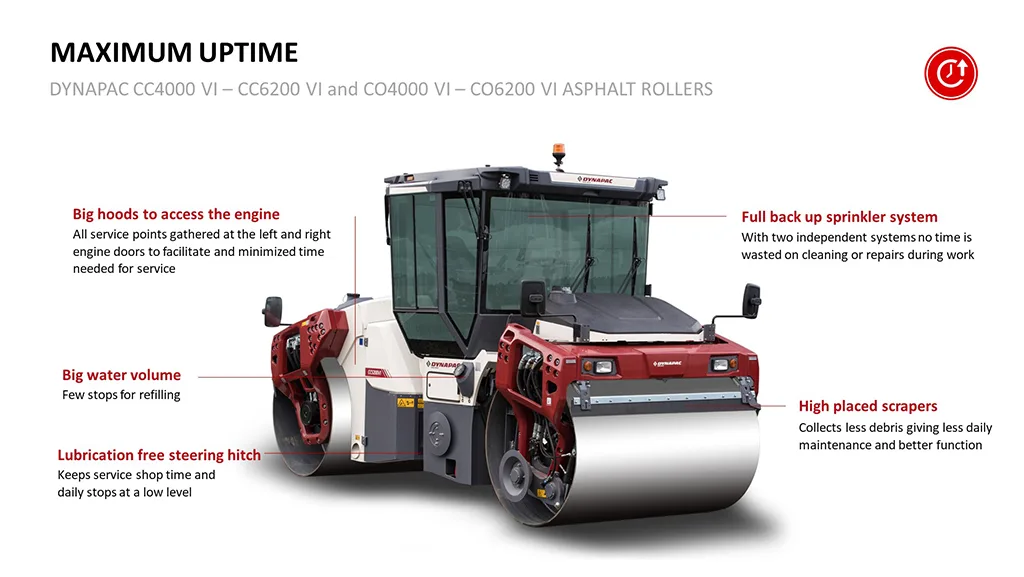

Water and offset options
Dynapac lists a 4-3-2 backup sprinkler system. Water-tank capacity changes with the offset configuration in the linked manual.
Videos
Dynapac CC5200VI Video Library
Manufacturer videos and training content for understanding the machine, its setup, and the systems crews rely on in the field.
Dynapac CC4000 to CC6200 VI features and benefits
Dynapac feature video covering the larger VI double-drum roller platform that includes the CC5200VI class.
Technical Specifications
Dynapac CC5200VI Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Masses and dimensions from the U.S. product page
- Operating mass with ROPS
- 26,000 lb
- Max operating mass
- 32,800 lb
- Module mass front/rear
- 13,000 lb / 13,000 lb
- Working width
- 77 in
- Length
- 199 in
- Width front
- 86 in
- Width with cab
- 95 in on the U.S. page; manual labels the wider dimension asymmetrical, confirm equipped width
- Height with ROPS/cab
- 118 in
Power and compaction from the U.S. product page
- F3.8 Stage V reference
- Cummins F3.8 V, 135 hp @ 2,200 rpm; U.S. product-page rating
- Stage IV/Tier 4f reference
- Cummins QSF3.8 IV/T4f, 130 hp @ 2,200 rpm; confirm selected configuration
- Stage IIIA/Tier 3 reference
- Cummins QSF3.8 IIIA/T3, 140 hp @ 2,200 rpm; OEM-listed configuration, confirm applicability
- Speed range
- 0 to 7.5 mph
- Gradeability
- 34 percent theoretical
- Vibration frequency
- 2,640 vpm high amplitude / 3,480 vpm low amplitude; U.S. Compaction CE reference
- Parking brake
- Failsafe multidisc brake in both drums
Features
Dynapac CC5200VI advantages
High-production rolling width
The 77 inch working width puts the CC5200VI in the bigger tandem class for highways, DOT overlays, and large commercial work.
Operator station updates
The touchscreen moves with the seat. Confirm the rotation arrangement and visibility from the fitted station before you select a machine.
Gallery
Dynapac CC5200VI Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common Dynapac CC5200VI Questions
What work is the Dynapac CC5200VI best for?
Compare the CC5200VI for highway overlays, DOT projects, airport paving, and larger municipal or commercial work. Its 77 in working width differs from a compact tandem roller. Compare the CC1200VI guide when access or a narrower rolling width drives the choice.
How heavy is the CC5200VI?
Dynapac's U.S. page lists a 26,000 lb operating mass with ROPS and a 32,800 lb maximum operating mass. These are operating figures, not a transport weight for every configuration. Confirm the equipped machine's weight, fluids, and attachments before transport.
Which Cummins engine does the CC5200VI use?
Dynapac's U.S. page lists the Cummins F3.8 V at 135 hp. It also lists QSF3.8 IV/T4f at 130 hp and IIIA/T3 at 140 hp. These entries describe different emissions configurations. Confirm the engine plate and emissions package for the machine quoted.
What sprinkler system and water tanks does the CC5200VI have?
Dynapac lists a 4-3-2 full backup sprinkler system. Its March 2024 manual lists central tanks of 850 L (224 gal) without offset or 660 L (174 gal) with offset. The rear 200 L (53 gal) tank is optional, but standard with offset. Confirm the fitted tanks.
How wide is the CC5200VI for site access?
The working width is 77 in. Dynapac's U.S. dimensions list 86 in front width and 95 in width with cab. The manual labels the wider dimension as asymmetrical. Confirm the equipped machine's overall width, length, and height against your gates and loading access.
Does every CC5200VI have the same rotating seat?
No. Dynapac lists a slidable 180 degree station or a full-rotation arrangement. The touchscreen moves with the seat. Ask Closner to confirm the station, cab, and controls on the machine quoted.
How do the related tandem and pneumatic rollers compare?
The CC1200VI is a smaller tandem roller to compare for narrower work or restricted access. The CP1200 and CP28 are pneumatic rollers. Review them as complementary machines for a specified rolling plan, not equivalent replacements for the CC5200VI. Ask Closner to confirm the configuration, price, and availability.
