Dynapac Pneumatic Rollers

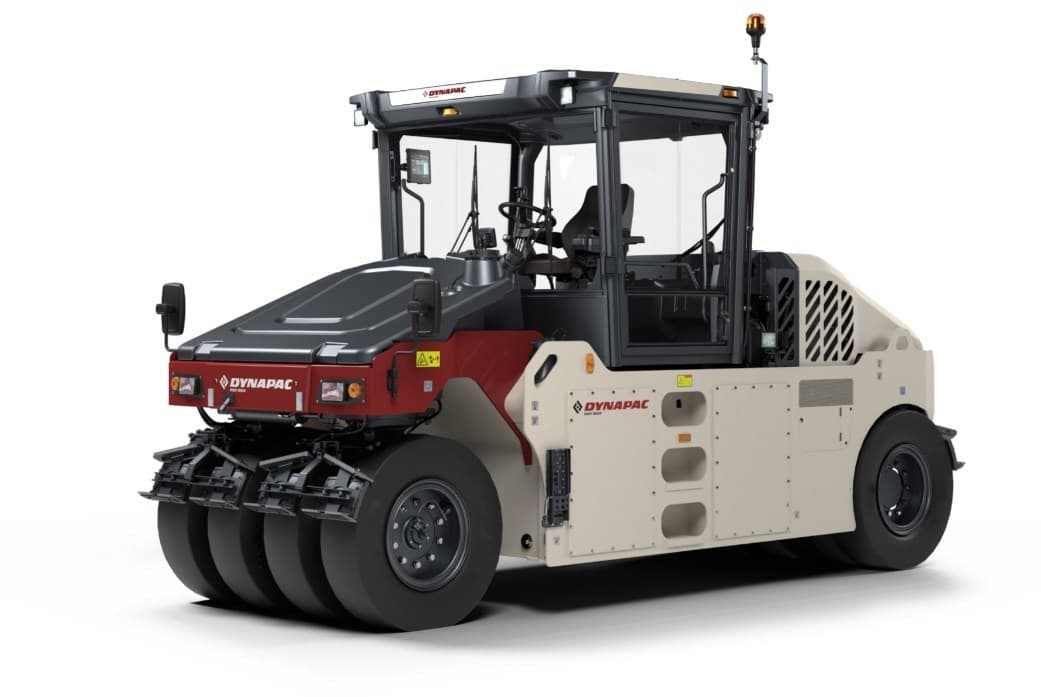

Dynapac CP28
Pneumatic tire roller for mainline asphalt compaction, chip seal and proof rolling. Compare ballast, cab width and engine configuration for your Texas project.
Plan your Dynapac CP28 quote
- Project type: mainline asphalt, chip seal or proof rolling of soil and base materials.
- Required machine mass, ballast package and rolling requirements from the project specification.
- Cab preference, access width, overhead clearance and transport limits.
- Job city, start date and sales or rental request.
- Engine package and requested options, including tire-pressure adjustment and cocoa mats.
Overview
CP28 ballast, cab width and engine configuration
The Dynapac CP28 is a pneumatic tire roller for mainline asphalt compaction, chip seal and proof rolling of soil and base materials.
Dynapac's US product page lists 21,200 lb operating mass with ROPS and 21,826 lb with cab. The 61,729 lb maximum ballasted figure is total machine mass. Confirm the ballast package and transport weight for the quoted machine.
Dynapac offers symmetric and asymmetric cab configurations with different overall widths. Cab width does not establish compaction width. Share the project's rolling requirements and access limits with Closner.
The specifications below follow Dynapac's US product page. Some dimensions and mass figures differ in the CP28 manual. Confirm the engine, cab and serial number before transport or service planning.
Three watertight ballast compartments accept steel plates, water or wet sand.
Dynapac's US page lists 61,729 lb total machine mass with maximum ballast.
The Cummins F3.8 Stage V / Tier 4 Final configuration produces 134 hp at 2,200 rpm.
The operator station slides and swivels. Dynapac lists a sprinkler system with timer and tire scrapers.
Key Specs
- Operating mass
- 21,200 lb with ROPS; 21,826 lb with cab (US product page)
- Total mass with maximum ballast
- 61,729 lb (US product page; confirm ballast configuration)
- Overall cab width
- 82 in symmetric cab; 92.5 in asymmetric cab (not compaction width)
- Engine
- Cummins F3.8 Stage V / Tier 4 Final (US product page)
- Rated power
- 101 kW / 134 hp @ 2,200 rpm (SAE J1995)
Technical Specifications
Dynapac CP28 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Mass and ballast from Dynapac's US page
- Operating mass with ROPS
- 21,200 lb
- Operating mass with cab
- 21,826 lb
- Total mass with maximum ballast
- 61,729 lb
- Total mass with water ballast
- 28,660 lb
- Total mass with wet sand ballast
- 35,935 lb
Dimensions from Dynapac's US page
- Overall width with symmetric cab
- 82 in
- Overall width with asymmetric cab
- 92.5 in
- Length
- 202.8 in
- Wheelbase
- 153.5 in
- Height with ROPS/cab
- 118.1 in
- Maximum height with ROPS/cab
- 135 in
- Height without ROPS/cab
- 91.7 in
- Ground clearance
- 10.6 in
- Compaction width
- Confirm the quoted configuration; the US product page does not provide a value.
Cummins F3.8 engine configuration
- Emissions configuration
- Stage V / Tier 4 Final
- Rated power
- 101 kW / 134 hp @ 2,200 rpm (SAE J1995)
- Fuel tank
- 55.5 gal (US product page)
- DEF tank
- 6 gal
- Electrical system
- 24 V
- Low / high speed
- 4.3 mph / 12.4 mph
FAQ
Common Dynapac CP28 Questions
What is the Dynapac CP28 used for?
Dynapac describes mainline asphalt compaction, chip seal and proof rolling of soil and base materials. Share the material and rolling requirements so Closner can discuss a machine configuration.
How much does the Dynapac CP28 weigh?
Dynapac's US page lists 21,200 lb with ROPS and 21,826 lb with cab. Its 61,729 lb maximum ballasted figure is total machine mass. Confirm the actual ballast package and transport weight before arranging transport.
How do the CP1200 and CP28 compare?
Dynapac lists 26,676 lb total mass with maximum ballast for the CP1200 and 61,729 lb for the CP28. Compare working width, access, ballast and project requirements before selecting a model. Cab width is a separate measurement.
Does every CP28 include tire-pressure adjustment and cocoa mats?
Confirm these options in the quote. Dynapac's CP28 manual identifies tire-pressure adjustment and cocoa mats as optional equipment. A general product description does not establish the equipment on a specific machine.
Can I request CP28 pricing or rental availability in Texas?
Yes. Send Closner your job city, start date, project requirements and sales or rental request. Closner can confirm the available configuration and quote terms. This reference page does not confirm inventory or a rental booking.
Is the CP28 the same model as a CP2700?
No. CP28 and CP2700 are separate model identities. Use the exact model and serial number when you request parts, manuals or machine specifications.
