Dynapac Pneumatic Rollers
Dynapac CP1200
Pneumatic tire roller for asphalt surface sealing, base, sub-base and stabilized soil. Compare ballast, cab clearance and engine configuration for your job.
Plan your Dynapac CP1200 quote
- Project type: asphalt sealing, chip seal, parking lot, subdivision street, patch work or soil compaction.
- Required working width, ballast configuration and rolling requirements from the project specification.
- Access width, overhead clearance, cab preference and transport limits.
- Job city, start date and sales or rental request.
- Exact model, engine and serial number for an existing machine or manual request.
Overview
CP1200 ballast, working width and cab clearance
The Dynapac CP1200 uses five front tires and four rear tires for pneumatic compaction. Dynapac describes asphalt surface sealing, base, sub-base and stabilized soil applications.
Dynapac's US page lists 12,302 lb operating mass with ROPS and 12,897 lb with cab. Its 26,676 lb maximum ballasted figure is total machine mass. Confirm the ballast package and transport weight for the quoted machine.
Working width and overall clearance are different measurements. The CP1200 has a 1.760 m working width; the CP1200W has a 2.090 m working width. Dynapac's Kubota manual lists 88.58 in overall width for the CP1200 with cab.
The US page lists a Kubota V3307 Stage V engine. Its mass and fuel-tank figures differ from the Kubota manual. Confirm the engine, cab and serial number before using either source for transport or service planning.
Five front tires and four rear tires provide pneumatic compaction for asphalt surface sealing.
The US page lists 26,676 lb total machine mass with maximum ballast.
The Kubota V3307 Stage V turbo diesel is rated at 74 hp at 2,200 rpm.
Working width is 69.3 in. Overall width depends on the cab configuration.
Dynapac lists a sliding and swiveling operator unit, progress mirrors, LED work lights and a pressurized sprinkler system.
Key Specs
- Operating mass
- 12,302 lb with ROPS; 12,897 lb with cab (US product page)
- Total mass with maximum ballast
- 26,676 lb (US product page; confirm ballast configuration)
- Working width
- 69.3 in (CP1200; not overall cab width)
- Tire layout
- 5 front tires, 4 rear tires
- Engine
- Kubota V3307 Stage V turbo diesel (US product page)
- Rated power
- 74 hp @ 2,200 rpm
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Compact pneumatic sealing
The CP1200 works with other asphalt compactors for surface sealing. Share the project material and rolling requirements when you request a quote.
Ballast and wheel-load control
Dynapac's manual describes water, wet sand, gravel and removable steel ballast. Confirm the ballast package and total machine mass for your job.
Operator visibility
Dynapac lists a sliding and swiveling operator unit, mirrors and LED work lights. Confirm the cab configuration and sight lines for the quoted machine.
Videos
Dynapac CP1200 Video Library
Manufacturer videos and training content for understanding the machine, its setup, and the systems crews rely on in the field.
Dynapac CP1200 pneumatic roller overview
Dynapac overview video for the CP1200 pneumatic roller and its compaction role.
Technical Specifications
Dynapac CP1200 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Masses and compaction
- Operating mass with ROPS
- 12,302 lb (US page); 12,247 lb (Kubota manual)
- Operating mass with cab
- 12,897 lb (US page); 12,842 lb (Kubota manual)
- Total mass with maximum ballast
- 26,676 lb (US page; confirm the actual ballast package)
- Working width
- 69.3 in (CP1200)
- Manual wheel load without ballast
- 459 kg per tire (Kubota manual; confirm against actual machine mass)
- Manual wheel load at maximum ballast
- 1,333 kg per tire (Kubota manual; confirm ballast configuration)
- Tire arrangement
- 5 front tires and 4 rear tires
Engine and drive
- Engine
- Kubota V3307 Stage V turbo diesel
- OEM alternative engine
- Kubota V3307 Stage IIIA / Tier 3 (separate configuration; confirm the quoted build)
- Rated power
- 55 kW / 74 hp @ 2,200 rpm
- Fuel tank by source
- 57 gal (US page); 130 L / 34.34 gal (Kubota manual). Confirm the machine configuration.
- Electrical system
- 12 V
- Transmission
- Hydrostatic drive motors at rear tires
- Service brake
- Hydrostatic braking on drive wheels
- Parking brake
- Spring-applied on rear drive wheels

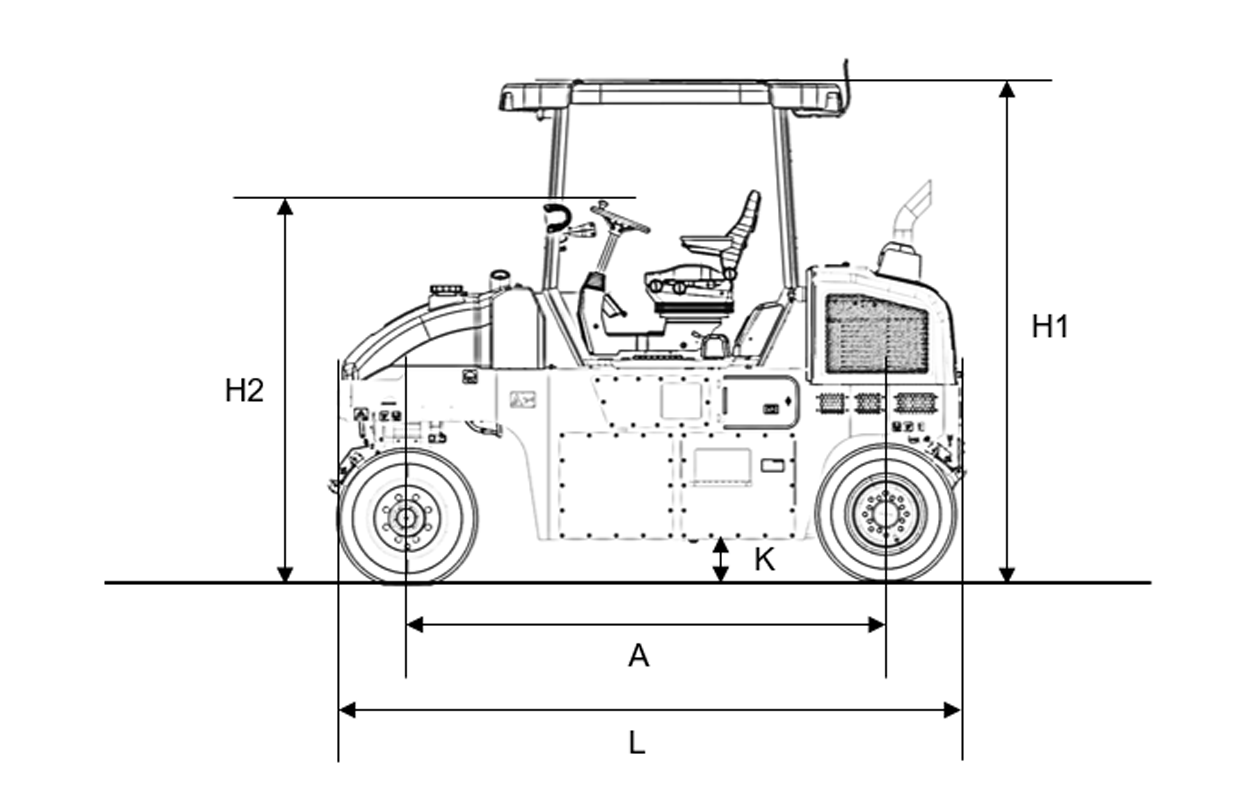

Dimensions and travel
- Length
- 145.3 in

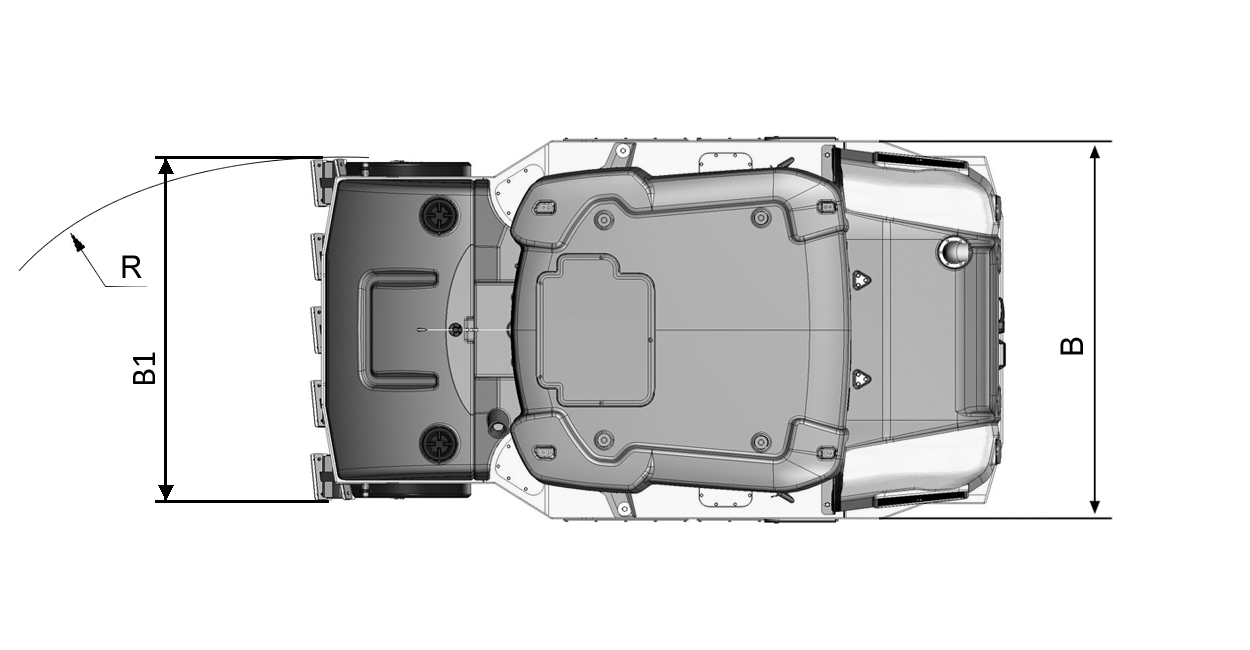

- Overall width
- 81 in (US page); 88.58 in with cab (Kubota manual)
- Working width at tires
- 69.3 in (CP1200; separate from overall width)
- Wheelbase
- 108 in
- Height with ROPS/cab
- 115.5 in
- Height without ROPS/cab
- 87 in
- Ground clearance
- 10.5 in
- Speed range
- 0 to 11.2 mph
- Low / high speed
- 5.6 mph / 11.2 mph
- Gradeability
- 28 percent theoretical
Standard equipment on Dynapac's US page
- Operator station
- Sliding and swiveling operator unit with suspension seat and arm rest
- Sprinkler system
- Pressurized sprinkler system with timer
- Tire treatment
- Cocoa mat on each tire and single scrapers
- Visibility
- Progress mirrors and LED work lights front/rear
- Protection
- Emergency stop, neutral start, interlock system, seat belts, parking brake
- Service access
- Hydraulic check points, hydraulic oil level indicator, battery switch, lockable vandal cover
Features
Dynapac CP1200 advantages
Rubber-tire kneading action
Nine pneumatic tires provide the CP1200's rolling contact. Dynapac describes its use with other asphalt compactors for surface sealing.
Flexible ballast
Ballast changes total machine mass and wheel load. Match the quoted configuration to the project specification and transport plan.
Working width and access
The US page lists a 69.3 in tire width and 145.3 in length. Check overall cab width separately before planning access.
Daily paving ergonomics
Dynapac lists a sliding/swiveling operator unit, suspension seat, progress mirrors, LED work lights, and pressurized sprinkler system as standard.
Gallery
Dynapac CP1200 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common Dynapac CP1200 Questions
What is the Dynapac CP1200 used for?
Dynapac describes asphalt surface sealing, base, sub-base and stabilized soil applications. Share the material, required working width and rolling specification so Closner can discuss the machine configuration.
How heavy is the CP1200?
Dynapac's US page lists 12,302 lb with ROPS, 12,897 lb with cab and 26,676 lb total mass with maximum ballast. The Kubota manual lists different configuration weights. Confirm the actual machine and ballast before planning transport.
How do the CP1200 and CP1200W differ?
Dynapac's Kubota manual lists a 1.760 m working width for the CP1200 and 2.090 m for the CP1200W. The CP1200W uses larger tires. Overall cab width is a separate measurement. Confirm the exact model and configuration.
How does the CP1200 compare with the CP28?
Dynapac's US pages list 12,302 lb operating mass with ROPS for the CP1200 and 21,200 lb for the CP28. Compare the required working mass, ballast package, working width and cab clearance. Each model has separate specifications.
Can I buy or rent a Dynapac CP1200 in Texas?
Ask Closner to check sales or rental options for your job. Share the city, dates, working width and preferred configuration so the team can confirm availability and prepare a quote.
