Dynapac Tandem Rollers

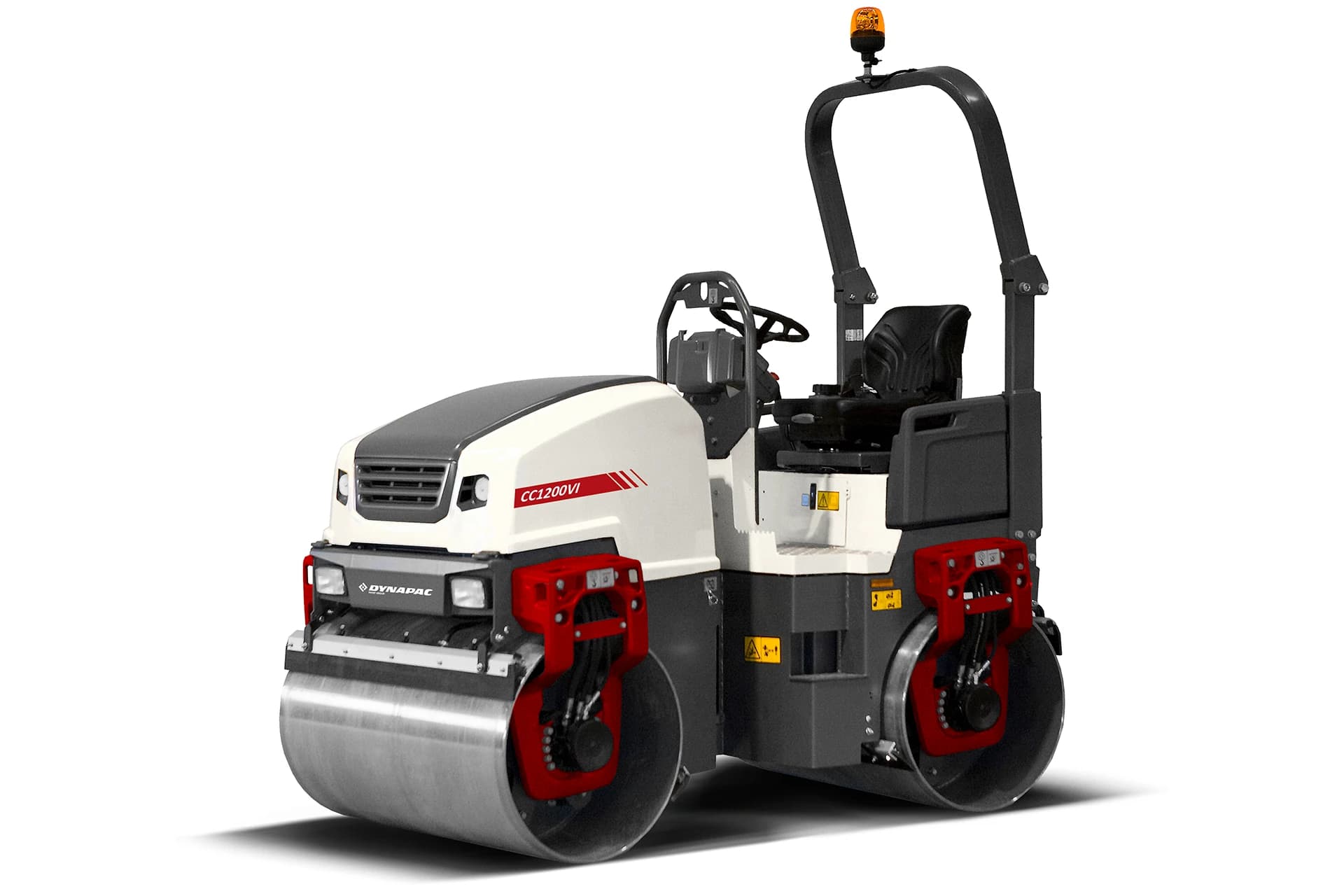

Dynapac CC1200VI

1.2 m tandem vibratory roller for commercial paving, municipal work, patching, and tight asphalt compaction routes.

Request Quote View CC1200VI Listings Manufacturer Page

Plan your Dynapac CC1200VI quote

Application, asphalt lift thickness, and working width
Jobsite city and target start date
Site access width, height limits, and turning space
Transport needs and the equipped machine dimensions and weight
Model year, engine or emissions requirements, and attachments to confirm
Purchase or rental preference and expected use

For a rental, send your jobsite city and dates. Closner confirms the machine and availability.

Compare roller rentals Ask about CC1200VI rental

Gallery

Dynapac CC1200VI Photos

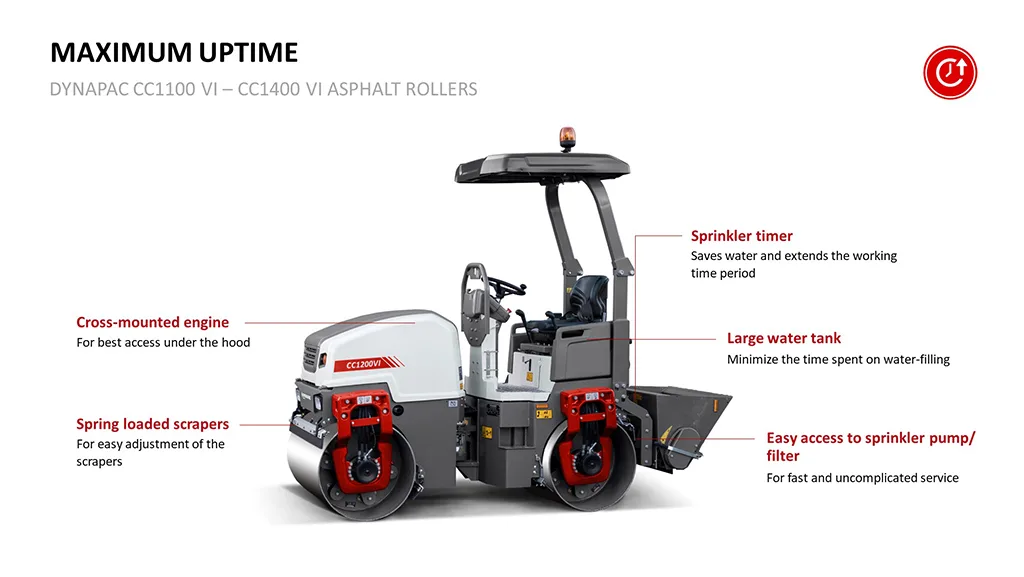

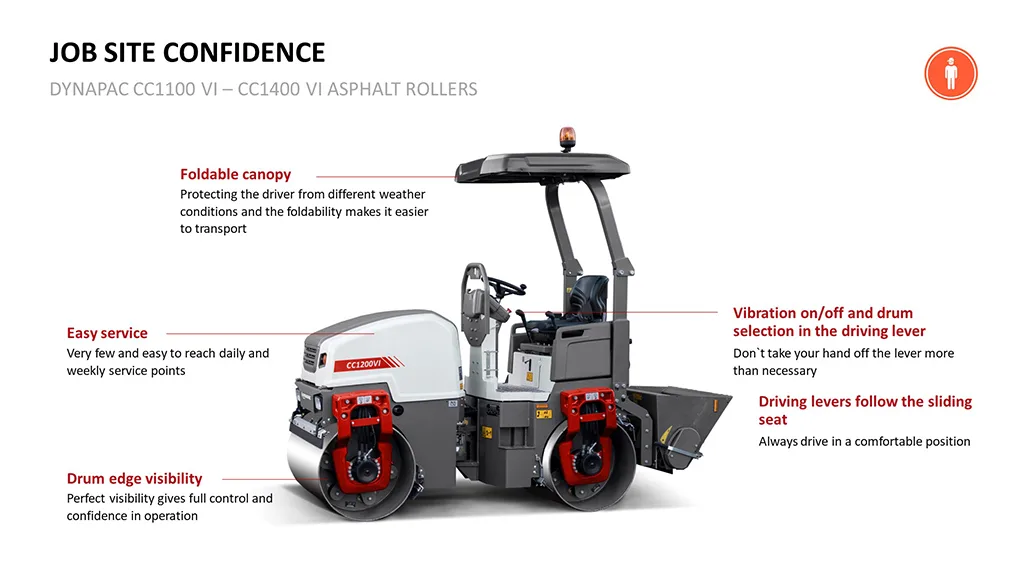

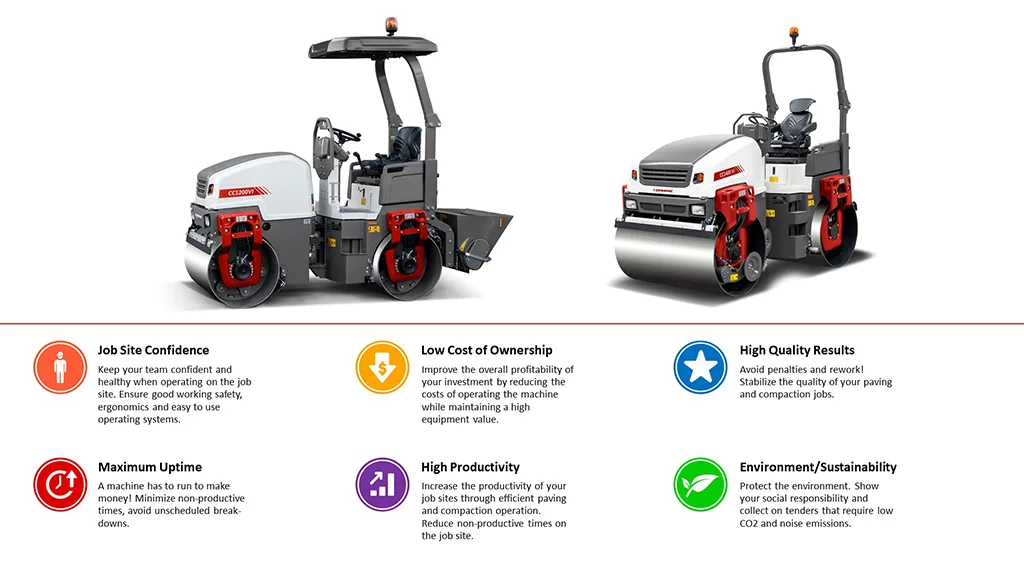

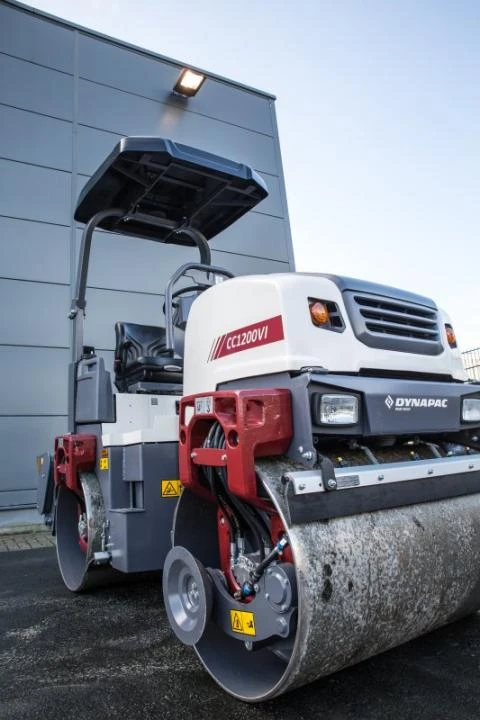

Factory model photos and system views for a closer look at the machine.

Overview

Built for the way Texas crews work

The Dynapac CC1200VI is a compact double-drum vibratory asphalt roller. Dynapac describes the series for thin asphalt layers on small streets, paths, and driveways. Crews can use it behind a small asphalt paver.

The standard roller weighs 2,600 kg with ROPS. Its drum width is 1,200 mm, while the overall machine width is 1,340 mm. Check the equipped machine dimensions before you plan site access or transport.

Dynapac lists Kubota engine packages for different emissions markets. Ask Closner to confirm the engine, attachments, and condition of the unit quoted for your Texas project.

1,200 mm / 47.2 in drum width and 1,340 mm / 52.8 in overall machine width.

2,600 kg operating mass with ROPS and 3,400 kg maximum operating mass.

Dynapac lists 18.5 kW / 25 hp and 28 kW / 37.5 hp Tier 4 / Stage V Kubota engine variants.

Hydrostatic service braking and failsafe multidisc parking/emergency brakes in both drums.

2,400 mm base length. Dynapac lists 3,220 mm with a chip spreader.

Key Specs

Operating mass with ROPS: 2,600 kg / about 5,730 lb
Max operating mass: 3,400 kg / about 7,496 lb
Drum width: 1,200 mm / 47.2 in
Overall machine width: 1,340 mm / 52.8 in
Base length: 2,400 mm / 94.5 in
Speed range: 0 to 10 km/h
Gradeability: 42 percent theoretical

Technical Specifications

Dynapac CC1200VI Spec Details

Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.

Dimensions and mass

Operating mass with ROPS: 2,600 kg
Max operating mass: 3,400 kg
Module mass front/rear: 1,230 kg / 1,370 kg
Wheelbase: 1,700 mm
Overall machine width: 1,340 mm
Height with ROPS/cab: 2,542 mm
Length with chip spreader: 3,220 mm
Drum diameter: 702 mm
Drum shell thickness: 13 mm

Power, drive, and braking

OEM Stage IIIA regional variant: Kubota D1703-M (IIIA), 26 kW / 35 hp @ 2,800 rpm
OEM 25 hp Tier 4 / Stage V variant: Kubota D1703-DI, 18.5 kW / 25 hp @ 2,200 rpm
OEM 37.5 hp Tier 4 / Stage V variant: Kubota D1803-CR, 28 kW / 37.5 hp @ 2,700 rpm
Drive: Axial piston pump with two radial piston motors
Service brake: Hydrostatic in forward/reverse lever
Parking brake: Failsafe multidisc brake in both drums

Features

Dynapac CC1200VI advantages

Match the roller to your asphalt work

Tell Closner your application, asphalt lift thickness, working width, and site access limits. Dynapac identifies thin layers and small paving jobs as intended uses for this series.

Confirm the US engine package

Dynapac's North American launch describes a 37.5 hp Tier 4 Final engine with DPF and a 25 hp version without aftertreatment. Confirm the engine plate and emissions package on the unit quoted.

Plan access and transport

Use the 1,340 mm overall width when you discuss access. The 1,200 mm drum width measures compaction coverage. Attachments can change the machine dimensions and weight.

Discuss the attachments you need

Dynapac lists an edge cutter/presser, rear chip spreader, canopy, and central lifting point as options. Ask Closner to confirm the equipment fitted to the quoted unit.

FAQ

Common Dynapac CC1200VI Questions

What work is the Dynapac CC1200VI best for?

Dynapac describes the series for thin asphalt layers on small streets, paths, and driveways. It can follow a small asphalt paver. Share your application, lift thickness, and working width so Closner can discuss the roller for your job.

How wide is the CC1200VI?

The drum width is 1,200 mm (47.2 in). Overall machine width is 1,340 mm (52.8 in). Use the overall width when you discuss gates, site access, and transport. Confirm the dimensions of the equipped machine before a move.

How much does the Dynapac CC1200VI weigh?

Dynapac lists a 2,600 kg operating mass with ROPS, or about 5,730 lb. Maximum operating mass is 3,400 kg, or about 7,496 lb. Ask Closner to confirm the actual transport weight with the machine's attachments and fluids.

Which CC1200VI engine packages does Dynapac list for North America?

Dynapac's North American documentation identifies 25 hp and 37.5 hp Tier 4 Final variants. The global specification also lists a 35 hp Stage IIIA regional variant. Confirm the model year, engine plate, and emissions package on the unit quoted.

Do CC1200VI attachments change its transport dimensions?

Yes. Dynapac lists a 2,400 mm base length and 3,220 mm with a chip spreader. Confirm the equipped machine's length, width, height, and weight. Ask Closner to check the ROPS or canopy transport arrangement for that unit.
