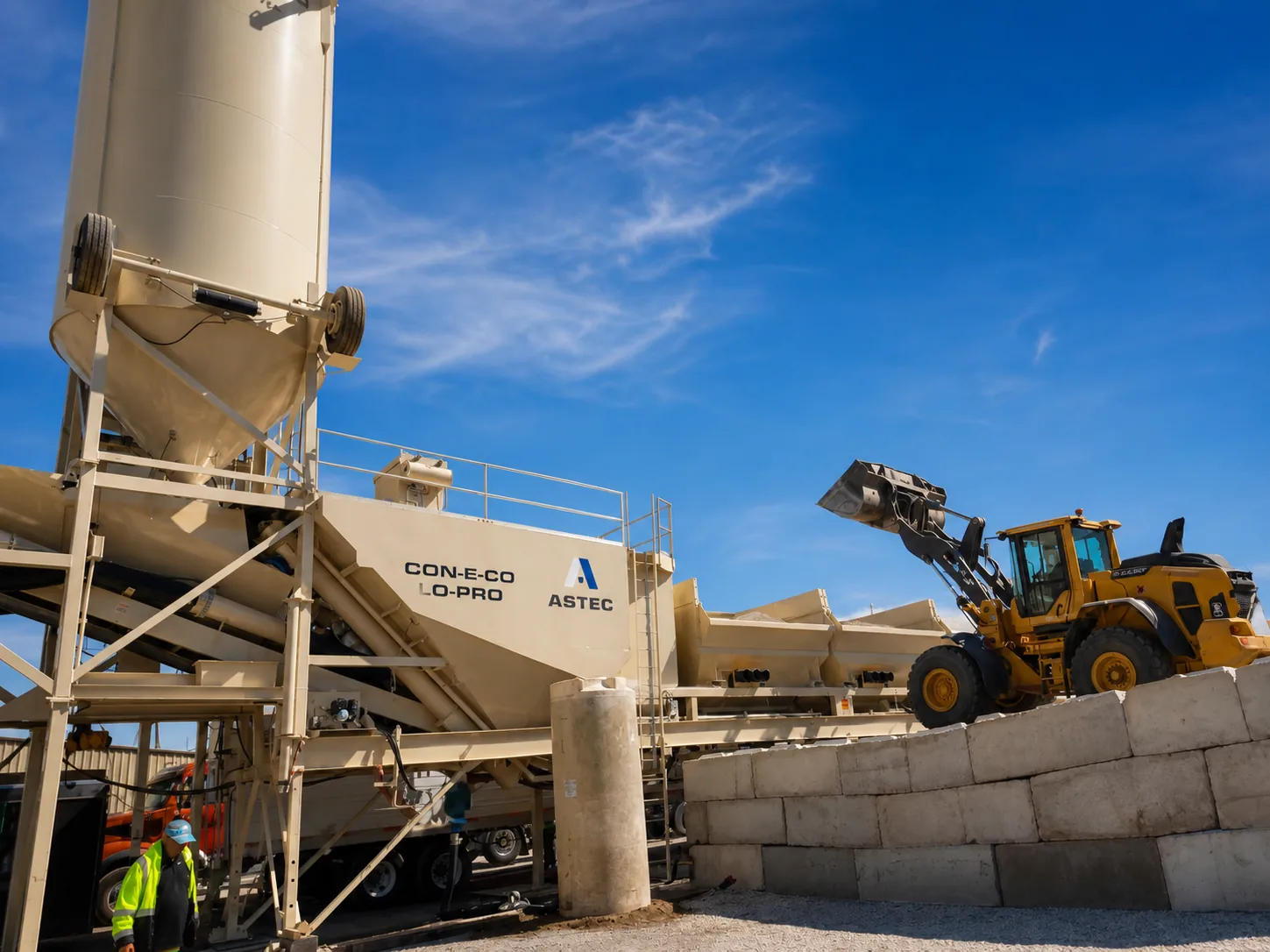

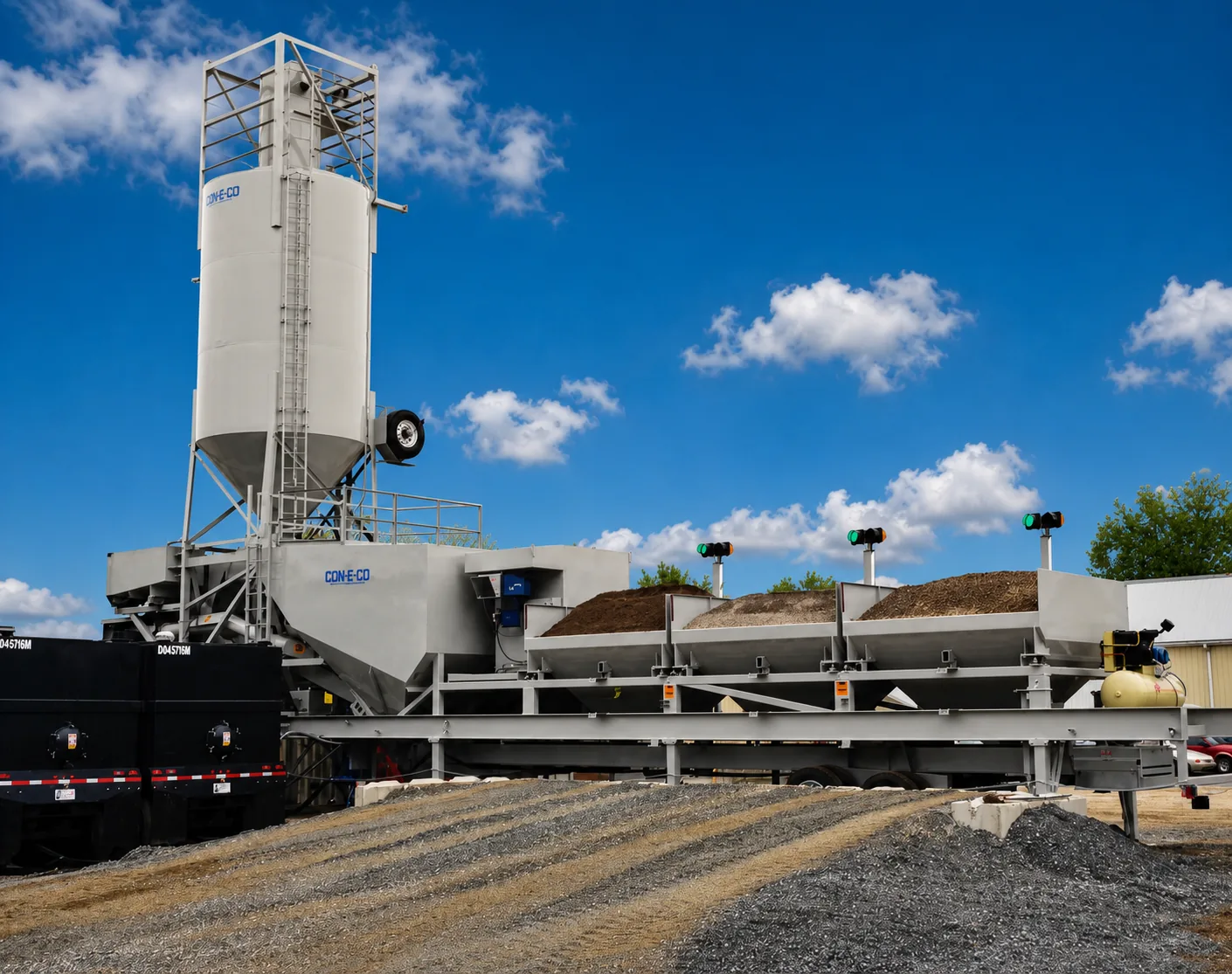

CON-E-CO LO-PRO concrete batch plant installation view

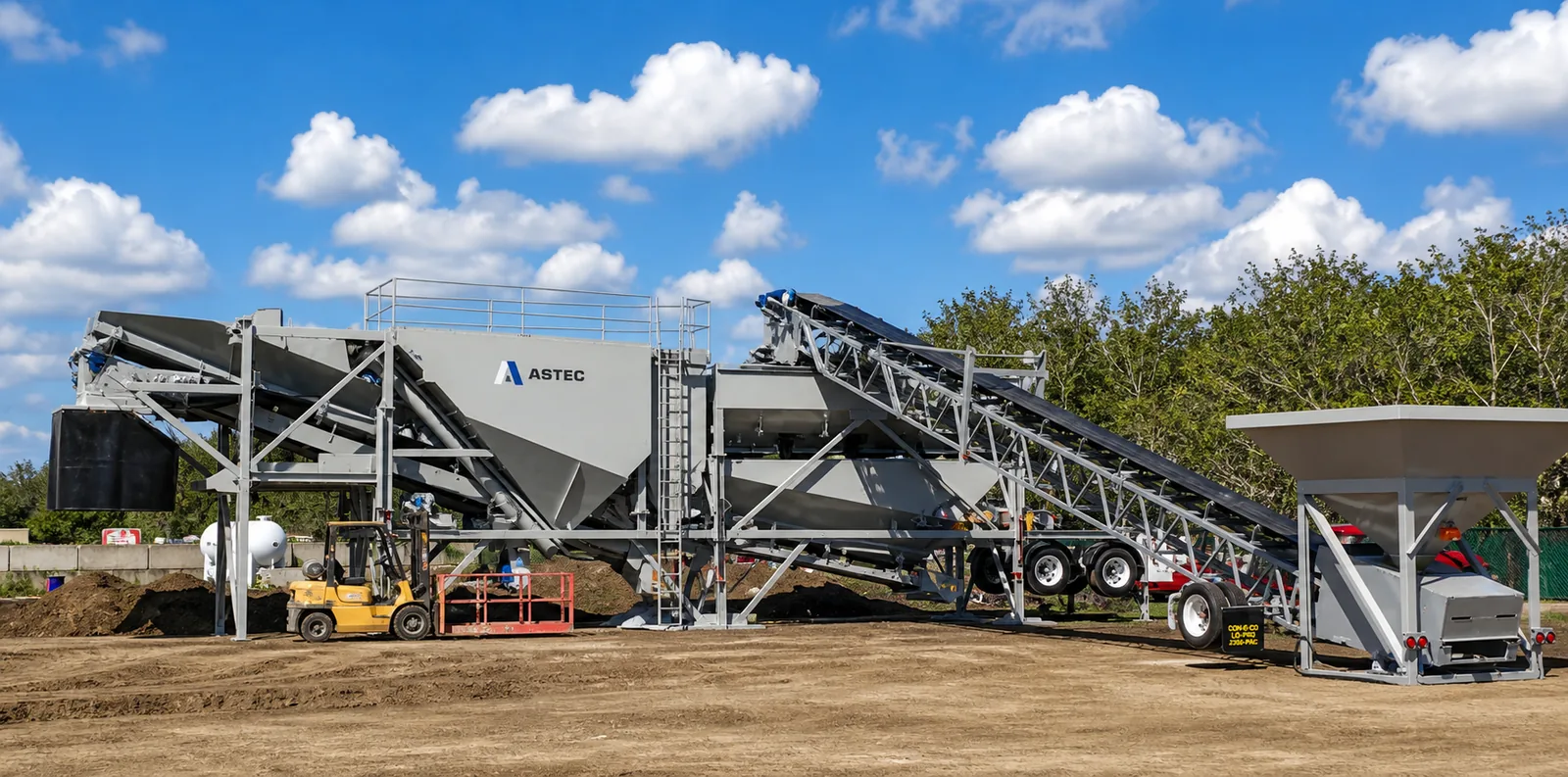

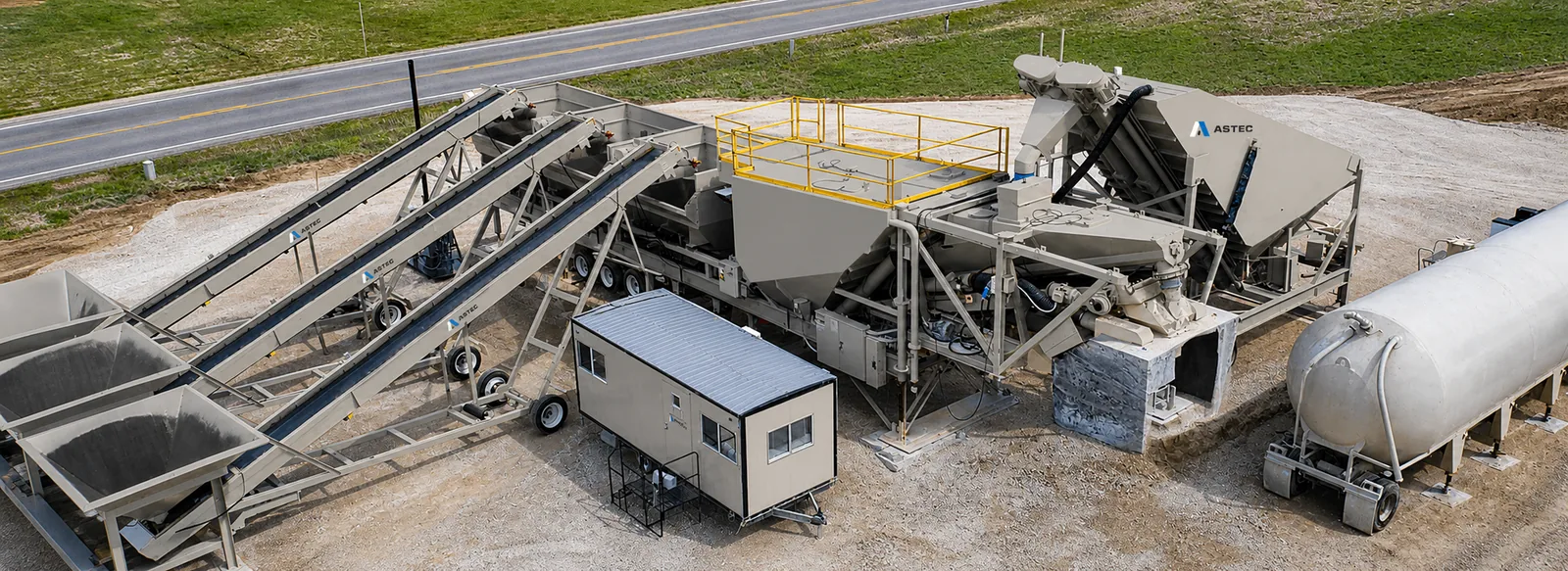

CON-E-CO LO-PRO wide elevation showing cement silos and aggregate bins

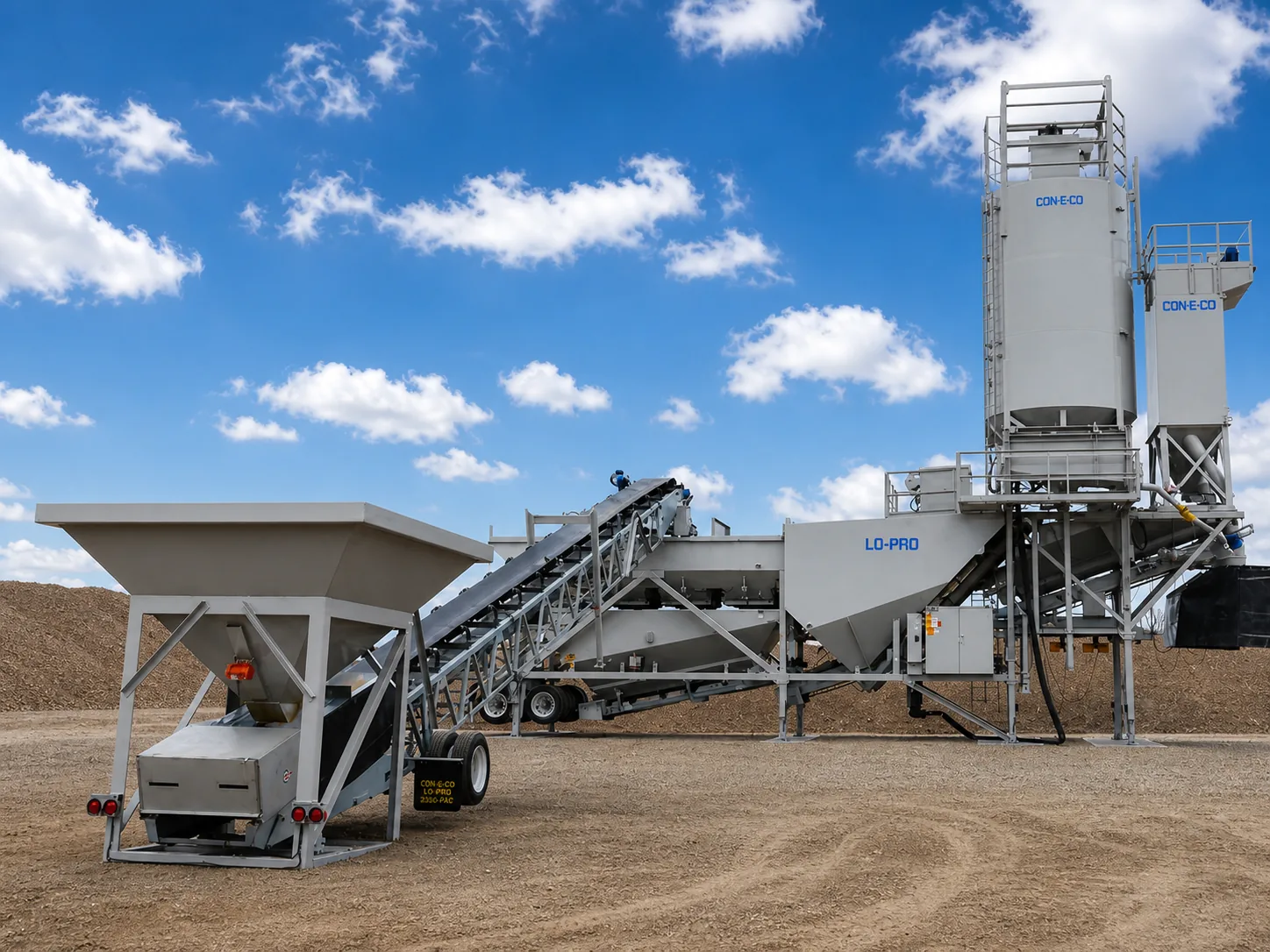

CON-E-CO LO-PRO concrete batch plant production yard

CON-E-CO Concrete Batch Plant

CON-E-CO LO-PRO Concrete Batch Plants

Name: CON-E-CO LO-PRO 327SS Walkaround Video
Duration: 2 min 22 s
Description: Watch Astec's official LO-PRO 327SS video to see the low-profile plant layout, aggregate storage, cement silos, conveyors, and truck-loading arrangement in context.

Expandable low-profile concrete batch plant with unitized construction. Dust control, cement silos, and aggregate storage modules can be added with bolt-on erection.

Request a Quote View Searchable Specs

Product Video

CON-E-CO LO-PRO 327SS Walkaround Video

Watch Astec's official LO-PRO 327SS video to see the low-profile plant layout, aggregate storage, cement silos, conveyors, and truck-loading arrangement in context.

Capacity

<100, 100-200, 201-300 yd/hr

Mix Type

Central mix, transit mix

Mobility

Mobile, mobile and self-erect, stationary

Best For

Growing Businesses and Future Expansion

CON-E-CO LO-PRO Concrete Batch Plants Overview

The CON-E-CO LO-PRO Series is one of the benchmark low-profile concrete batch plant families for ready-mix producers. Astec emphasizes its unitized construction and built-in expansion capability: dust control systems, cement silos, and aggregate storage modules can be added with simple bolt-on erection.

The LO-PRO design is built around fast setup, precise batching, compact site fit, and lower installation overhead. Depending on configuration, LO-PRO plants can serve permanent ready-mix yards, portable production sites, and producers that need a plant capable of scaling from today's demand into tomorrow's volume.

For a Texas producer that expects demand to grow, the LO-PRO helps avoid buying a plant that caps the business too early. Its compact base is also useful where environmental controls, enclosure costs, or tight site geometry matter.

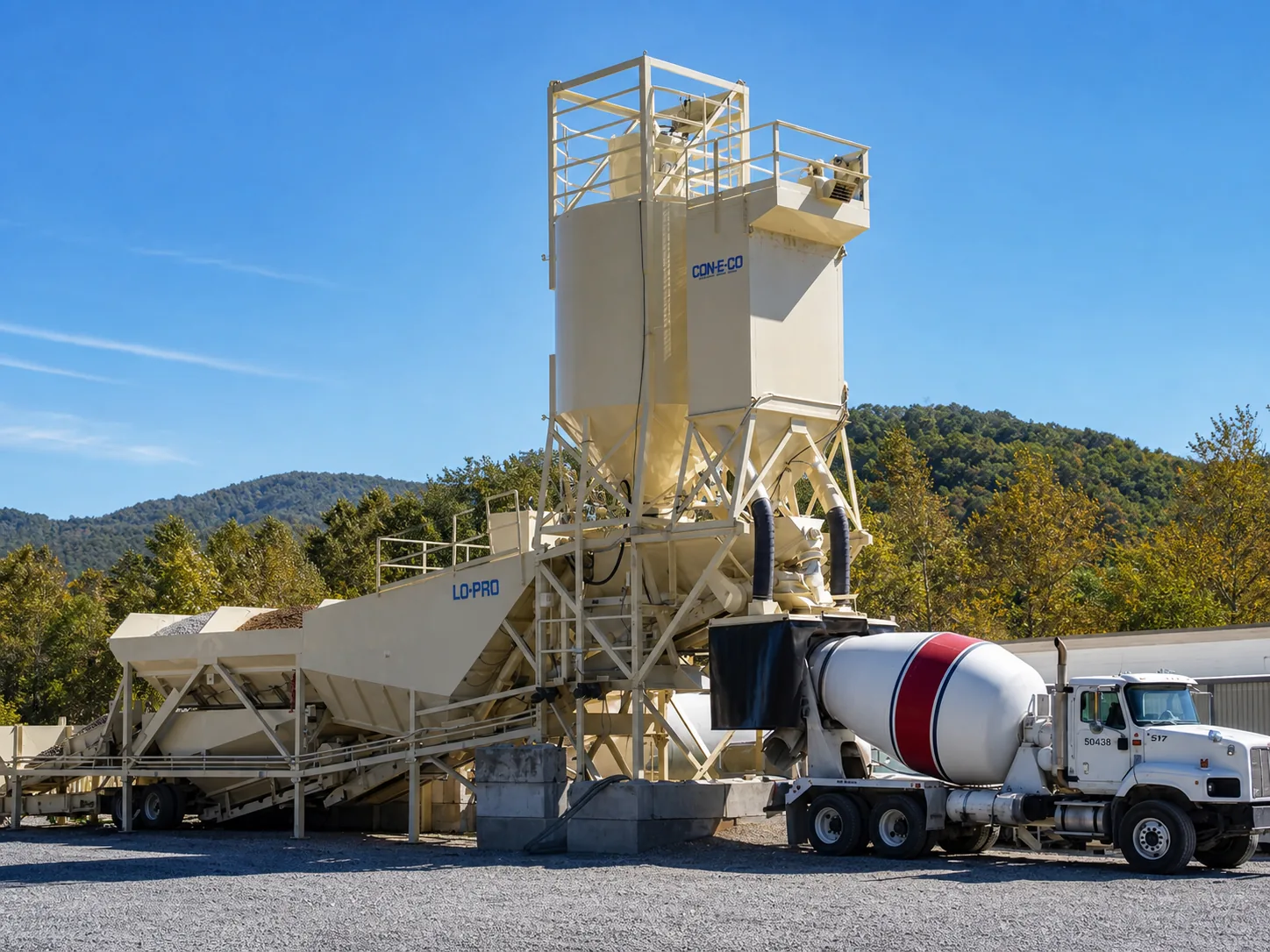

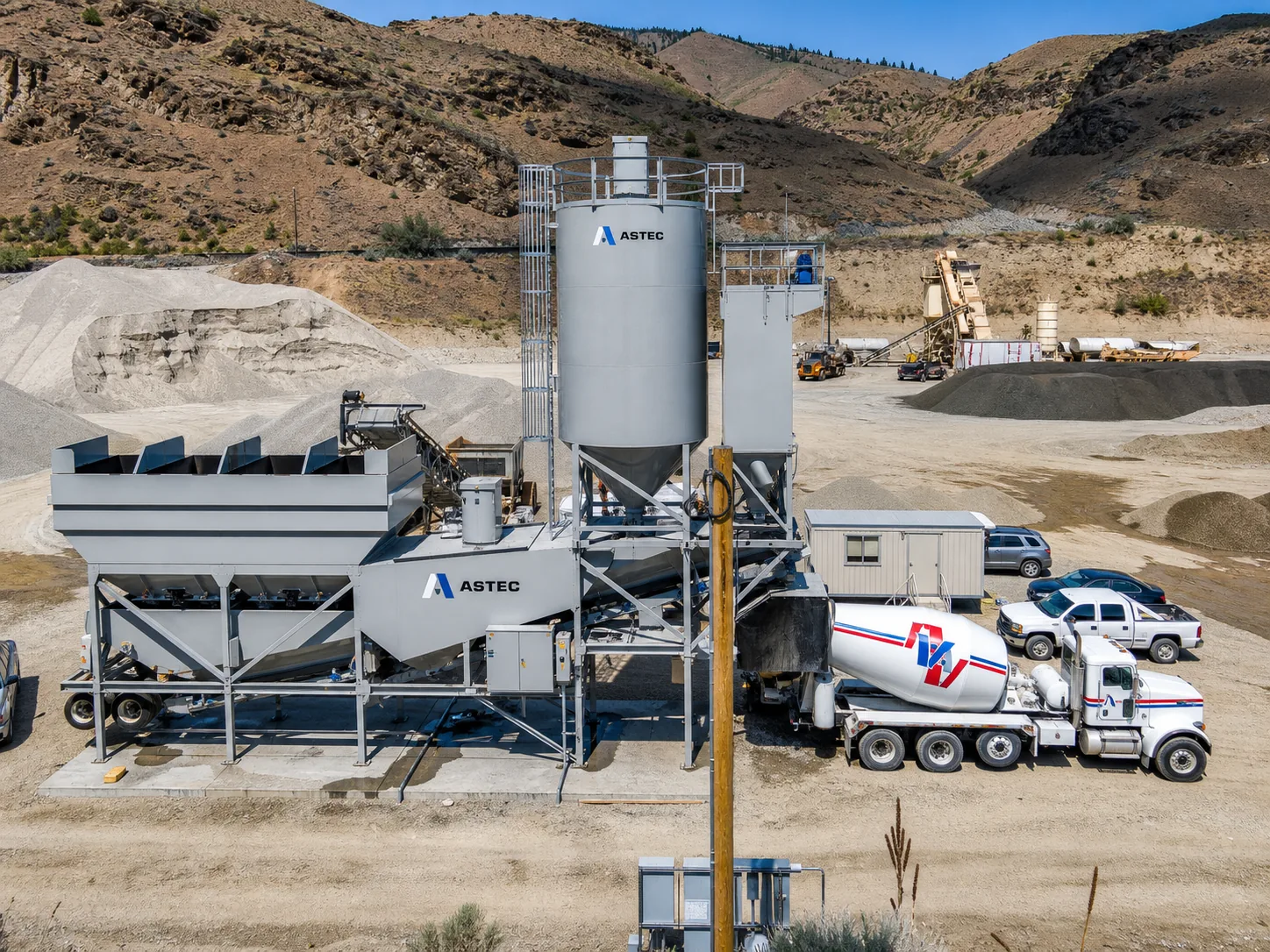

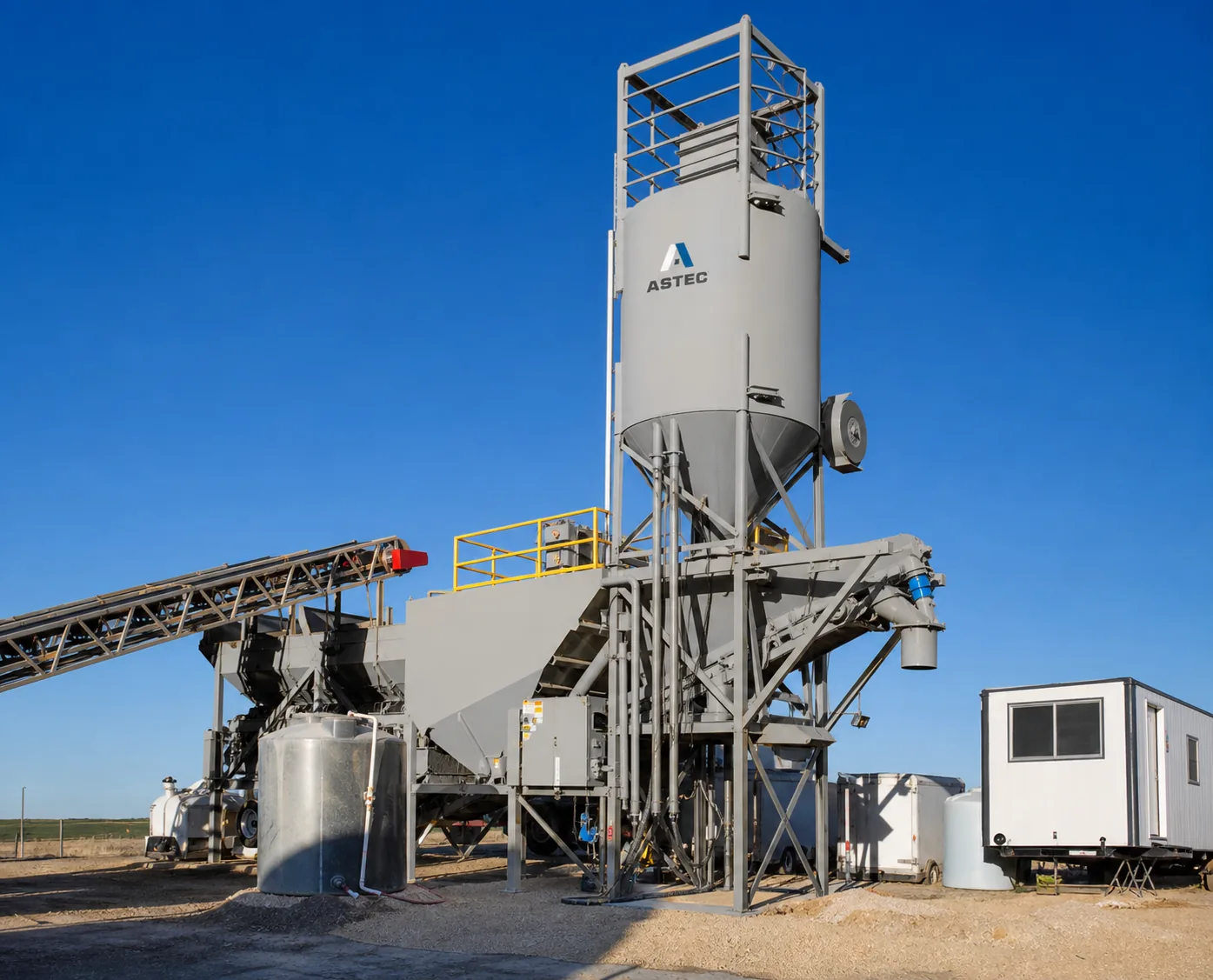

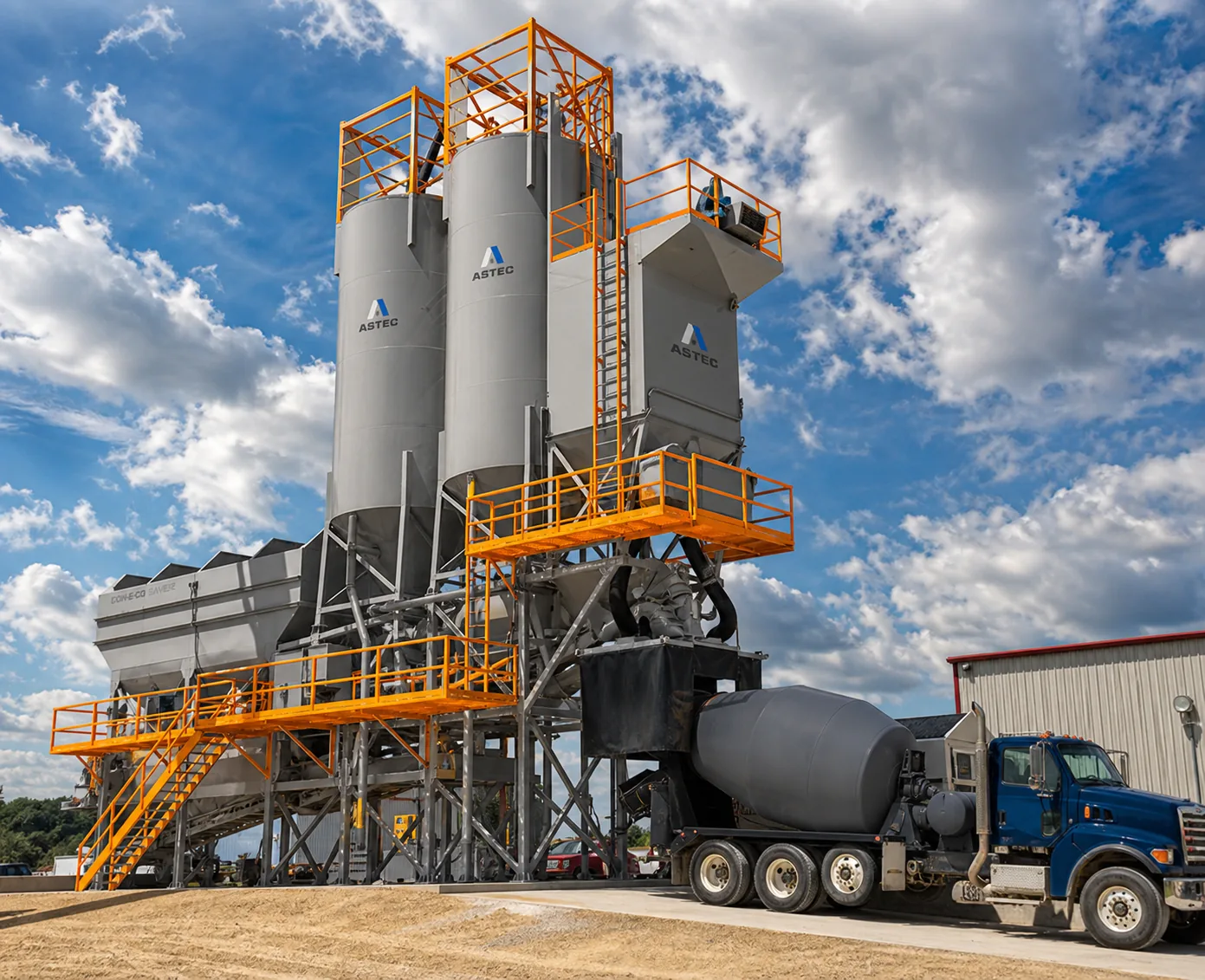

CON-E-CO LO-PRO Series Photo Gallery

Real installations and equipment views of the CON-E-CO LO-PRO Series. Click any image to view full size.

Key Features

Ultra-strong unitized construction with built-in expansion capability.

Dust control systems, unitized cement silos, and aggregate storage modules can be added with bolt-on erection.

Low-profile layout reduces crane and site-footprint burden compared with taller conventional plant designs.

Direct load-cell weighing, a 12 yd aggregate batcher, and a 12 yd cement batcher are available on LO-PRO 327 and 427 configurations.

Compact base size can simplify enclosing the plant.

Patented blending cement batcher and live-bottom aggregate batcher support controlled, consistent discharge.

Known as one of the fastest-charging ready-mix batch plants in the CON-E-CO lineup.

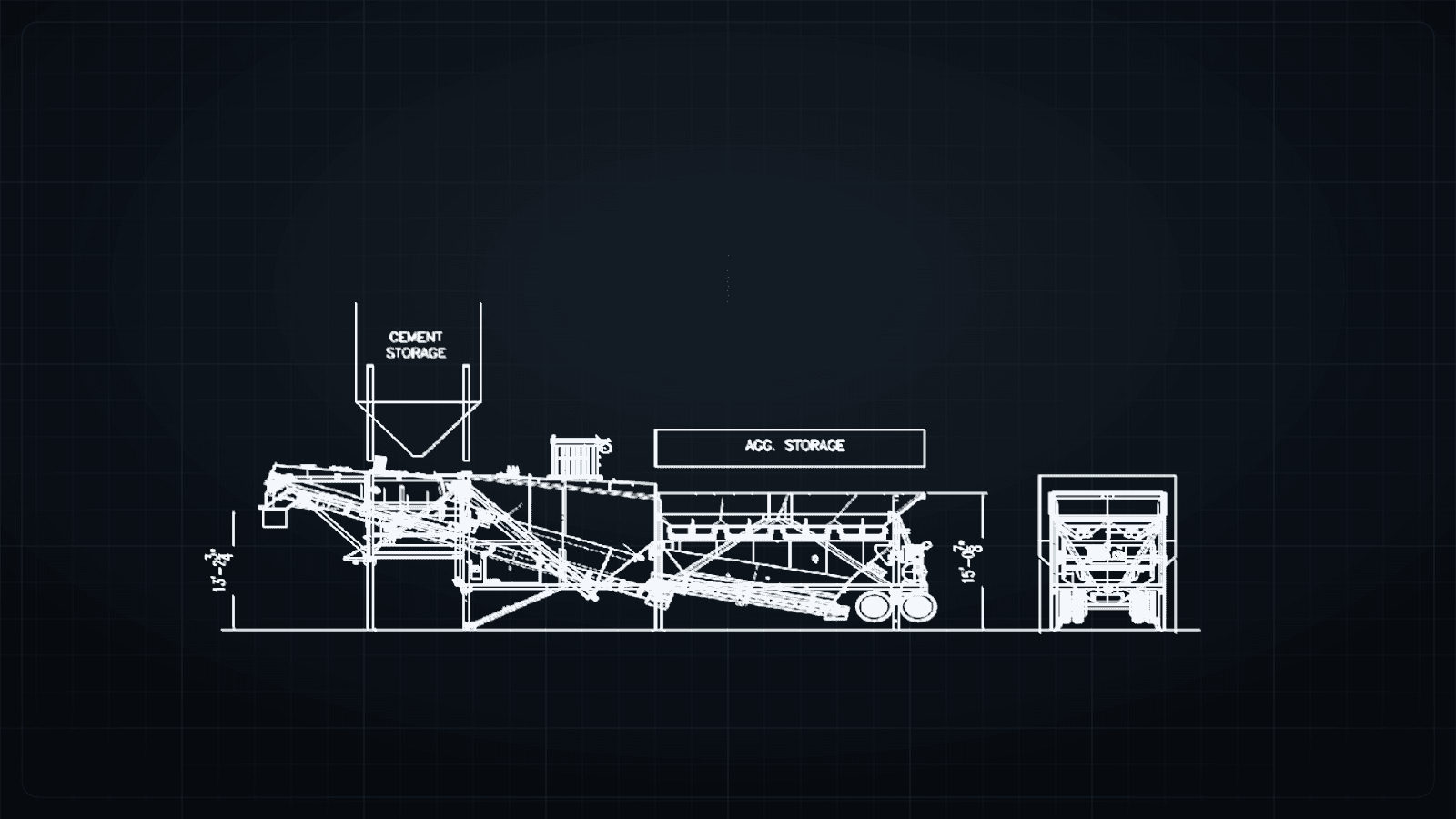

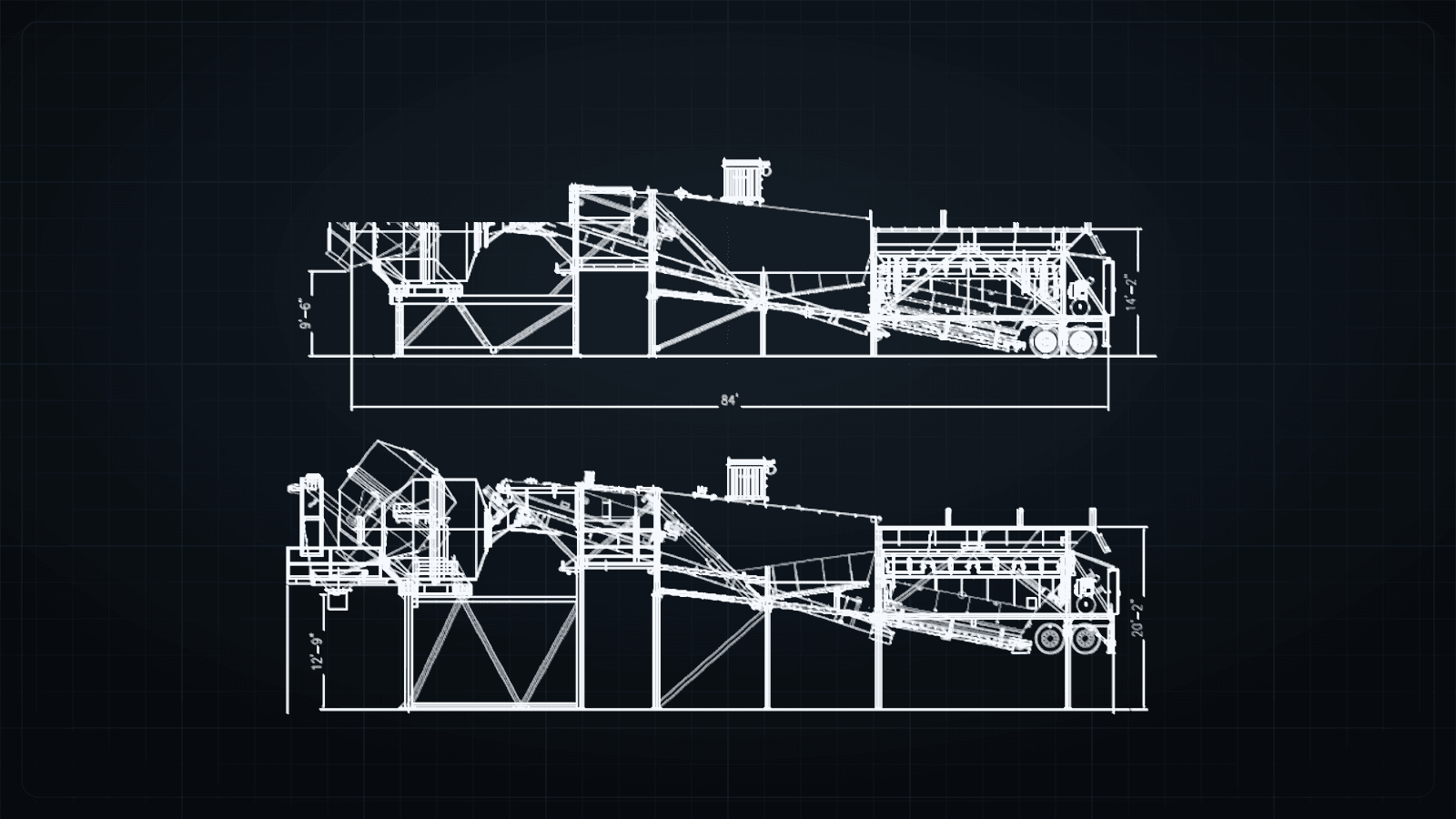

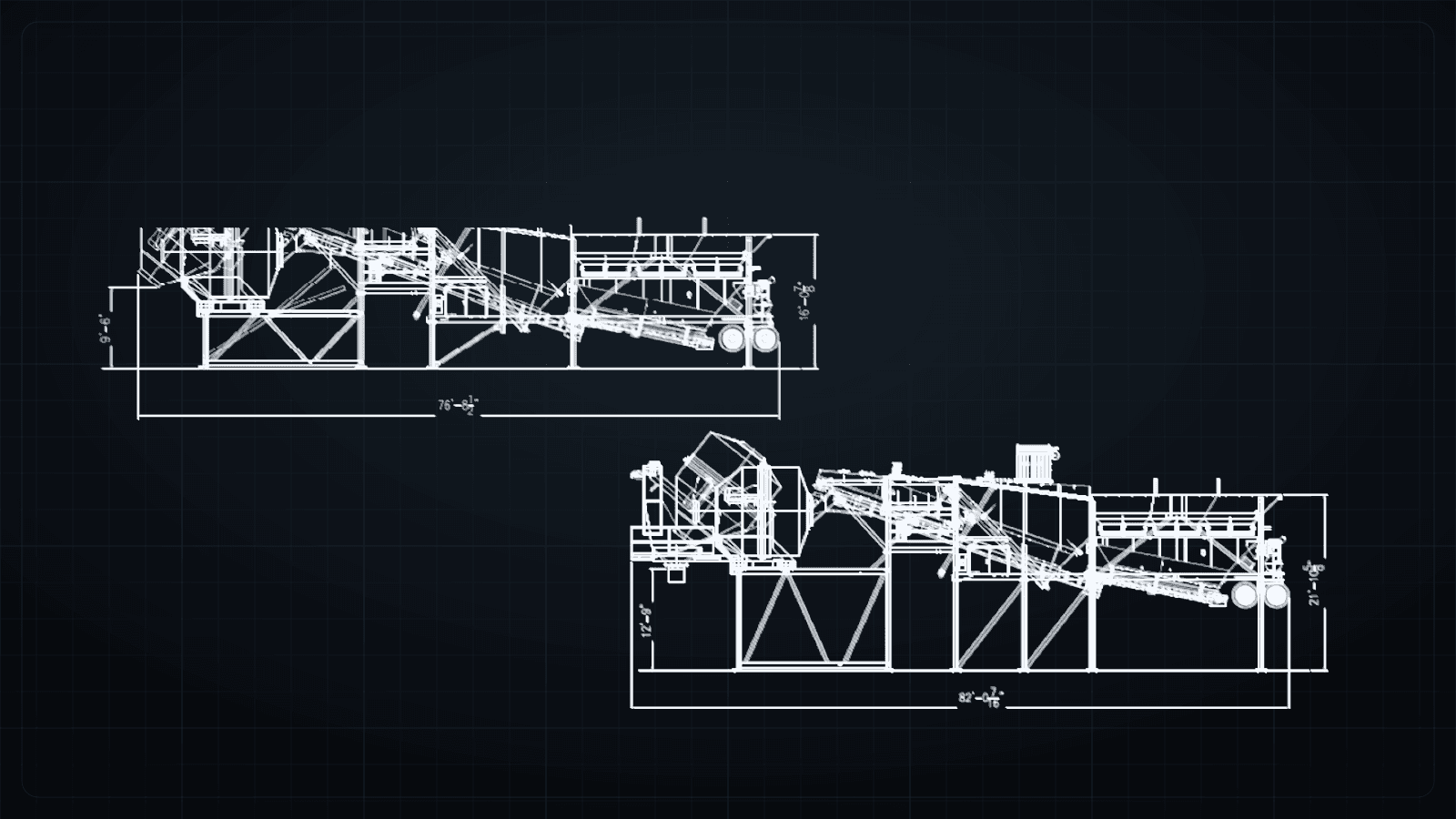

LO-PRO 327 vs. LO-PRO 427

The LO-PRO 327 and LO-PRO 427 share the same low-profile production philosophy, but the right choice depends on aggregate storage, cement storage, site layout, and future expansion plans. Final specifications vary by configuration, so Closner will confirm the exact plant package during quoting.

Feature	LO-PRO 327	LO-PRO 427
Aggregate capacity	45 to 160 tons	70 to 200+ tons
Cement storage	327 to 600 BBL	427 to 1,000+ BBL
Discharge height	14 ft standard	14 ft standard
Batch size	12 cubic yards	12 cubic yards
Setup style	Stationary or portable configurations	Stationary or portable configurations

Technical Specifications

CON-E-CO LO-PRO Model Technical Specs

Select a model below to review searchable specifications transcribed from Astec spec sheets. Each model includes readable production, batcher, conveyor, storage, transport, and dimension data plus the Astec drawing preview.

Transit-mix LO-PRO plant

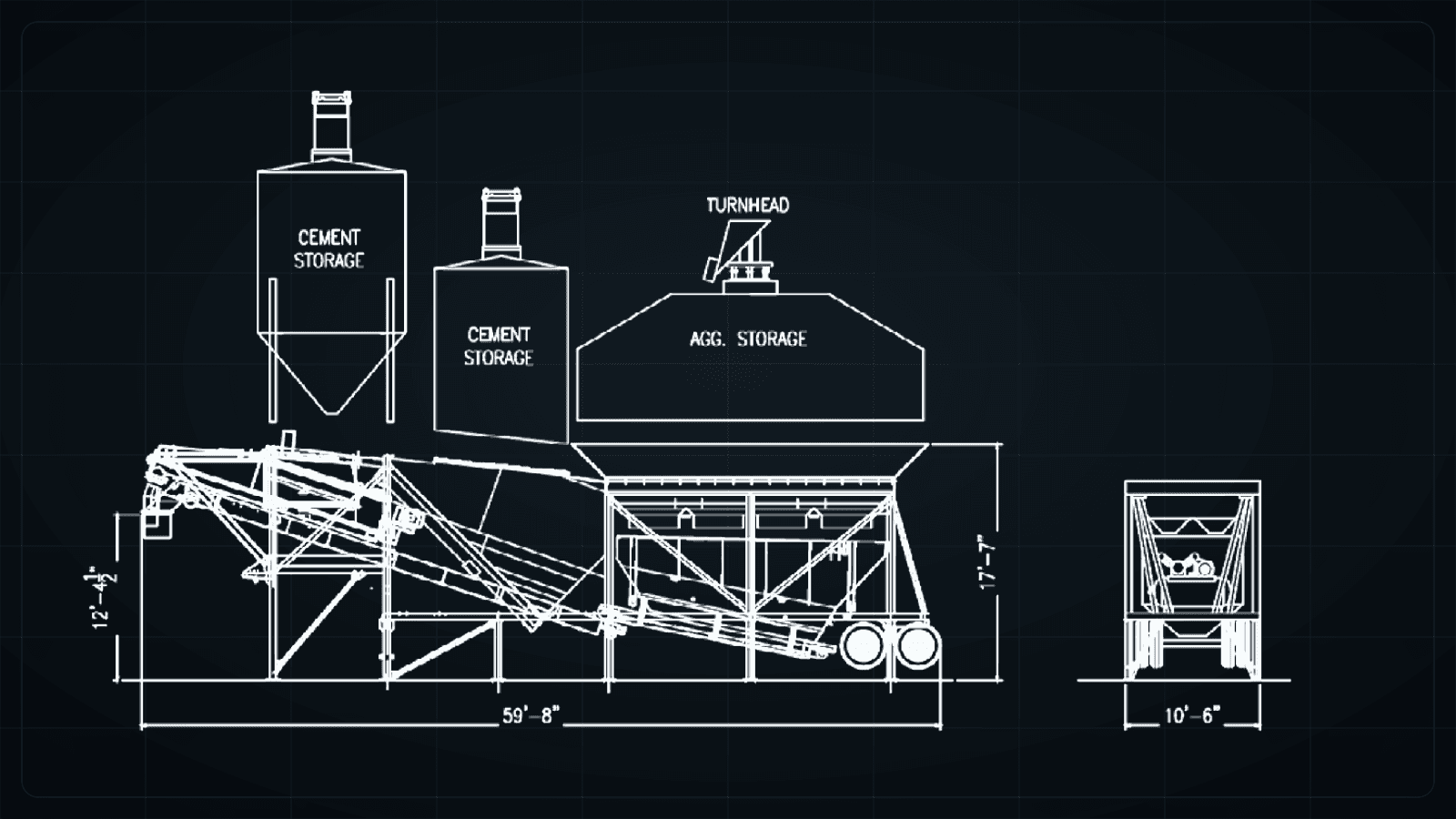

CON-E-CO LO-PRO 12

A low-profile LO-PRO configuration with 1 to 12 yd3 aggregate and cement batcher capacity, direct load cells, tandem-axle transport, and up to 270 yd3 aggregate heaped storage.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 59 to 270 yd3 (45 to 200 m3) heaped volume.
Cement storage: Cement I: 940 to 2,940 ft3. Cement II: 1,600 to 4,920 ft3.
Transport: 36,000 lb tandem axle with eight 255/70R 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp drive.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp. Optional 18 in. diameter (460 mm), 20 hp.
Cement II feeder screw: 9 in. diameter (230 mm), 15 hp drive. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15, 20, 25, or 30 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 255/70R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 59 to 270 yd3 (45 to 200 m3). Cement I gross volume: 940 to 2,940 ft3 (26 to 83 m3). Cement II gross volume: 1,600 to 4,920 ft3 (45 to 139 m3).
Towing dimensions: 51 ft 0 in length, 14 ft 3 in height, 10 ft 6 in width. Empty weight: 44,000 lb (19,958 kg).
Shipping dimensions: 61 ft 0 in length, 14 ft 3 in height, 10 ft 6 in width. Shipping volume: 9,127 ft3 (258 m3).

Transit-mix LO-PRO plant

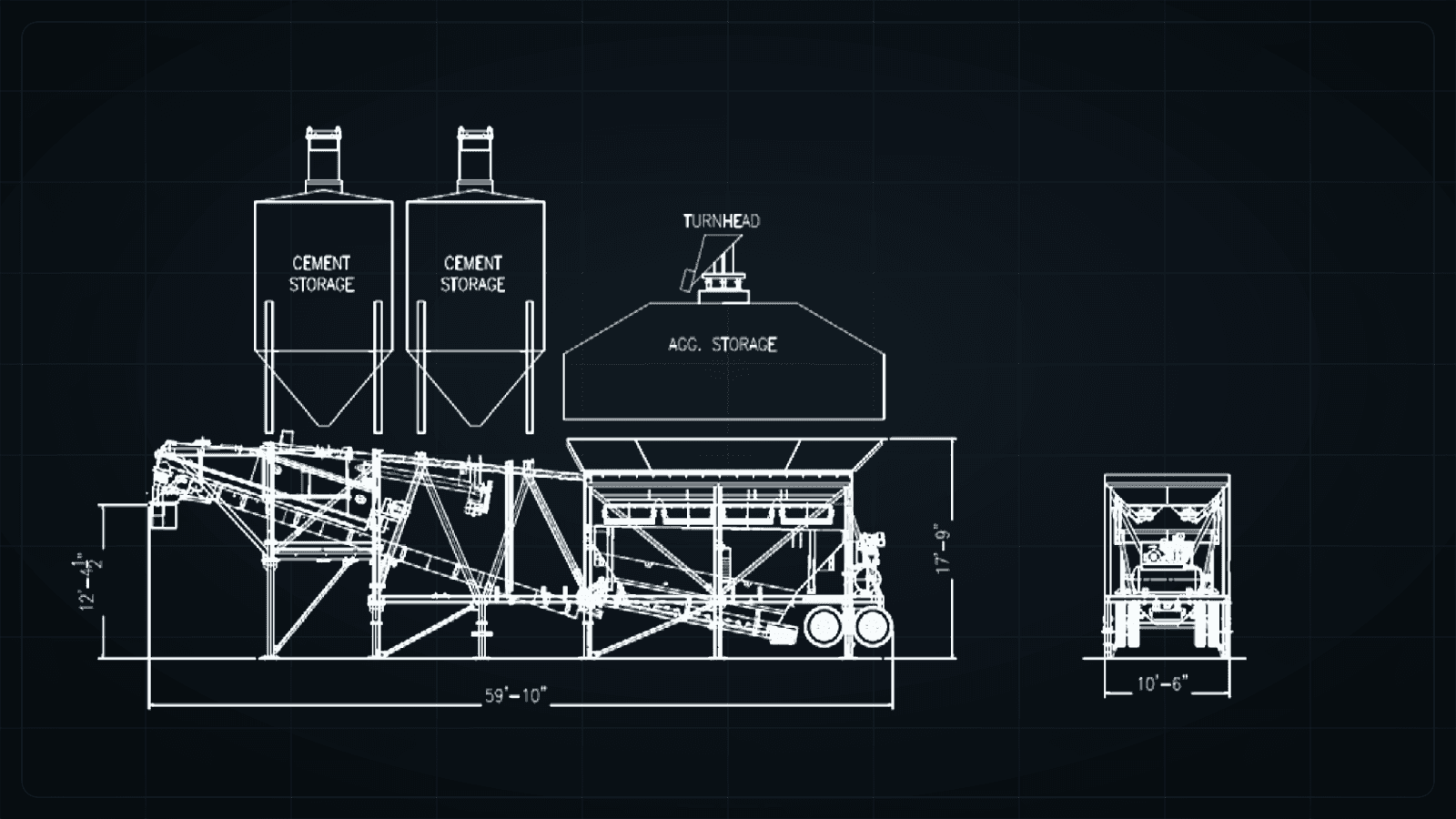

CON-E-CO LO-PRO 12RS

A LO-PRO 12RS setup with direct-load-cell aggregate and cement batching, large cement storage ranges, tandem-axle transport, and the same 2.5 to 3 minute theoretical cycle time.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 59 to 270 yd3 (45 to 200 m3) heaped volume.
Cement storage: Cement I and Cement II: 1,600 to 4,920 ft3 each.
Transport: 36,000 lb tandem axle with eight 255/70R 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp drive.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp. Optional 18 in. diameter (460 mm), 20 hp.
Cement II feeder screw: 9 in. diameter (230 mm), 15 hp drive. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15, 20, 25, or 30 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 255/70R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 59 to 270 yd3 (45 to 200 m3). Cement I gross volume: 1,600 to 4,920 ft3 (45 to 139 m3). Cement II gross volume: 1,600 to 4,920 ft3 (45 to 139 m3).
Towing dimensions: 51 ft 0 in length, 14 ft 3 in height, 10 ft 6 in width. Empty weight: 44,000 lb (19,958 kg).
Shipping dimensions: 61 ft 0 in length, 14 ft 3 in height, 10 ft 6 in width. Shipping volume: 9,127 ft3 (258 m3).

Decumulative LO-PRO plant

CON-E-CO LO-PRO 12D Decumulative

A decumulative LO-PRO arrangement with 490 ft3 aggregate weighing-bin capacity, 1 to 4 weighing bins, triple-axle transport, plant-mounted dust-collection options, and optional plant-mounted generator.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Aggregate weighing bin: 490 ft3 (13.87 m3), 1 to 4 weighing bins available.
Cement capacity: 1 to 12 yd3 (1 to 9.2 m3), direct load cells.
Dust collection: Mixer collector PJC900; central collector PJC1200 or PJC-1500.
Transport: 51,000 lb triple axle with twelve 22.5 tires.

Batching and Conveying

Aggregate weighing bin capacity: 490 ft3 (13.87 m3), 1 to 4 weighing bins available. Scales: direct load cells.
Cement capacity: Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate discharge conveyor: 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).
Plant-mounted dust collection options: Mixer collector PJC900. Central collector PJC1200 or PJC-1500.
Generator option: Optional plant-mounted generator listed with electrical package.

Storage, Transport and Dimensions

Transportation system: Rear-mounted 51,000 lb (23,133 kg) triple axle with twelve 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Cement I gross volume: 940 to 2,940 ft3 (26 to 83 m3). Cement II gross volume: 1,600 to 4,920 ft3 (45 to 139 m3).
Towing dimensions: 69 ft 9 in length, 14 ft 4 in height, 12 ft 0 in width. Empty weight: 65,000 lb (24,948 kg).
Shipping dimensions: 79 ft 2 in length, 14 ft 4 in height, 12 ft 0 in width. Shipping volume: 13,162 ft3 (385 m3).

Decumulative LO-PRO plant

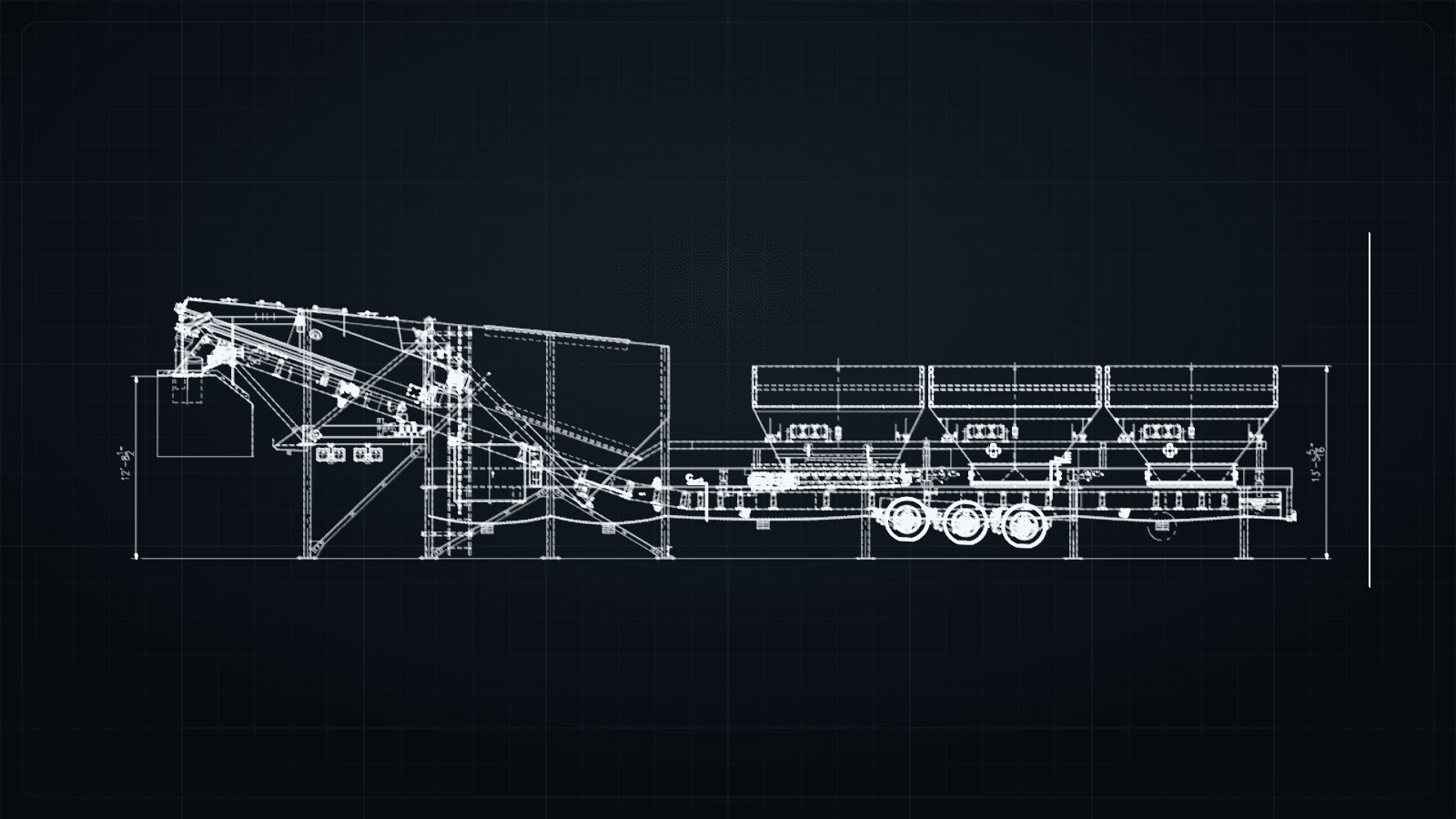

CON-E-CO LO-PRO 235D Decumulative

A 235D decumulative LO-PRO configuration with 490 ft3 aggregate weighing-bin capacity, direct-load-cell cement weighing, triple-axle transport, and plant-mounted dust-collection options.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Aggregate weighing bin: 490 ft3 (13.87 m3), 1 to 4 weighing bins available.
Cement capacity: 1 to 12 yd3 (1 to 9.2 m3), direct load cells.
Dust collection: Mixer collector PJC900; central collector PJC1200 or PJC-1500.
Transport: 51,000 lb triple axle with twelve 22.5 tires.

Batching and Conveying

Aggregate weighing bin capacity: 490 ft3 (13.87 m3), 1 to 4 weighing bins available. Scales: direct load cells.
Cement capacity: Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate discharge conveyor: 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).
Plant-mounted dust collection options: Mixer collector PJC900. Central collector PJC1200 or PJC-1500.
Generator option: Optional plant-mounted generator listed with electrical package.

Storage, Transport and Dimensions

Transportation system: Rear-mounted 51,000 lb (23,133 kg) triple axle with twelve 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Cement I gross volume: 940 to 2,940 ft3 (26 to 83 m3). Cement II gross volume: 1,600 to 4,920 ft3 (45 to 139 m3).
Towing dimensions: 69 ft 9 in length, 14 ft 4 in height, 12 ft 0 in width. Empty weight: 65,000 lb (24,948 kg).
Shipping dimensions: 79 ft 2 in length, 14 ft 4 in height, 12 ft 0 in width. Shipping volume: 13,162 ft3 (385 m3).

Transit-mix LO-PRO plant

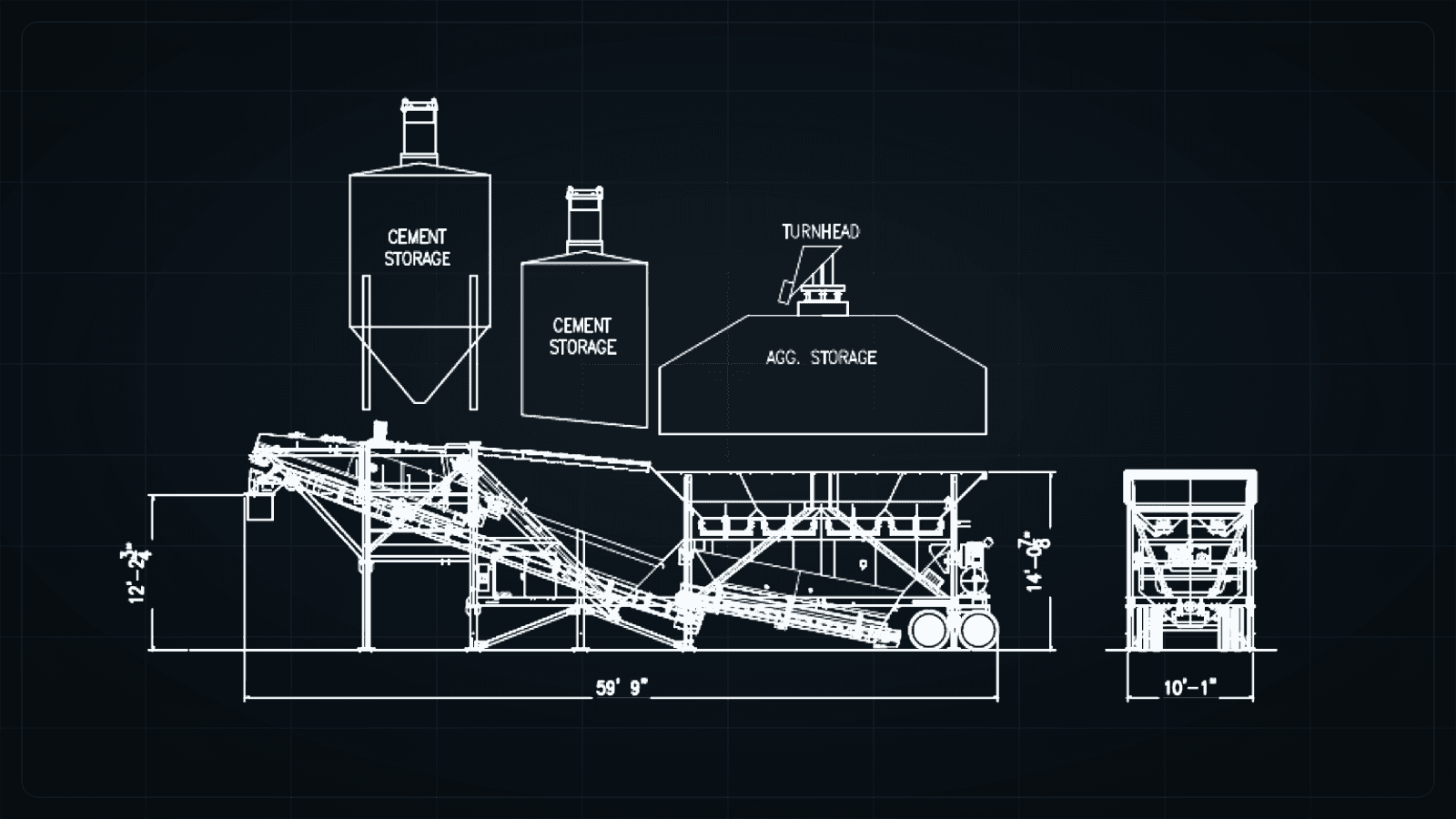

CON-E-CO LO-PRO 250

A compact LO-PRO 250 plant with 43 to 83 yd3 aggregate heaped volume, 1,308 ft3 Cement I storage, tandem-axle transport, and 10 ft 1 in towing width.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 43 to 83 yd3 (33 to 63 m3) heaped volume.
Cement storage: Cement I: 1,308 ft3. Cement II: 1,600 to 2,940 ft3.
Transport: 36,000 lb tandem axle with eight 255/70R 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 255/70R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 43 to 83 yd3 (33 to 63 m3). Cement I gross volume: 1,308 ft3 (37 m3). Cement II gross volume: 1,600 to 2,940 ft3 (45 to 83 m3).
Towing dimensions: 52 ft 5 in length, 14 ft 4 in height, 10 ft 1 in width. Empty weight: 60,000 lb (24,948 kg).
Shipping dimensions: 61 ft 0 in length, 14 ft 4 in height, 10 ft 1 in width. Shipping volume: 8,812 ft3 (250 m3).

Transit-mix LO-PRO plant

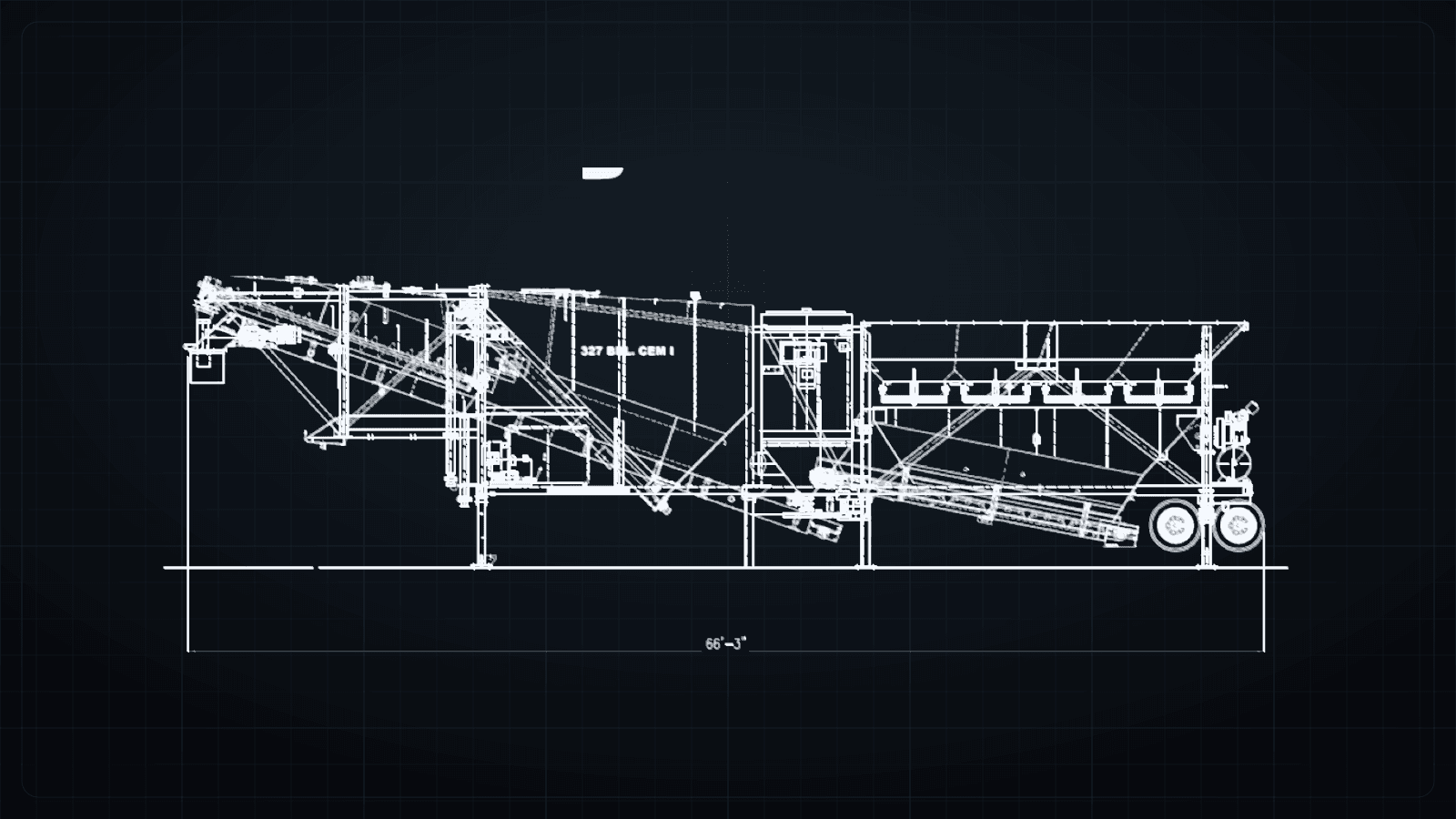

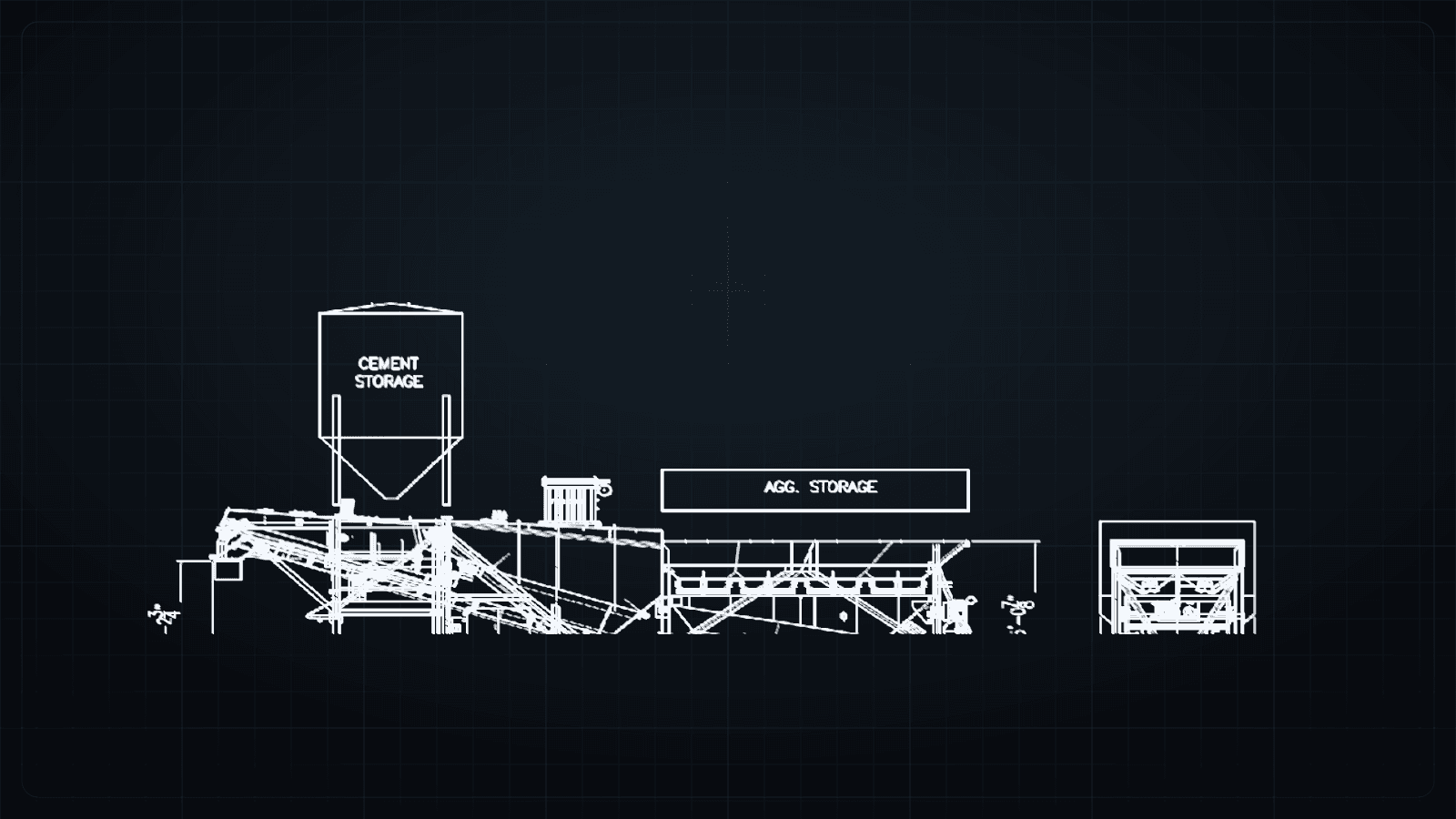

CON-E-CO LO-PRO 327

A popular LO-PRO 327 configuration with 43 to 80 yd3 aggregate heaped volume, 1,308 ft3 Cement I storage, optional main-frame central dust collector, and 12 ft towing width.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 43 to 80 yd3 (33 to 61 m3) heaped volume.
Cement storage: Cement I: 1,308 ft3. Cement II: 1,600 to 2,940 ft3.
Transport: 36,000 lb tandem axle with eight 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).
Dust collection option: Optional main-frame-mounted central dust collector.

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 43 to 80 yd3 (33 to 61 m3). Cement I gross volume: 1,308 ft3 (37 m3). Cement II gross volume: 1,600 to 2,940 ft3 (45 to 83 m3).
Towing dimensions: 52 ft 5 in length, 14 ft 4 in height, 12 ft 0 in width. Empty weight: 60,000 lb (24,948 kg).
Shipping dimensions: 61 ft 0 in length, 14 ft 4 in height, 12 ft 0 in width. Shipping volume: 10,490 ft3 (297 m3).

Transit-mix LO-PRO plant

CON-E-CO LO-PRO 327S

A LO-PRO 327S setup with in-frame mixer dust collection, optional central dust collector, optional permanently mounted water weigh batcher, and 43 to 83 yd3 aggregate heaped storage.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 43 to 83 yd3 (33 to 63 m3) heaped volume.
Dust collection: In-frame mixer dust collector; optional central dust collector.
Water system: 3 in. system up to 500 gal/min; optional permanently mounted water weigh batcher.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp. Optional 18 in. diameter (457 mm), 20 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).
In-frame dust collector: Mixer dust collector. Optional central dust collector.
Water system: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min). Optional permanently mounted water weigh batcher.

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 43 to 83 yd3 (33 to 63 m3). Cement I gross volume: 1,308 ft3 (37 m3). Cement II gross volume: 1,600 to 2,940 ft3 (45 to 83 m3).
Towing dimensions: 57 ft 3 in length, 14 ft 4 in height, 12 ft 0 in width. Empty weight: 60,000 lb (24,948 kg).
Shipping dimensions: 66 ft 3 in length, 14 ft 4 in height, 12 ft 0 in width. Shipping volume: 10,490 ft3 (323 m3).

Central-mix LO-PRO plant

CON-E-CO LO-PRO 327CM

A central-mix LO-PRO 327CM configuration with 36 in. aggregate conveyors, larger cement screws, direct-load-cell weighing, and 43 to 83 yd3 aggregate heaped storage.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate conveyors: 36 in. aggregate batcher conveyor and 36 in. aggregate discharge conveyor.
Cement storage: Cement I: 1,308 ft3. Cement II: 1,600 to 2,940 ft3.
Transport: 36,000 lb tandem axle with eight 255/70R 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 36 in. wide (914 mm), 20 hp drive.
Aggregate discharge conveyor: 36 in. wide (914 mm), 30 hp drive.
Cement batcher recirculating screw: 18 in. diameter (460 mm), 25 hp.
Cement feeder screws: Two 12 in. diameter (300 mm), 20 hp drives.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage and Transport

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 255/70R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 43 to 83 yd3 (33 to 63 m3). Cement I gross volume: 1,308 ft3 (37 m3). Cement II gross volume: 1,600 to 2,940 ft3.
Drawing dimensions: Astec drawing shows low-profile central-mix layout dimensions; confirm final transportation and setup dimensions by ordered configuration.

Self-erect decumulative LO-PRO plant

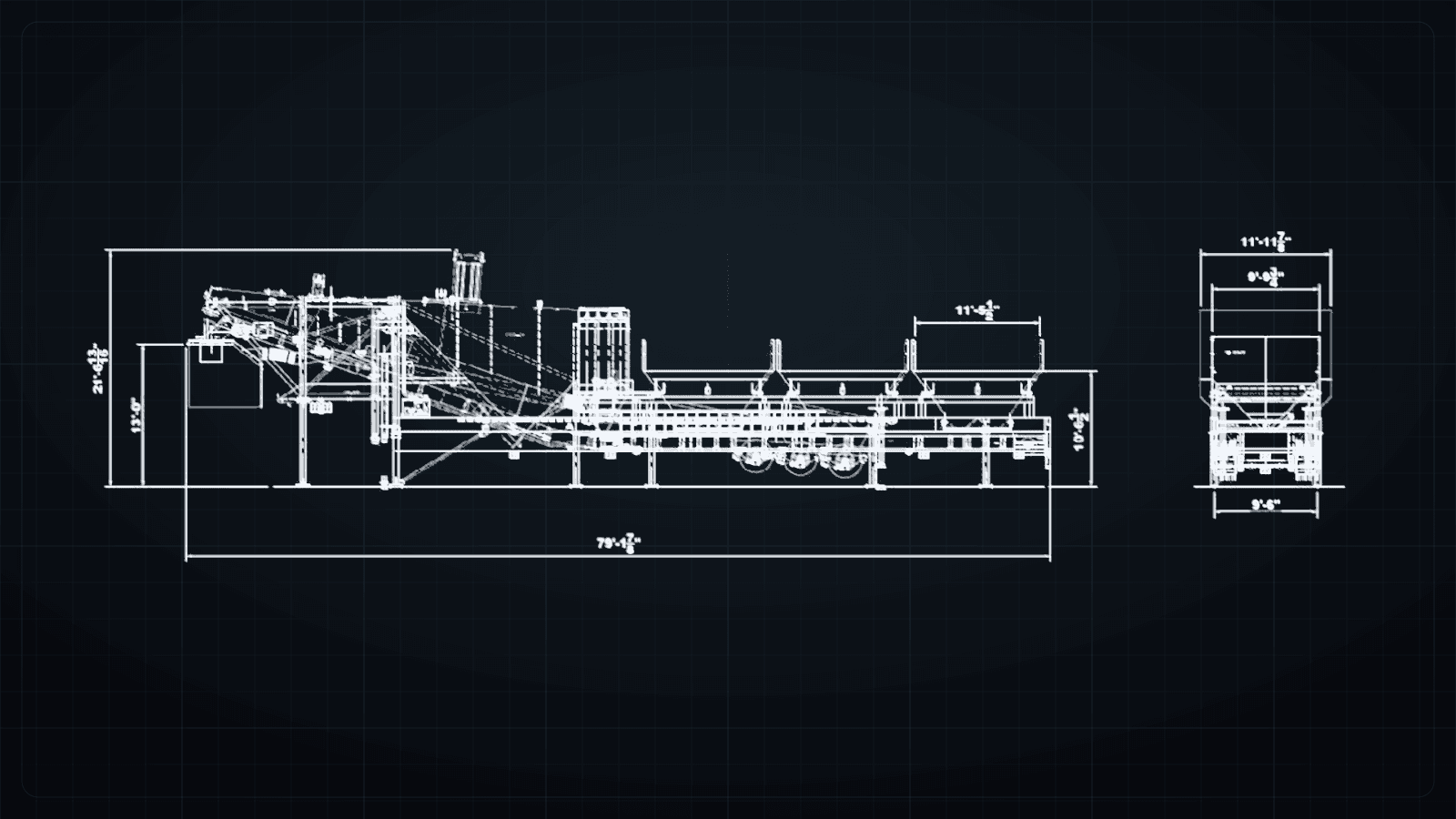

CON-E-CO LO-PRO 327D SE Decumulative

A 327D SE decumulative plant with 490 ft3 aggregate weighing-bin capacity, direct load cells, 51,000 lb triple-axle transport, and plant-mounted dust-collection options.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Aggregate weighing bin: 490 ft3 (13.87 m3), 1 to 4 weighing bins available.
Cement storage: Cement I: 1,308 ft3. Cement II: 1,600 to 2,940 ft3.
Dust collection: Mixer collector PJC900; central collector PJC1200 or PJC-1500.
Transport: 51,000 lb triple axle with twelve 22.5 tires.

Batching and Conveying

Aggregate weighing bin capacity: 490 ft3 (13.87 m3), 1 to 4 weighing bins available. Scales: direct load cells.
Cement capacity: Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate discharge conveyor: 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15 or 20 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).
Plant-mounted dust collection options: Mixer collector PJC900. Central collector PJC1200 or PJC-1500.
Generator option: Optional plant-mounted generator listed with electrical package.

Storage, Transport and Dimensions

Transportation system: Rear-mounted 51,000 lb (23,133 kg) triple axle with twelve 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Cement I gross volume: 1,308 ft3 (37 m3). Cement II gross volume: 1,600 to 2,940 ft3 (45 to 83 m3).
Towing dimensions: 69 ft 9 in length, 14 ft 4 in height, 12 ft 0 in width. Empty weight: 65,000 lb (24,948 kg).
Shipping dimensions: 79 ft 2 in length, 14 ft 4 in height, 12 ft 0 in width. Shipping volume: 13,162 ft3 (385 m3).

Transit-mix LO-PRO plant

CON-E-CO LO-PRO 427

The LO-PRO 427 adds larger Cement I volume, 50 to 90 yd3 aggregate heaped storage, dual aeration blowers, and 11 ft 6 in towing width for higher-capacity LO-PRO applications.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate storage: 50 to 90 yd3 (38 to 68 m3) heaped volume.
Cement storage: Cement I: 1,708 ft3. Cement II: 1,600 to 3,060 ft3.
Transport: 36,000 lb tandem axle with eight 295/75R 22.5 tires.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 15 hp drive.
Aggregate discharge conveyor: 30 in. wide (762 mm), 10 hp drive. Optional 36 in. (914 mm), 15 hp.
Cement batcher recirculating screw: 14 in. diameter (360 mm), 15 hp. Optional 18 in. diameter (460 mm), 20 hp.
Cement feeder screws: Two 9 in. diameter (230 mm), 15 hp drives. Optional 12 in. diameter (300 mm), 20 hp.
Cement aeration: 5 and 7 hp high-volume, low-pressure blowers.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15, 20, 25, or 30 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage, Transport and Dimensions

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 295/75R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Storage bin capacities: Aggregate heaped volume: 50 to 90 yd3 (38 to 68 m3). Cement I gross volume: 1,708 ft3 (47.5 m3). Cement II gross volume: 1,600 to 3,060 ft3 (45 to 85 m3).
Towing dimensions: 60 ft 0 in length, 14 ft 4 in height, 11 ft 6 in width. Empty weight: 60,000 lb (22,395 kg).
Shipping dimensions: 70 ft 0 in length, 14 ft 4 in height, 11 ft 6 in width. Shipping volume: 11,536 ft3 (326 m3).

Central-mix LO-PRO plant

CON-E-CO LO-PRO 427CM

A central-mix LO-PRO 427CM with 36 in. conveyors standard, optional 42 in. and 48 in. aggregate-discharge conveyor packages, larger cement feeder options, and 50 to 90 yd3 aggregate heaped storage.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Batcher capacity: Aggregate and cement: 1 to 12 yd3 (1 to 9.2 m3).
Aggregate conveyors: 36 in. standard, with optional 42 in. and 48 in. discharge packages.
Cement storage: Cement I: 1,708 ft3. Cement II: 1,600 to 2,940 ft3.
Transport: 36,000 lb tandem axle; optional triple axle with larger discharge conveyors.

Batching and Conveying

Batcher capacity: Aggregate: 1 to 12 yd3 (1 to 9.2 m3). Cement: 1 to 12 yd3 (1 to 9.2 m3). Scales: direct load cells.
Aggregate batcher conveyor: 36 in. wide (914 mm), 20 hp drive. Optional 25 hp drive. Optional 48 in. wide (1,219 mm), 40 hp drive.
Aggregate discharge conveyor: 36 in. wide (914 mm), 40 hp drive. Optional 42 in. (1,066 mm) with dual 25 hp drives. Optional 48 in. wide (1,219 mm) with dual 40 hp drives.
Cement batcher recirculating screw: 18 in. diameter (460 mm), 25 hp. Optional 20 in. diameter (508 mm), 30 hp drive.
Cement feeder screws: Two 12 in. diameter (300 mm), 20 hp drives. Optional 14 in. diameter (355 mm), 40 hp drive.
Cement aeration: 5 and 7 hp high-volume, low-pressure blower.

Controls and Plant Systems

High-pressure air compressor: 10 hp, 120 gal (0.45 m3). Optional 15, 20, 25, or 30 hp, 120 gal (0.45 m3).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Storage and Transport

Transportation system: Rear-mounted 36,000 lb (16,330 kg) tandem axle with eight 255/70R 22.5 tires, wheels, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin. Optional triple axle with 42 in. or 48 in. aggregate discharge conveyor.
Storage bin capacities: Aggregate heaped volume: 50 to 90 yd3 (38 to 68 m3). Cement I gross volume: 1,708 ft3 (47.5 m3). Cement II gross volume: 1,600 to 2,940 ft3 (45 to 85 m3).
Drawing dimensions: Astec drawing shows low-profile central-mix layout dimensions; confirm final transportation and setup dimensions by ordered configuration.

Related CON-E-CO decumulative plant

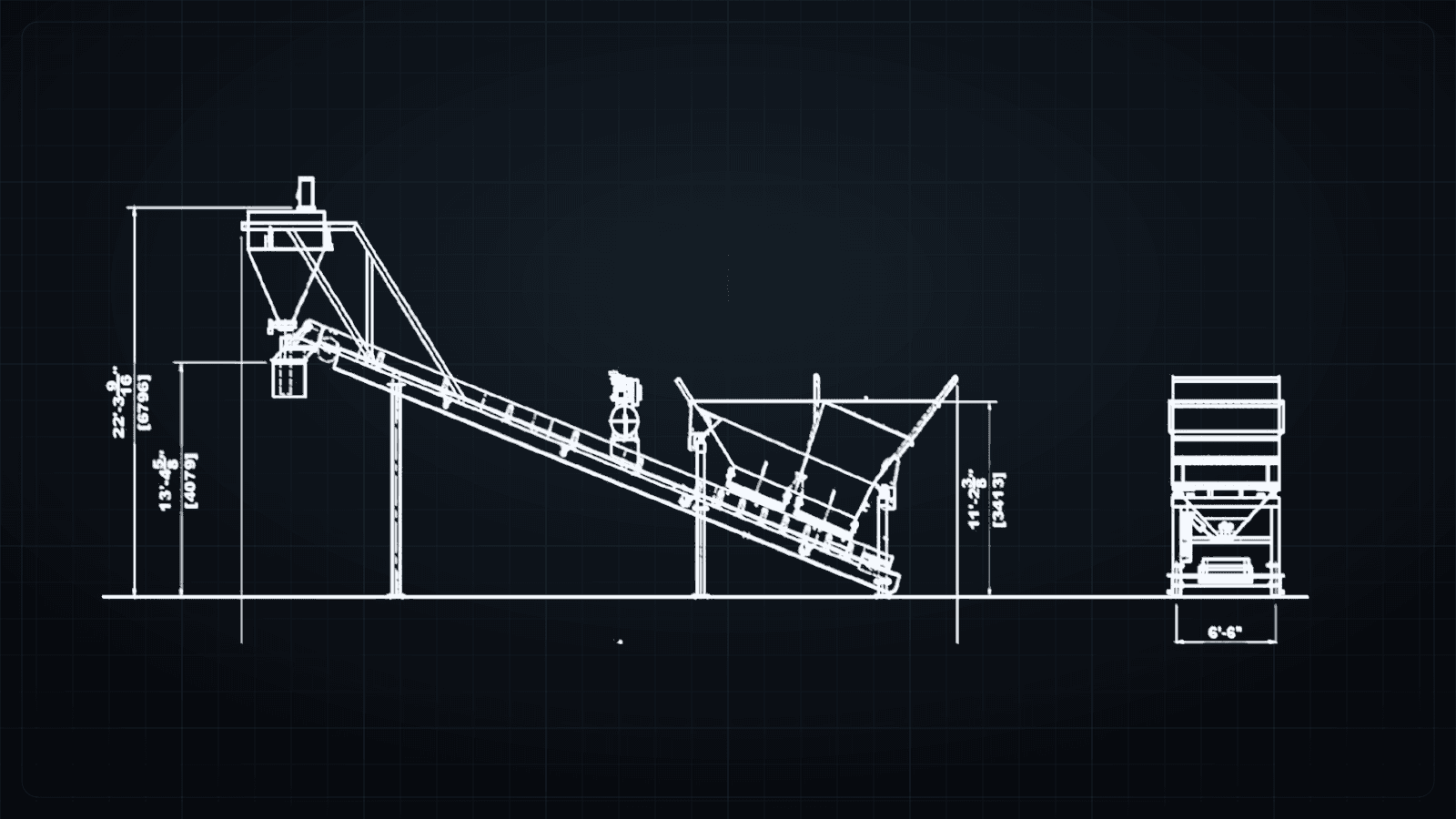

CON-E-CO G-Series G12L Decum

A related CON-E-CO decumulative model from the provided Astec sheets, using a 477 ft3 aggregate weighing bin, 120 ft3 cement batcher, and optional ground-mount or containerized cement silo package.

Quick Specs

Production capacity: Theoretical cycle time: 2.5 to 3 minutes
Aggregate weighing bin: 477 ft3 (13.5 m3), direct load cells.
Cement batcher: 120 ft3 (3.4 m3), direct load cells.
Optional cement silo: 1,600 ft3 ground mount or 1,400 ft3 containerized.
Transport: Ships on tractor trailer; optional 19,000 lb single axle.

Batching and Conveying

Aggregate weighing bin capacity: 477 ft3 (13.5 m3). Scales: direct load cells.
Cement batcher capacity: 120 ft3 (3.4 m3). Scales: direct load cells.
Aggregate discharge conveyor: 24 in. wide (610 mm), 10 hp drive. Optional 30 in. (762 mm), 15 hp drive.
Cement batcher recirculating screw: 12 in. diameter (305 mm), 15 hp.
Optional cement silo and feeder: 1,600 ft3 (45 m3) ground-mount silo or 1,400 ft3 (39.5 m3) containerized silo. Feeder screw options include 6 in., 9 in., or 12 in. diameters with bag-breaker hopper options.

Controls and Plant Systems

High-pressure air compressor: 5 hp, 80 gal (302 L). Optional 10 hp, 80 gal (302 L).
Electrical: 460 volt, 3-phase with 120 VAC transformer for control voltage. TEFC motors, individual motor-circuit breakers, NEMA steel enclosures, and wiring in conduit.
Batch control system: Semi-automatic cement cut-off by digital-readout presets, push-button electric-over-air gate control, and optional fully automatic computerized batch control system.
Water meter: 3 in. diameter (77 mm), up to 500 gal/min (1,740 L/min).

Transport and Dimensions

Transportation system: Ships on tractor trailer. Optional rear-mounted 19,000 lb (9,090 kg) single axle with four 295/75R 22.5 tires, air brakes, heavy-duty spring suspension, tail/brake lights, and fifth-wheel rub plate with king pin.
Towing dimensions: 38 ft 1 in length, 13 ft 4 in height, 7 ft 6 in width. Empty weight: 22,000 lb (9,979 kg).
Shipping dimensions: 47 ft 4 in length, 9 ft 2 in height, 7 ft 6 in width. Shipping volume: 3,254 ft3 (92 m3).

Specifications are based on Astec CON-E-CO spec sheets provided by Closner. Exact dimensions, options, horsepower, storage, and transportation details can change by configuration, so confirm final drawings and submittals with Closner before ordering or permitting.

When This Plant Is the Right Fit

You are growing and want a plant that can expand over time.

You need a compact base for environmental restrictions, enclosure, or property constraints.

You value fast truck charging and consistent material feed.

You want a plant that can serve as a long-term permanent installation instead of a short-term project plant.

You are comparing LO-PRO 327 and LO-PRO 427 configurations and want a Texas dealer to help size aggregate capacity, cement storage, water systems, controls, and optional silos correctly.

Why Source This Plant from Closner?

Authorized Astec and CON-E-CO support from a Texas dealer that sells, installs, commissions, and services concrete plants.

Factory-trained service technicians for troubleshooting, preventive maintenance, startup support, and production issues.

Genuine CON-E-CO and RexCon parts support to reduce downtime on batchers, gates, conveyors, scales, controls, and dust-collection systems.

Custom configuration help for fly ash silos, moisture probes, water systems, dust control, aggregate storage, truck flow, and site-specific permitting constraints.

Texas Application

The LO-PRO is a strong fit for Texas ready-mix producers building a permanent yard in a fast-growing market such as Austin, San Antonio, DFW, Houston, Waco, or the Hill Country, where today's volume may not be tomorrow's volume.

CON-E-CO LO-PRO Series FAQ

What makes the CON-E-CO LO-PRO expandable?

Astec notes that dust control systems, unitized cement silos, and aggregate storage modules can be added to the LO-PRO with simple bolt-on erection.

Is the LO-PRO only a stationary plant?

Astec lists the LO-PRO with mobile, mobile self-erect, and stationary mobility categories, so Closner will help configure the right version for your site and production plan.

Why does the LO-PRO work well for ready-mix?

Its live-bottom aggregate batcher, patented blending cement batcher, compact base, and fast-charging design make it a practical plant for ready-mix producers who need speed and future expansion.

What is the difference between the CON-E-CO LO-PRO 327 and LO-PRO 427?

Both are low-profile ready-mix plant configurations with 12 cubic yard batch sizing, but the LO-PRO 427 is typically selected when the producer needs more aggregate capacity, more cement storage, or a larger long-term expansion path.

Can Closner configure a LO-PRO plant with extra silos or moisture probes?

Yes. Closner can help specify fly ash silos, aggregate storage, moisture probes, water systems, dust control, controls, and other site-specific options for Texas ready-mix operations.

Compare Models

Related Concrete Batch Plants

View all plants

CON-E-CO

CON-E-CO SLP Series Central Mix

High-production stationary CON-E-CO plant family engineered around your site, storage needs, mixer choice, enclosure limits, and truck flow. Available with central, transit, and transit-and-central mix configurations.

CON-E-CO

CON-E-CO ALL-PRO Series

Unitized all-welded plant structure designed to set on a monolithic slab. Factory pre-wired and pre-plumbed to reduce foundation, electrical, plumbing, crane, and enclosure costs.

CON-E-CO

CON-E-CO 454/448 Plant

High-production mobile central-mix plant with flexible footprint. Aggregate bins and charging conveyors can be arranged in-line or at 90 degrees to fit the property layout.

Get In Touch

Whether you need a quote, service, or parts, our team is ready to assist you immediately.
