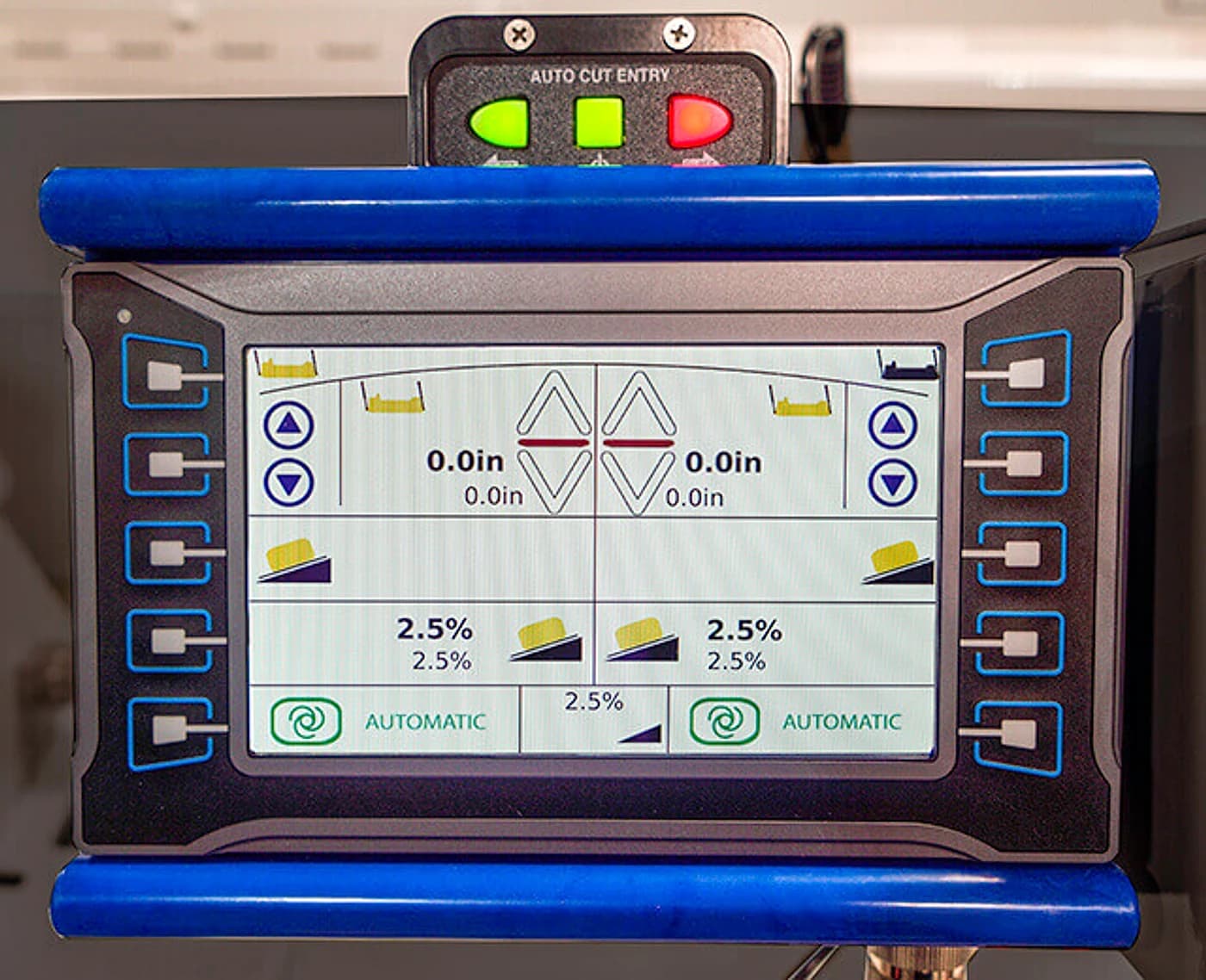

ACE Grade Control
Automated Control of Elevation uses grade and slope sensors so operators and ground crews can adjust depth and slope in real time.
Back to Asphalt Milling
Roadtec Cold Planer
Roadtec RX-700 Cold Planer
The Roadtec RX-700 is the heavy-duty highway-class cold planer in the RX family. It has an 800 hp Cat C18 engine and cuts up to 14 in deep. Cutter housings run up to the 10 ft 6 in class. Contractors buy it for production milling that does not need the full RX-900.
Power
800 hp Cat C18
Cut depth
Up to 14 in
Cut widths
6 ft 7 in to 10 ft 6 in
Conveyor
36 in belts
Overview
Built for highway milling, deeper cuts, heavier production, and 8 ft to 10 ft-class work.
The RX-700 sits between urban production mills and full-lane machines. It carries an 800 hp Caterpillar C18 and cuts up to 14 in deep. Astec offers three-track and four-track assemblies.
Astec built the RX-700 around balanced weight distribution and simple operation and maintenance. Crews that cut deep and load trucks all day still get accurate grade control.
Compare the RX-700 for state highway work, airport shoulders, industrial paving removal, and mill-and-overlay packages. It covers the jobs where the RX-600 is too small and the RX-900 is more machine than the work needs.
Features
What makes the RX-700 work

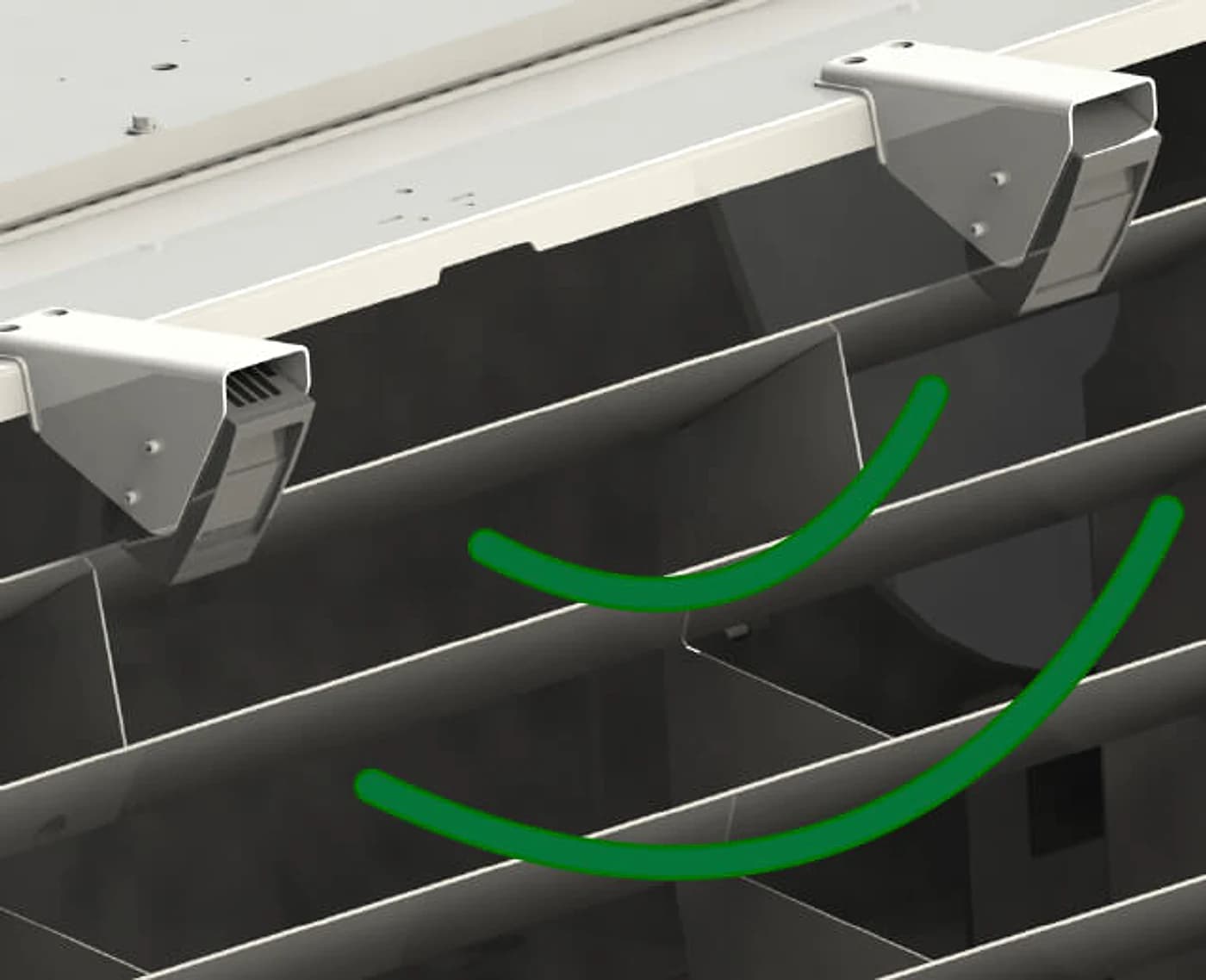

Rear Object Detection
Rear detection helps stop the cold planer when a person or object is behind the machine while it is backing up.

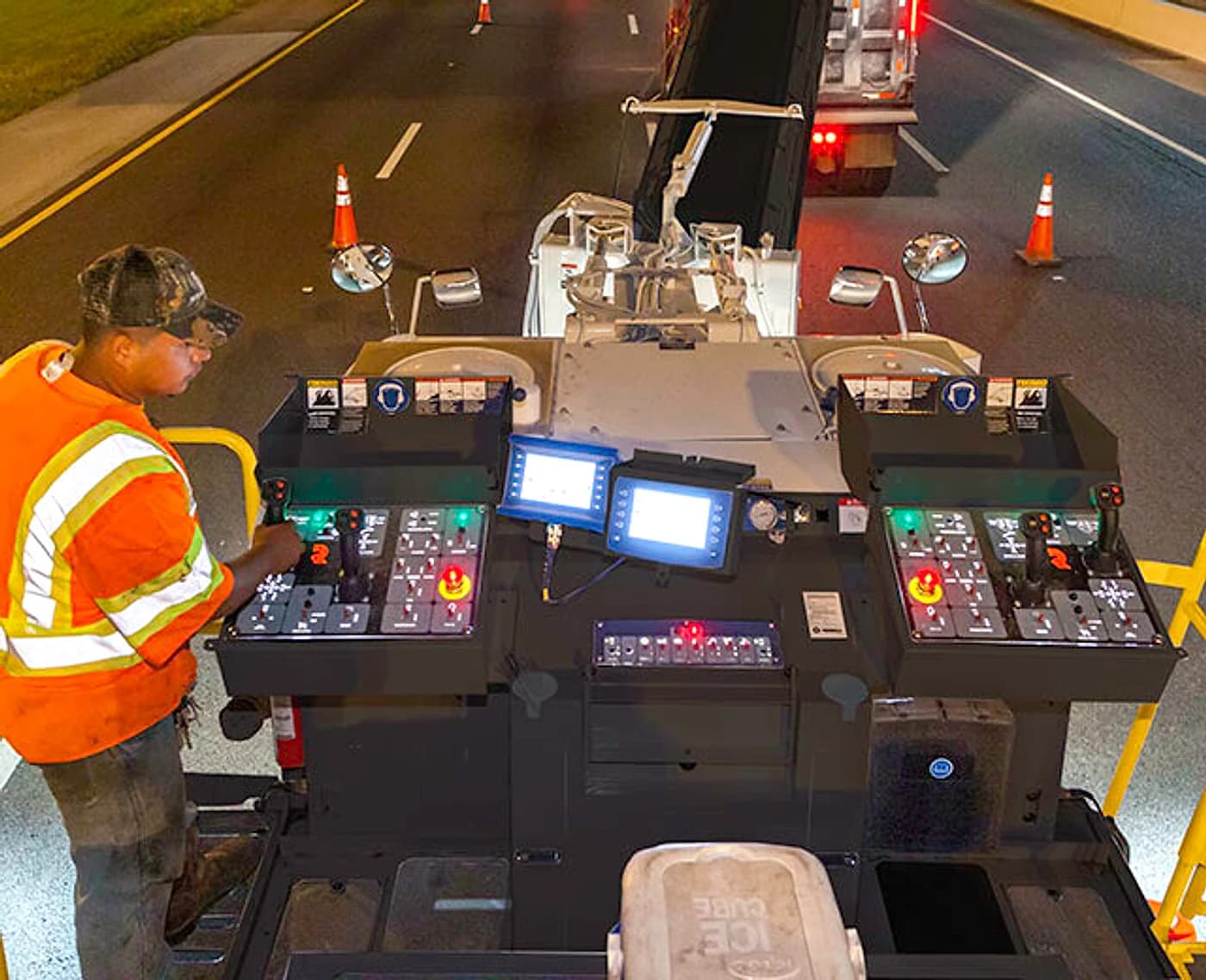

Operator Platform
The platform is designed for access from either side, with dual stations so crews can keep sight lines on trucks, edges, and ground personnel.
Searchable Specs
RX-700 technical specifications
Engine
Tier 4 Final Caterpillar C18
Rated power
800 hp at 1,800 rpm
Shipping weight
77,380 lb 3-track; 82,400 lb 4-track
Shipping dimensions
44 ft 8 in L x 8 ft 4 in W x 10 ft 9 in H
Maximum cut depth
14 in
Available cut widths
6 ft 7 in, 7 ft 2 in, 8 ft 2 in, and 10 ft 6 in
Conveyors
36 in heavy-duty belts with 120-degree load-out conveyor swing
Travel speed
0-3 mph
Track pads
14 in replaceable poly pads
Fuel capacity
340 gal
Water tank
1,100 gal listed by spec sheet
Hydraulic tank
100 gal
Turning radius
7 ft 9 in 4-track; 6 ft 10 in 3-track
Use cases
Highway millingMill-and-overlayAirport workIndustrial paving removalDOT production
How to compare it
Choose RX-700 over RX-600 for 800 hp, 14 in cut depth, and larger cutter width options.
Choose RX-900 when the project requires full-lane production or the widest standard housings.
Choose RX-405 or RX-600 when access, transport, and urban maneuverability are more important than production.
Closner support
Texas milling support beyond the machine sale
Closner helps milling contractors think through cutter drums, teeth, track configuration, truck flow, transport, parts stocking, and service planning. The machine page gets you to the right model; the local support keeps the job moving.
Roadtec parts support
Cutter drums and teeth
Machine sizing help
Texas branch coverage
Frequently Asked Questions
RX-700 answers buyers search for
What engine is in the Roadtec RX-700?
The current RX-700e spec sheet lists a Tier 4 Final Caterpillar C18 rated at 800 hp.
How deep can the RX-700 mill?
Astec lists the RX-700 maximum cut depth at up to 14 in.
What is the difference between the RX-600 and RX-700?
The RX-700 steps up to 800 hp, a 14 in maximum cut depth, larger cutter width options, heavier operating weight, and a 36 in conveyor belt compared with the RX-600's 675 hp and 32 in conveyor.
Is the RX-700 available in three-track and four-track configurations?
Yes. Astec lists the RX-700 with either three-track or four-track assemblies.
