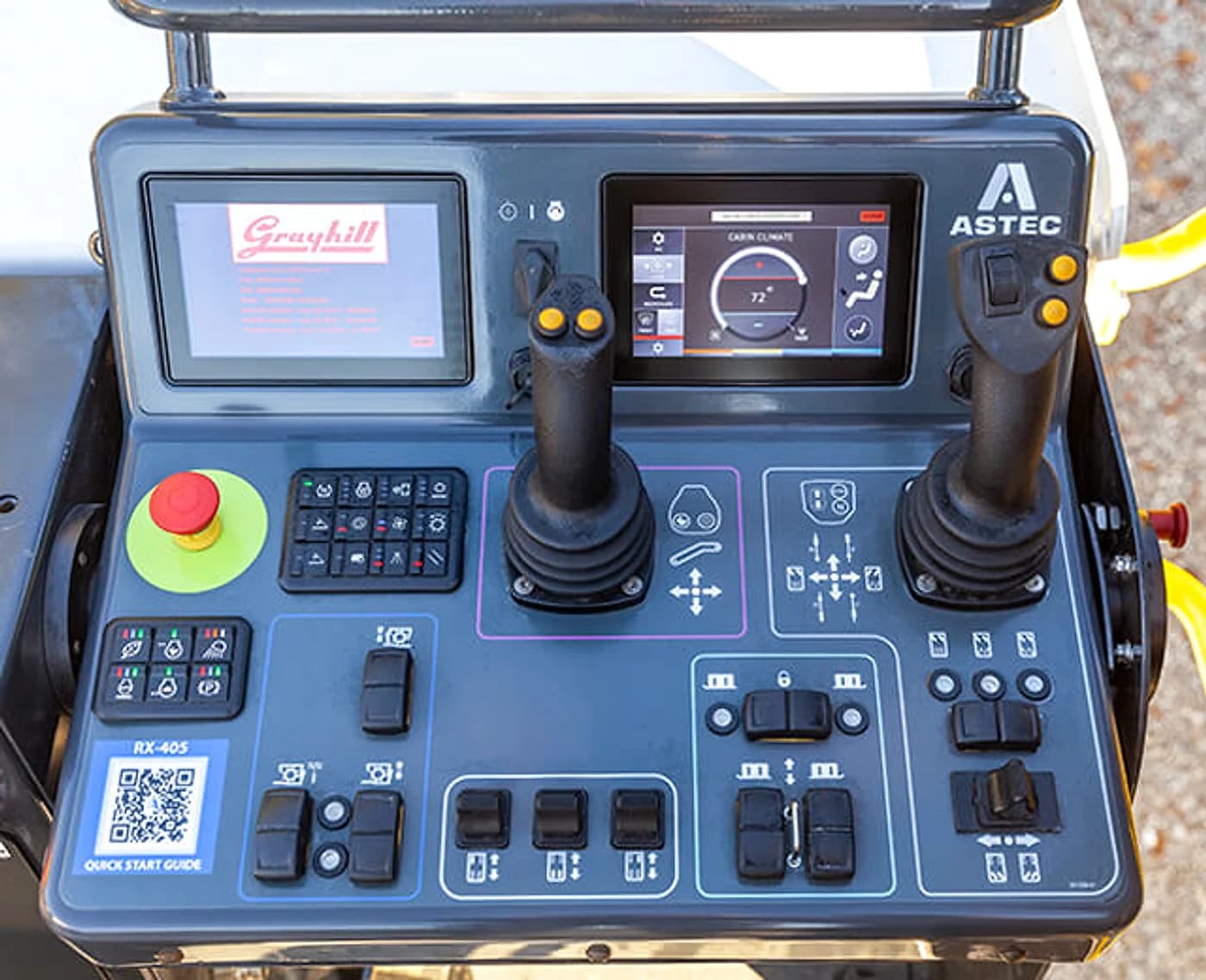

Simplified RX-405 Controls
Operators run the controls from either side of the platform. Astec arranged the joystick functions and onboard diagnostics so new operators learn them fast.
Back to Asphalt Milling
Roadtec Cold Planer

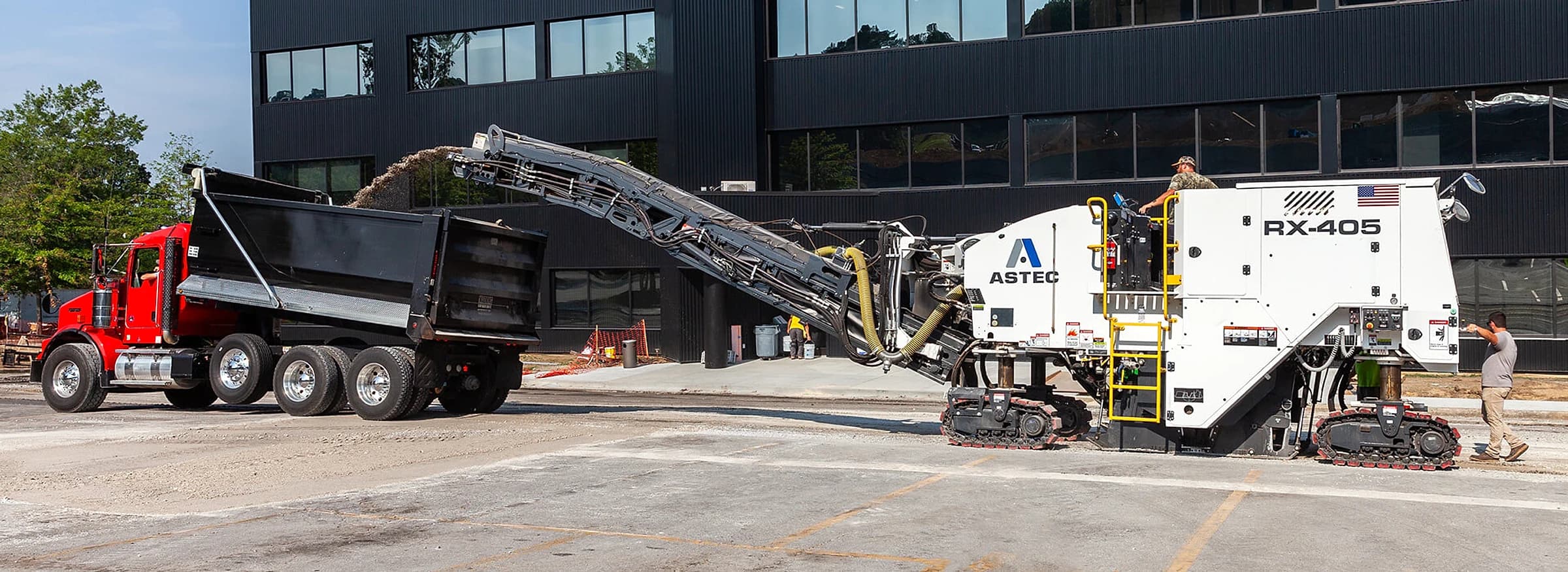

Roadtec RX-405 Cold Planer

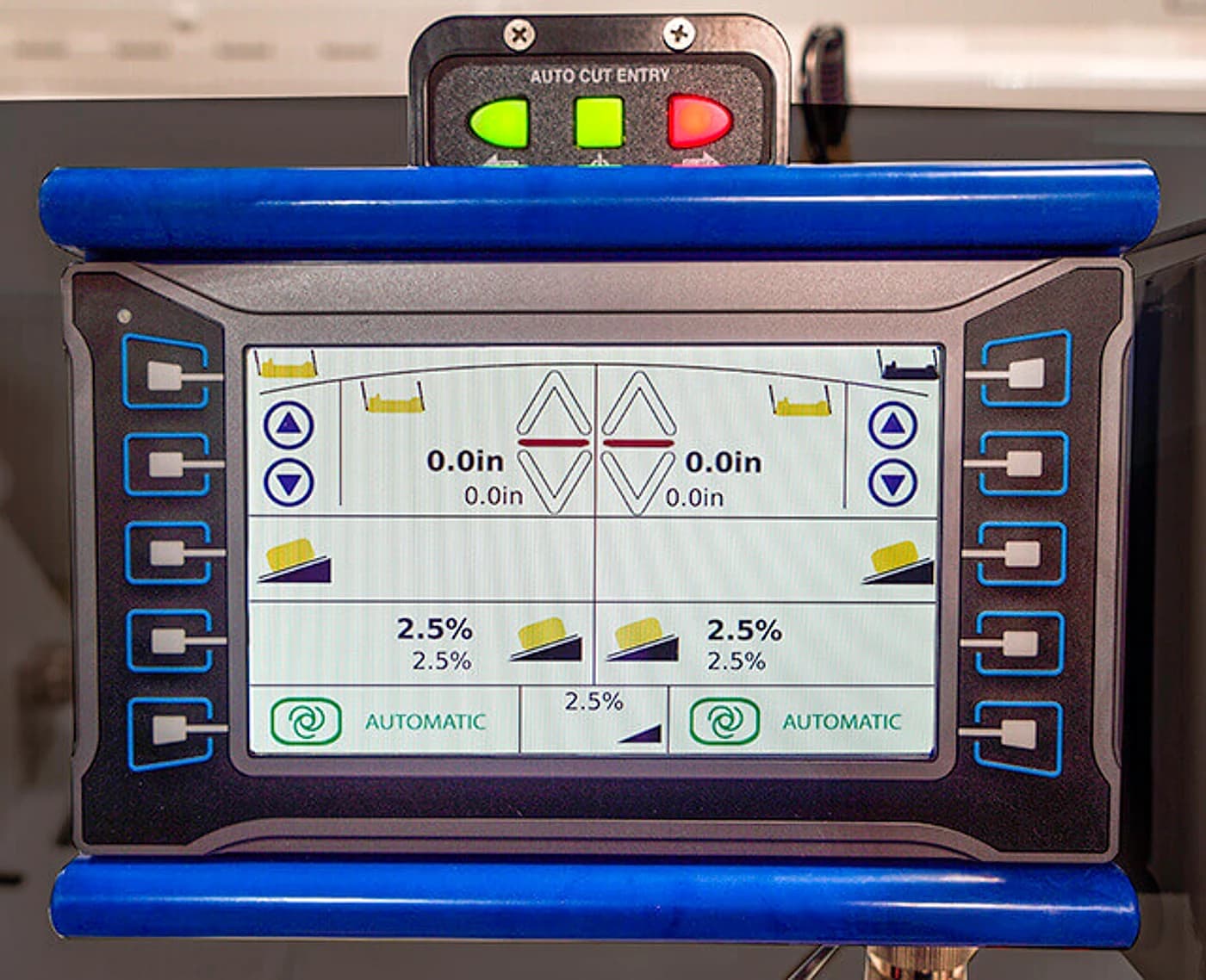

The Roadtec RX-405 is the compact cold planer in the Roadtec lineup. It works in tight spots: utility trenches, parking lots, and urban repairs. The machine keeps commercial milling controls, VCS drum flexibility, and ACE grade control. Power comes from a 430 hp Cummins L9.
Power
430 hp Cummins L9
Weight
46,900 lb
Cut widths
24-60 in VCS
Cut depth
Up to 13 in
Overview
Built for utility cuts, parking lots, trenches, city repair work, and tight milling jobs.
The RX-405 gives contractors a smaller cold planer with full commercial tooling. Astec sized it for restrictive job sites. On those sites, maneuverability, drum changes, and finish control count for more than full-lane production.
Astec builds the RX-405 for trenches, utility work, parking lots, and other space-limited milling. Closner adds Texas field support, parts, and tooling guidance. We also help crews decide between the RX-405 and a larger RX-600 or RX-700.
The Variable Cutter System is the main advantage. Crews change the drum in one cutter housing to cut 24 in, 36 in, 48 in, or 60 in widths. No second housing has to sit in the yard.
Features
What makes the RX-405 work

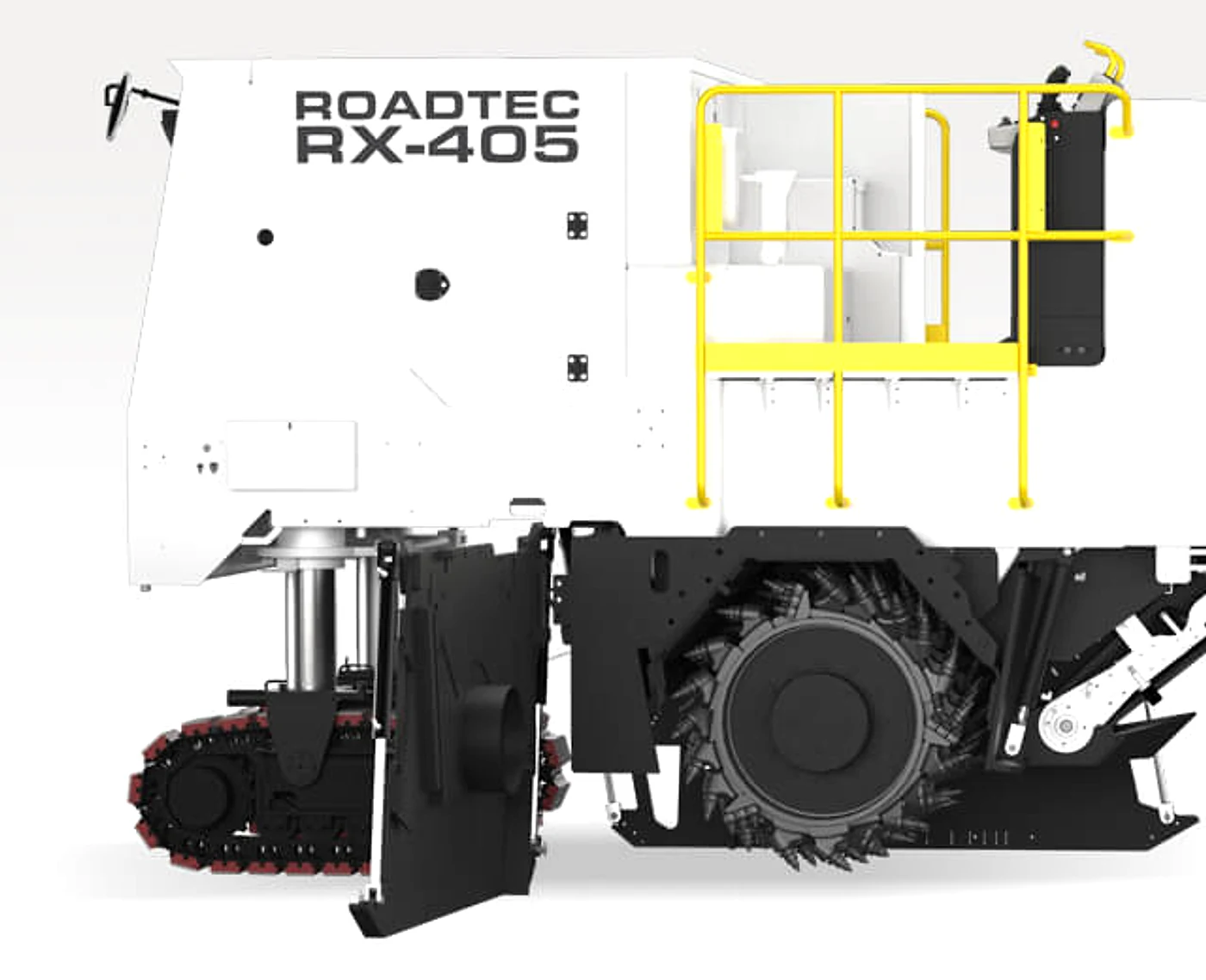

Easy Cutter Drum Access
A hinged side door on the cutter housing gives crews practical access for drum service, tooling checks, and drum-width changes.

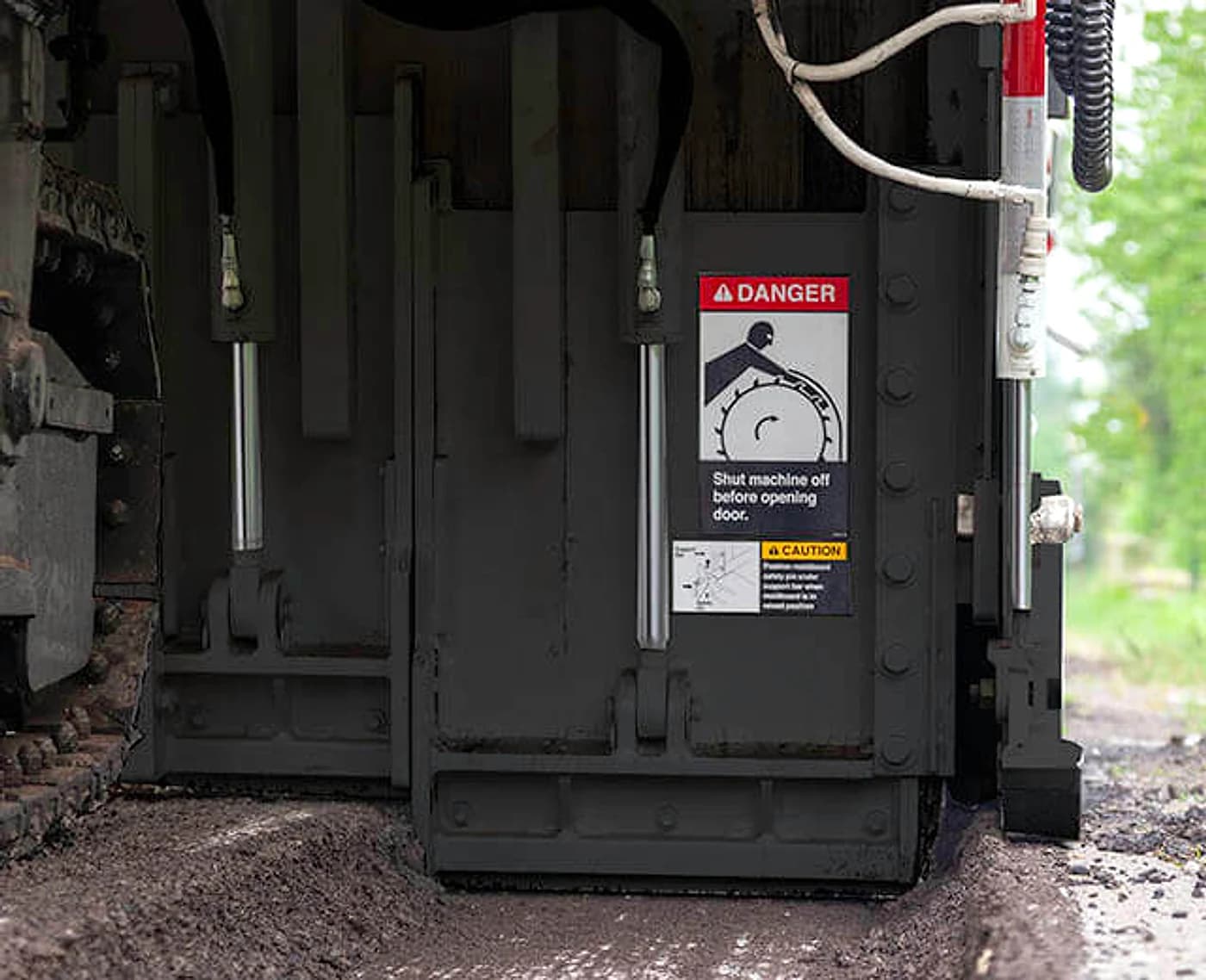

Variable Cutter System
The RX-405 VCS package supports 24 in, 36 in, 48 in, and 60 in cutter widths without swapping the whole cutter housing.
Searchable Specs
RX-405 technical specifications
Engine
Stage V / Tier 4 Final Cummins L9
Rated power
430 hp at 2,100 rpm
Shipping weight
46,900 lb
Shipping dimensions
34 ft 6 in L x 8 ft 2 in W x 9 ft 11 in H
Maximum cut depth
13 in
Astec spec narrative; confirm final housing configuration.
Variable Cutter System
24 in, 36 in, 48 in, and 60 in widths
Conveyors
32 in heavy-duty belts with 120-degree load-out conveyor swing
Travel speed
0-3.2 mph
Working speed
0-163 fpm high, 0-110 fpm low
Fuel capacity
200 gal
Water tank
750 gal
Hydraulic tank
35 gal
Track pads
10 in replaceable poly pads
Turning radius
7 ft
Use cases
Utility trench millingParking lotsResidential streetsPatch repairMunicipal maintenance
How to compare it
Choose the RX-405 when job access and width flexibility matter more than high-volume truck loading.
Step up to the RX-600 when you need a 675 hp machine with wider standard cutter housings and more city-street production.
Step up to RX-700 or RX-900 for highway, deep-cut, half-lane, and full-lane milling.
Closner support
Texas milling support beyond the machine sale
Closner helps milling contractors think through cutter drums, teeth, track configuration, truck flow, transport, parts stocking, and service planning. The machine page gets you to the right model; the local support keeps the job moving.
Roadtec parts support
Cutter drums and teeth
Machine sizing help
Texas branch coverage
Frequently Asked Questions
RX-405 answers buyers search for
What is the Roadtec RX-405 best used for?
The RX-405 is best for compact milling work such as utility trenches, parking lots, patch repairs, residential streets, and restrictive urban sites.
What cutting widths does the RX-405 support?
The RX-405 Variable Cutter System supports 24 in, 36 in, 48 in, and 60 in widths by changing the drum inside a single cutter housing.
How much horsepower does the RX-405 have?
The current Astec spec sheet lists a 430 hp Cummins L9 engine for the Roadtec RX-405.
Can Closner support RX-405 tooling and parts in Texas?
Yes. Closner Equipment supports Roadtec milling machines in Texas with parts, tooling conversations, service coordination, and sales guidance.
Related Roadtec Mills
Compare the rest of the lineup

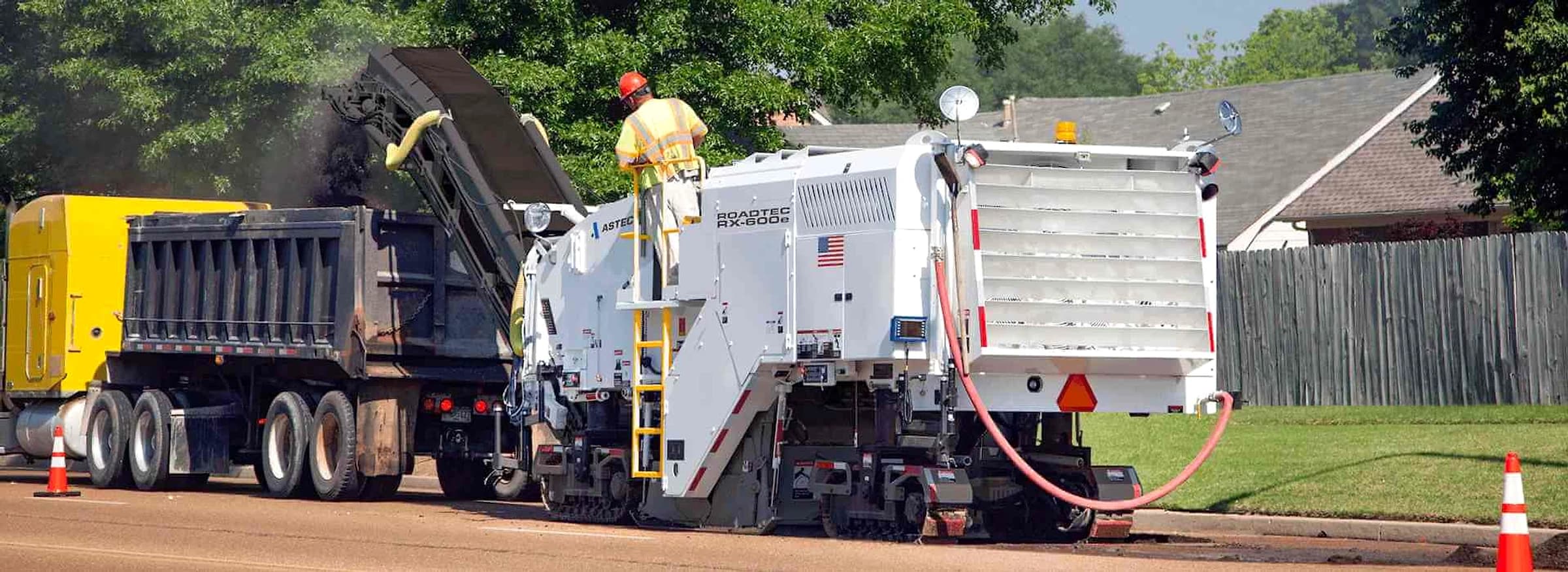

Roadtec RX-600
City streets, subdivisions, parking lots, lane repairs, and maneuverable production milling.

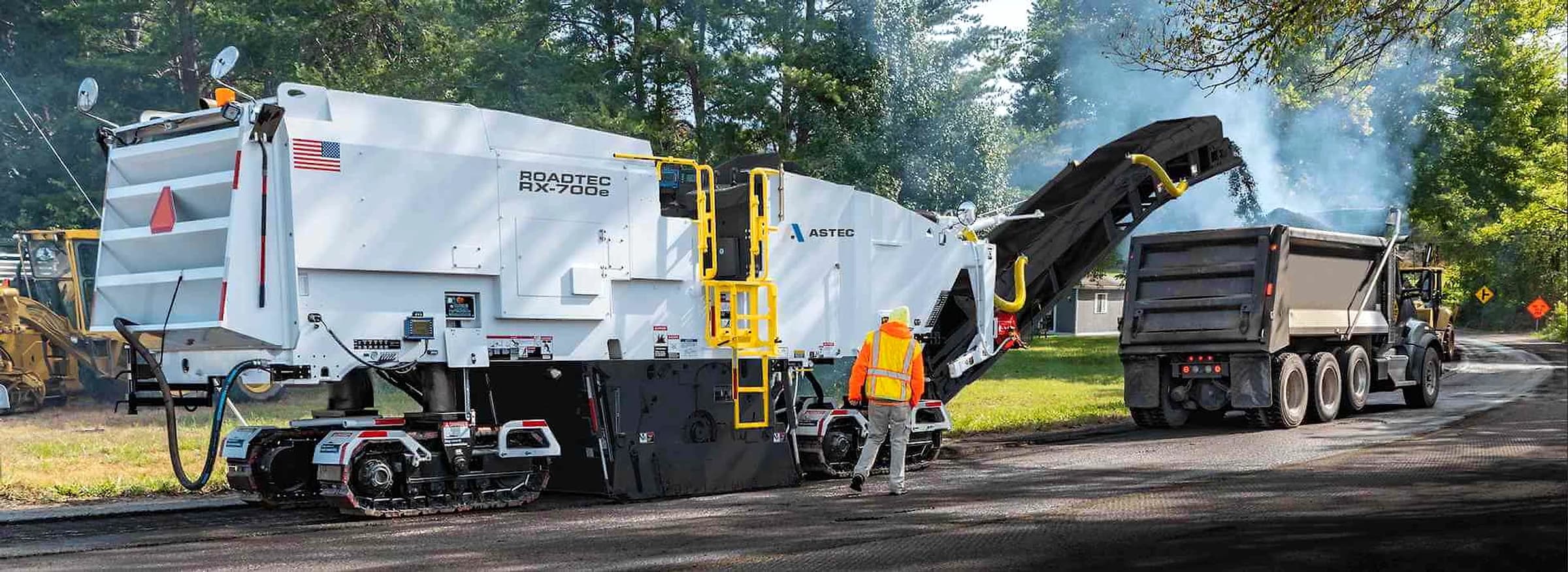

Roadtec RX-700
Highway milling, deeper cuts, heavier production, and 8 ft to 10 ft-class work.

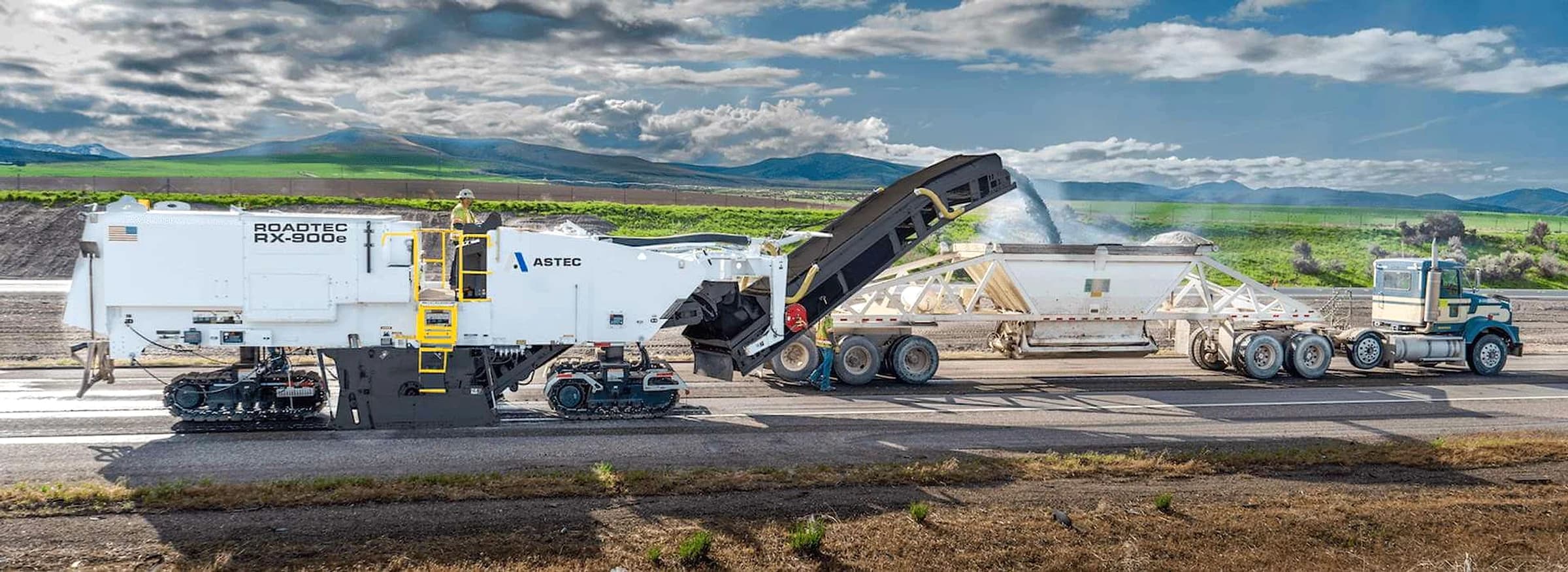

Roadtec RX-900
Full-lane milling, half-lane highway removal, airport work, and maximum daily production.
