Mauldin Skid-Mounted Maintenance Unit
Skid-Mounted MU-1000
999 gallon skid-mounted asphalt distributor for non-CDL chassis builds with Kubota diesel power, 40 GPM hydrostatic pump, and an 8 ft fully recirculating spray bar.
Overview
Built for the way Texas crews work
The skid-mounted Mauldin MU-1000 is built for customers who want a full-size maintenance distributor package mounted to a customer-provided chassis without moving into CDL territory.
With a 999 gallon material tank, Kubota diesel power, 40 GPM hydrostatic reversible asphalt pump, remote-controlled spray, and an 8 ft fully recirculating spray bar, the MU-1000 is a practical step up for agencies and contractors running tack, fog seal, chip seal support, and road maintenance routes.
999 gallon material tank.
Designed for a 22,000 GVWR chassis with no CDL requirement listed by Mauldin.
Kubota diesel engine package.
40 GPM hydrostatic reversible asphalt pump.
8 ft fully recirculating spray bar with 12 ft option.
Remote-controlled spray and washdown solvent tank.
Key Specs
- Material capacity
- 999 gal
- Approx empty weight
- 3,100 lb
- Approx loaded emulsion
- 11,500 lb
- Asphalt pump
- 40 GPM hydrostatic
- Spray bar
- 8 ft fully recirculating
- Engine
- Kubota 24 HP
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.

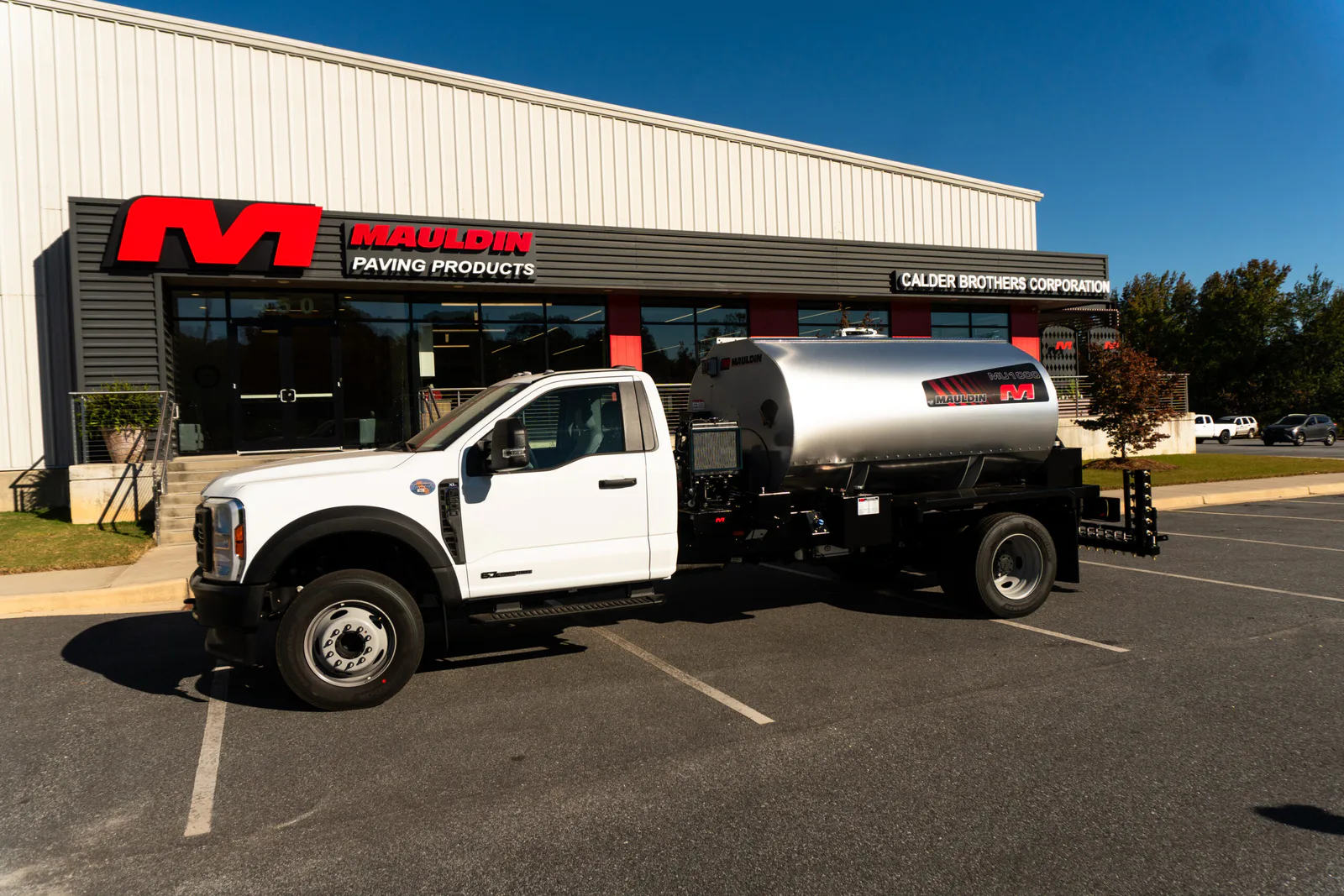

Skid-mounted tank
The MU-1000 is built as a skid package, giving fleet managers flexibility around chassis selection.

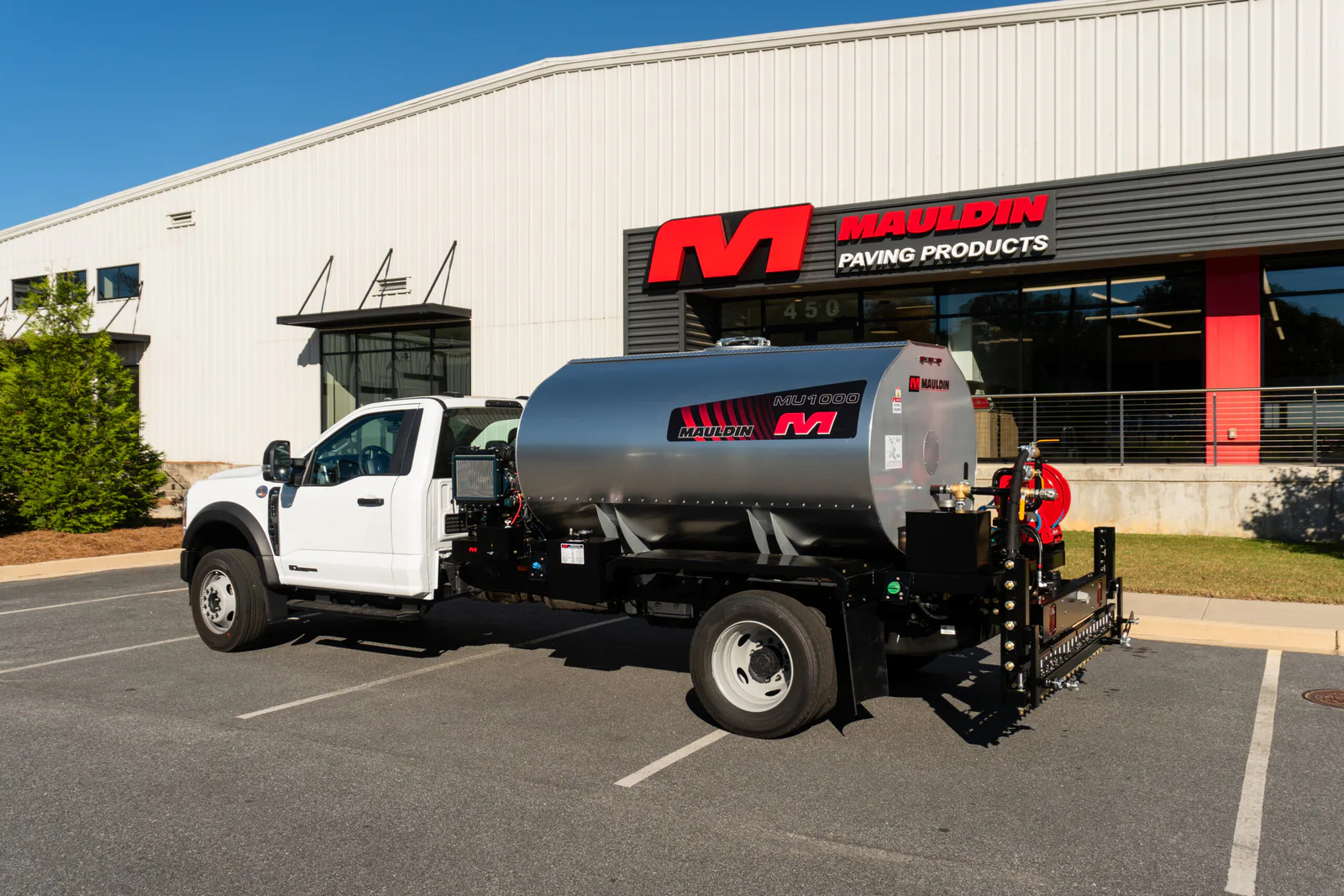

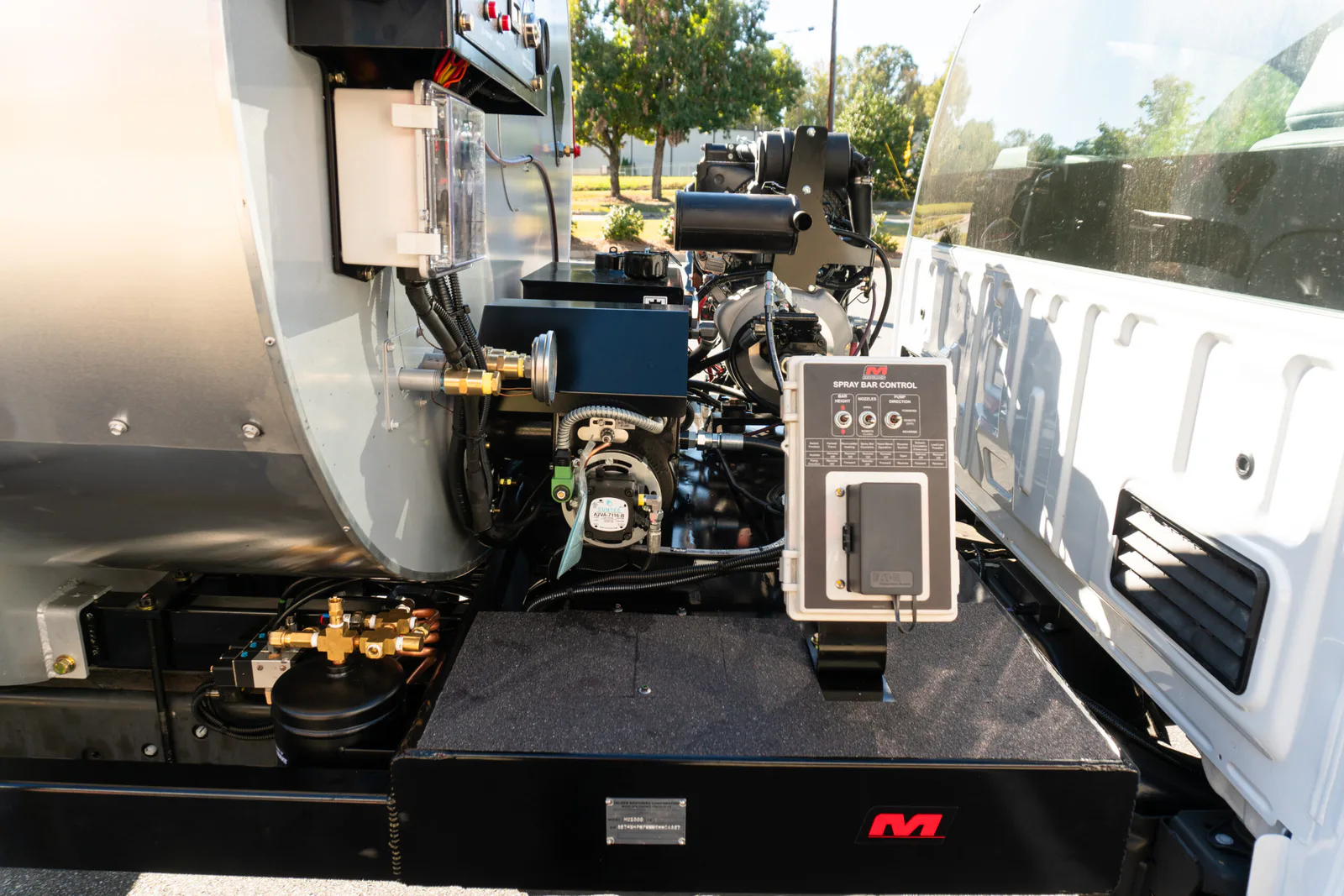

Distributor plumbing
Remote spray, washdown solvent, and recirculating bar plumbing are packaged for daily road maintenance use.
Truck-mounted output
The 999 gallon capacity supports longer maintenance routes than compact trailer distributors.
Technical Specifications
Skid-Mounted MU-1000 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Capacities
- Material tank
- 999 gal
- Fuel tank
- 10 gal
- Hydraulic tank
- 10 gal
- Washdown tank
- 10 gal
- Approx empty weight
- 3,100 lb
- Approx loaded emulsion weight
- 11,500 lb
Spray system
- Asphalt pump
- 40 GPM, hydrostatic reversible
- Spray bar
- 8 ft fully recirculating
- Optional spray bar
- 12 ft
- Spray wand
- 25 ft hose
- Heating
- Thermostat-controlled diesel burner
- Chassis note
- Designed around a customer-provided 22,000 GVWR chassis
Features
Skid-Mounted MU-1000 advantages
999 gallon capacity
A near-1000 gal tank gives crews meaningful route capacity while staying in Mauldin's maintenance-unit package.
40 GPM pump
The hydrostatic reversible asphalt pump is listed at 40 GPM for distributor work.

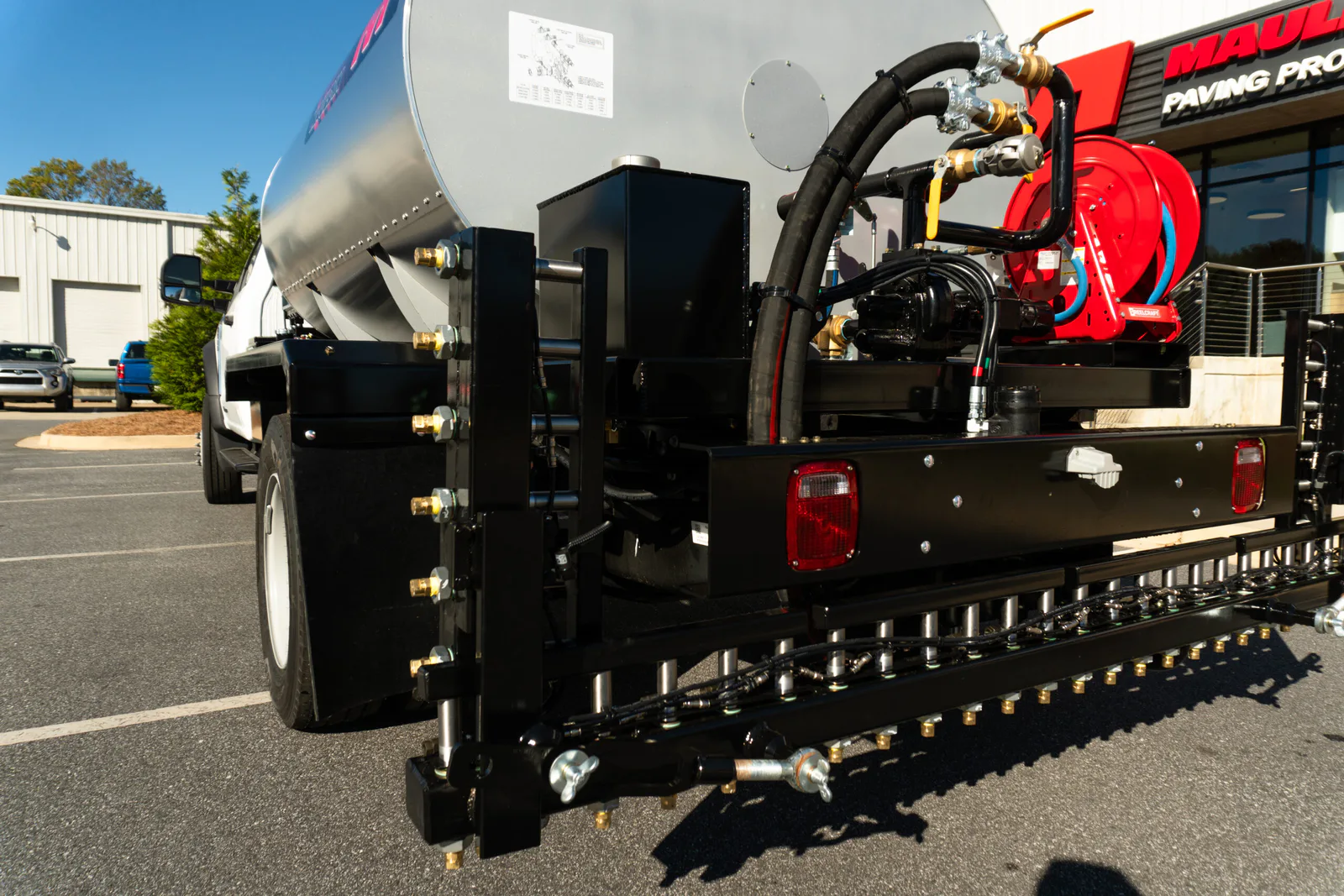

Recirculating spray bar
The standard 8 ft fully recirculating bar supports controlled tack and emulsion application.
Gallery
Skid-Mounted MU-1000 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common Skid-Mounted MU-1000 Questions
How much material does the MU-1000 hold?
Mauldin lists the skid-mounted MU-1000 with a 999 gallon material tank.
What pump is used on the MU-1000?
The official page lists a 40 GPM hydrostatic reversible asphalt pump.
Is the MU-1000 a trailer?
No. It is a skid-mounted distributor package intended for mounting on a customer-provided chassis.
