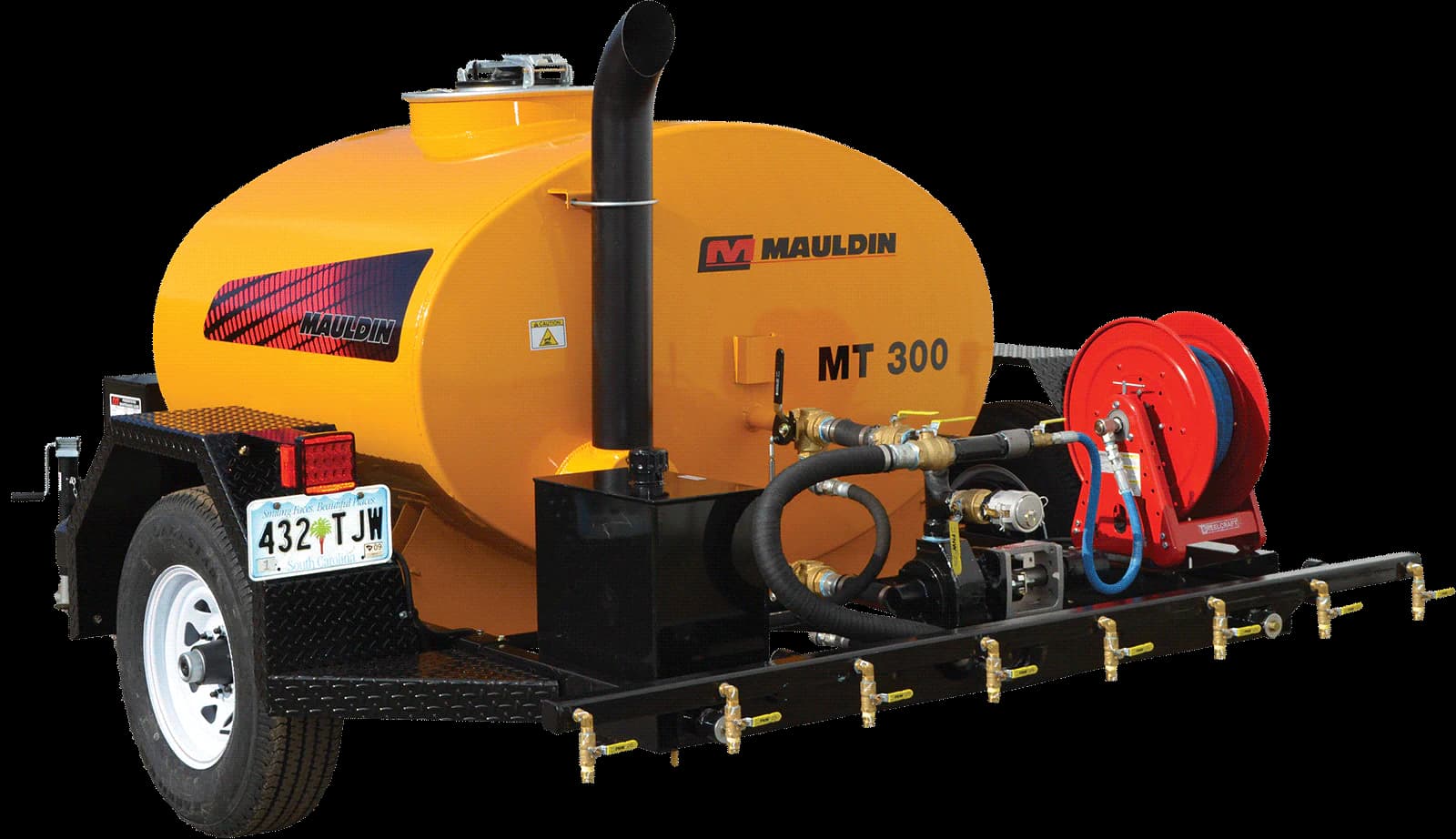

Mauldin Trailer Asphalt Distributor
MT300 / MT600
Trailer-mounted asphalt distributor available in 300 and 600 gallon configurations with reversible hydraulic asphalt pump, hand spray wand, and optional spray bar.
Overview
Built for the way Texas crews work
The Mauldin MT300 and MT600 are trailer-mounted asphalt distributors for small-crew tack, seal, emulsion, and patching support without dedicating a full distributor truck.
Both configurations use a reversible hydraulic asphalt pump, heated tank design, hand spray wand, 40 ft hose, and trailer running gear sized for contractors and municipalities that need dependable spray capability on smaller maintenance jobs.
300 or 600 gallon asphalt tank configurations.
Hydraulic-driven reversible asphalt pump.
5 ft cold-handle hand sprayer with 40 ft hose.
20 in manhole for access and filling.
Electronic break-away braking and trailer safety equipment.
Optional 8 ft non-recirculating spray bar with in-cab control.
Key Specs
- Tank sizes
- 300 or 600 gal
- Asphalt pump
- 8 GPM reversible hydraulic
- Spray wand hose
- 40 ft
- Spray bar
- 8 ft optional
- Engine
- 9.5 HP gasoline
- Brakes
- Electric single axle
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.

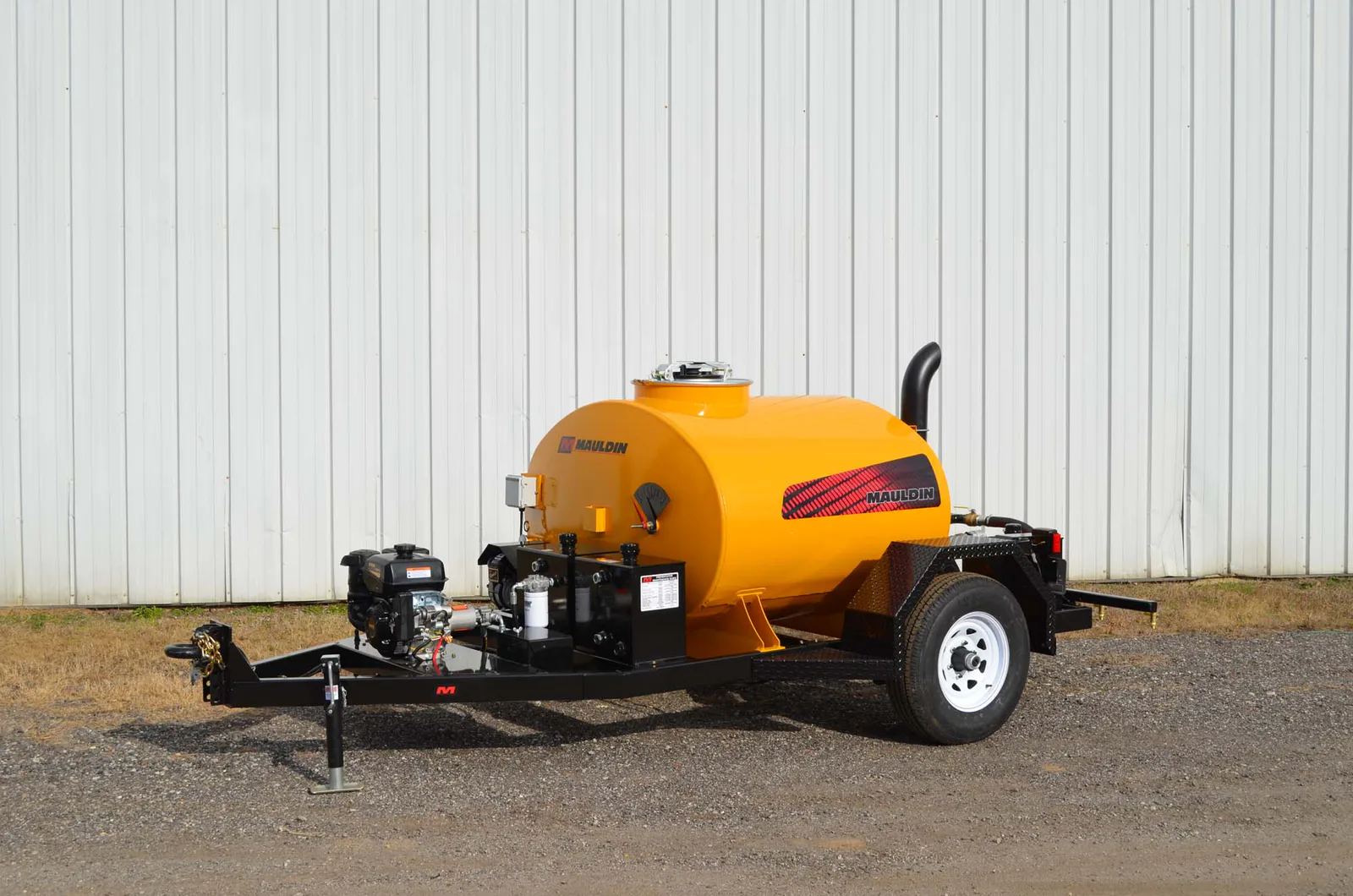

Trailer distributor package
A compact tank and trailer frame make the MT series practical for patch crews and small maintenance routes.

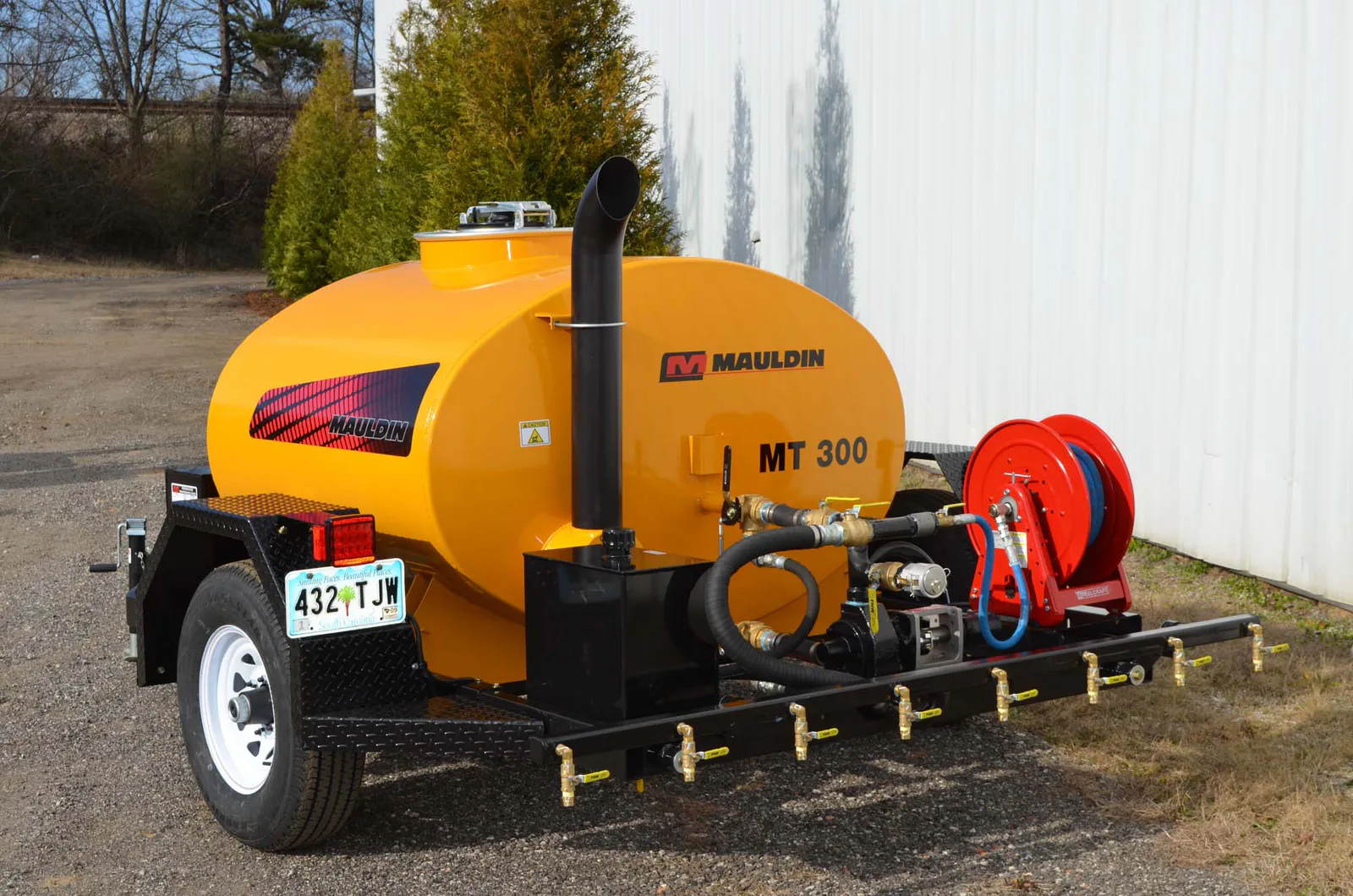

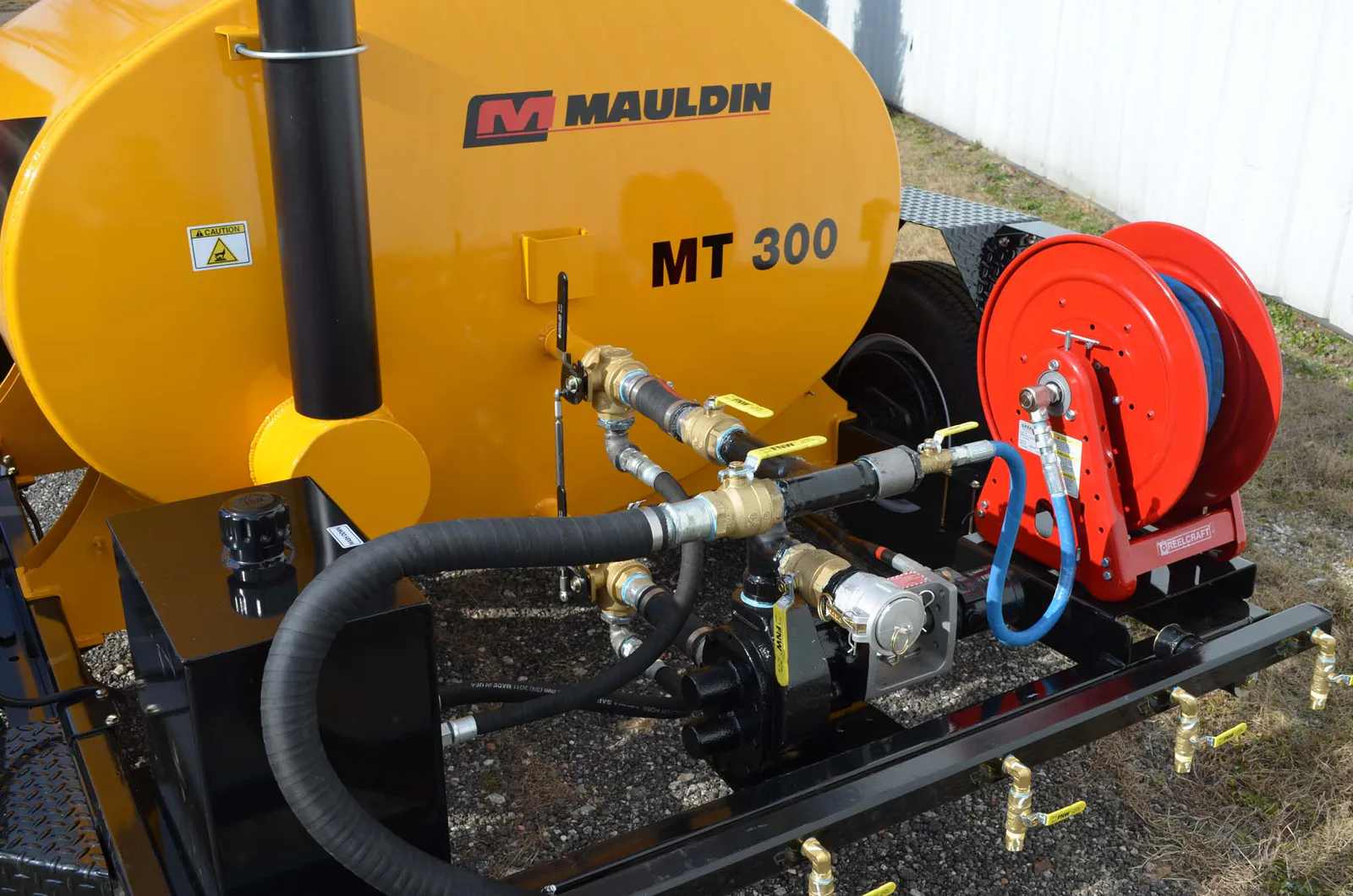

Pump and spray controls
The hydraulic reversible pump, hose reel, and wand setup keep tack and emulsion application simple in the field.
Truck-mounted alternative
For crews stepping up from trailer work, Mauldin's distributor family also supports higher-volume truck-mounted applications.
Technical Specifications
MT300 / MT600 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Trailer and tank
- Overall length
- 169 in
- Overall width
- 96.5 in
- Tank capacity
- 300 or 600 gal
- Loading height
- 62 or 70 in
- Tires
- 225/75R15
- Brakes
- Electric single axle
Spray and heating
- Asphalt pump
- 8 GPM / 30 LPM, reversible hydraulic
- Burner
- Propane twin burner
- Flue
- Single flue, triple tank pass
- Hand wand
- Single nozzle with 40 ft hose
- Engine
- 9.5 HP gasoline, electric start
- Hydraulic tank
- 9 gal
Features
MT300 / MT600 advantages
Two tank sizes
Choose 300 gal or 600 gal capacity based on route length, tow vehicle, and material volume.
Hand spray ready
The 5 ft wand and 40 ft hose suit patching, edging, and spot tack applications.

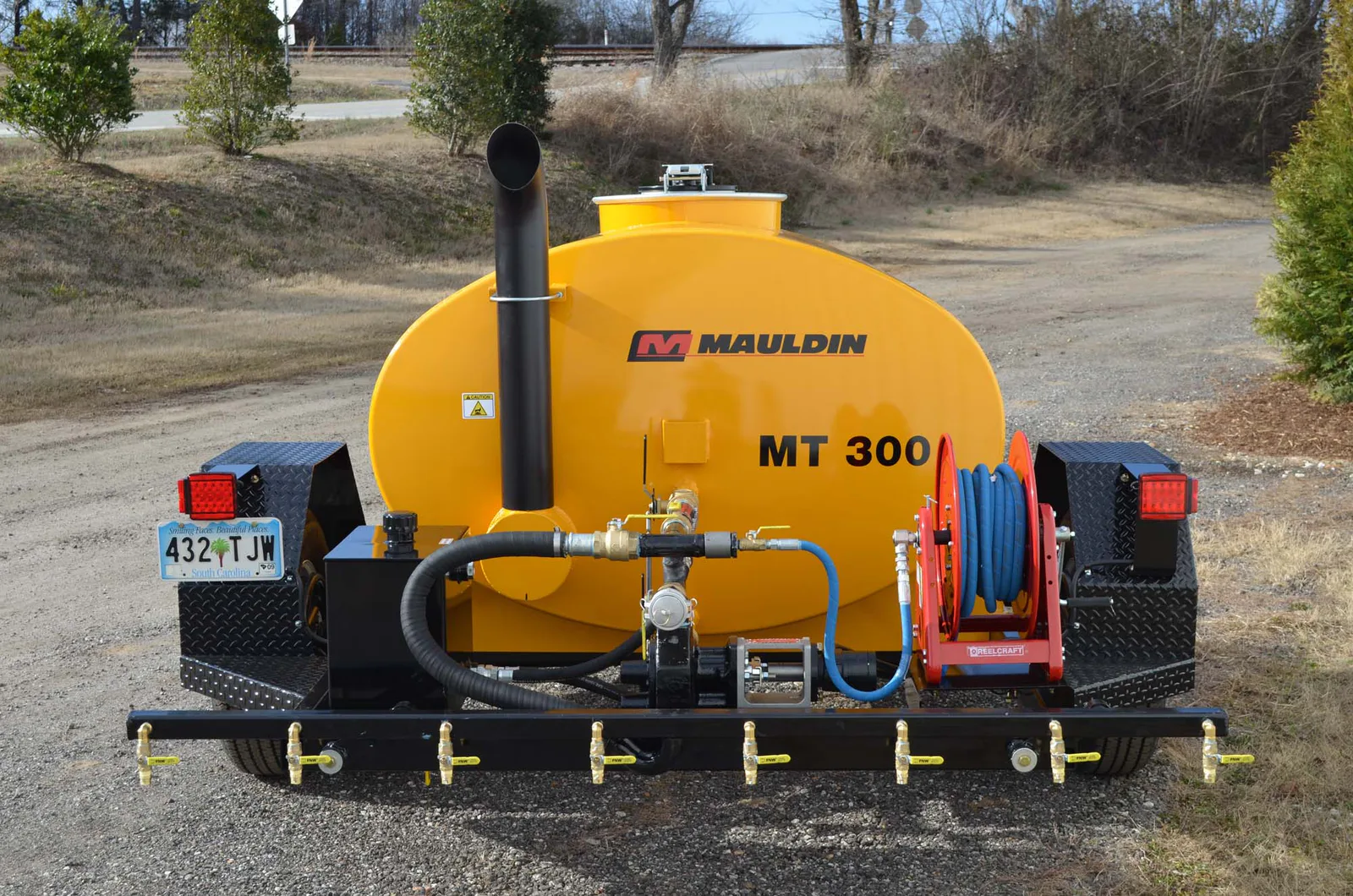

Optional spray bar
An 8 ft non-recirculating bar gives crews a wider, controlled spray pattern when the job calls for it.
Gallery
MT300 / MT600 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common MT300 / MT600 Questions
What tank sizes are available for the Mauldin MT distributor?
The MT series is listed in 300 and 600 gallon configurations.
Does the MT series include a hand spray wand?
Yes. Mauldin lists a 5 ft cold-handle hand sprayer with a 40 ft hose.
Can the MT300 or MT600 use a spray bar?
Yes. Mauldin lists an optional 8 ft non-recirculating spray bar with in-cab control.
