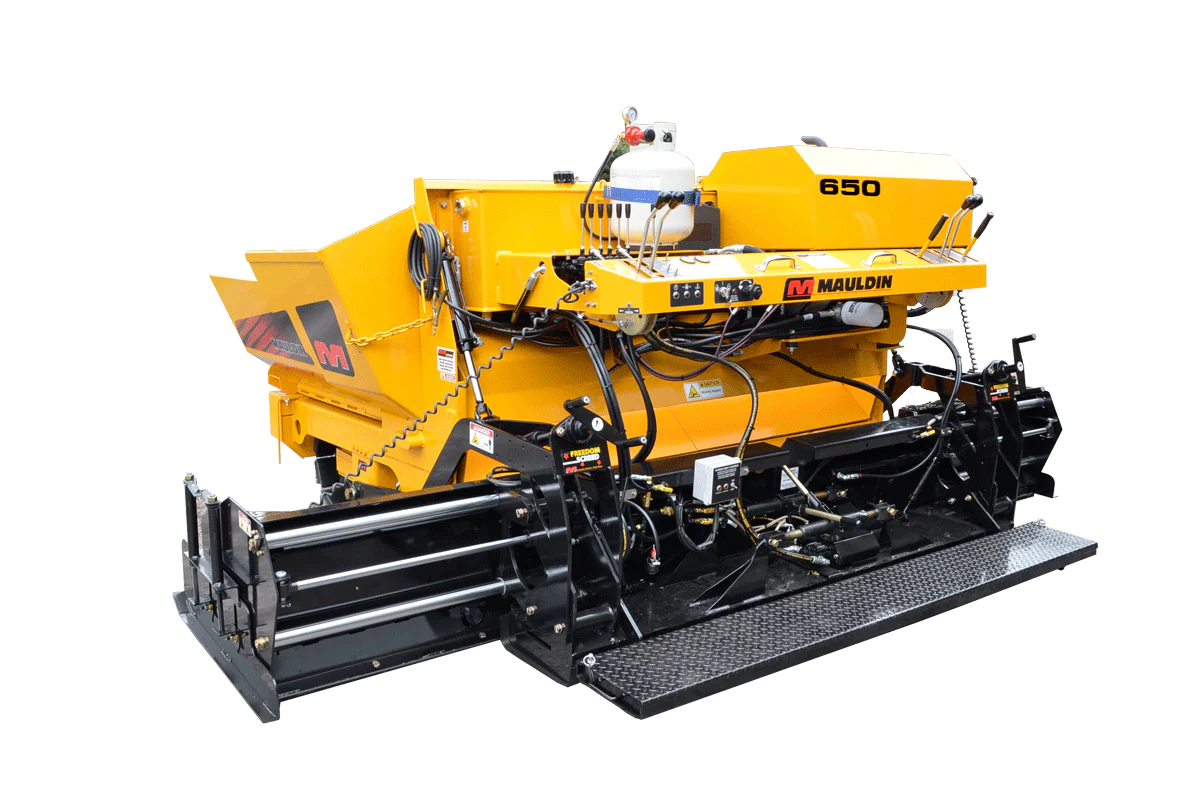

Mauldin Track Asphalt Paver
650
Compact track paver with FREEDOM screed, propane screed heat, 24 HP Kubota Tier 4 Final power, 6 ton hopper capacity, and 8 ft to 13 ft paving width.
Overview
Built for the way Texas crews work
The Mauldin 650 is a compact commercial track paver built for contractors who want the 8 ft to 13 ft FREEDOM screed platform with propane screed heat and a simple 24 HP Kubota diesel package.
It shares the compact 9,700 lb footprint, 6 ton hopper, automatic track tensioning, extending augers, and two-speed drive architecture used for parking lots, drive lanes, municipal patches, and utility restoration.
FREEDOM screed with patented extension matching system.
8 ft to 13 ft paving widths.
Continuous ignition propane screed and extension heating.
Automatic mechanical dumping hopper.
Crawler-style poly track system with automatic tensioning.
24 HP Tier 4 Final Kubota diesel engine.
Key Specs
- Paving width
- 8 ft to 13 ft
- Hopper capacity
- 6 tons
- Operating weight
- 9,700 lb
- Engine
- Kubota 1.5L Tier 4 Final
- Power
- 24 HP
- Heating source
- Constant ignite propane
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Simple propane heat
Continuous ignition propane heat keeps the screed package straightforward for smaller commercial paving crews.
Compact commercial footprint
At 9,700 lb, the 650 is sized for parking lots, drive lanes, and municipal patching without sacrificing 8 ft to 13 ft paving width.
Technical Specifications
650 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions and capacities
- Length
- 118 in
- Width
- 115 in
- Height
- 68 in
- Weight
- 9,700 lb
- Screed weight
- 2,000 lb
- Hopper capacity
- 6 tons
- Fuel tank
- 20 gal
- Hydraulic tank
- 17.5 gal
Paving and engine
- Paving widths
- 8 ft to 13 ft
- Paving depth
- 0 to 6 in
- Heating source
- Constant ignite propane
- Augers
- 2 extension mounted
- Paving speed
- 0 to 115 fpm
- Travel speed
- 0 to 280 fpm
- Engine
- Kubota 1.5L Tier 4 Final, 24 HP
Features
650 advantages
FREEDOM screed
The patented extension matching system supports clean extension work across 8 ft to 13 ft widths.
Automatic dumping hopper
The official feature list calls out an automatic mechanical dumping hopper for simplified material handling.
24 HP Kubota diesel
The enclosed Tier 4 Final Kubota package gives the 650 compact diesel power for commercial paving.
Gallery
650 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 650 Questions
What is the difference between the Mauldin 650 and 760?
Both pave 8 ft to 13 ft, but the 650 is listed with propane screed heat and 24 HP Kubota power while the 760 uses electric screed heat and a 49 HP Kubota engine.
What is the 650 hopper capacity?
Mauldin lists the 650 with a 6 ton hopper capacity.
What work is the 650 best for?
The 650 is a compact commercial paver for parking lots, driveways, municipal patching, utility cuts, and smaller commercial overlays.
