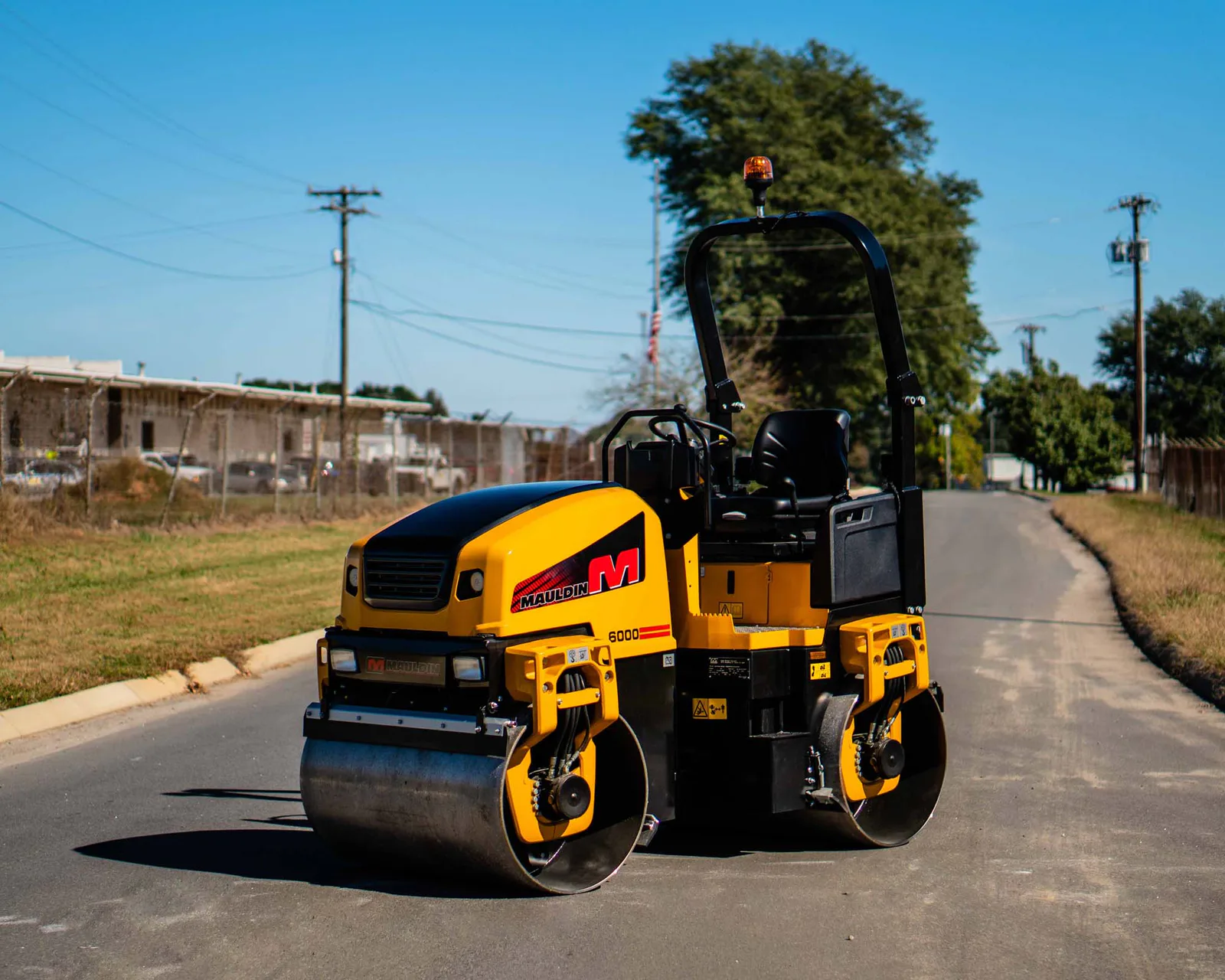

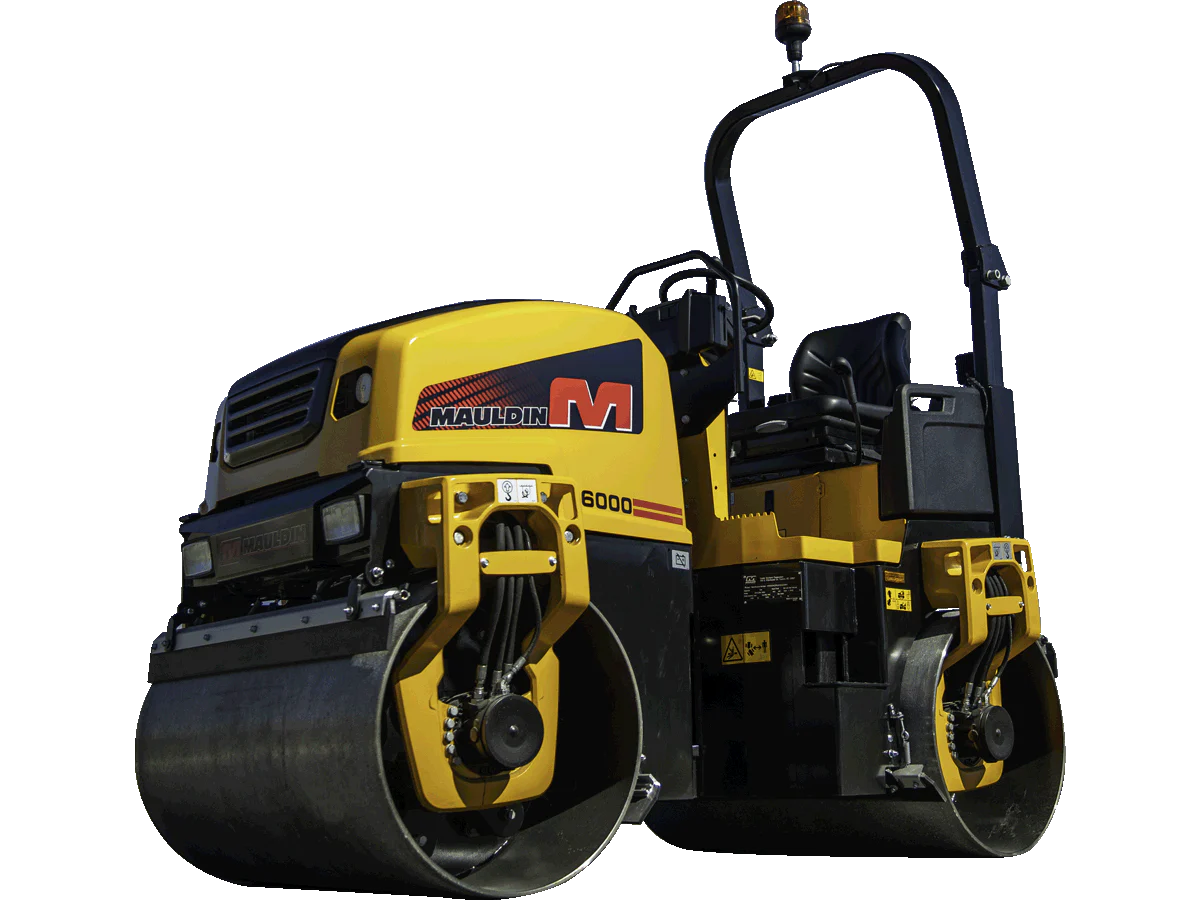

Mauldin Tandem Vibratory Roller
6000 Roller
6000 lb class tandem vibratory roller with 47 in drums, 54 gallon pressurized water system, 2 in drum offset, and 24 HP Kubota diesel power.
Overview
Built for the way Texas crews work
The Mauldin 6000 Roller is the larger tandem vibratory roller in the Mauldin lineup for contractors that need more weight and wider drums than the 3500 while staying in a compact commercial roller footprint.
It features a Kubota 24 HP diesel engine, 47 in drums, 26 in drum diameter, 54 gal pressurized water system, adjustable 2 in drum offset, and a listed 6,000 lb max operating weight.
6000 lb max operating weight class.
47 in front and rear drum widths.
26 in drum diameter.
54 gal pressurized water system.
Adjustable 2 in drum offset.
24 HP Kubota diesel engine.
Key Specs
- Max operating weight
- 6,000 lb
- Drum width
- 47 in front and rear
- Drum diameter
- 26 in
- Water system
- 54 gal pressurized
- Drum offset
- Adjustable 2 in
- Engine
- Kubota 24 HP
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Higher-weight compaction
The 6000 Roller gives crews more weight and drum width for commercial asphalt compaction than the compact 3500.
Wide tandem drums
47 in drums help cover more mat per pass on parking lots, drive lanes, and road patches.

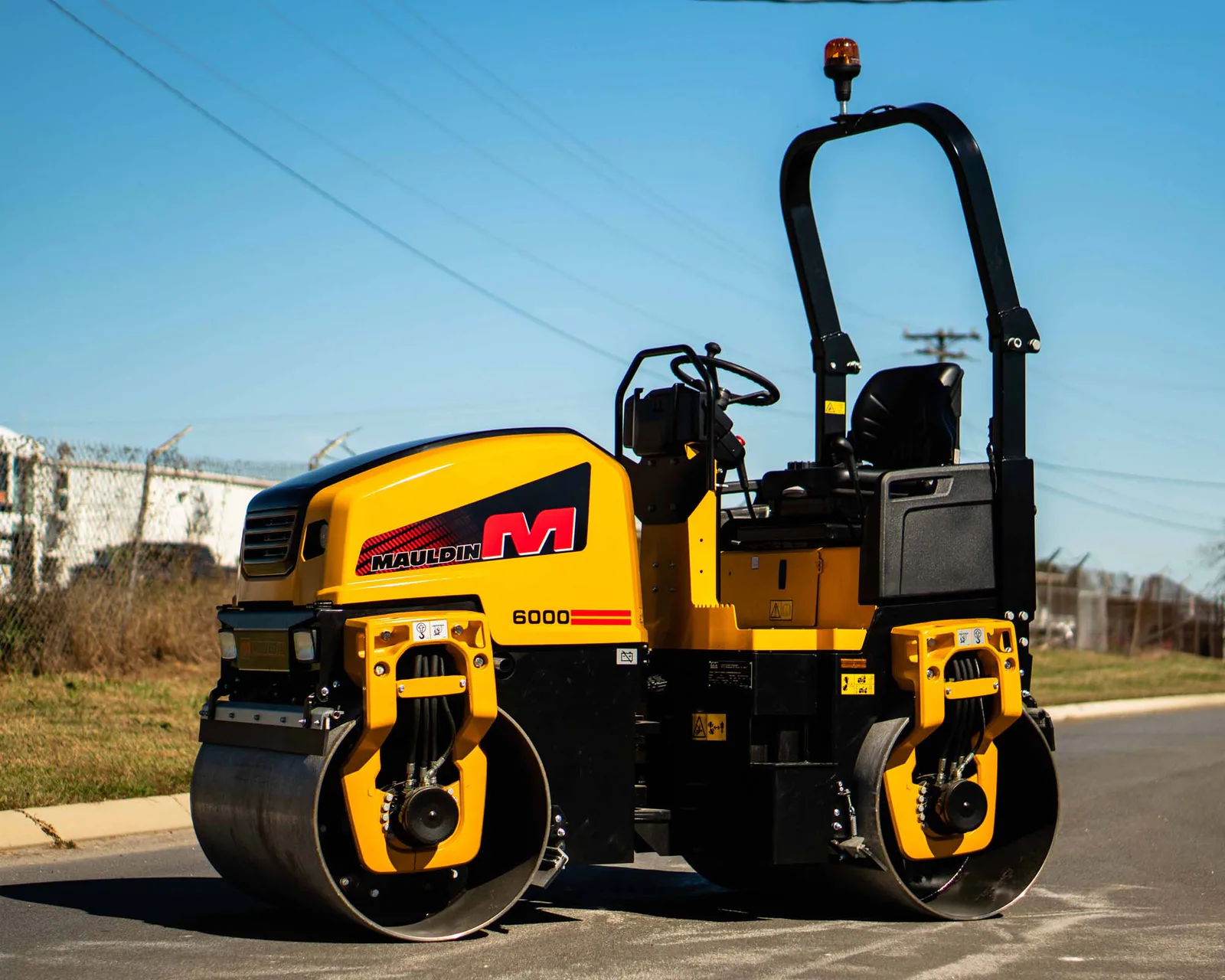

Operator platform
The ride-on package is designed around visibility and comfort for repeat rolling passes.
Technical Specifications
6000 Roller Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions
- Length
- 98.5 in
- Width
- 52.75 in
- Height without ROPS/cab
- 68.75 in
- Max operating weight
- 6,000 lb
- Front drum width
- 47 in
- Rear drum width
- 47 in
Drums and power
- Front drum diameter
- 26 in
- Rear drum diameter
- 26 in
- Water system
- 54 gal pressurized
- Drum offset
- Adjustable 2 in
- Engine
- Kubota 24 HP
- Operator focus
- Comfort-focused ride-on platform
Features
6000 Roller advantages
54 gallon water system
The pressurized water system supports asphalt compaction across longer passes.

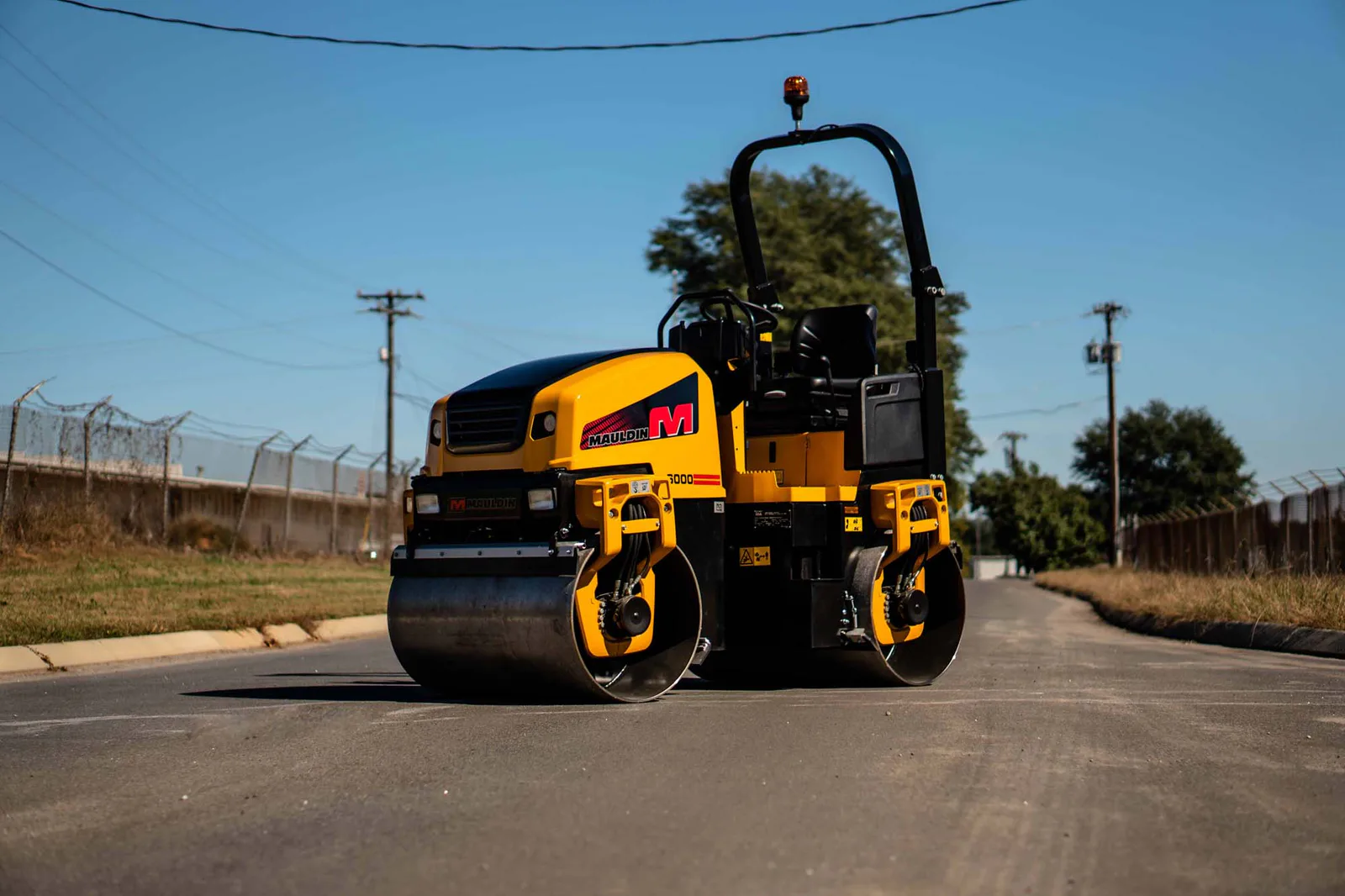

2 inch drum offset
Adjustable drum offset helps operators work edges and avoid marking the mat.

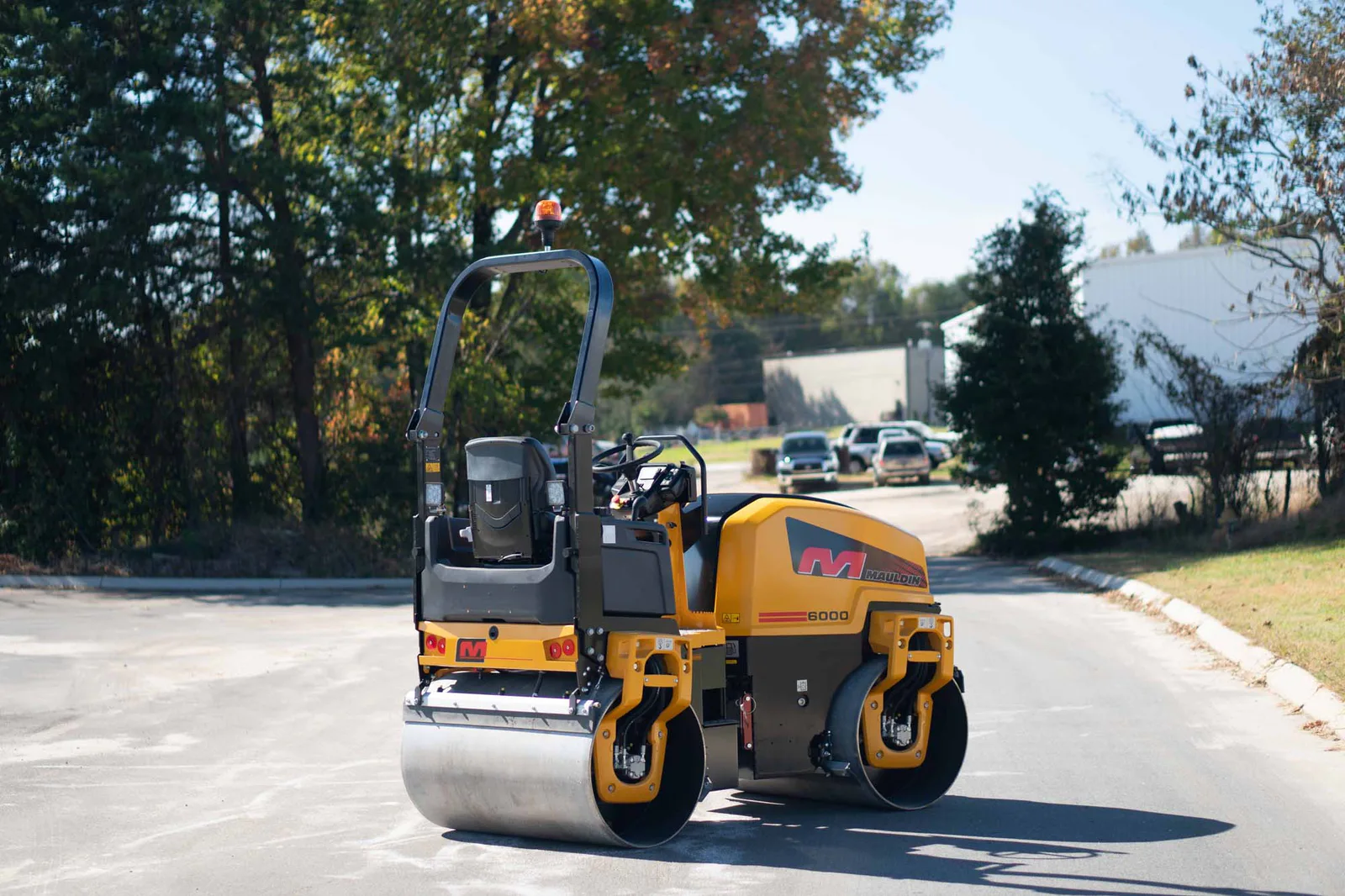

24 HP Kubota diesel
Kubota diesel power gives the 6000 Roller a straightforward engine package for contractor fleets.
Gallery
6000 Roller Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 6000 Roller Questions
How wide are the Mauldin 6000 Roller drums?
Mauldin lists 47 in front and rear drum widths.
What engine powers the 6000 Roller?
The official specs list a Kubota diesel rated at 24 HP.
How much water capacity does the 6000 Roller have?
Mauldin lists a 54 gallon pressurized water system.
