Mauldin Tandem Vibratory Roller
3500
Compact tandem vibratory roller with roughly 3,000 lb operating weight, large drum diameter, 50 gallon water tank, and gasoline or diesel engine options.
Overview
Built for the way Texas crews work
The Mauldin 3500 is a compact tandem vibratory roller for driveway, patching, parking lot, and small commercial compaction work.
Mauldin positions it as a heavy small roller with a 3,085 lb max operating weight, large 23 in drum diameter, 35 in drum width, 50 gal water system, and gasoline or optional diesel engine package.
Approximately 3,000 lb operating weight class.
Large drum diameter for its size class.
50 gal water tank.
Front vibratory drum.
Gasoline Honda or optional Kubota diesel engine.
Compact 35 in drum width.
Key Specs
- Max weight
- 3,085 lb
- Drum width
- 35 in front and rear
- Drum diameter
- 23 in
- Water tank
- 50 gal
- Gas engine
- Honda 19 HP
- Diesel option
- Kubota 20.3 HP
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Small-job compaction
The 3500 is sized for parking lots, utility cuts, patches, and tight asphalt work.
Compact tandem drums
35 in front and rear drums help crews compact narrow repairs and edges.
Technical Specifications
3500 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions
- Length
- 83 in
- Width
- 38 in
- Height without ROPS/cab
- 62 in
- Max weight
- 3,085 lb
- Front drum width
- 35 in
- Rear drum width
- 35 in
Drums and engine
- Front drum diameter
- 23 in
- Rear drum diameter
- 23 in
- Water tank
- 50 gal
- Standard engine
- Honda 19 HP gasoline
- Optional engine
- Kubota 20.3 HP diesel
- Vibration
- Front vibratory drum
Features
3500 advantages
50 gallon water tank
The water system supports asphalt compaction and helps keep drums clean on hot mix.
Engine choice
Choose Honda gasoline power or optional Kubota diesel depending on fleet preference.
Compact footprint
The 38 in overall width helps the roller fit into driveways, paths, and utility repair areas.

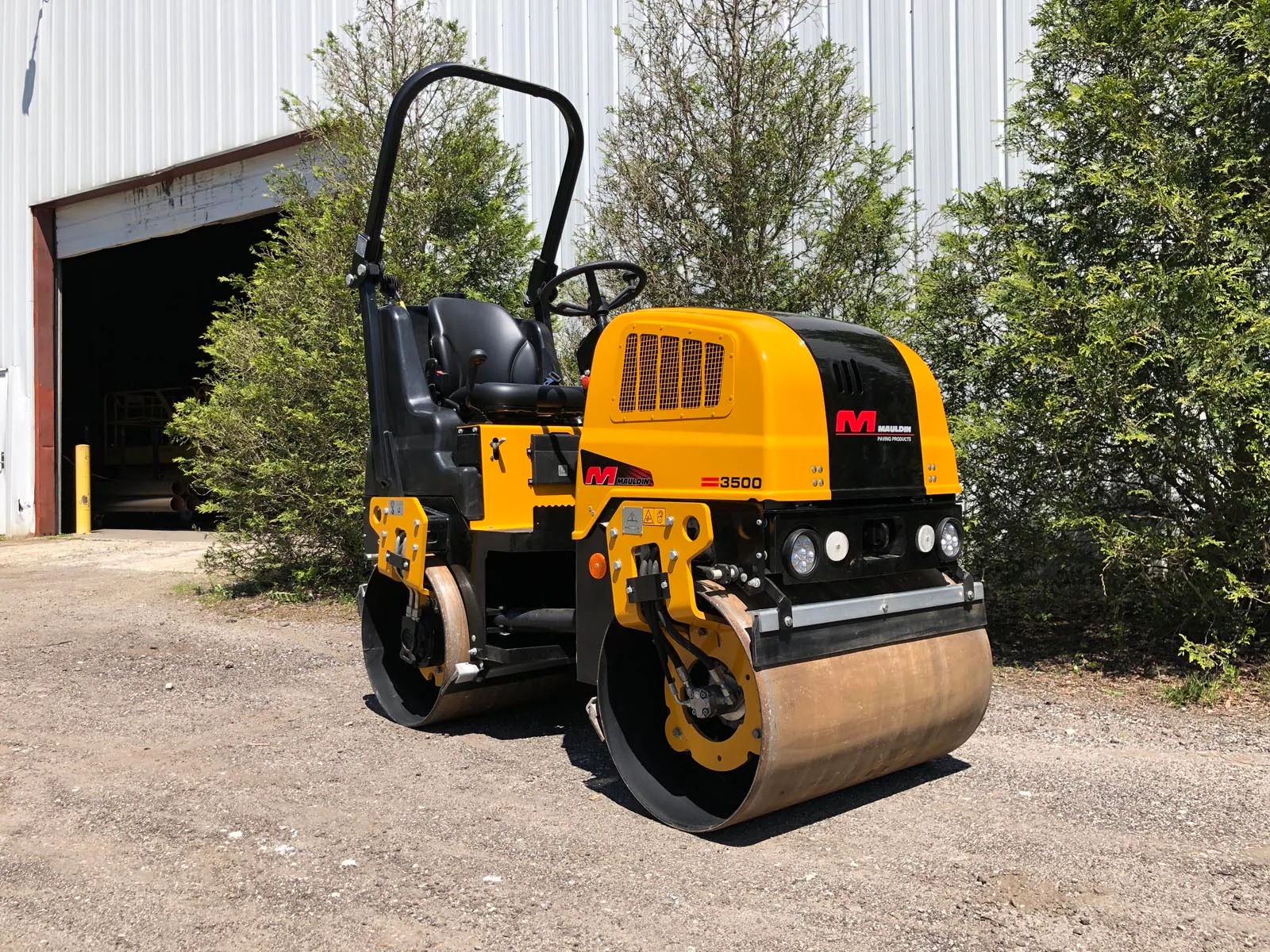

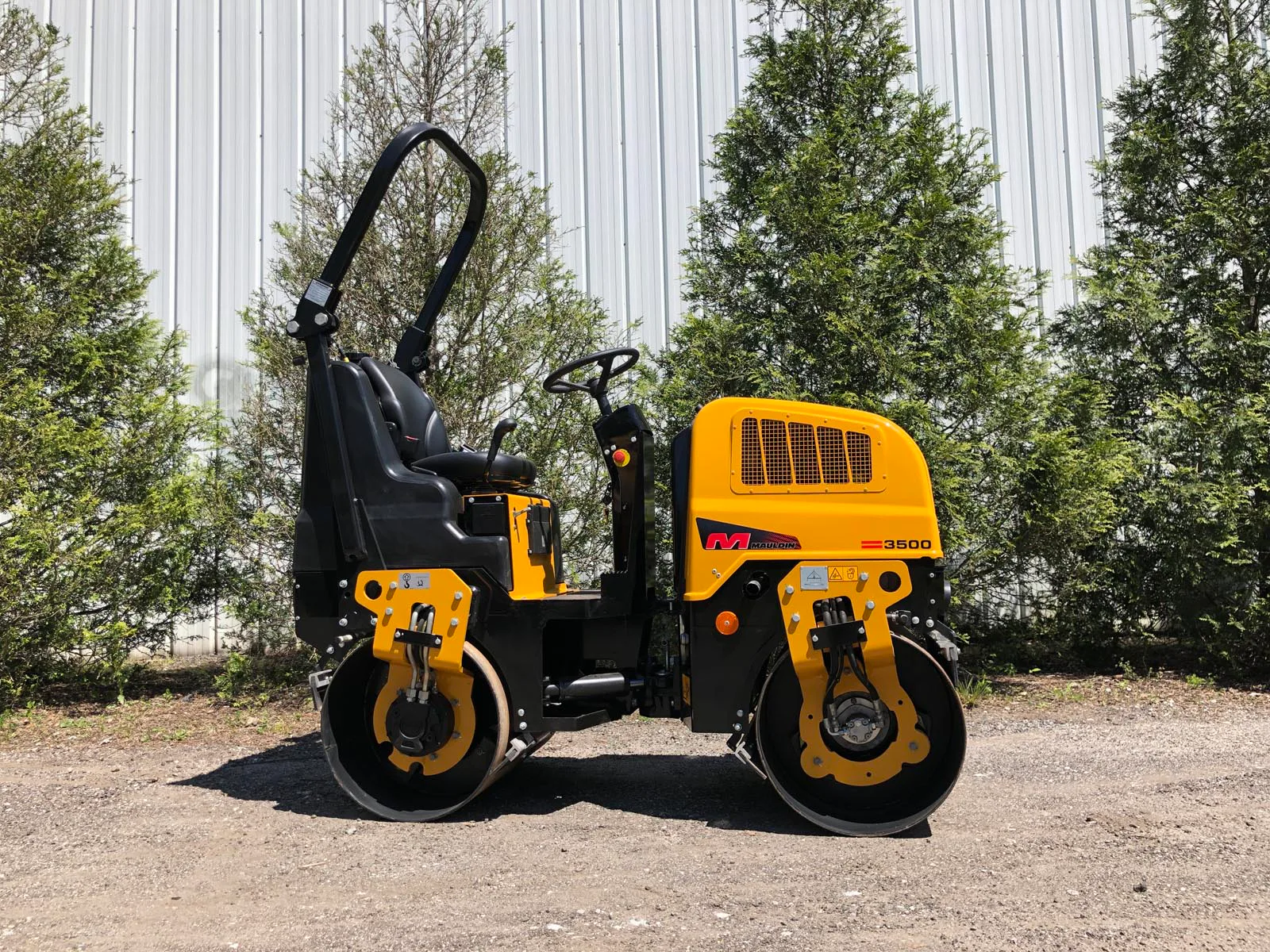

Gallery
3500 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common 3500 Questions
How wide are the Mauldin 3500 drums?
Mauldin lists 35 in front and rear drum widths.
What engine options are available on the 3500?
The Mauldin brochure lists a Honda 19 HP gasoline engine and an optional Kubota 20.3 HP diesel.
What is the 3500 water tank capacity?
Mauldin lists the 3500 with a 50 gallon water tank.
