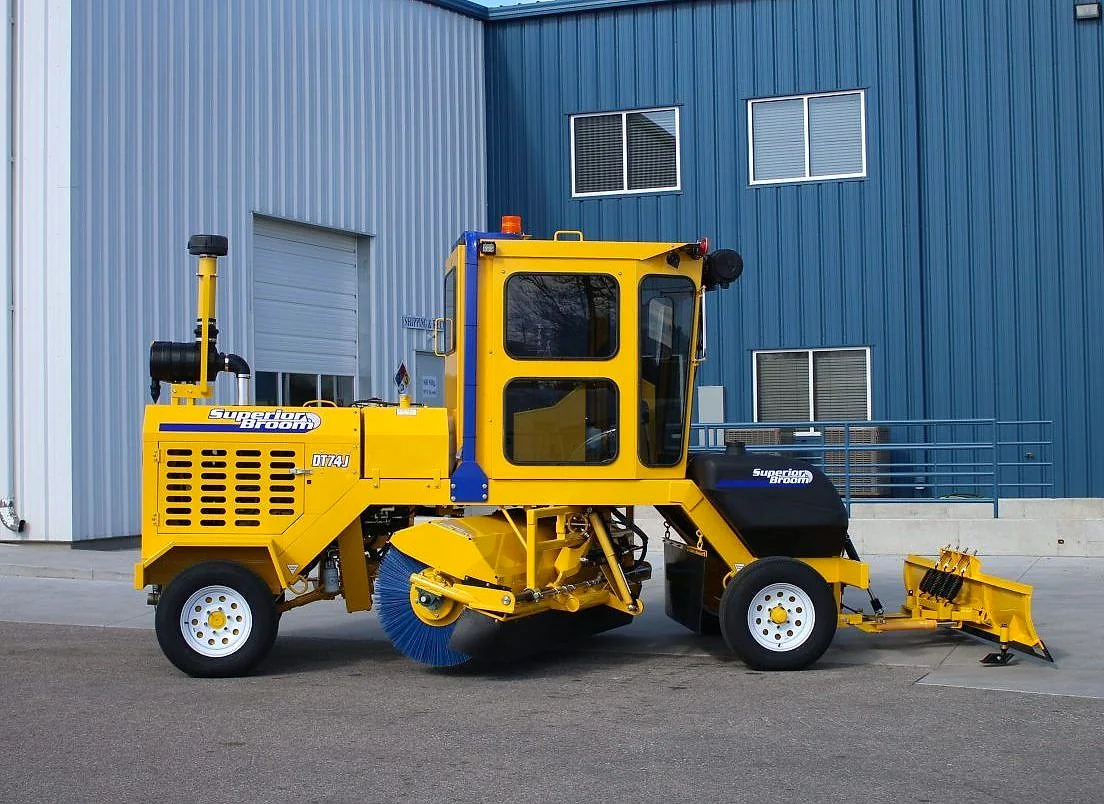

Superior Broom Mid-Mount Broom
DT74
Mid-mount side-cast sweeper with 96 in sweeping path, 45 degree brush swing, heavy-duty hydraulic broom drive, and multiple diesel engine options.
Overview
Built for the way Texas crews work
The Superior Broom DT74 is the mid-mount broom for construction cleanup, paving support, shoulder work, and material-heavy sweeping where a balanced broom layout is preferred.
The DT74 pairs a 96 inch sweeping path with a 45 degree left/right brush swing, direct-drive broom motor, adjustable down pressure, and water-system support for dusty jobs and long cleanup passes.
96 in sweeping path.
45 degree left/right brush swing.
Direct-drive motor enclosed in the brush core.
Load-compensated hydraulic piston pump.
Adjustable broom down pressure and joystick swing control.
170 gal water system.
Key Specs
- Sweeping path
- 96 in
- Brush swing
- 45 degrees left and/or right
- Hydraulic system
- 28 gpm, 2,500 PSI operating pressure
- Water system
- 170 gal
- Suspension
- Rear axle leaf spring
- Engine options
- John Deere, Caterpillar, FPT; Cummins export option
FAQ
Common DT74 Questions
What makes the DT74 different from the SM74?
The DT74 is the mid-mount broom layout, while the SM74 places the broom at the front. The DT74 also lists a wider 45 degree brush swing, making it a strong fit for material-heavy road cleanup and shoulder work.
Can Closner support Superior Broom parts and service?
Yes. Closner supports Superior Broom customers with parts, service, rental support, and application guidance across our Texas branch network.
