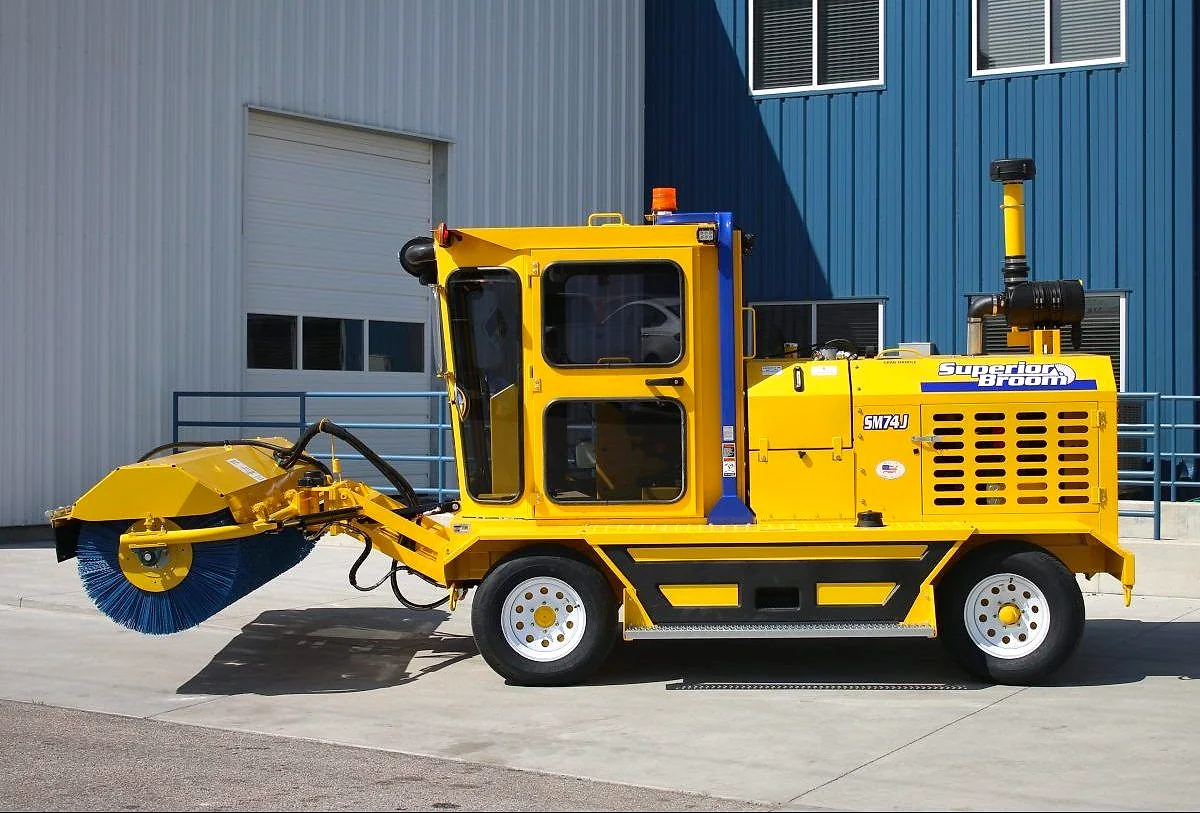

Superior Broom Front Broom
SM74
Front broom side-cast sweeper with 96 in sweeping path, rear steering visibility, hydraulic brush control, and diesel engine options for contractors and municipalities.
Overview
Built for the way Texas crews work
The Superior Broom SM74 is the front-broom model for crews that want the broom in clear forward view while sweeping shoulders, millings, chip seal residue, loose aggregate, and jobsite debris.
Its front-brush and rear-steer layout gives operators visibility into the work area, while the hydraulic broom controls, cab options, water system, and brush options let the machine be configured for construction cleanup or municipal road-maintenance routes.
96 in sweeping path.
Front broom layout with rear steering.
Orbital hydraulic power steering.
Touch-pad style hydraulic control architecture.
8 ft poly quick-change tube brush.
150 gal water system.
Key Specs
- Sweeping path
- 96 in
- Brush
- 8 ft poly quick-change tube brush
- Brush swing
- 35 degrees left and/or right
- Water system
- 150 gal
- Power steering
- Orbital hydraulic
- Engine options
- John Deere, Caterpillar, FPT; Cummins export option
FAQ
Common SM74 Questions
When should I look at the SM74 instead of the DT74?
The SM74 is the front-broom choice when forward brush visibility and front-mounted side-cast sweeping are priorities. Closner can help compare it with the DT74 based on route type, operator preference, and cleanup material.
What work is the SM74 built for?
It is a fit for construction cleanup, paving support, chip seal cleanup, shoulder work, milling cleanup, industrial yards, and municipal road-maintenance sweeping.
