Stewart-Amos Mechanical Broom Sweeper

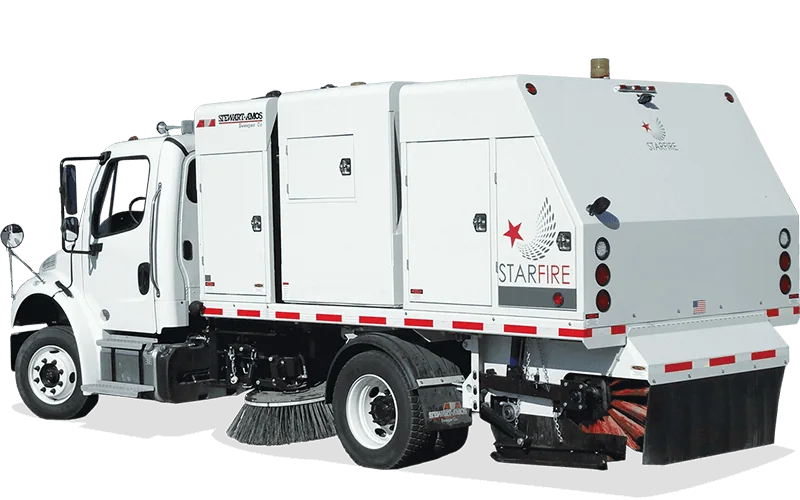

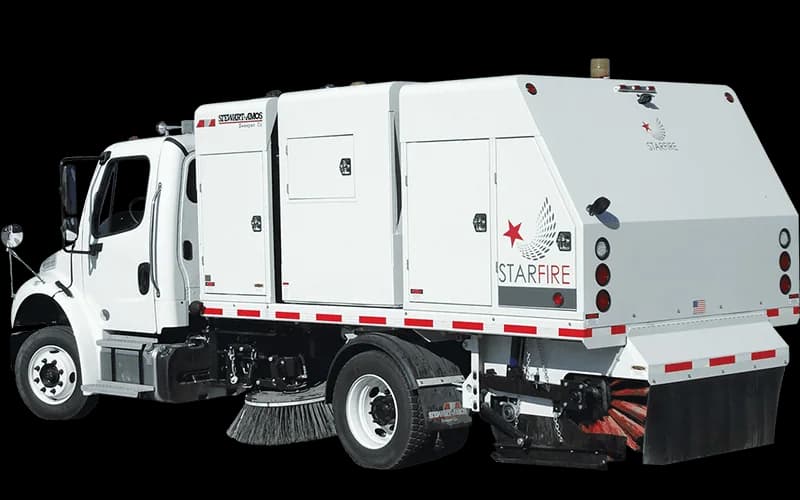

Starfire S-4XL
Extra heavy-duty dual-engine mechanical broom with 4.5 yd³ hopper on a large conventional chassis. 26,000 lb GVWR — no CDL required. Built for continuous-duty chip seal, millings, and highway sweeping.
Overview
Built for the way Texas crews work
The Starfire S-4XL is Stewart-Amos' extra heavy-duty dual-engine mechanical broom sweeper for contractors and municipalities that need continuous-duty sweeping without moving into a CDL chassis.
It is built around a 4.5 cubic yard hopper, 26,000 lb GVWR conventional chassis, 330 gallon water system, variable high-dump hopper, and the Starfire mechanical broom package for chip seal, millings, spring cleanup, and open-road sweeping.
26,000 lb GVWR conventional chassis, no CDL required.
4.5 cubic yard volumetric debris hopper with 44 inch dump door reach.
11 ft maximum sweeping path with dual gutter brooms.
Variable dump height from 17 inches to 144 inches, chassis dependent.
330 gallon polyethylene water tank with front, main broom, and gutter broom spray coverage.
SCAQMD PM-10 Rule 1186 certified.
Key Specs
- Model
- S-4XL
- Sweeping path
- 11 ft maximum
- Chassis GVWR
- 26,000 lb
- CDL required
- No
- Hopper capacity
- 4.5 cu yd volumetric
- Hydraulic power train
- Auxiliary engine
- Dump height
- 17 in to 144 in
- Gutter broom size
- 54 in standard, 42 in optional
- Water capacity
- 330 gal
- Elevator
- 9 flights, three shafts
- Dump door reach
- 44 in
- Sweeper engine
- 59 HP Kubota turbo diesel
Maintenance Videos
Factory Starfire Training
These Stewart-Amos training videos cover the core broom and sensor adjustments that keep a Starfire sweeper performing correctly in the field.
Gutter broom maintenance, adjustments, and operation
Factory Starfire Series training video covering gutter broom setup and maintenance.
Main broom maintenance, adjustments, and operation
Factory Starfire Series training video for main broom operation and adjustment.
Proximity sensor adjustments
Factory Starfire Series training video covering proximity sensor adjustment.
Features
Starfire S-4XL advantages

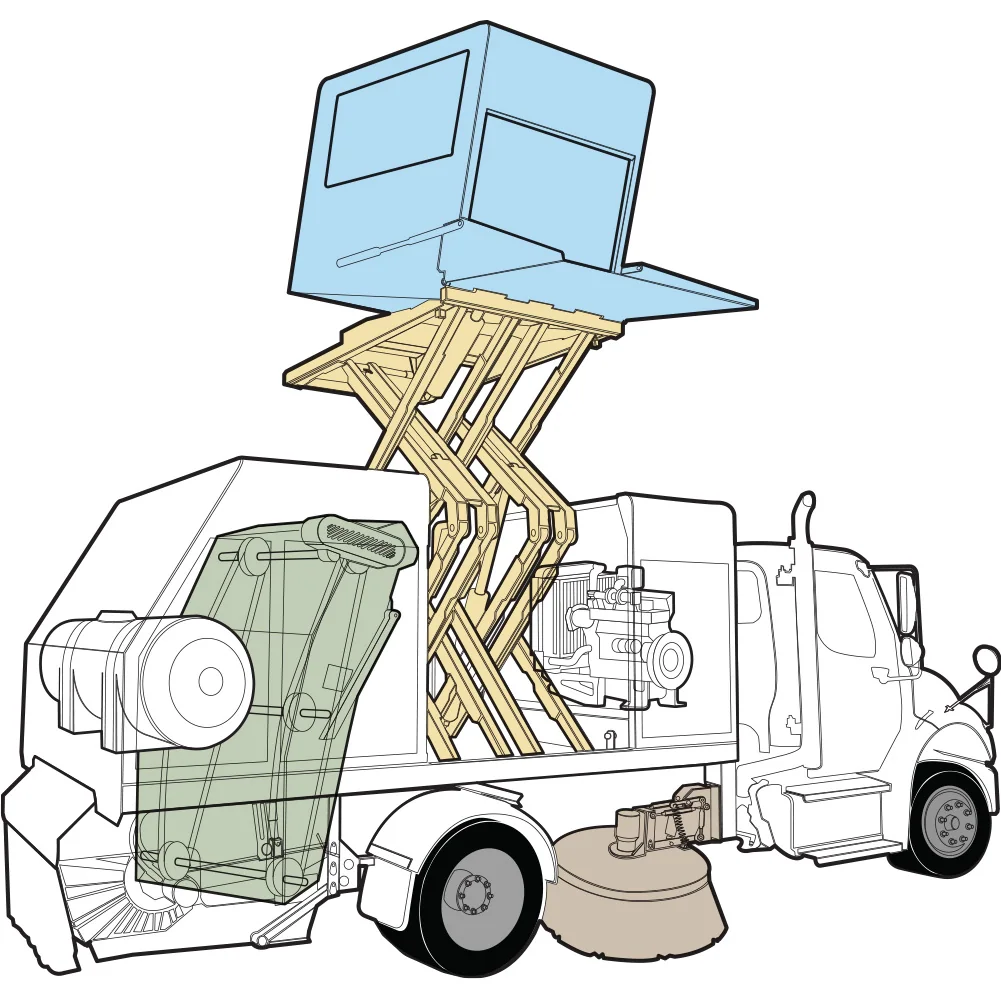

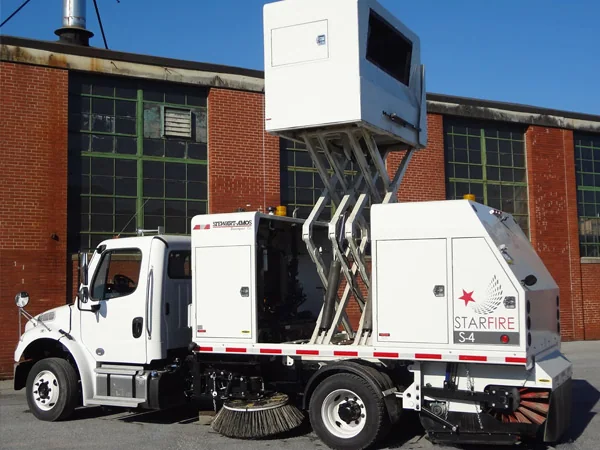

Massive lift scissors
Double X-style lift scissors and four-corner hopper lift support stable dumping with wet, sticky, or unbalanced debris.
Exclusive 3-shaft elevator
The third shaft supports chain return, improves chain life, reduces maintenance time, and helps the elevator load bulky debris more effectively.
Water and dust control
A 330 gallon tank, 3.6 gpm diaphragm pump, and spray nozzles at the front bar, main broom, and gutter brooms help control dust while sweeping.
Simple service access
Protected wiring, case drains, hydraulic pressure gauges, and lockable canopies keep the machine easier to diagnose, maintain, and keep in service.
Operator visibility
The standard camera system includes a dashboard-mounted 7 inch color monitor with right gutter broom and rear backup cameras.
Non-CDL productivity
A mid-sized conventional chassis keeps the S-4XL maneuverable while preserving heavy-duty hopper and broom performance.

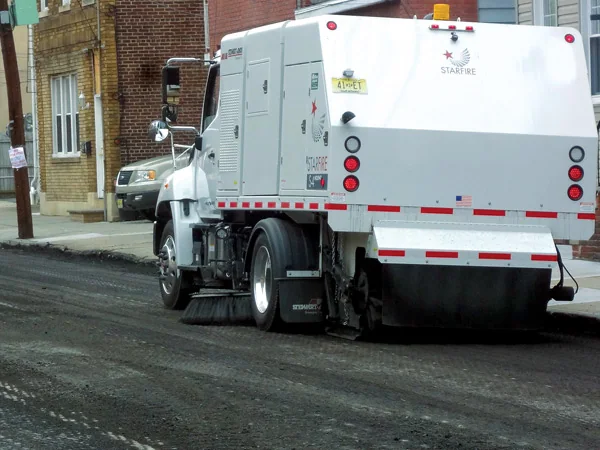

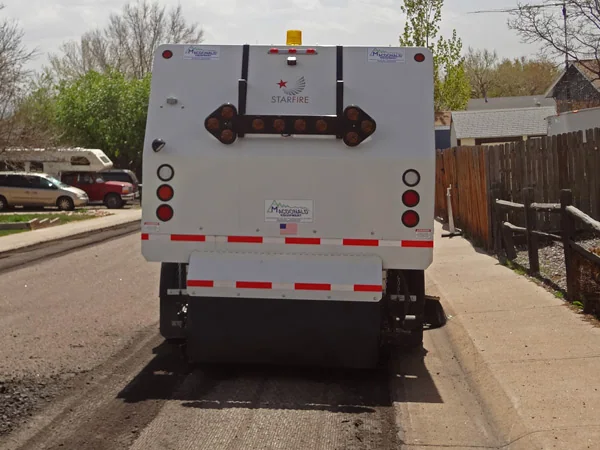

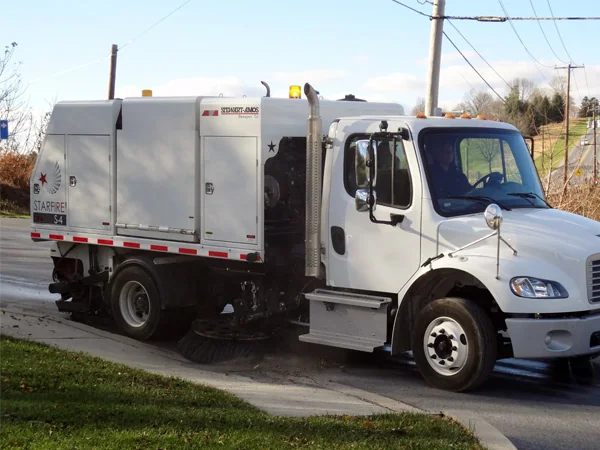

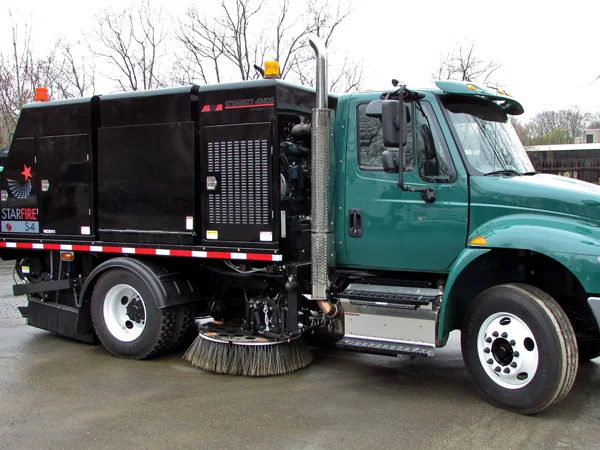

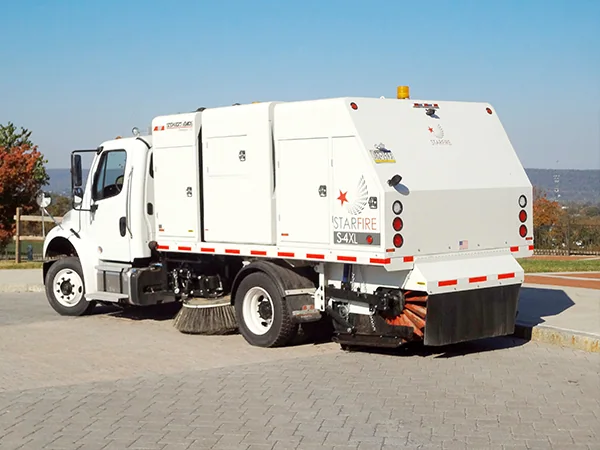

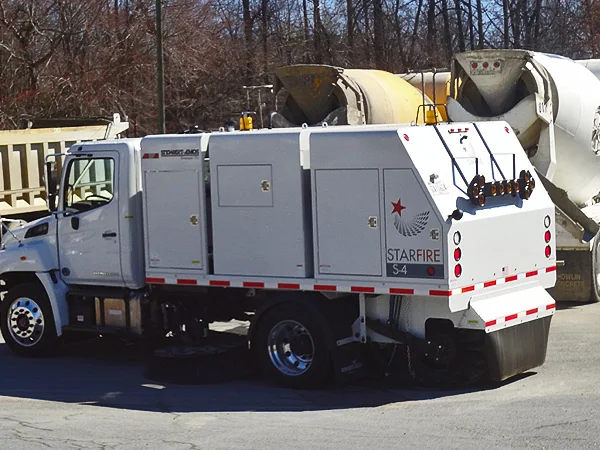

Gallery

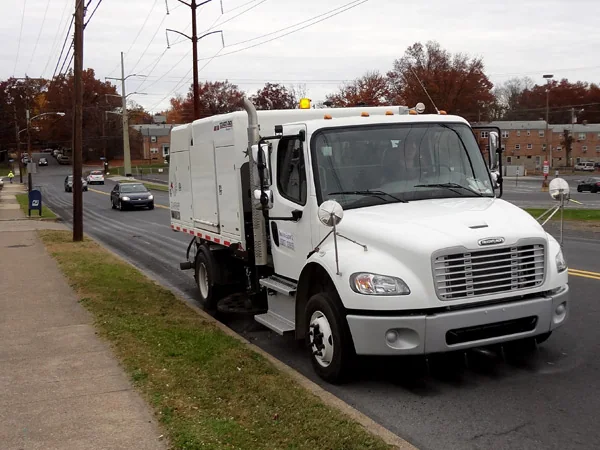

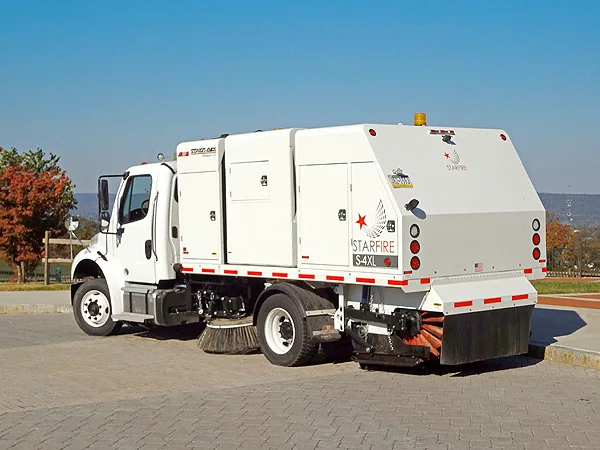

Starfire S-4XL Photos
Factory model photos and system views for a closer look at the machine.
