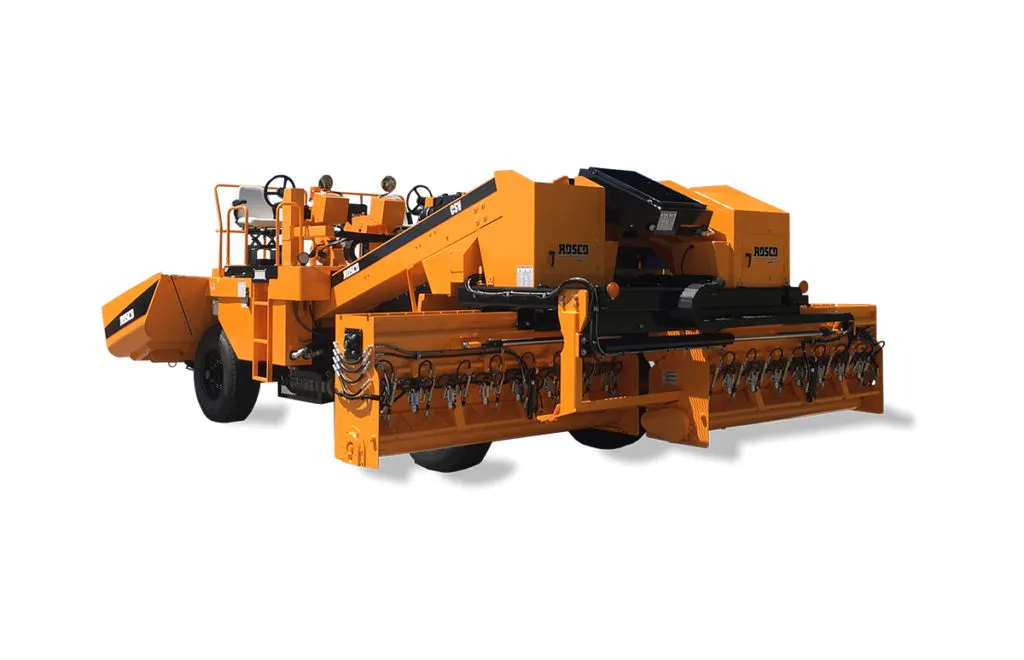

Rosco CSV Chip Spreader
The industry's most advanced variable-width chipspreader. Combine stepless 1' to 16' stone application, computerized Plus+1 CAN Bus aggregate gating, and a legal 8' 6\" width for permit-free hauling across Texas.
Engineered for Texas Roadways
Pavement Preservation Reimagined
Closner Equipment Co. is Texas's trusted distributor for pavement preservation machinery. The LeeBoy Rosco CSV (Chip Spreader Variable Width) represents the pinnacle of aggregate application technology. Built with a smaller total footprint to easily maneuver municipal environments and confined urban lanes, the CSV maintains absolute material distribution quality on rough, steep terrain and wide-open highway pulls.
Technical Superiority
Designed for Uptime and Precision
When aggregate costs rise and specs tighten, precise application determines profit. The Rosco CSV replaces mechanical estimations with digital accuracy and massive mechanical durability.
Plus+1 CAN Bus Rate Control
Computerized gate control system automatically monitors exact ground speed and adjusts gate openings in real-time. Maintains a precise, programmable aggregate application rate (lbs per square yard) during acceleration or braking.

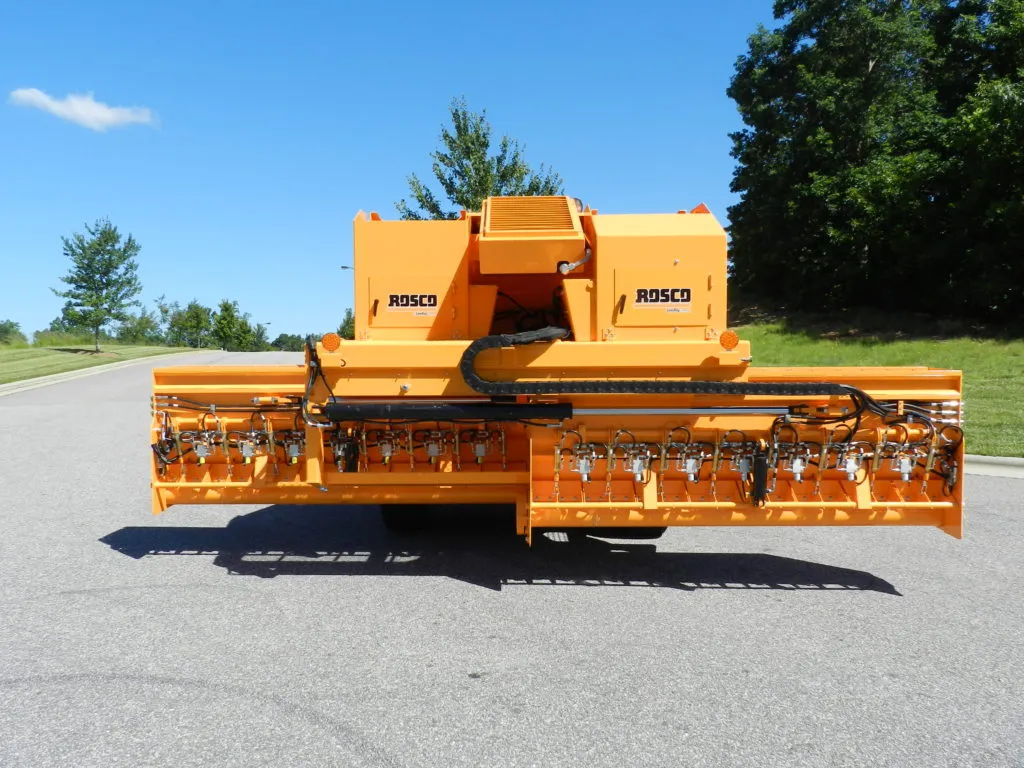

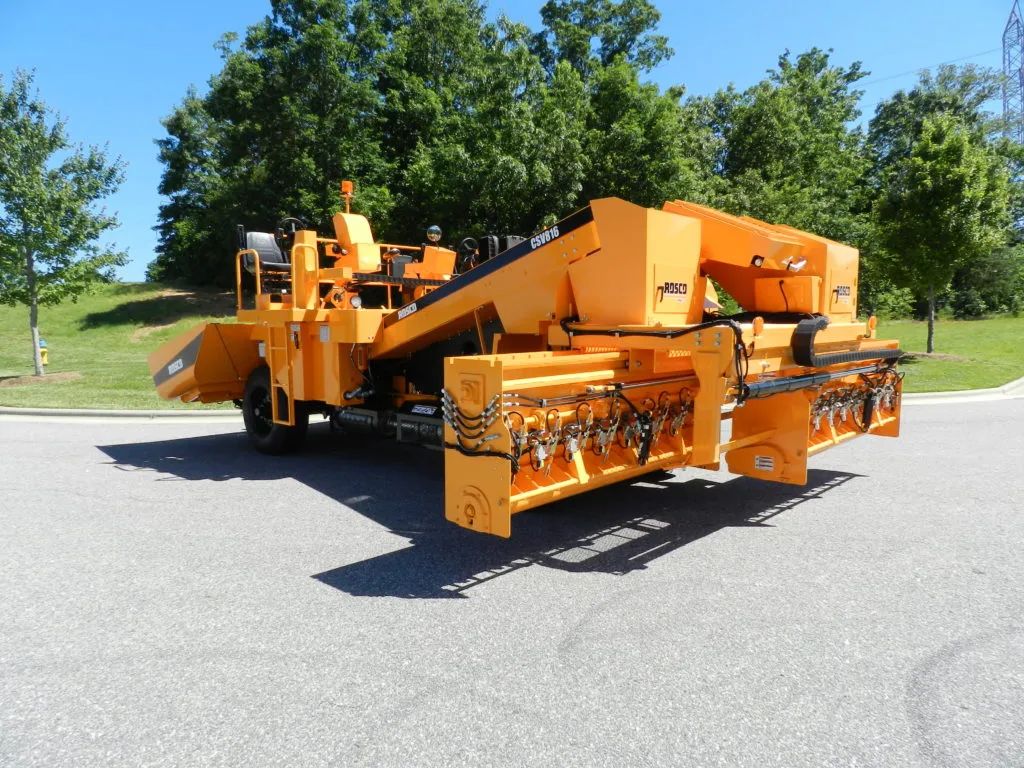

1' to 16' Variable Spread Hopper
The variable-width spread hopper adjusts steplessly in motion from 1 to 16 feet. Highly flexible for narrow residential streets, cul-de-sacs, utility patches, or wide highway shoulders.

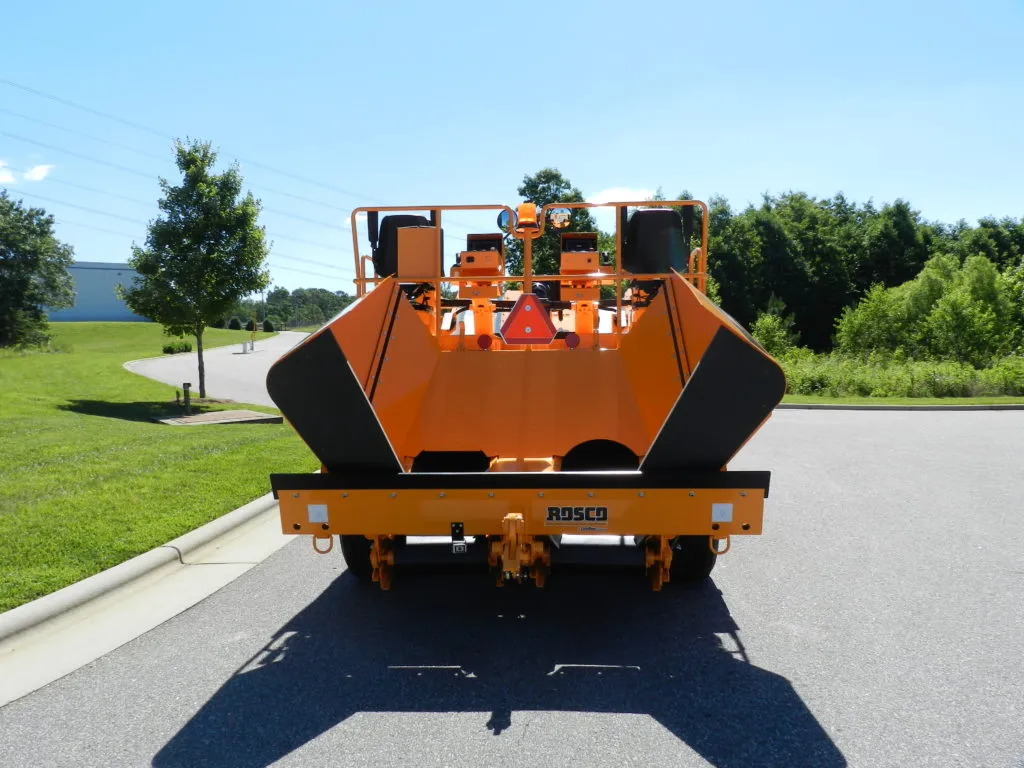

Permit-Free Transport Size
Designed with an 8' 6" legal transport width and an 8' 8" height (beacon retracted). Can be loaded onto a standard flatbed and hauled between jobs immediately without requiring costly wide-load permits.

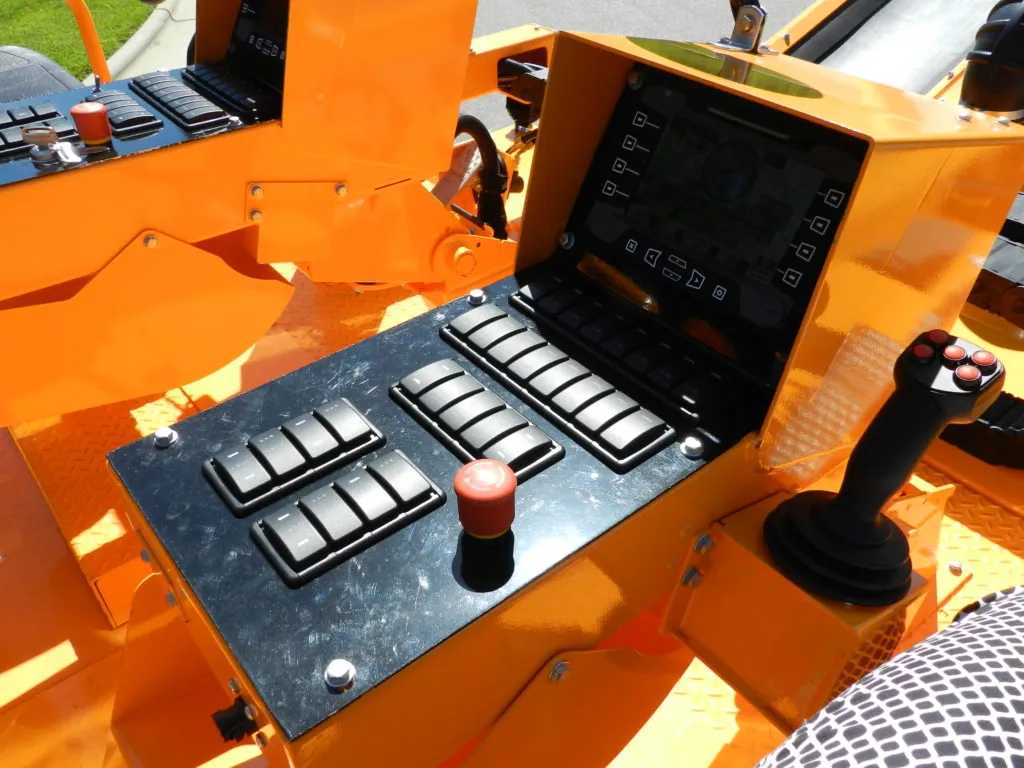

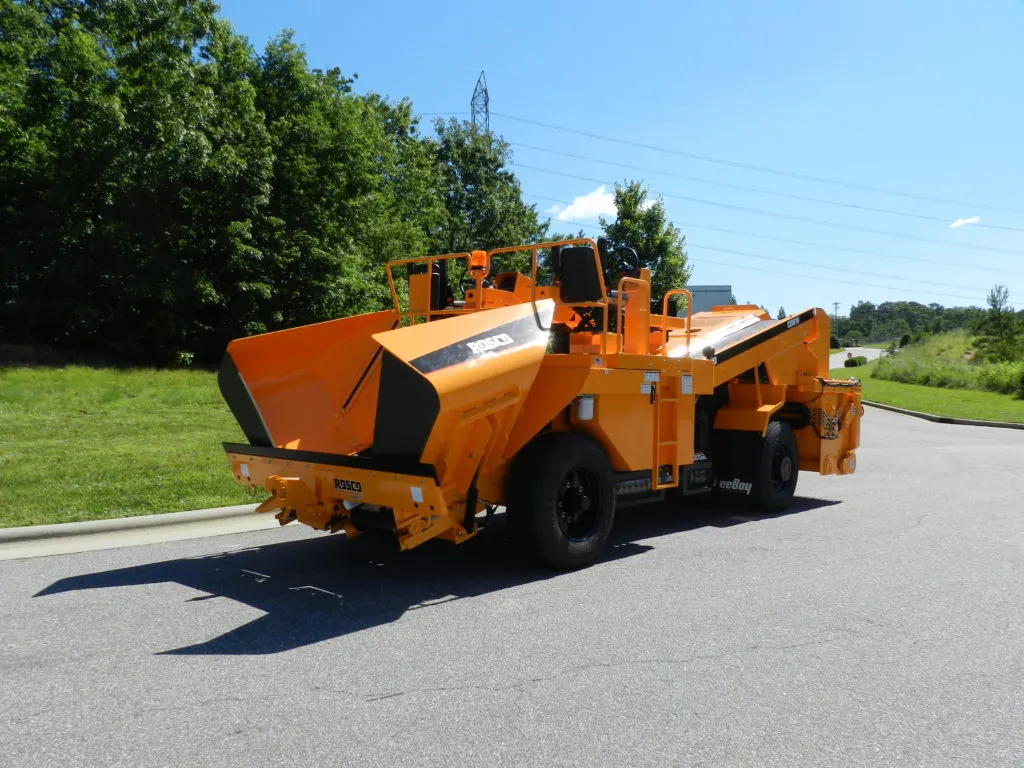

Sliding Operator Console
The full operator station slides completely left or right on a robust platform, combined with dual joystick controls. Operator gains direct 360-degree lines of sight to haul trucks, hopper gates, and ground crews.
Reversing Smart Cooling Fan
A proportional hydraulic fan drive operates only as needed to save horsepower and reduce cabin noise. Features an automatic reversing cycle to blow asphalt dust, stone chips, and debris from the radiator core.

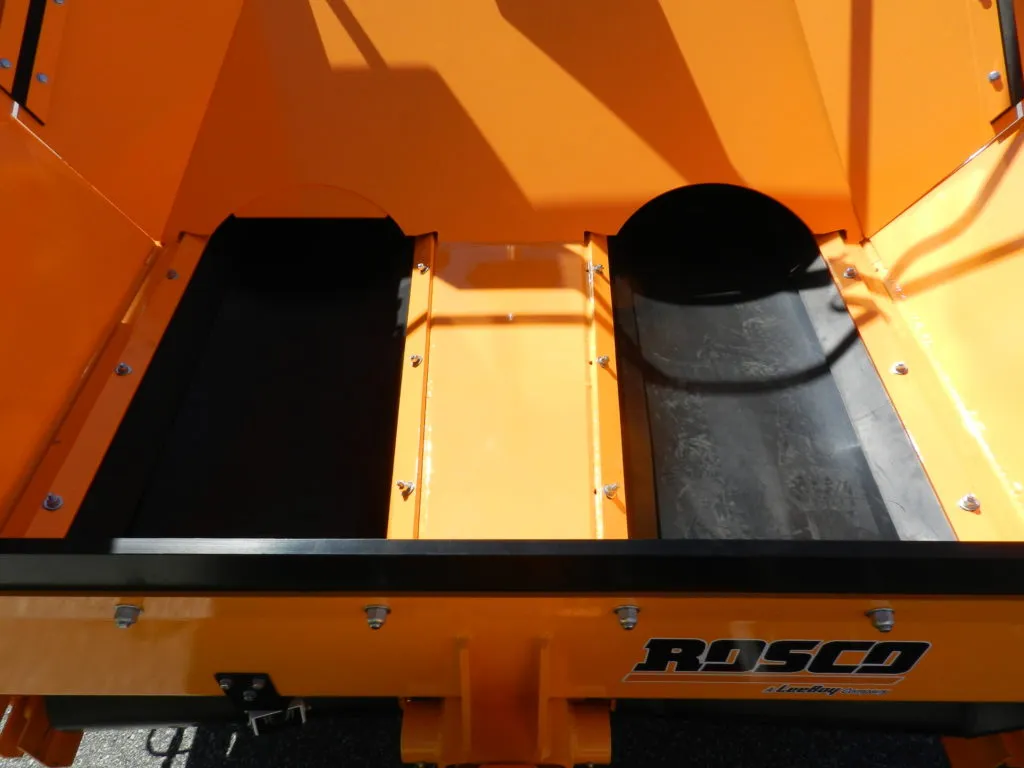

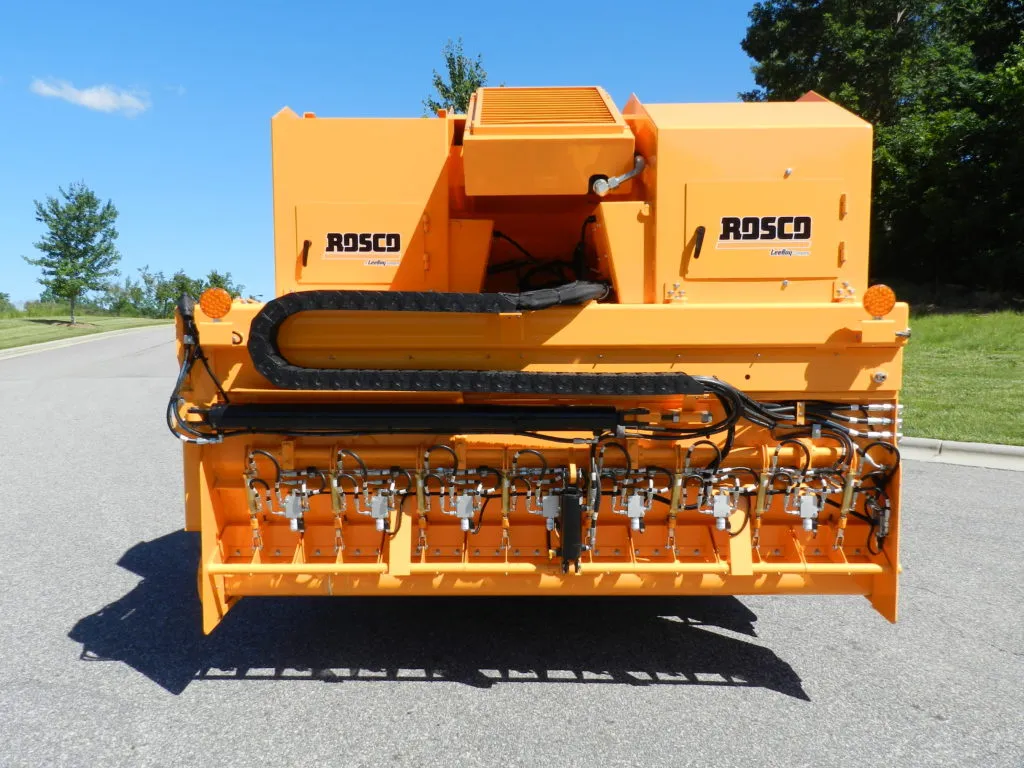

Dual 20" Hydrostatic Conveyors
Two independently operated conveyor belts run from 0 to 550 feet per minute. Feature floating mounts to reduce wear, and sonic sensors to monitor aggregate pile levels in the front hopper automatically.
See the Rosco CSV in Action
Watch the CSV816 distribute aggregate with variable hopper control on real road preservation jobs.
Rosco CSV Product Gallery
Explore details of the variable width receiving and spread hoppers, hydrostatic drive configurations, and state-of-the-art sliding operator cabin.
Brochure & Spec Sheet
Full CSV816 Technical Specifications
Download the official LeeBoy product materials or review detailed parameters below. For custom configurations, dual hydraulic axle options, and specific aggregate size compatibility, consult with a Closner specialist.
Operator Comfort and Safety
VT LeeBoy has prioritized human ergonomics inside the Rosco CSV operator platform. With low cabin noise, proportional engine speed cooling fan controls, active dust suppression options, and electronic drive steering, operators can maintain peak performance over long 12-hour shifts.
Technical Data Sheet
| Engine Model | Cummins QSB6.7 Tier 4 Final |
| Rated Horsepower | 275 HP (205 kW) @ 2,200 RPM |
| Operating Weight | 23,720 lbs (10,759 kg) unloaded |
| Spread Width Range | 1 ft to 16 ft (0.3m to 4.8m) variable |

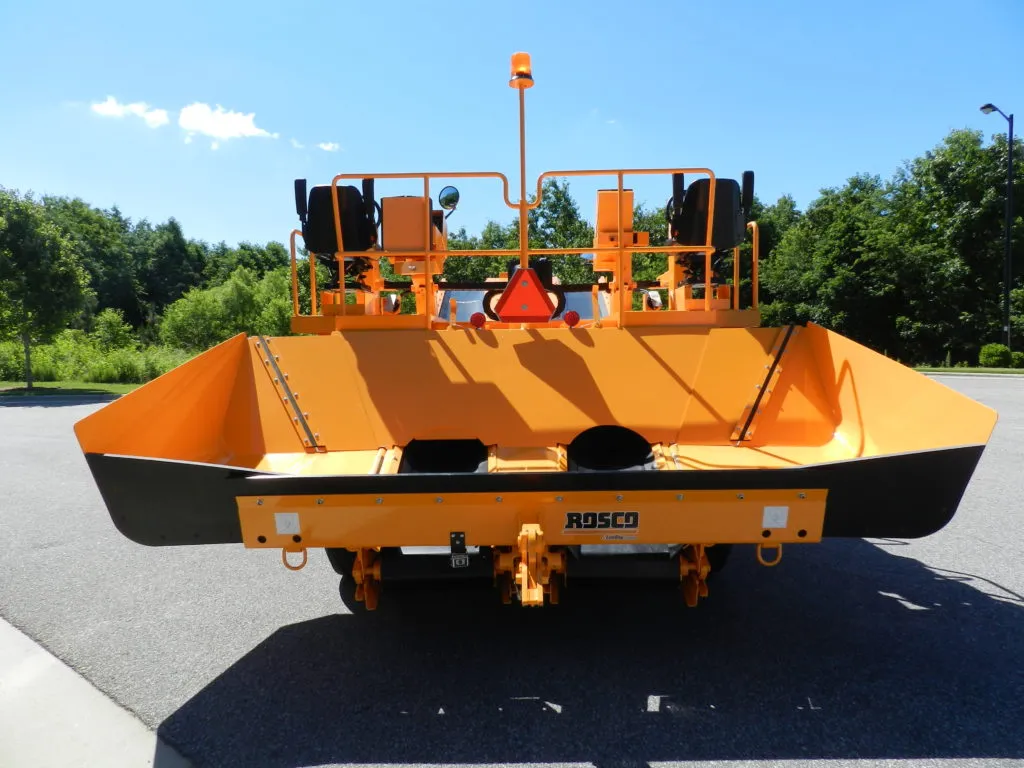

| Receiving Hopper Capacity | 3.5 cubic yards (with contoured folding wings) |
| Conveyor Belt Width | Dual 20-inch independently operated belts |
| Conveyor Belt Speed | 0 to 550 feet per minute (variable hydrostatic) |
| Fuel Tank Capacity | 65 Gallons |
| Hydraulic Reservoir | 56 Gallons |
| Standard Drive Axle | Hydrostatic Front-Wheel Drive (2WD) |
| Optional Drive Axle | Hydrostatic Four-Wheel Drive (4WD) |
| Legal Transport Width | 8 feet 6 inches (2.59 m) — Permit-Free |
| Legal Transport Height | 8 feet 8 inches (2.64 m) with beacon folded |
| Total Transport Length | 25 feet 10 inches (7.87 m) |
| Tire Sizing | 385/65R 22.5 high-traction radials |
Answer Engine Optimization (AEO)
Frequently Asked Questions
Detailed answers to key operational, hauling, and financial queries regarding the Rosco CSV chipspreader.
Why is the permit-free transport width of the Rosco CSV important?
Standard chip spreaders often exceed 10 feet in width, requiring contractors to secure wide-load escort permits, plan restricted routes, and incur high mobilization costs. The Rosco CSV folds down to a legal 8' 6" transport width and 8' 8" height, allowing it to be hauled permit-free on standard trailers. This saves hundreds of dollars in routing costs per move and allows immediate crew redeployment.
How does the Plus+1 CAN Bus system prevent aggregate waste?
Manual chip spreaders depend on operators opening gates to estimated sizes, leading to thick or thin stone layers that ruin the chip seal emulsion. The Rosco CSV's computerized CAN Bus system automatically monitors ground travel speed. It dynamically opens and closes the hopper gates to match acceleration and deceleration, ensuring the programmed application rate (e.g., lbs per sq yard) remains perfectly consistent.
Can the Rosco CSV handle rough or steep terrain?
Yes. Powered by a heavy-duty 275 HP Cummins QSB6.7 turbocharged diesel engine and supported by high-traction 385/65R 22.5 radial tires, the CSV delivers massive torque and pushing power. For severe Texas hill country paving or loose subgrades, contractors can specify the optional Hydrostatic Four-Wheel Drive (4WD) package to maintain stable tracking on steep inclines.
How does the proportional reversing fan reduce maintenance?
Chipping aggregate creates massive amounts of stone dust and airborne aggregate grit that rapidly clogs standard radiators, leading to engine overheating. The Rosco CSV incorporates a smart, proportional hydraulic fan drive that reverses air flow automatically at set intervals. This blows accumulated dust out of the cooling fins, maintaining low engine temperatures and avoiding costly mid-shift downtime.
Texas Road Crews Rely on Closner Support
Purchasing or renting a Rosco CSV Chip Spreader is backed by Closner Equipment's state-wide support infrastructure. With multiple locations across Texas, we provide deep parts inventories, fast field technician response, operator training packages, and flexible financing/rental plans to keep your jobs moving and profitable.
