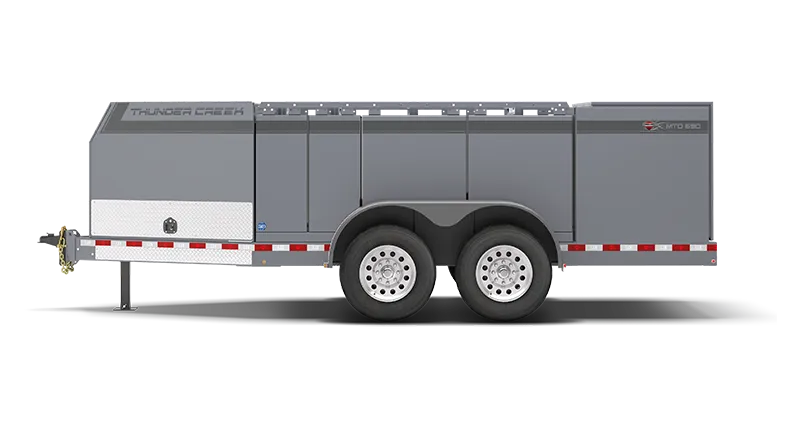

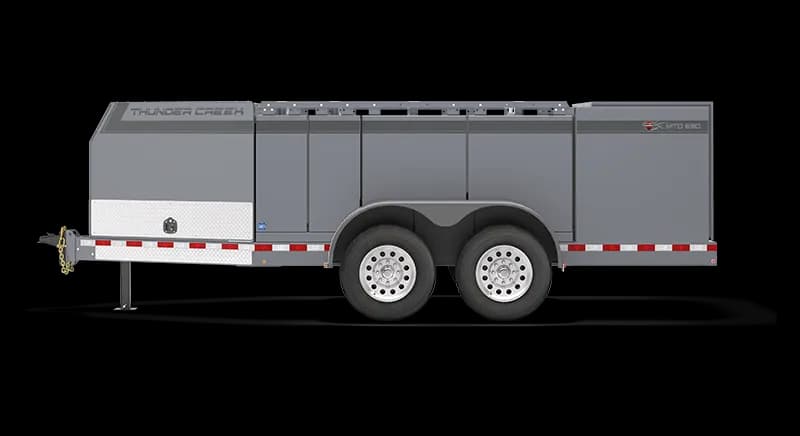

Thunder Creek Multi-Tank Oil Trailer
Multi-Tank Fuel & Oil Trailer (MTO)
The Thunder Creek Multi-Tank Oil Trailer delivers mobile fueling and multi-fluid service with no HAZMAT or CDL required.
Overview
Built for the way Texas crews work
The Thunder Creek Multi-Tank Oil Trailer delivers mobile fueling and multi-fluid service with no HAZMAT or CDL required.
The Thunder Creek Multi-Tank Fuel & Oil Trailer (MTO) (MTO) provides fleet managers, contractors, and agricultural operators with a rugged, highly mobile solution to keep operations running at peak efficiency. Designed and engineered for the demanding environments of Texas jobsites, this system delivers industrial-grade fluid handling with absolute safety and compliance.
Built on a robust frame and featuring heavy-duty steel tanks, this unit stands up to the punishment of off-road movement, tight construction sites, and remote agricultural acreage. High-flow pumps, organized reel configurations, and weather-sealed cabinets ensure that service work is completed rapidly, reducing machinery downtime and keeping crews productive.
MTO460
MTO690
MTO920
Service on Your Schedule
Get Diesel and DEF on Demand
Key Specs
- Manufacturer
- Thunder Creek
- Capacity
- 460 gallons
- Tank
- 25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel
- Axles
- dual 5,000 lbs. torsion
- Tires
- 235/80R16
- L / W / H
- 19'4" / 7' / 6'
- Empty Weight
- 6,000 lbs.
- GVWR
- 10,000 lbs.
- Origin
- Pella, Iowa, USA
Maintenance Videos
Factory Starfire Training
These Stewart-Amos training videos cover the core broom and sensor adjustments that keep a Starfire sweeper performing correctly in the field.
Multi-Tank Fuel & Oil Trailer (MTO) - In Action
Watch the official video demonstration of the Thunder Creek Multi-Tank Fuel & Oil Trailer (MTO) demonstrating its daily fluid service and jobsite functionality.
Technical Specifications
Multi-Tank Fuel & Oil Trailer (MTO) Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
MTO460 Specs
- Capacity
- 460 gallons
- Tank
- 25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel
- Frame
- 7.5" interlocking frame
- Axles
- dual 5,000 lbs. torsion
- Hubs
- 8 bolt
- Brakes
- electric, all axles
- Tires
- 235/80R16
- L / W / H
- 19'4" / 7' / 6'
- Empty Weight
- 6,000 lbs.
- GVWR
- 10,000 lbs.
- UB Size
- 41.75"d x 58.75"w x 49.75"h
MTO690 Specs
- Capacity
- 690 gallons
- Tank
- 25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel
- Frame
- 7.5" interlocking frame
- Axles
- dual 6,000 lbs. torsion
- Hubs
- 8 bolt
- Brakes
- electric, all axles
- Tires
- 235/80R16
- L / W / H
- 19'4" / 7' / 6'
- Empty Weight
- 6,500 lbs.
- GVWR
- 12,000 lbs.
- UB Size
- 41.75"d x 58.75"w x 49.75"h
MTO920 Specs
- Capacity
- 920 gallons
- Tank
- 25- and 55-gallon tanks: 10 gauge steel 115-gallon tanks: 7 gauge steel
- Frame
- 7.5" interlocking frame
- Axles
- dual 7,000 lbs. torsion
- Hubs
- 8 bolt
- Brakes
- electric, all axles
- Tires
- 235/80R16
- L / W / H
- 21'4" / 7' / 6'
- Empty Weight
- 7,000 lbs.
- GVWR
- 14,000 lbs.
- UB Size
- 41.75"d x 58.75"w x 49.75"h
Features
Multi-Tank Fuel & Oil Trailer (MTO) advantages
MTO460
High-quality engineering features included on the Multi-Tank Fuel & Oil Trailer (MTO) for reliable operations.
MTO690
High-quality engineering features included on the Multi-Tank Fuel & Oil Trailer (MTO) for reliable operations.
MTO920
High-quality engineering features included on the Multi-Tank Fuel & Oil Trailer (MTO) for reliable operations.
Service on Your Schedule
High-quality engineering features included on the Multi-Tank Fuel & Oil Trailer (MTO) for reliable operations.
FAQ
Common Multi-Tank Fuel & Oil Trailer (MTO) Questions
What are the operator licensing requirements for the Thunder Creek Multi-Tank Fuel & Oil Trailer (MTO)?
Depending on the configuration and vehicle towing it, this unit is designed to bypass CDL requirements. If the gross vehicle weight rating (GVWR) of the trailer and truck combined remains under 26,000 lbs, and individual non-exempt fluid tanks are kept below HAZMAT limits, any team member with a standard driver's license can safely and legally operate it.
How does Thunder Creek protect Diesel Exhaust Fluid (DEF) from contamination?
Thunder Creek's patented DEF delivery system is a closed-loop system that prevents dust, dirt, and ambient moisture from entering the DEF tank. The fluid remains sealed from the bulk fill at the shop all the way to the machine's tank on site, satisfying ISO 22241 standards to preserve fluid purity and protect selective catalytic reduction (SCR) engines.
How does Closner Equipment support Thunder Creek customers in Texas?
Closner Equipment provides full dealership support for all Thunder Creek lines across Texas. We offer local parts delivery, factory-trained service technicians, routine preventative maintenance, and flexible financing or rental plans to keep your jobsites moving.
