Putzmeister Shotcrete Machines
Wetkret 5
Safe and precise concrete spraying in medium and large tunnel sections
Overview
Built for the way Texas crews work
The robust Wetkret 5 concrete spraying equipment has all the features required for the highest quality shotcreting for demanding underground projects with medium to large cross-sections. Always putting safety first, Wetkret 5 has been designed for agile, long-lasting and autonomous work.
The Putzmeister concrete pump guarantees low pulsation, the additive synchronization with the concrete flow is very precise, the remote control spraying arm can be moved easily to adapt to the cross-sections and control with intuitive software allows adjustments to be made to the mix and the troubleshooting of errors and alarms. In addition, with the built-in cleaning and compressor system, including the optional Hydroscaling system, no external components are required for applying the concrete.
FFar reaching spraying arm providing 17 m spraying reach
Diesel engine with Stage V emissions regulation, suitable for the EU
Built-in cleaning system with diesel and electric operation
Remote control, both with cable and wireless, for all machine functions and easy and precise handling of spraying arm movements
The large diameter and long stoke of the Putzmeister concrete pump minimize pulsations and lengthen the life wear of its components
Hopper with agitator, electric vibrator and RFID security system on the grille. Pumping of steel or polymer fibres. Easy and safety to open for maintenance and cleaning.
Key Specs
- Length x Width x Height
- 28' 7" x 7'10" x 9'10" ' "
- Weight
- 42990 lbs
- Ground Clearance
- 1' 3 "
- Wheelbase
- 14' 9 "
- Engine Power
- 160/2,200 rpm hp
- Max. Speed
- 12.4 mph
- Diesel Tank
- 53 gal
- Additive Pump Adjustment Range
- 1.76 - 21.19 ft3/h
Technical Specifications
Wetkret 5 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Length x Width x Height
- 28' 7" x 7'10" x 9'10" ' "
- Weight
- 42990 lbs
- Ground Clearance
- 1' 3 "
- Wheelbase
- 14' 9 "
- Engine Power
- 160/2,200 rpm hp
- Max. Speed
- 12.4 mph
- Diesel Tank
- 53 gal
- Additive Pump Adjustment Range
- 1.76 - 21.19 ft3/h
- Additive Pump Pressure
- 174 psi
- Additive Tank
- 264 gal
Pump Configuration
- Material Cylinder Diameter-Stroke Length
- 7 "
- Output
- 5.2-43 yd3/hr
- Delivery Pressure
- 1087 psi
- Max. Aggregate Size
- 0.6 "
- Filling Height
- 4'9 "
- Nozzle
- 1.57
Features
Wetkret 5 advantages
FFar reaching spraying arm providing 17 m spraying reach
FFar reaching spraying arm providing 17 m spraying reach. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Diesel engine with Stage V emissions regulation, suitable for the EU
Diesel engine with Stage V emissions regulation, suitable for the EU. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Built-in cleaning system with diesel and electric operation
Built-in cleaning system with diesel and electric operation. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Remote control, both with cable and wireless, for all machine functio...
Remote control, both with cable and wireless, for all machine functions and easy and precise handling of spraying arm movements. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Gallery
Wetkret 5 Photos

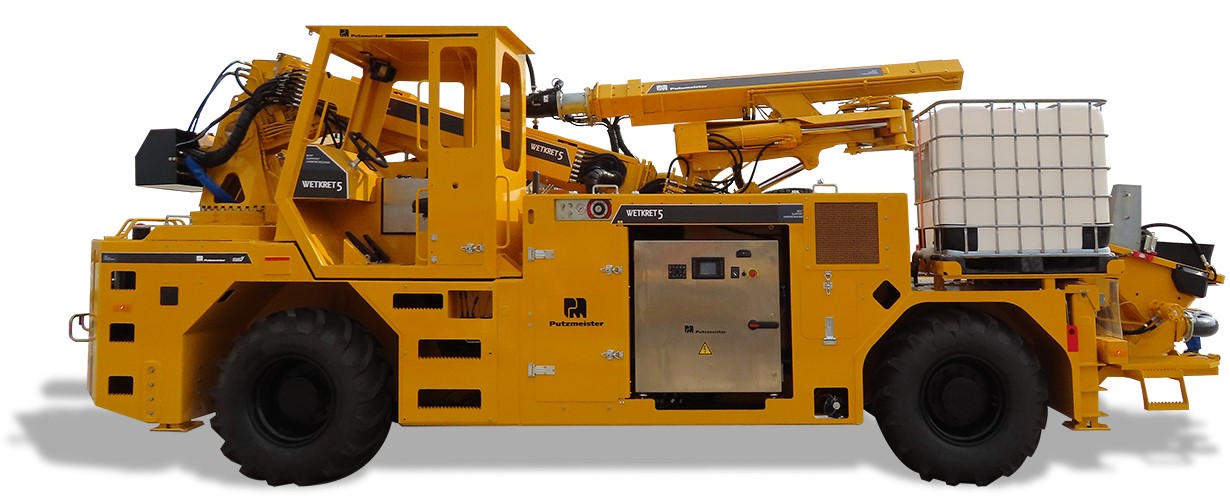

Factory model photos and system views for a closer look at the machine.
FAQ
Common Wetkret 5 Questions
Is the Wetkret 5 available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a Wetkret 5?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
