Putzmeister Truck-Mounted Boom Pumps
BSF 33-4

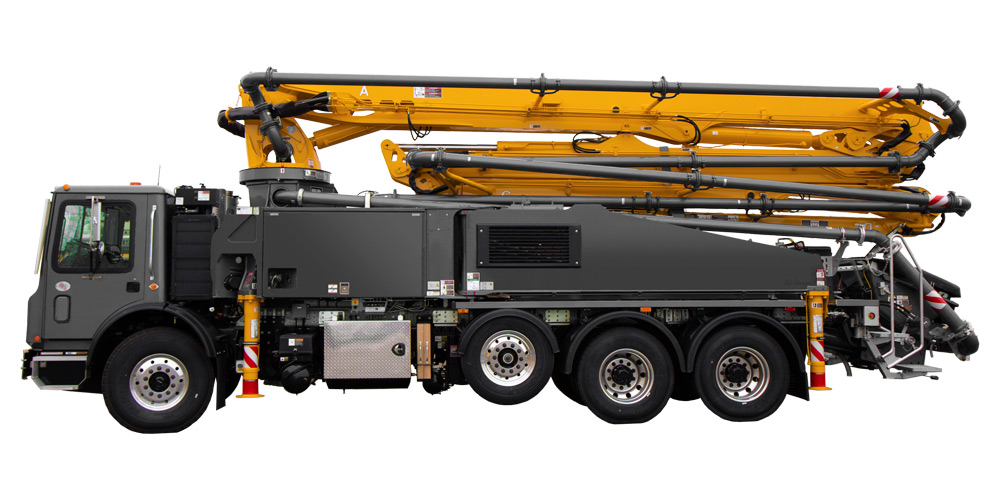

BSF 33-4 Truck Mounted Concrete Boom Pump
Overview
Built for the way Texas crews work
The BSF 33-4 Concrete Boom Pump enhances the Putzmeister 30-Meter class portfolio. The time-proven design of the BSF 33-4 features a reduced outrigger footprint and the latest Ergonic 3.0 technology.
The 33-meter (105'4") shares a pedestal with the 36-4 that is strong and stable. The pedestal is based on the one used on the 38-5- and 39-meter models that have high product maturity. The 33-meter gains automatic lubrication of the four-point bearing and A-hinge, so there is no need to climb up onto the machine to reach lubrication points. Because the 33-, 36-, and 39-meter pumps are "cousins", commonality of spare parts provides a significant service advantage to multiple pump fleets. However, the biggest advantage of the new 33-meter boom pump is the low unfolding height of 24.11 feet.
Intelligent Low Stroke (iLS) pump cell
Low unfolding height
Same pedestal than the 36Z
LED Lights
Complete Water Tank Solution
Key Specs
- Number of sections
- 4
- Vertical Reach
- 105'4"
- Horizontal Reach
- 100'1"
- Unfolding Height
- 24'11"
- Rotation
- 365 deg
- End Hose Length max.
- 10'
- End hose - Diameter
- 5 "
- Outrigger spread L-R - front hydraulically extended out & down
- 18'1"
Technical Specifications
BSF 33-4 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Number of sections
- 4
- Vertical Reach
- 105'4"
- Horizontal Reach
- 100'1"
- Unfolding Height
- 24'11"
- Rotation
- 365 deg
- End Hose Length max.
- 10'
- End hose - Diameter
- 5 "
- Outrigger spread L-R - front hydraulically extended out & down
- 18'1"
- Outrigger spread L-R - rear hydraulically swing out & extend down
- 23'1"
- Length x Width x Height
- 35'7" x 8'2" x12'10"
- Front Axle Weight
- 18641 lbs
- Rear Axle Weight
- 32833 lbs
- Total Weight (approx.)
- 51474 lbs
- Wheelbase
- 223 "
Pump Configuration
- Material Cylinder Diameter-Stroke Length
- 10/83 "
- Output (piston side)
- 222 yd3/hr
- Delivery Pressure (piston side)
- 1233 psi
- Strokes (piston side)
- 28
- Material Cylinder Diameter-Stroke Length
- 9
- Output (rod side)
- 209 yd3/hr
- Output (piston side)
- 141 yd3/hr
- Delivery Pressure (rod side)
- 1233 psi
- Strokes (rod side)
- 31
Features
BSF 33-4 advantages
Intelligent Low Stroke (iLS) pump cell
Intelligent Low Stroke (iLS) pump cell. Road-ready boom pumps for foundation pours, decks, commercial slabs, tilt-wall work, and tight urban placements where reach, support footprint, and setup speed matter.
Low unfolding height
Low unfolding height. Road-ready boom pumps for foundation pours, decks, commercial slabs, tilt-wall work, and tight urban placements where reach, support footprint, and setup speed matter.
Same pedestal than the 36Z
Same pedestal than the 36Z. Road-ready boom pumps for foundation pours, decks, commercial slabs, tilt-wall work, and tight urban placements where reach, support footprint, and setup speed matter.
LED Lights
LED Lights. Road-ready boom pumps for foundation pours, decks, commercial slabs, tilt-wall work, and tight urban placements where reach, support footprint, and setup speed matter.
Gallery
BSF 33-4 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common BSF 33-4 Questions
Is the BSF 33-4 available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a BSF 33-4?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
