Putzmeister Trailer Pumps

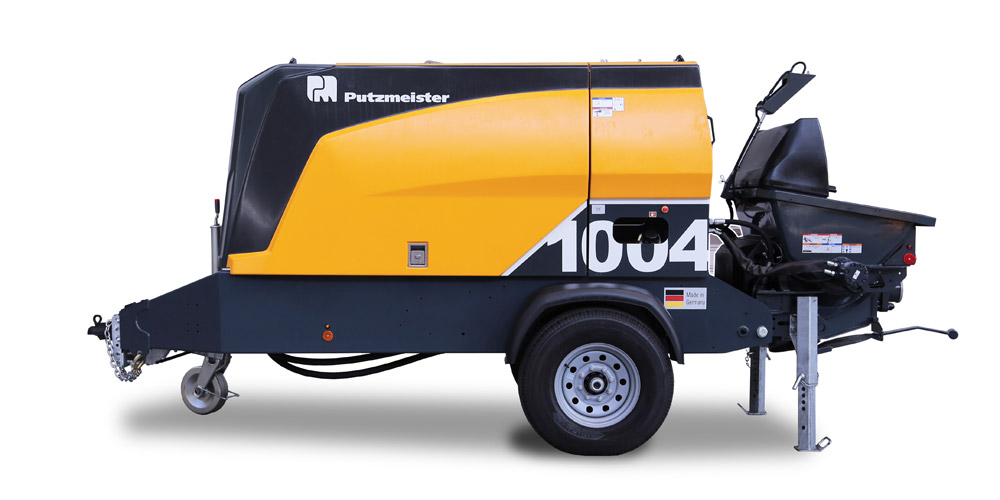

TK 1004 D4F
Big Boom Expertise In A Smaller Machine
Overview
Built for the way Texas crews work
The Putzmeister Thomkatt TK 1004 D4F is the compact concrete pump in the 1000 series, equipped with a Deutz diesel engine and the latest Ergonic 3 PS control. With the TK 1004 D4F, it is possible to deliver normal concrete with a grain size of up to 1.25" (32 mm).
The TK 1004 D4F Trailer-Mounted Concrete/Shotcrete Pump is ideal for shotcrete work, this pump also works well in a wide variety of concrete placing jobs and for pumping structural concrete.
Fuel-economic automatic speed drawdown on pump stop
High-quality wear resistant components for service-life
Clear operating data and engine status indication via the display
CE mark
Key Specs
- Output
- 43 yd3/hr
- Delivery Pressure
- 1160 psi
- Max. Aggregate Size
- 1.25 "
- Strokes
- 32
- Engine
- Deutz TCD2.2
- Engine Power
- 74 hp
- Material Cylinder Diameter-Stroke Length
- 7"/39"
- Hopper capacity
- approx. 10.6 ft3
Technical Specifications
TK 1004 D4F Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Output
- 43 yd3/hr
- Delivery Pressure
- 1160 psi
- Max. Aggregate Size
- 1.25 "
- Strokes
- 32
- Engine
- Deutz TCD2.2
- Engine Power
- 74 hp
- Material Cylinder Diameter-Stroke Length
- 7"/39"
- Hopper capacity
- approx. 10.6 ft3
- Outlet Diameter
- 5 "
- Length x Width x Height
- 189"x68"x86.6"
- Weight
- 6393 lbs
- Trailer Type
- Single/Tandem
Features
TK 1004 D4F advantages
Fuel-economic automatic speed drawdown on pump stop
Fuel-economic automatic speed drawdown on pump stop. Towable concrete pumps for shotcrete, repair, structural concrete, and line-pumping work where contractors need output without a full boom-pump package.
High-quality wear resistant components for service-life
High-quality wear resistant components for service-life. Towable concrete pumps for shotcrete, repair, structural concrete, and line-pumping work where contractors need output without a full boom-pump package.
Clear operating data and engine status indication via the display
Clear operating data and engine status indication via the display. Towable concrete pumps for shotcrete, repair, structural concrete, and line-pumping work where contractors need output without a full boom-pump package.
CE mark
CE mark. Towable concrete pumps for shotcrete, repair, structural concrete, and line-pumping work where contractors need output without a full boom-pump package.
Gallery
TK 1004 D4F Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common TK 1004 D4F Questions
Is the TK 1004 D4F available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a TK 1004 D4F?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
