Putzmeister Shotcrete Machines
SPM 500 Wetkret
Proven Efficiency and Reliability in a large Number of Tunneling Projects all over the World
Overview
Built for the way Texas crews work
With a vertical spraying reach of 55' 9" (17 m) and an output of 39 yd3/h (30 m3/h), the SPM 500 WETKRET is ideal for medium and large tunnels, caverns and slopes. The automatic system for high precision synchronization between the concrete pump and the additive dosing unit maintains the additive dosage proportional to the output, assuring spraying accuracy and quality. All functions are available via remote control. The sturdy chassis with 4-wheel-drive and crab-mode provides maneuverability in difficult driving situations.
The standard version of the SPM 500 WETKRET series is operated electrically and includes an electric air compressor built into the chassis. The equipment is also optionally available with a diesel drive system, allowing operation in places without electrical power supply
Far reaching: spraying arm providing 55' 9" (17 m) spraying reach
Automatic additive dosage: automatic dosing device proportional to the concrete flow, ensuring spraying accuracy and quality
All functions available via remote control: automatic spraying sequence start and stop functions, full regulation of the concrete output
Easy handling: thanks to the automatic spray lance movements and nozzle oscillation
Advanced maneuverability: compact dimensions, four driving and steering wheels
Spraying arm can be unfolded in minimum space thanks to movable and telescopic construction
Key Specs
- Length x Width x Height
- "
- Weight
- 35274 lbs
- Ground Clearance
- 1' "
- Wheelbase
- 14'7 "
- Inner Turning Radius
- 8'7 "
- Outer Turning Radius
- 20'11 "
- Drive System Electric
- 74 hp
- Engine Power
- 100/2200 rpm hp
Technical Specifications
SPM 500 Wetkret Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Length x Width x Height
- "
- Weight
- 35274 lbs
- Ground Clearance
- 1' "
- Wheelbase
- 14'7 "
- Inner Turning Radius
- 8'7 "
- Outer Turning Radius
- 20'11 "
- Drive System Electric
- 74 hp
- Engine Power
- 100/2200 rpm hp
- Max. Speed
- 12.4 mph
- Diesel Tank
- 39.6 gal
- Additive Pump Adjustment Range
- 1.059 - 24.720 ft3/h
- Additive Pump Pressure
- 152 psi
- Additive Tank
- 264 gal
Pump Configuration
- Material Cylinder Diameter-Stroke Length
- 7 "
- Output
- 5.2-39.2 yd3/hr
- Delivery Pressure
- 1087 psi
- Max. Aggregate Size
- 0.6 "
- Filling Height
- 4'9 "
- Nozzle
- 1.57
Features
SPM 500 Wetkret advantages
Far reaching: spraying arm providing 55' 9" (17 m) spraying reach
Far reaching: spraying arm providing 55' 9" (17 m) spraying reach. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Automatic additive dosage: automatic dosing device proportional to th...
Automatic additive dosage: automatic dosing device proportional to the concrete flow, ensuring spraying accuracy and quality. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
All functions available via remote control: automatic spraying sequen...
All functions available via remote control: automatic spraying sequence start and stop functions, full regulation of the concrete output. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Easy handling: thanks to the automatic spray lance movements and nozz...
Easy handling: thanks to the automatic spray lance movements and nozzle oscillation. Wetkret, SPM, Geokret, and gunning systems for sprayed concrete in tunnel, mining, slope stabilization, refractory, and structural repair work.
Gallery

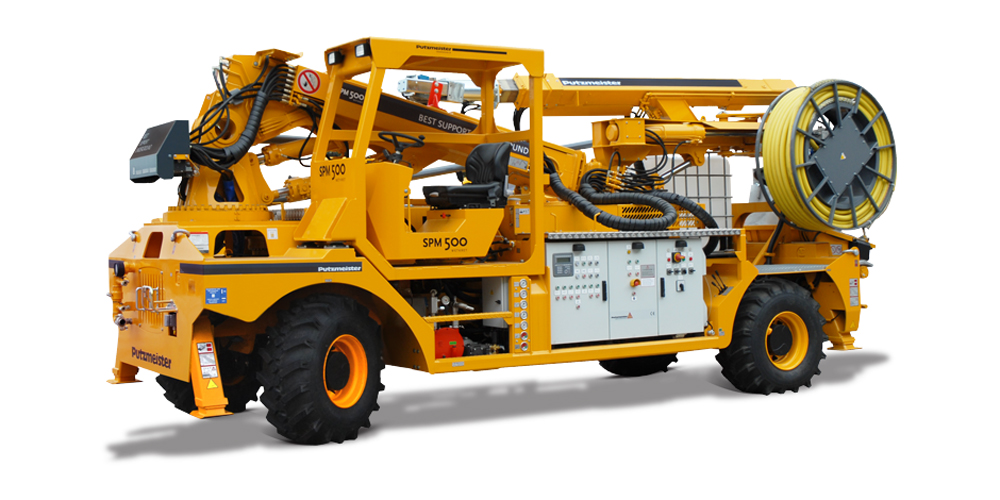

SPM 500 Wetkret Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common SPM 500 Wetkret Questions
Is the SPM 500 Wetkret available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a SPM 500 Wetkret?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
