Putzmeister Placing Systems
MX 43-47Z
Largest Placing Boom in the Industry that does not Require a Counterweight
Overview
Built for the way Texas crews work
The MX 43/47Z is the largest placing boom in the industry that does not require a counterweight. This saves time and labor. Now, you can carry out more pours with fewer jumps. Using the same maneuverable boom as Putzmeister's 47Z-Meter truck-mounted concrete boom pump, it boasts an impressive 138 feet 1 inch (42.09 meter) horizontal reach.
A spacious platform is designed keeping safety in mind. A convenient chest height access to the four-pin connection provides a bird's eye view to the operator. It is ideal for demanding jobs such as high-rise buildings, bridges, dams, and other specialty applications.
Low placing boom weights allow lighter crane picks
Modular high strength square tower to block out and patch floor openings
Towers can free stand up to 80-feet (24.38 meter) heights without a counterweight
Up to 46-feet (14 meter) overhang before it's necessary to raise the boom
Project assistance from start to finish
Key Specs
- Horizontal Reach
- 138' 1''
- Reach Depth
- 138' 1''
- Rotation
- deg
- Delivery Line
- 5 "
- Boom Weight
- 28660 lbs
- Pedestal Weight
- 8000 lbs
Technical Specifications
MX 43-47Z Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Horizontal Reach
- 138' 1''
- Reach Depth
- 138' 1''
- Rotation
- deg
- Delivery Line
- 5 "
- Boom Weight
- 28660 lbs
- Pedestal Weight
- 8000 lbs
Pump Configuration
- Length
- 29' 6''
- Weight
- 9900 lbs
- Length
- 19' 7''
- Weight
- 6142 lbs
- Length
- 9' 8''
- Weight
- 3596 lbs
- Length
- 34' 5''
- Weight
- 2846 lbs
- Length
- ' "
- Width
- ' "
- Weight
- lbs
Features
MX 43-47Z advantages
Low placing boom weights allow lighter crane picks
Low placing boom weights allow lighter crane picks. Stationary booms, rotary distributors, column systems, and tower packages that put concrete exactly where the pour sequence needs it.
Modular high strength square tower to block out and patch floor openings
Modular high strength square tower to block out and patch floor openings. Stationary booms, rotary distributors, column systems, and tower packages that put concrete exactly where the pour sequence needs it.
Towers can free stand up to 80-feet (24.38 meter) heights without a c...
Towers can free stand up to 80-feet (24.38 meter) heights without a counterweight. Stationary booms, rotary distributors, column systems, and tower packages that put concrete exactly where the pour sequence needs it.
Up to 46-feet (14 meter) overhang before it's necessary to raise the ...
Up to 46-feet (14 meter) overhang before it's necessary to raise the boom. Stationary booms, rotary distributors, column systems, and tower packages that put concrete exactly where the pour sequence needs it.

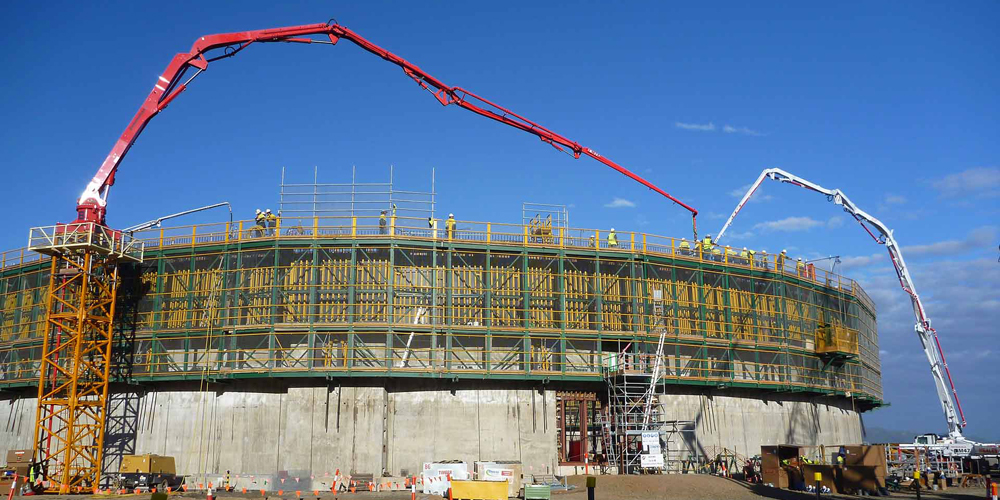

Gallery
MX 43-47Z Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common MX 43-47Z Questions
Is the MX 43-47Z available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a MX 43-47Z?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
