Putzmeister Underground & Mining

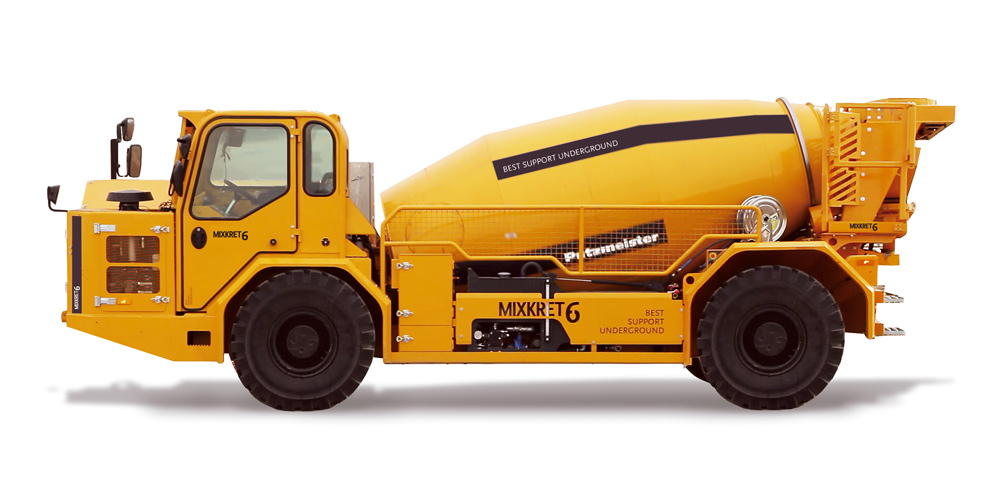

Mixkret 6
Compact, Strong and Ideal to Complete the Concrete Spraying Process in Mining Applications
Overview
Built for the way Texas crews work
The Putzmeister Mixkret 6 with a concrete capacity of 211 ft3 is the mixer of the Mixkret family with the largest capacity. The machine is equipped with a powerful 168 kW diesel engine and Integrated Continuously Variable Drive (ICVD) to fully use the motor power at all times, without interruptions of the tractive force, provides great climbing and movement power a max. speed of 15 mph.
211 ft3 capacity for mixing and transporting concrete with electronic speed control system
Safety as a priority: triple braking system, FOPS/ROPS certified cabin, speed control system
Critical components are easily accessible from the ground level in order to facilitate boarding by maintenance personnel
The equipment's rear functions can be controlled remotely through the cable control, allowing this to be fitted on both sides of the machine
Key Specs
- Length x Width x Height
- 25'2
- Weight
- 26,455 lbs
- Ground Clearance
- 1'6 "
- Max. Longitudinal Gradient while Driving
- 30 %
- Max. Transversal Gradient while Driving
- 10 %
- Inner Turning Radius
- 7'10 "
- Outer Turning Radius
- 19'9 "
- Engine
- 6 cylinder Diesel
Technical Specifications
Mixkret 6 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
General Information
- Length x Width x Height
- 25'2
- Weight
- 26,455 lbs
- Ground Clearance
- 1'6 "
- Max. Longitudinal Gradient while Driving
- 30 %
- Max. Transversal Gradient while Driving
- 10 %
- Inner Turning Radius
- 7'10 "
- Outer Turning Radius
- 19'9 "
- Engine
- 6 cylinder Diesel
- Engine Power
- 225 hp
- Max. Speed
- mph
- Diesel Tank
- 42 gal
- Max. Concrete Capacity
- 7.84 yd3
- Adjustable turning speed in both directions
- 0-21 rpm
- Concrete Discharge Height
- 459 - 605 "
Features
Mixkret 6 advantages
211 ft3 capacity for mixing and transporting concrete with electronic...
211 ft3 capacity for mixing and transporting concrete with electronic speed control system. Concrete transport, mixer, and industrial pump systems for underground mining, tunnel logistics, and high-viscosity material handling.
Safety as a priority: triple braking system, FOPS/ROPS certified cabi...
Safety as a priority: triple braking system, FOPS/ROPS certified cabin, speed control system. Concrete transport, mixer, and industrial pump systems for underground mining, tunnel logistics, and high-viscosity material handling.
Critical components are easily accessible from the ground level in or...
Critical components are easily accessible from the ground level in order to facilitate boarding by maintenance personnel. Concrete transport, mixer, and industrial pump systems for underground mining, tunnel logistics, and high-viscosity material handling.
The equipment's rear functions can be controlled remotely through the...
The equipment's rear functions can be controlled remotely through the cable control, allowing this to be fitted on both sides of the machine. Concrete transport, mixer, and industrial pump systems for underground mining, tunnel logistics, and high-viscosity material handling.
Gallery
Mixkret 6 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common Mixkret 6 Questions
Is the Mixkret 6 available through Closner?
Closner can help source new Putzmeister equipment, verify current factory availability, and support parts, service, and application planning for Texas jobsites.
What should I confirm before quoting a Mixkret 6?
Confirm material mix, target output, placement distance, vertical reach, jobsite access, power or chassis requirements, support footprint, and the service plan for the machine configuration.
