LeeBoy Compaction
SR48
47.2 inch single drum soil roller for subgrade, granular base, shoulder work, road maintenance, and site-prep compaction.
Overview
Built for the way Texas crews work
The LeeBoy SR48 is the soil and base compaction model in this LeeBoy compaction group, built for subgrade, granular base, shoulder work, road maintenance, and site-prep support.
LeeBoy lists the SR48 with a 47 HP Yanmar diesel, 47.2 inch drum width, 7,250 lb total weight, up to 55 percent grade capability, and an optional padfoot shell kit for applications that need more aggressive kneading action.

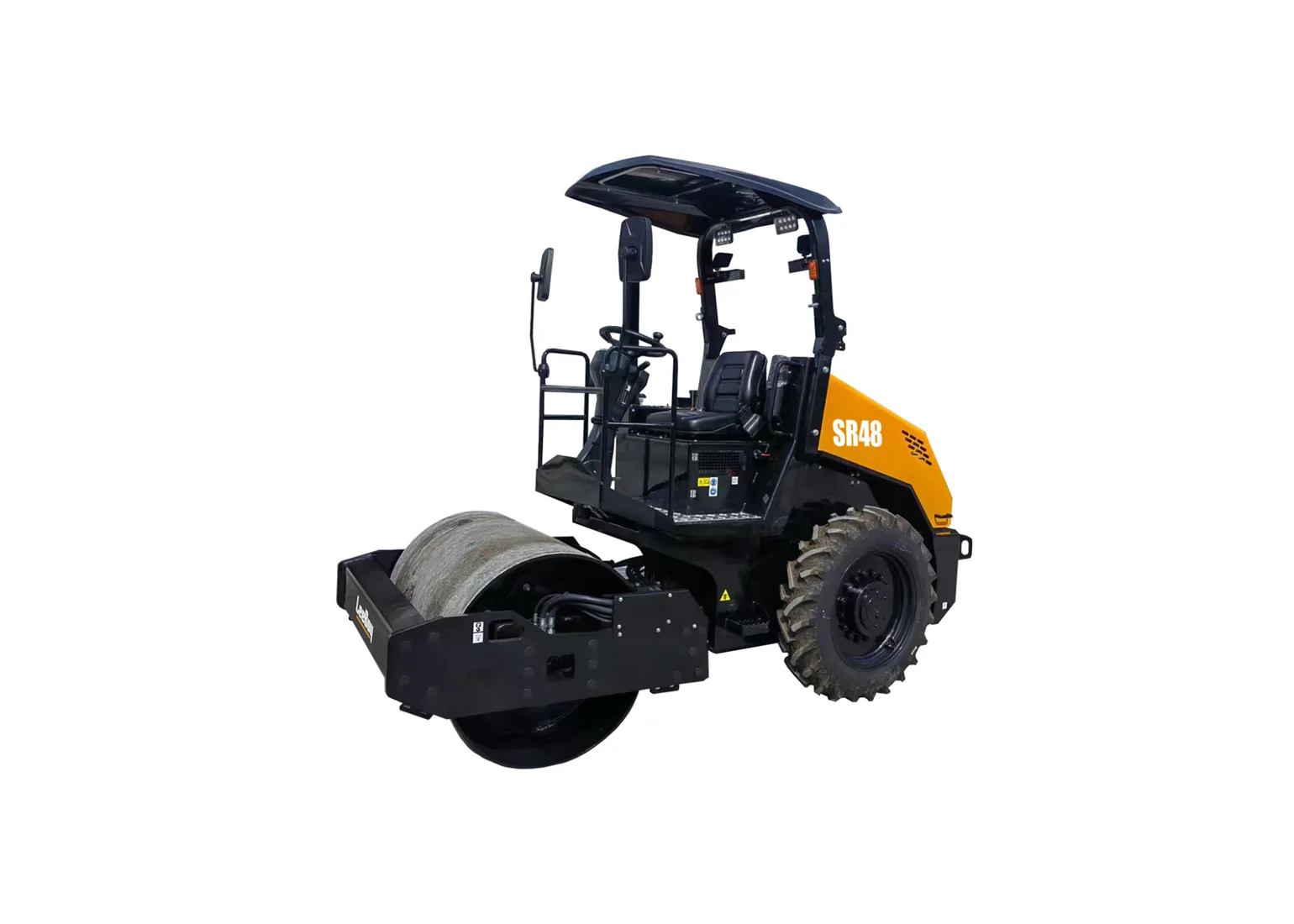

47.2 inch single drum soil roller.
47 HP Yanmar liquid-cooled diesel engine.
7,250 lb total machine weight.
Up to 55 percent grade capability listed by LeeBoy.
Optional padfoot shell kit available.
Compact support roller for base and road-maintenance work.
Key Specs
- Drum width
- 47.2 in
- Operating weight
- 7,250 lb
- Engine
- Yanmar diesel
- Horsepower
- 47 HP
- Grade capability
- Up to 55%
- Option
- Padfoot shell kit
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Road base support
The SR48 is a strong support machine for base prep before asphalt paving or repair work.
Compact soil roller
At 7,250 lb, the SR48 gives crews a compact soil roller for maintenance and prep work.

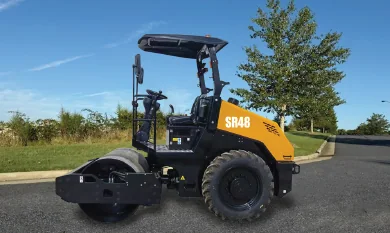

Shoulders and slopes
LeeBoy lists up to 55 percent grade capability, which matters on shoulders, ramps, and site-prep terrain.
Technical Specifications
SR48 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions
- Length
- 10 ft 11 in
- Width
- 4 ft 5 in
- Height with folded ROPS
- 6 ft 2 in
- Height with ROPS
- 9 ft
- Total weight
- 7,250 lb
Engine and drum
- Engine
- Yanmar diesel
- Horsepower
- 47 HP @ 2,400 RPM
- Cooling
- Liquid cooled
- Fuel tank
- 13.2 gal
- Drum width
- 47.2 in
- Drum diameter
- 47.2 in
- Drum thickness
- 0.6 in
Application notes
- Grade capability
- Up to 55%
- Available option
- Padfoot shell kit
- Primary use
- Soil, base, shoulder, and site compaction
Features
SR48 advantages
Soil and base focus
The SR48 is the compact LeeBoy roller for subgrade, granular base, shoulders, and maintenance work.
47 HP Yanmar diesel
A 47 HP Yanmar engine gives the SR48 a stronger diesel package for base and road-maintenance compaction.
Padfoot-ready option
The optional padfoot shell kit lets crews adapt the SR48 for material that needs more aggressive compaction action.
Gallery
SR48 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common SR48 Questions
Is the LeeBoy SR48 an asphalt roller?
No. The SR48 is LeeBoy's compact soil roller for base, subgrade, shoulder, road-maintenance, and site-prep compaction.
What engine powers the SR48?
LeeBoy lists the SR48 with a Yanmar diesel engine rated at 47 HP at 2,400 RPM.
Can the SR48 use a padfoot shell?
Yes. LeeBoy lists an optional padfoot shell kit for the SR48.
