LeeBoy Compaction

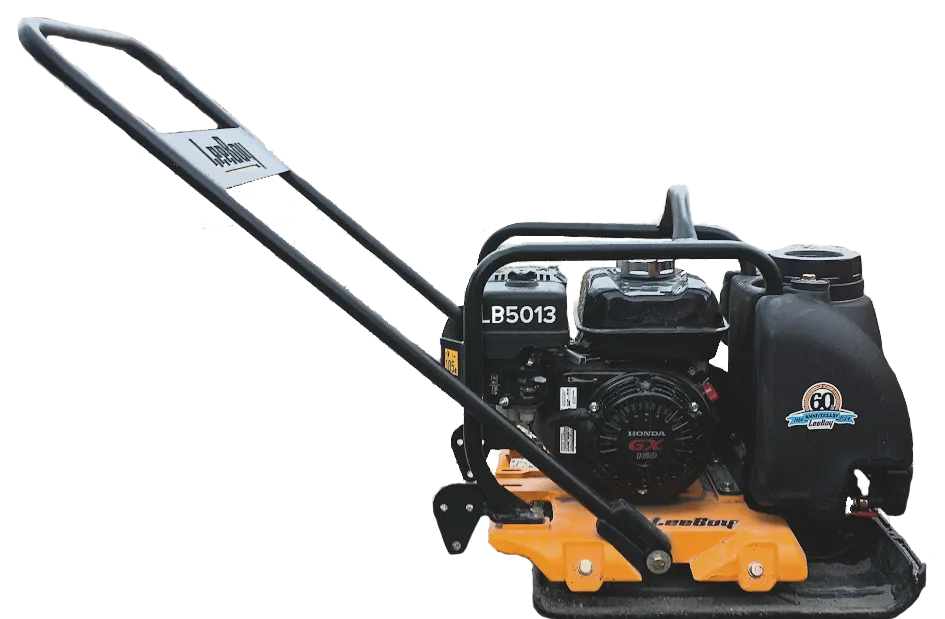

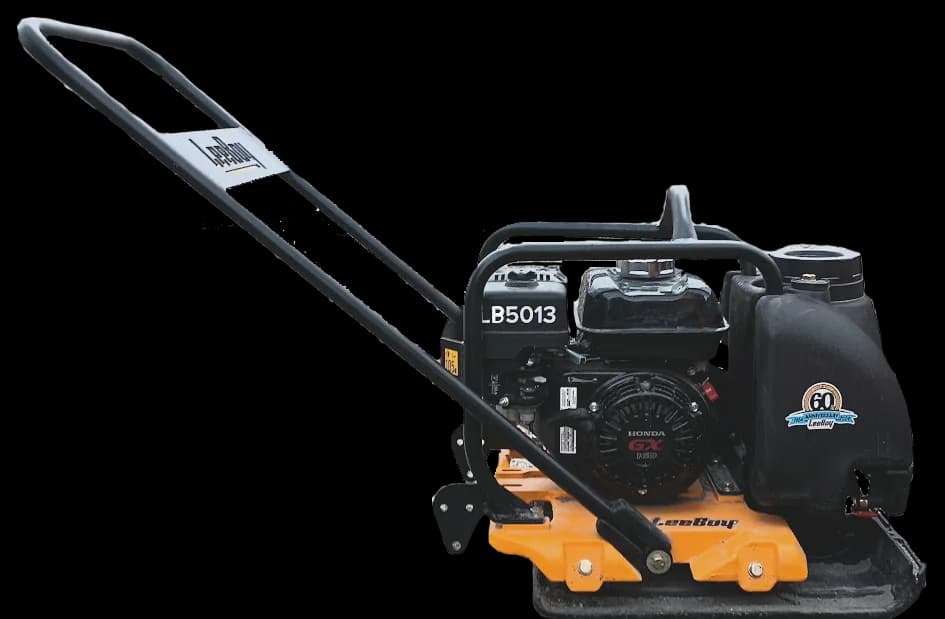

LB5013 Plate Compactor
Professional-grade single-direction plate compactor for asphalt patching, utility restoration, parking lots, driveways, and tight-area compaction.
Overview
Built for the way Texas crews work
The LeeBoy LB5013 is a professional-grade single-direction plate compactor for asphalt paving crews, patch crews, utility restoration, and tight-area compaction where a roller is too large.
LeeBoy positions the LB5013 around asphalt patchwork, driveways, parking lots, edging, and repair work. The removable water system helps prevent hot mix from sticking to the plate, which matters on patching and finish work.
200 lb operating weight in a compact single-direction plate format.
Honda GX160 gasoline engine rated at 5.5 HP.
2,923 lbf centrifugal force with 5,500 VPM vibration frequency.
Removable 13.7 qt water tank for asphalt applications.
96 ft/min travel speed for efficient patch and edge work.
Optional wheel transport kit and polyurethane paver stone pad kit.
Key Specs
- Operating weight
- 200 lb
- Engine
- Honda GX160
- Horsepower
- 5.5 HP
- Centrifugal force
- 2,923 lbf
- Vibration frequency
- 5,500 VPM
- Water tank
- 13.7 qt removable tank
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.

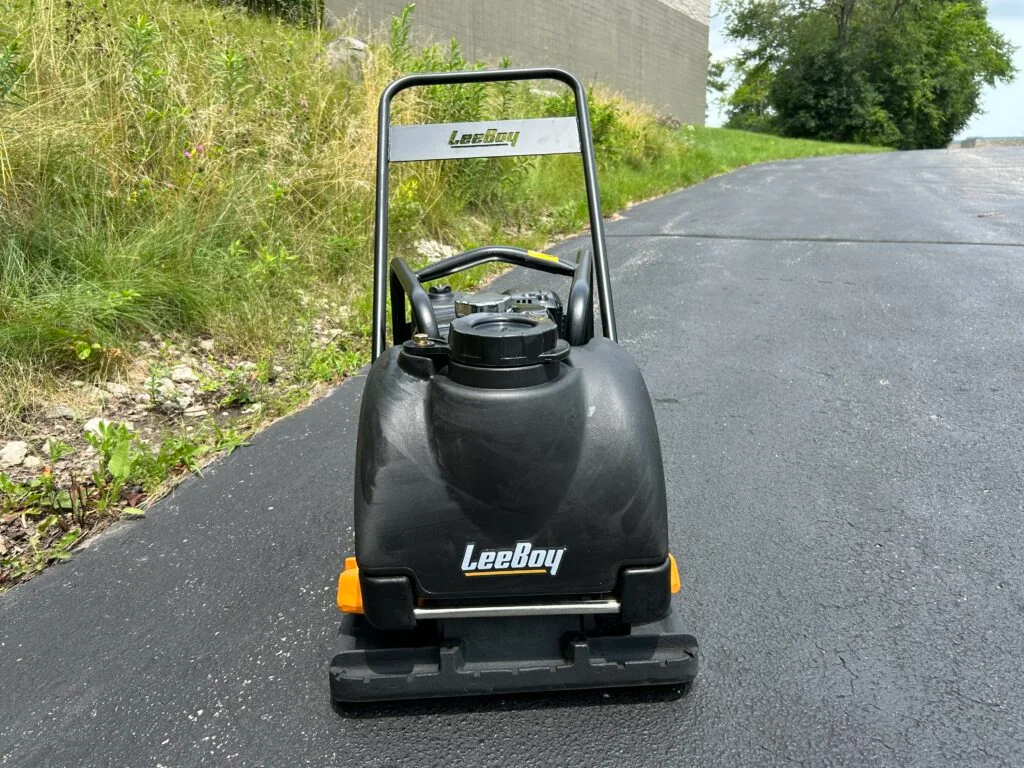

Patch and trench work
A 200 lb plate compactor is easier to place around utility cuts, edge patches, curbs, and narrow repair areas than a ride-on roller.

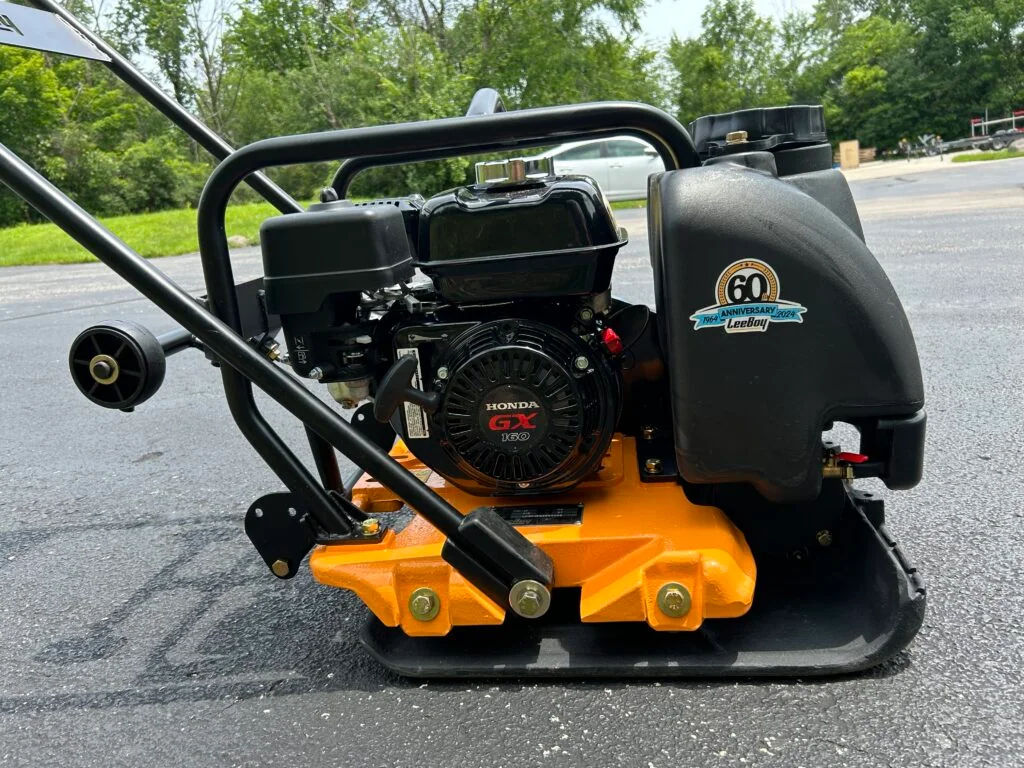

Paver stone option
The optional polyurethane pad kit lets crews use the LB5013 where surface protection is important.

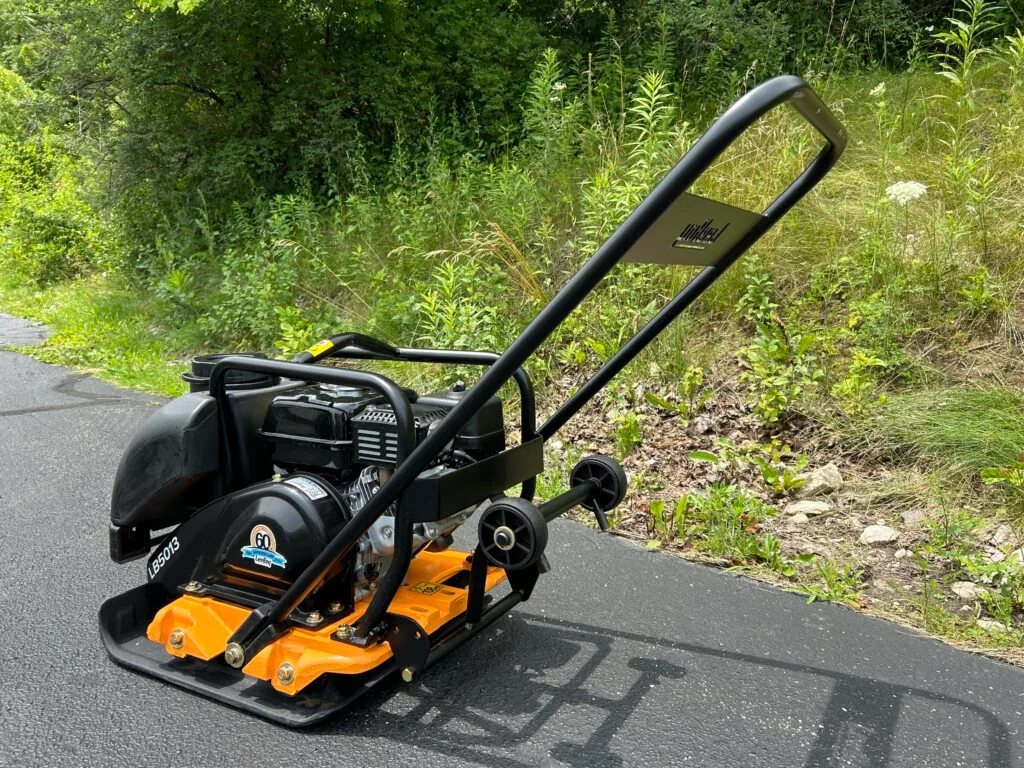

Simple field service
The Honda-powered layout keeps daily checks and service straightforward for paving and maintenance crews.
Technical Specifications
LB5013 Plate Compactor Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Engine and performance
- Engine model
- Honda GX160
- Horsepower
- 5.5 HP
- Rated speed
- 3,600 RPM
- Fuel tank capacity
- 3.3 qt
- Fuel consumption
- 1.5 qt/hr
- Starter
- Recoil
Compaction and water system
- Operating weight
- 200 lb
- Centrifugal force
- 2,923 lbf
- Vibration frequency
- 5,500 VPM
- Travel speed
- 96 ft/min
- Water tank capacity
- 13.7 qt
- Standard equipment
- Removable water tank
Available options
- Transport
- Wheel transport kit
- Paver protection
- Polyurethane paver stone pad kit
Features
LB5013 Plate Compactor advantages
Asphalt-ready water system
The removable water system helps reduce asphalt pickup when compacting hot mix patches, edges, and small repairs.

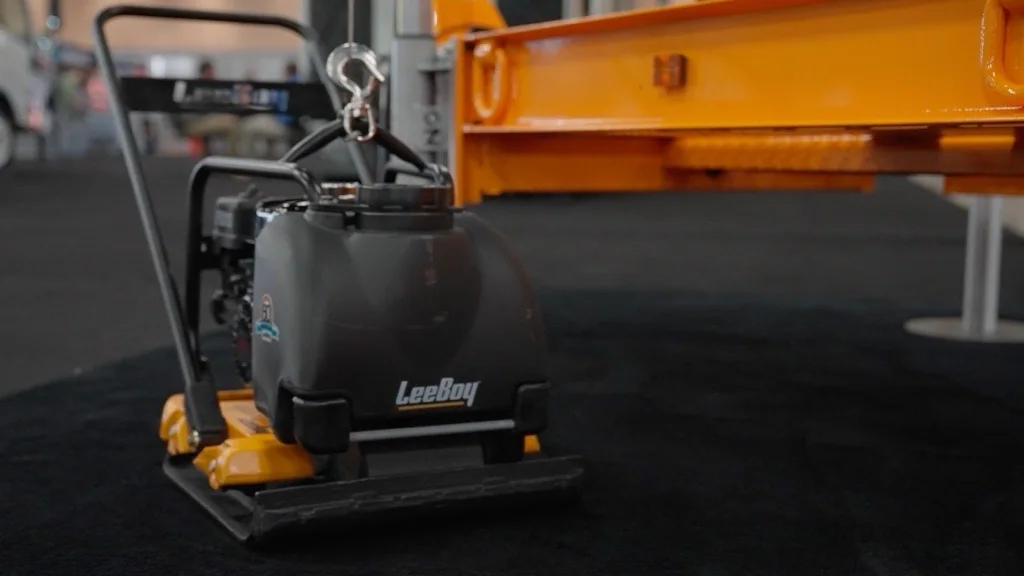

Honda GX160 power
A 5.5 HP Honda GX160 engine keeps the LB5013 simple, serviceable, and familiar for field crews.

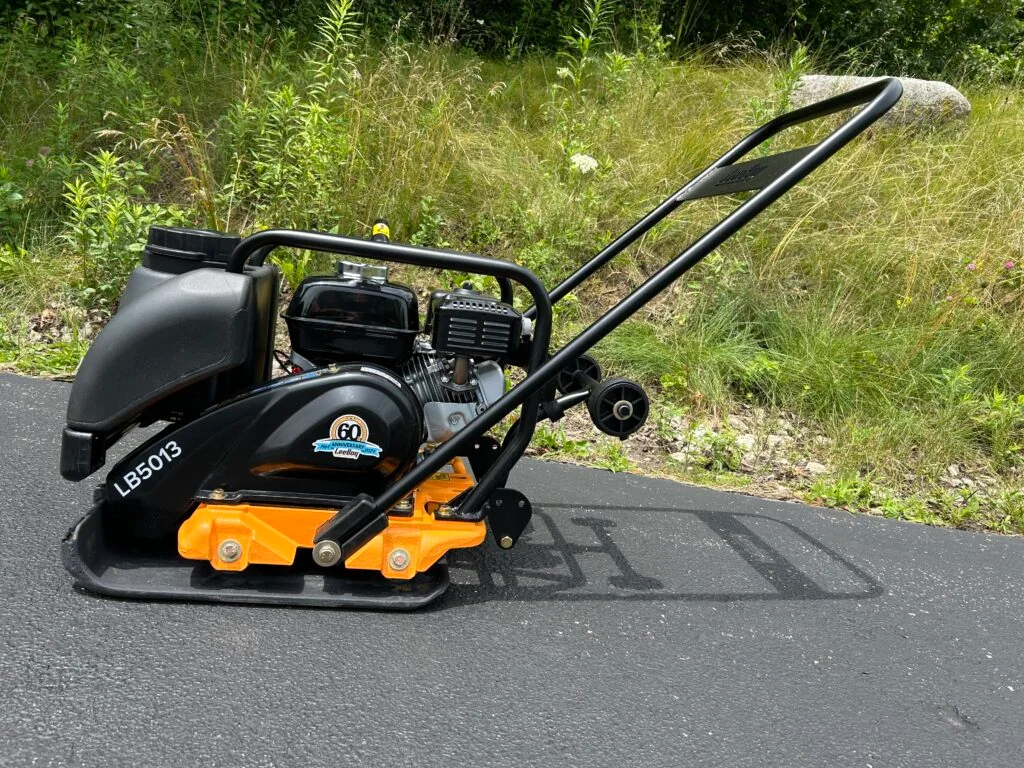

Crew-friendly transport
Optional wheel transport support makes it easier to move the plate compactor across parking lots, patch zones, and service yards.

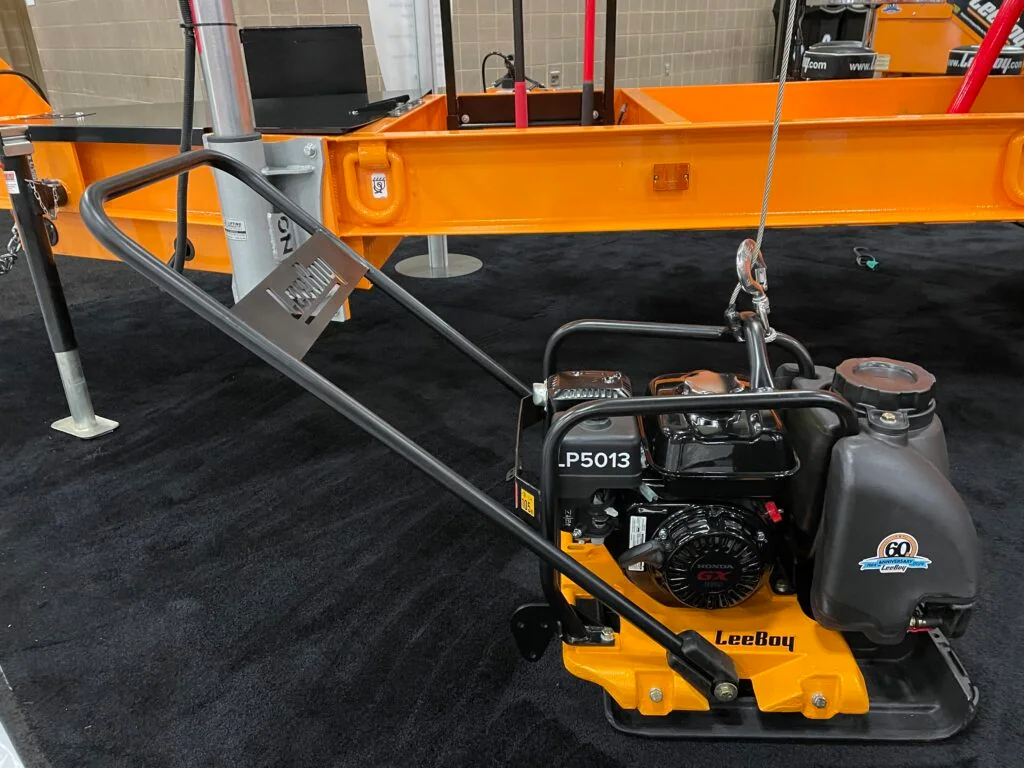

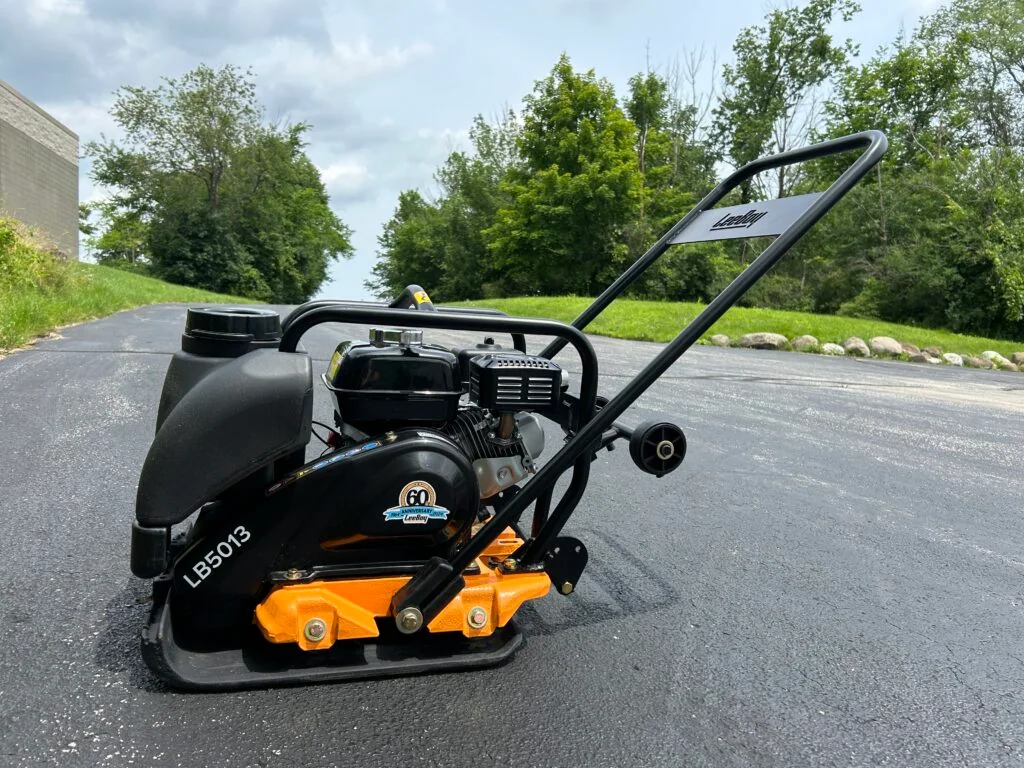

Gallery

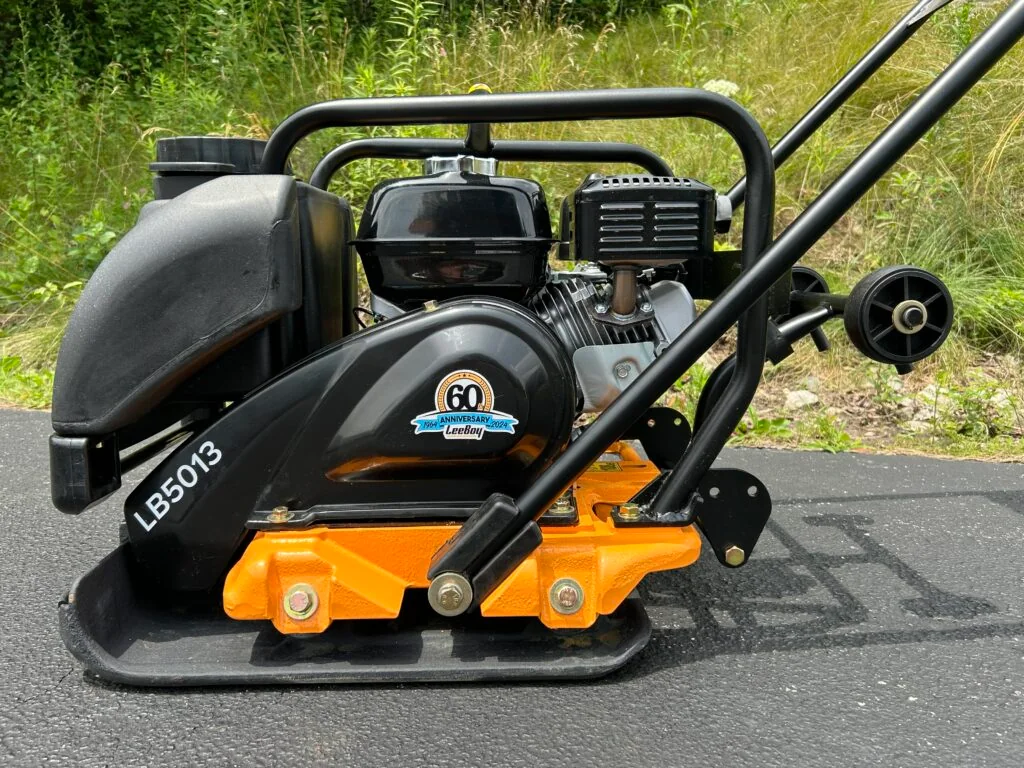

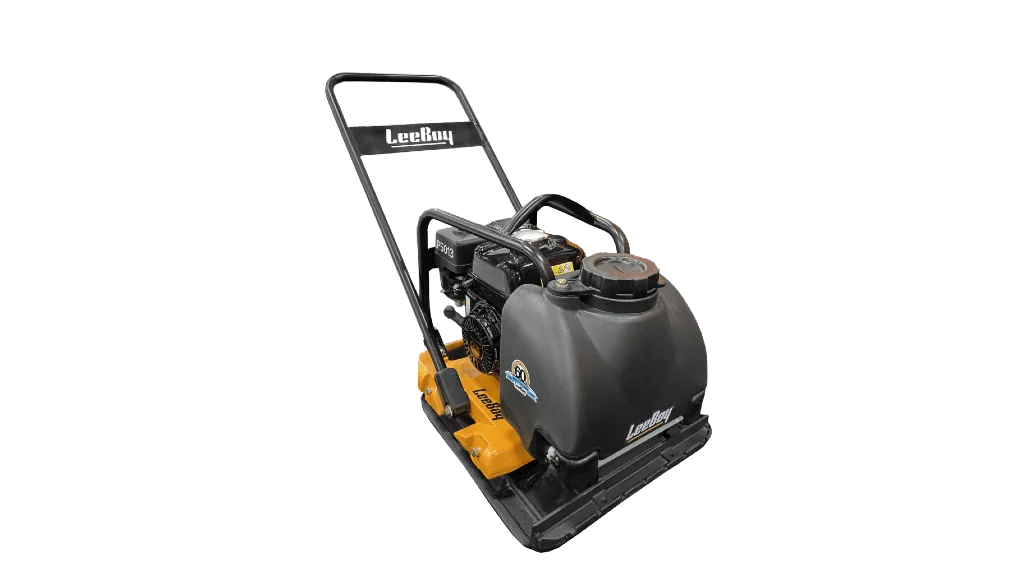

LB5013 Plate Compactor Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common LB5013 Plate Compactor Questions
What is the LeeBoy LB5013 used for?
The LB5013 is used for asphalt patching, trench restoration, driveways, parking lots, edging, and tight-area compaction where a ride-on roller is too large.
Does the LB5013 have a water system?
Yes. LeeBoy lists a removable 13.7 qt water tank as standard equipment to help reduce asphalt pickup.
What engine powers the LB5013?
LeeBoy lists the LB5013 with a Honda GX160 gasoline engine rated at 5.5 HP.
