LeeBoy Compaction
BR48
47.2 inch vibratory asphalt roller with Yanmar diesel power for commercial paving, municipal work, approaches, and parking lots.
Overview
Built for the way Texas crews work
The LeeBoy BR48 is a wider vibratory asphalt roller for commercial paving crews that need more drum width and machine weight than the BR36 while keeping a compact, practical LeeBoy footprint.
LeeBoy lists the BR48 with 47.2 inch drums, a 43.5 HP Yanmar diesel, liquid cooling, hydrostatic drive, 6,115 lb total weight, and a 52.8 gallon pressurized water system for parking lots, municipal paving, approaches, and repair work.
47.2 inch drum width for commercial asphalt compaction.
43.5 HP Yanmar liquid-cooled diesel engine.
6,115 lb total machine weight.
52.8 gallon pressurized water system.
Folding and spring-loaded scraper bars.
Dual-function travel levers listed by LeeBoy for operator control.
Key Specs
- Drum width
- 47.2 in
- Operating weight
- 6,115 lb
- Engine
- Yanmar diesel
- Horsepower
- 43.5 HP
- Water tank
- 52.8 gal
- Turning radius
- 16 ft 5 in outer
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Commercial paving fit
The BR48 is a natural pairing for LeeBoy commercial pavers on lots, city streets, patches, and approaches.
More machine than the BR36
With 6,115 lb total weight and 47.2 inch drums, the BR48 gives crews a meaningful step up in compaction platform.

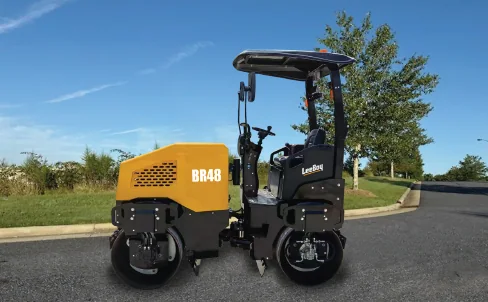

Water and scraper control
The water system and scraper bars are designed to keep asphalt work clean and consistent.
Technical Specifications
BR48 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions
- Length
- 8 ft 2 in
- Width
- 4 ft 4 in
- Height with folded ROPS
- 5 ft 10 in
- Curb clearance
- 20 in
- Outer turning radius
- 16 ft 5 in
- Total weight
- 6,115 lb
Engine and drum
- Engine
- Yanmar diesel
- Horsepower
- 43.5 HP @ 3,000 RPM
- Cooling
- Liquid cooled
- Fuel tank
- 15.8 gal
- Drum width
- 47.2 in
- Drum diameter
- 27.6 in
- Drum thickness
- 0.5 in
Water system
- Water capacity
- 52.8 gal
- System
- Pressurized water system
- Spray bar
- Stainless steel bar with adjustable nozzles
- Scrapers
- Folding and spring-loaded scraper bars
- Filter
- Cleanable water filter
Features
BR48 advantages
47.2 inch tandem drums
The wider drums give commercial crews more coverage per pass than the BR36 while staying compact enough for everyday paving support.
Yanmar diesel power
LeeBoy lists a 43.5 HP liquid-cooled Yanmar engine for stronger commercial-duty performance.
Larger water capacity
A 52.8 gallon water tank supports longer asphalt rolling cycles between refills.

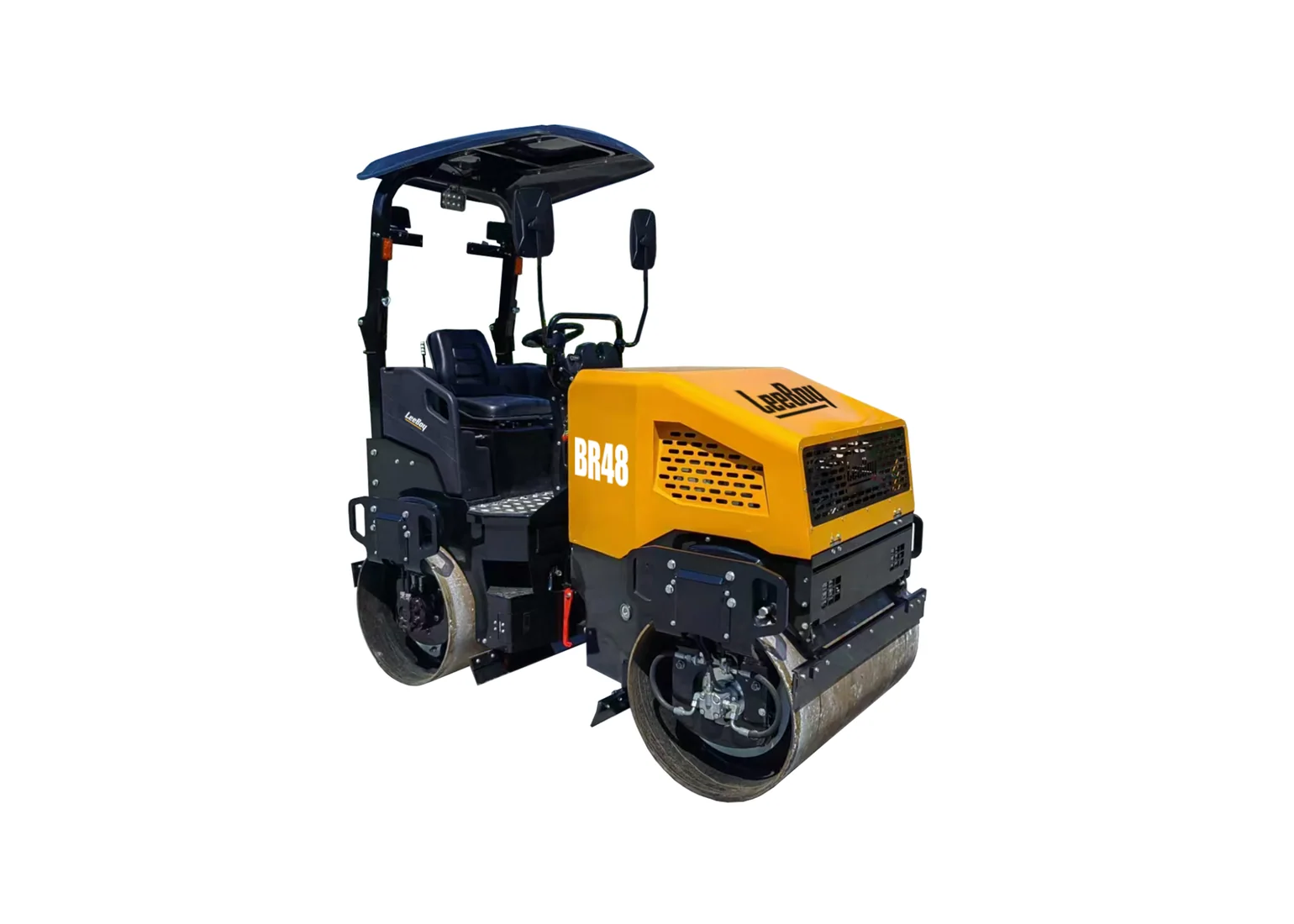

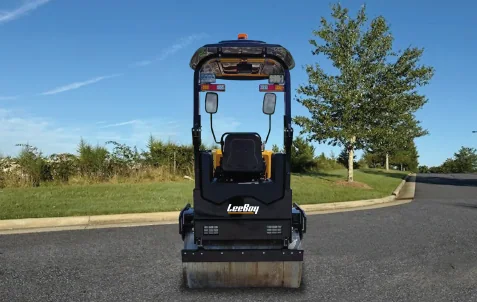

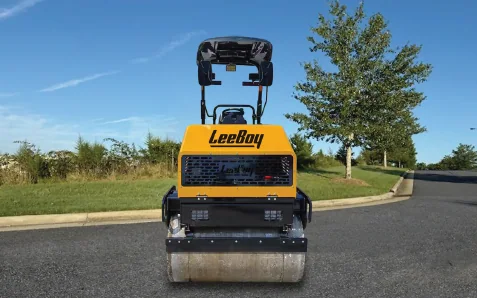

Gallery
BR48 Photos
Factory model photos and system views for a closer look at the machine.
FAQ
Common BR48 Questions
What drum width does the LeeBoy BR48 have?
LeeBoy lists the BR48 with 47.2 inch wide drums and a 27.6 inch drum diameter.
How much does the BR48 weigh?
LeeBoy lists total BR48 weight at 6,115 lb.
What engine powers the BR48?
The BR48 is listed with a Yanmar diesel engine rated at 43.5 HP at 3,000 RPM.
