LeeBoy Compaction
BR36
Compact 35.5 inch vibratory asphalt roller for patching, small lots, drive lanes, utility restoration, and finish compaction.
Overview
Built for the way Texas crews work
The LeeBoy BR36 is a compact vibratory asphalt roller with a 35.5 inch drum width, built for patching, small lots, approaches, drive lanes, and maintenance paving where a larger tandem roller is more machine than the job needs.
LeeBoy pairs the compact roller footprint with a Honda GX630 gasoline engine, hydrostatic transmission, pressurized water system, folding scraper bars, and a 31.7 gallon water tank for practical day-to-day asphalt compaction.
35.5 inch drum width for compact asphalt rolling.
20.8 HP Honda GX630 air-cooled gasoline engine.
2,640 lb total machine weight.
31.7 gallon pressurized water system.
Folding and spring-loaded scraper bars.
10 ft 6 in outer turning radius for tight jobsites.
Key Specs
- Drum width
- 35.5 in
- Operating weight
- 2,640 lb
- Engine
- Honda GX630
- Horsepower
- 20.8 HP
- Water tank
- 31.7 gal
- Turning radius
- 10 ft 6 in outer
Field Details
See the machine at work
Close-up photos and jobsite views show how the machine is built, configured, serviced, and used beyond the spec sheet.
Fits small paving work
The BR36 is the right conversation for patches, drive lanes, approaches, and small commercial jobs.
Manageable transport weight
At 2,640 lb, the BR36 is easier to pair with smaller crew trailers than heavier tandem rollers.
Pressurized water system
The 31.7 gallon water tank supports asphalt rolling by feeding adjustable nozzles over the drums.
Technical Specifications
BR36 Spec Details
Specifications below are pulled from manufacturer materials and Closner product research. Final build details can change by chassis, configuration, and option package.
Dimensions
- Length
- 6 ft 7 in
- Width
- 3 ft 4 in
- Height with folded ROPS
- 5 ft 10 in
- Height with ROPS
- 7 ft
- Curb clearance
- 14 in
- Outer turning radius
- 10 ft 6 in
- Total weight
- 2,640 lb
Engine and drum
- Engine
- Honda GX630
- Horsepower
- 20.8 HP @ 3,600 RPM
- Cooling
- Air cooled
- Fuel tank
- 5 gal
- Drum width
- 35.5 in
- Drum diameter
- 22 in
- Drum thickness
- 0.5 in
Water system
- Water capacity
- 31.7 gal
- System
- Pressurized water system
- Spray bar
- Stainless steel bar with adjustable nozzles
- Scrapers
- Folding and spring-loaded scraper bars
- Filter
- Cleanable water filter
Features
BR36 advantages
Compact asphalt drum
The 35.5 inch drum width is sized for patch crews, tight commercial work, and maintenance paving.
Honda gasoline power
The BR36 uses a Honda GX630 engine rated at 20.8 HP, keeping the powertrain familiar and easy to support.
Water and scraper package
The pressurized water system, adjustable nozzles, and spring-loaded scrapers help keep hot mix from building up on the drums.
Gallery
BR36 Photos

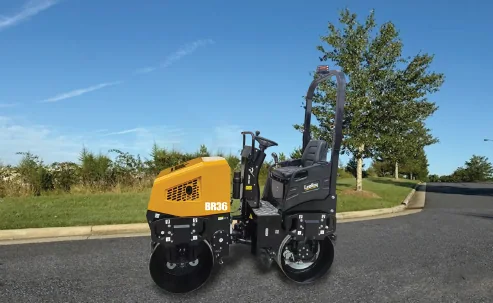

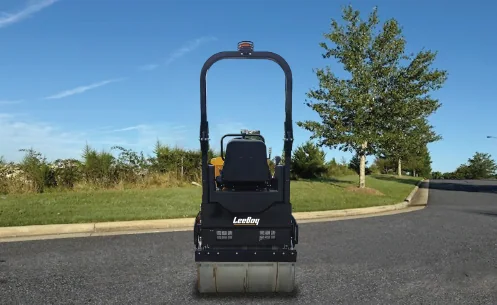

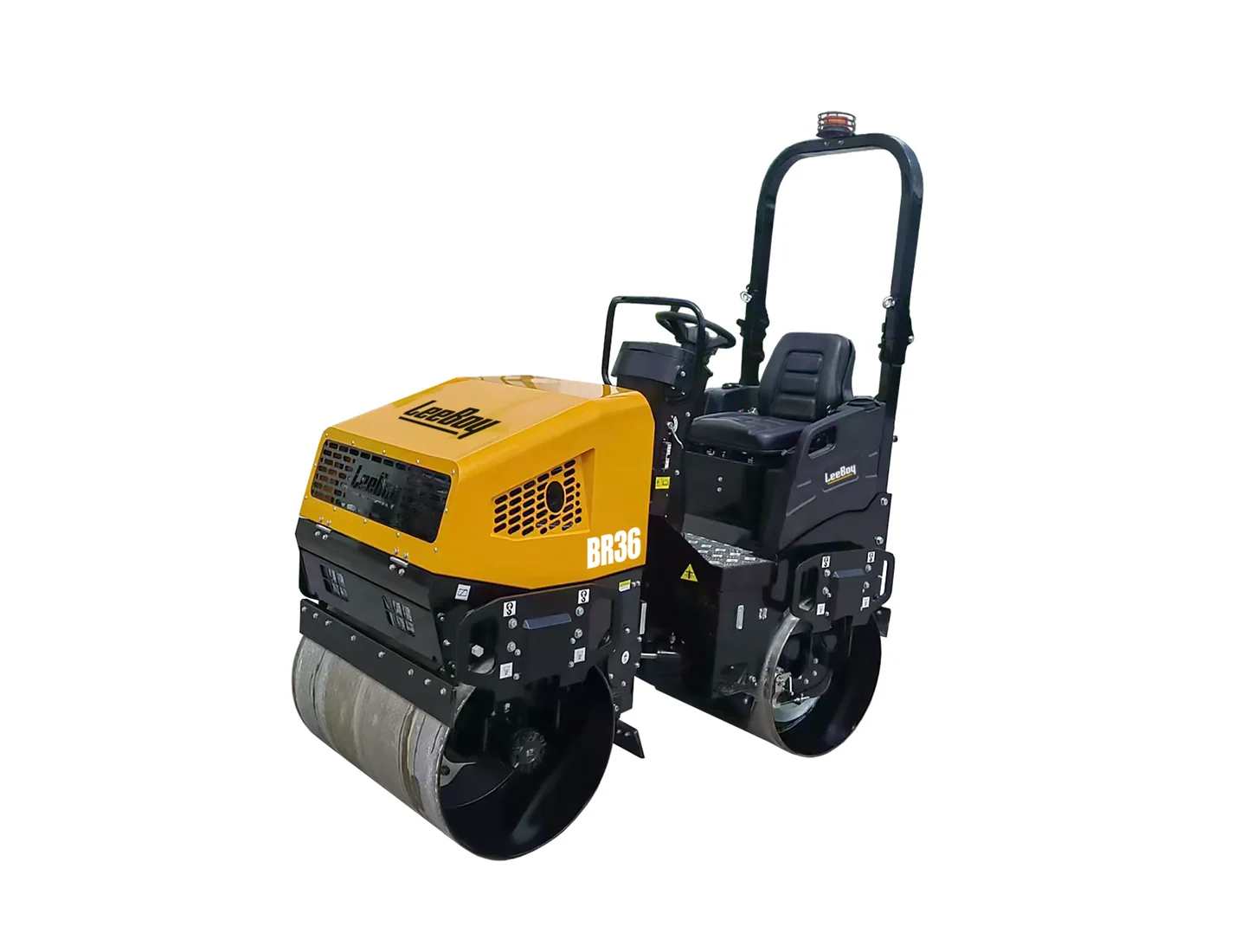

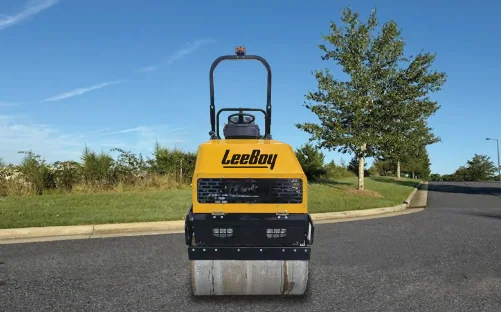

Factory model photos and system views for a closer look at the machine.
FAQ
Common BR36 Questions
What drum width does the LeeBoy BR36 have?
LeeBoy lists the BR36 with a 35.5 inch drum width and 22 inch drum diameter.
How much does the BR36 weigh?
LeeBoy lists total BR36 weight at 2,640 lb.
What engine is in the BR36?
The BR36 is listed with a Honda GX630 engine rated at 20.8 HP at 3,600 RPM.
